Multilayer Ceramic Capacitors (Temperature compensating type)
UMK063CG0R9CT-F
Features
Item Summary
0.9pF±0.25pF, 50V,
C0G/CG, 0201/0603 (EIA/JIS)
Lifecycle Stage
Non-preferred
Standard packaging quantity (minimum)
Taping paper 15000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
Q (min)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
Temperature Characteristic (JIS)
Operating Temp. Range (JIS)
Temperature Characteristic
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
10 GΩ
Yes
Yes
Yes
Reflow
0.9 pF ± 0.25pF
0201/0603
50 V
418 at 1MHz
C0G
-55 to +125 ℃
CG
-55 to +125 ℃
0 ±30 ppm/℃
200 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.6 ±0.03 mm
0.3 ±0.03 mm
0.3 ±0.03 mm
0.15 ±0.05 mm
2018.11.24
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

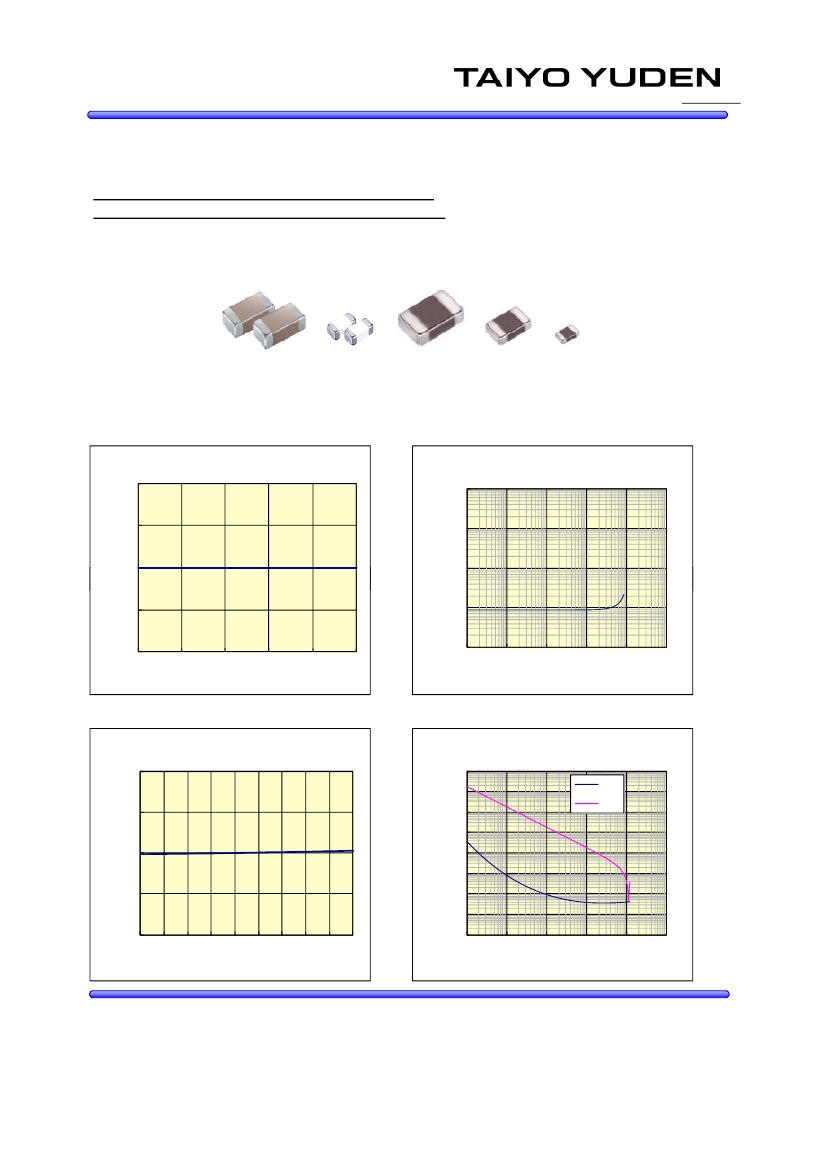

Multi Layer Ceramic Capacitor
○UMK063CG0R9CT
50V 0603 CG/C0G 0.9pF +/- 0.25pF t=0.33mmMAX
50V 0201 CG/C0G 0.9pF +/- 0.25pF t=0.013inchMAX
-Electrical Characteristics Data-
16CDD02
RoHS compliance product
10
UMK063CG0R9CT
DC Bias Char.
1000
100
UMK063CG0R9CT
Capa citance Freq.
5
0
Capa cita nce[pF]
apa
n
dC/C
dC/C[%]
10
1
0.1
-5
-10
0
10
20
30
40
DC Bias Voltage[V]
50
1
10
100
1000
10000 100000
Frequency[MHz]
UMK063CG0R9CT
Capacitance Temp.
10
1000000
100000
5
10000
UMK063CG0R9CT
Impedance,ESR Freq.
ESR
Z
0
Z,ESR[OHM]
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
dC/C[%]
1000
100
10
1
0.1
-5
-10
0.01
1
10
100
1000 10000 100000
Frequency[MHz]
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
