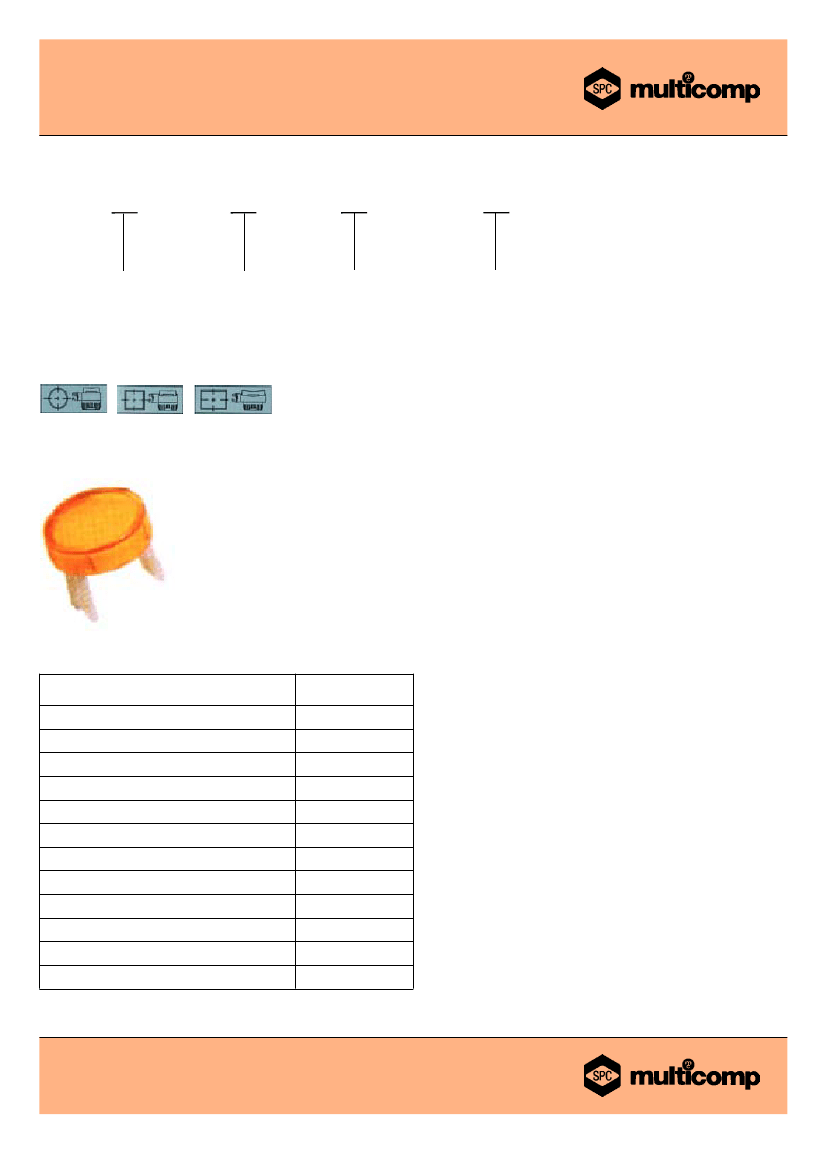

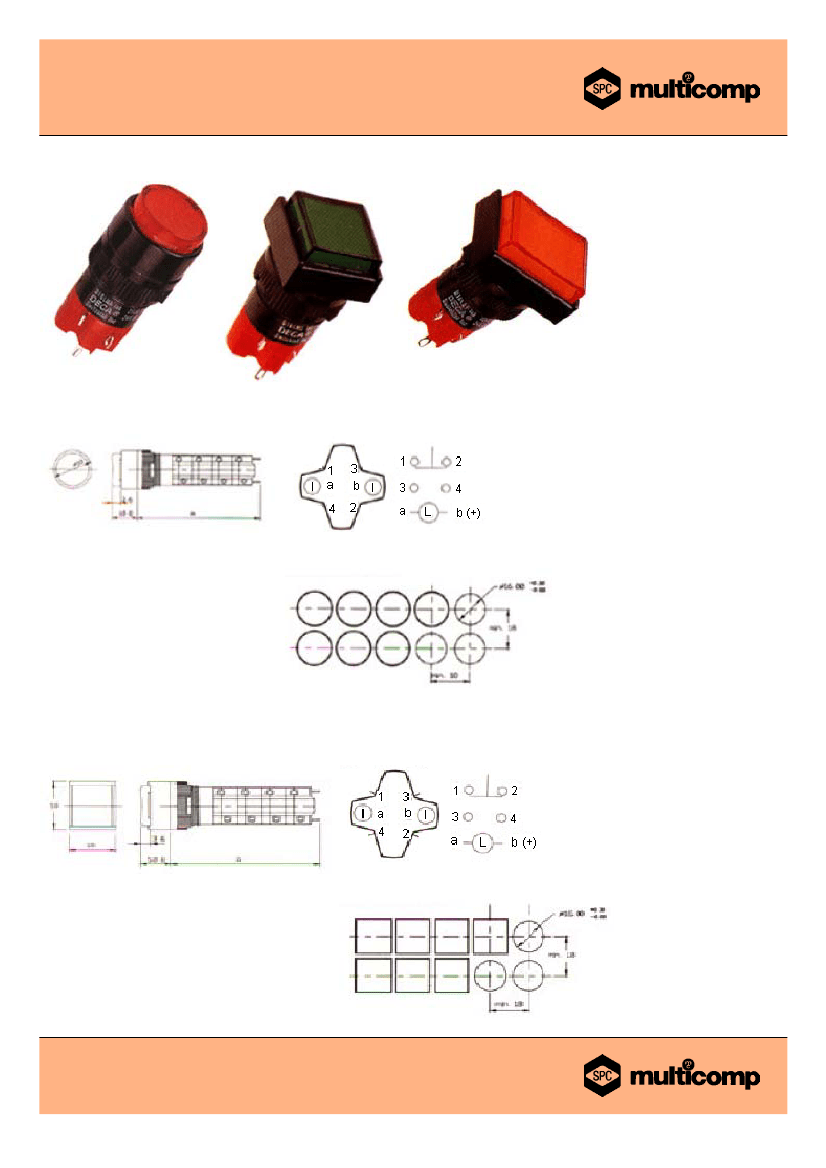

LM = Soldering type pushbutton switches with momentary action,
LA = Soldering type pushbutton switches with alternate action.
:
T1

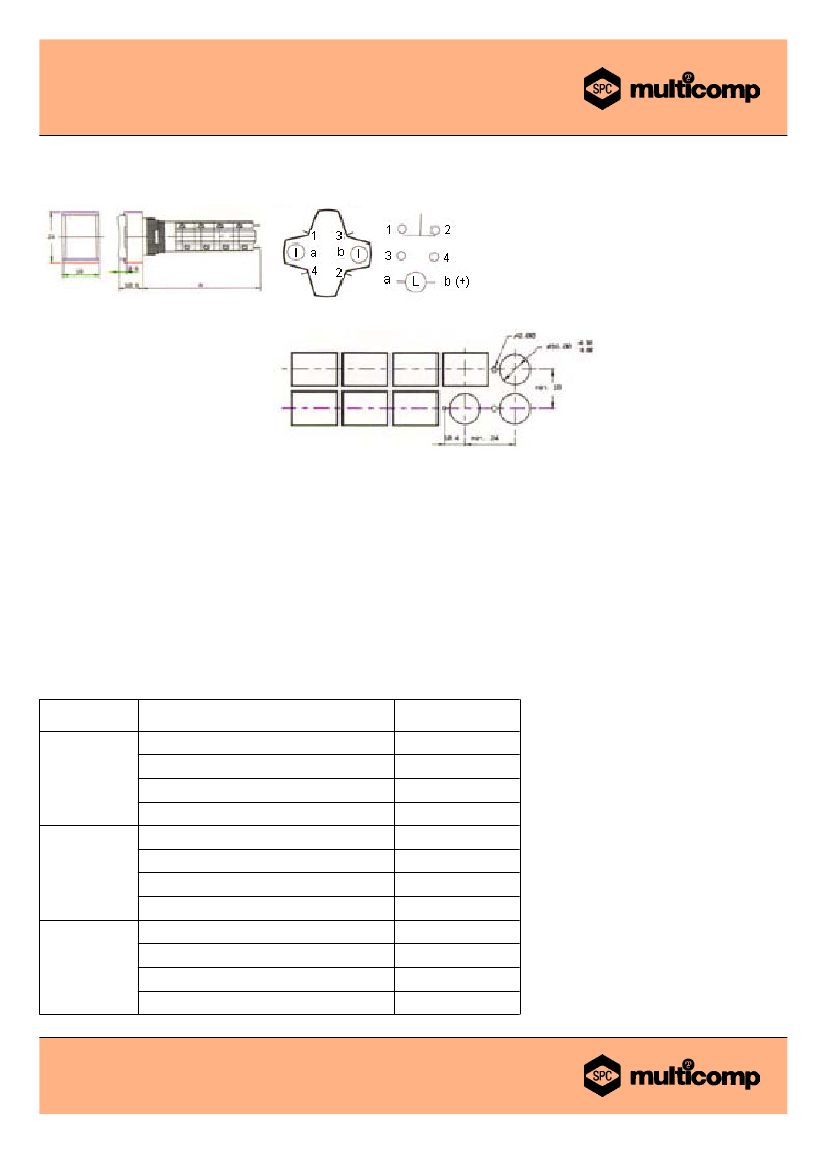

Contact Arrange
:
1AB = 1 NO + 1 NC, 2AB = 2 NO + 2 NC.
Round (Concave)
Part Number Table
Description
Lens, Blue, Round, 18mm, For D16
Lens, Green, Round, 18mm, For D16
Lens, Orange, Round, 18mm, For D16
Lens, Red, Round, 18mm, For D16
Lens, White, Round, 18mm, For D16
Lens, Yellow, Round, 18mm, For D16
Lens, Blue, 18 x 18mm, For D16
Lens, Green, 18 x 18mm, For D16
Lens, Orange, 18 x 18mm, For D16
Lens, Red, 18 x 18mm, For D16
Lens, White, 18 x 18mm, For D16
Lens, Yellow, 18 x 18mm, For D16
Part Number
50-001-01
50-001-02
50-001-03
50-001-04
50-001-05
50-001-06
50-003-01
50-003-02
50-003-03
50-003-04
50-003-05
50-003-06
http://www.farnell.com
http://www.newark.com
http://www.cpc.co.uk
Page <3>
20/08/09 V1.1
Push Button Switches
Part Number Table
Description
Lens, Blue, 18 x 24mm, For D16
Lens, Green, 18 x 24mm, For D16
Lens, Orange, 18 x 24mm, For D16
Lens, Red, 18 x 24mm, For D16
Lens, White, 18 x 24mm, For D16
Lens, Yellow, 18 x 24mm, For D16
Part Number
50-002-01
50-002-02
50-002-03
50-002-04
50-002-05
50-002-06

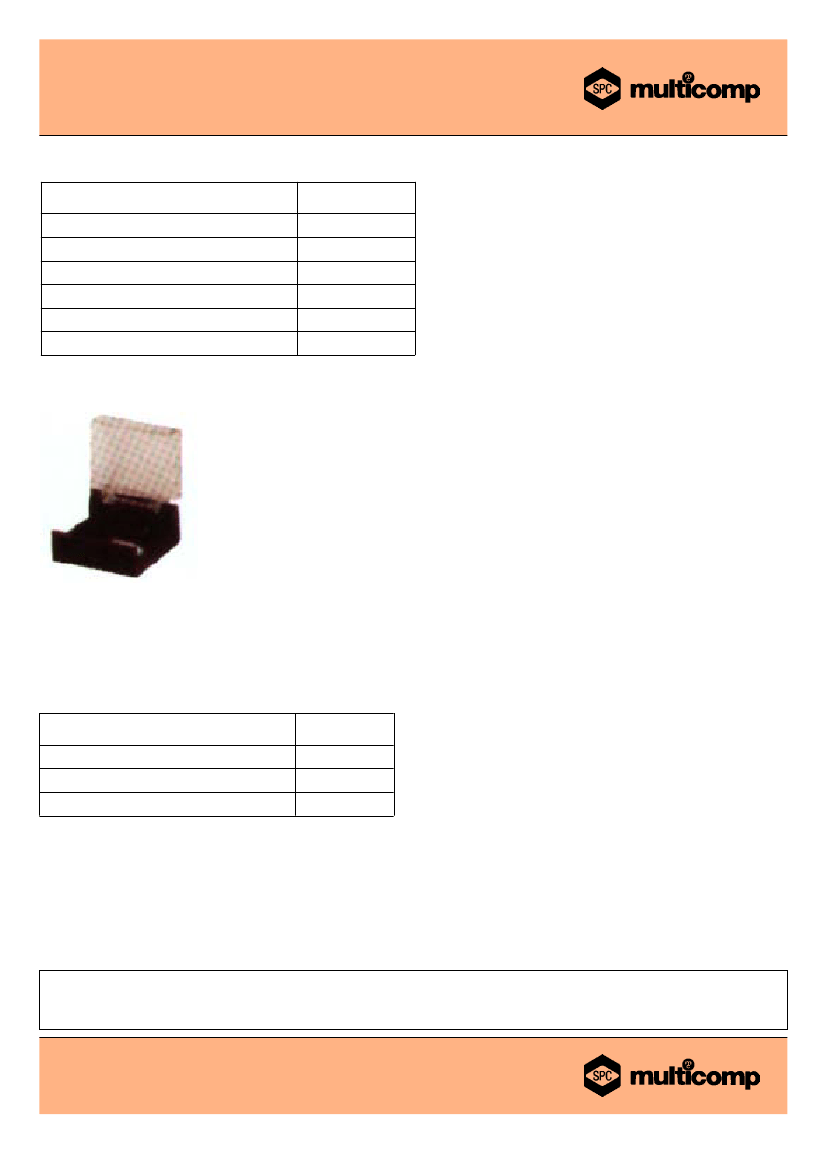

Protection Cap
Specifications:
50-011-01
50-010-01
50-011-02
: For square head (90°).
: Most requirement of IP65, two pieces of transparent plastic, rectangular head.
: For rectangular head (90°)
Part Number Table
Description
Cover, Protection, 18 x 18mm, For D16
Cover, Splashguard, 18 x 24mm, For D16
Cover, Protection, 18 x 24mm, For D16
Part Number
50-011-01
50-010-01
50-011-02
