Spec Sheet
CERAMIC CAPACITORS
High Value Multilayer Ceramic Capacitors (High dielectric type)
UMK325BJ106KM-T
Features
Item Summary
50V, X5R, 10μF, ±10%, 1210
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 500pcs
Products characteristics table
CaseSize (EIA/JIS)
Rated Voltage (max)
Capacitance
Capacitance Tolerance
Resistance
Dielectric Loss Tangent
Temperature Characteristics (EIA/JIS)
Temperature Range (EIA/JIS)
Capacitance Change (EIA/JIS)
RoHS Compliance
Halogen Free
Soldering Method
1210/3225
50V
10μF
±10%
100 MΩ・μF min.
5%MAX
X5R/-
-55 to +85℃/-
±15/-%
Yes
Yes
Reflow
External Dimensions
L
W
T
e
3.2mm ±0.30
2.5mm ±0.20
2.5mm ±0.20
0.6mm ±0.3
2014.12.10
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○UMK325BJ106KM
50V 3225 X5R 10uF +/- 10% t=2.7mmMAX
50V 1210 X5R 10uF +/- 10% t=0.106inchMAX
1000

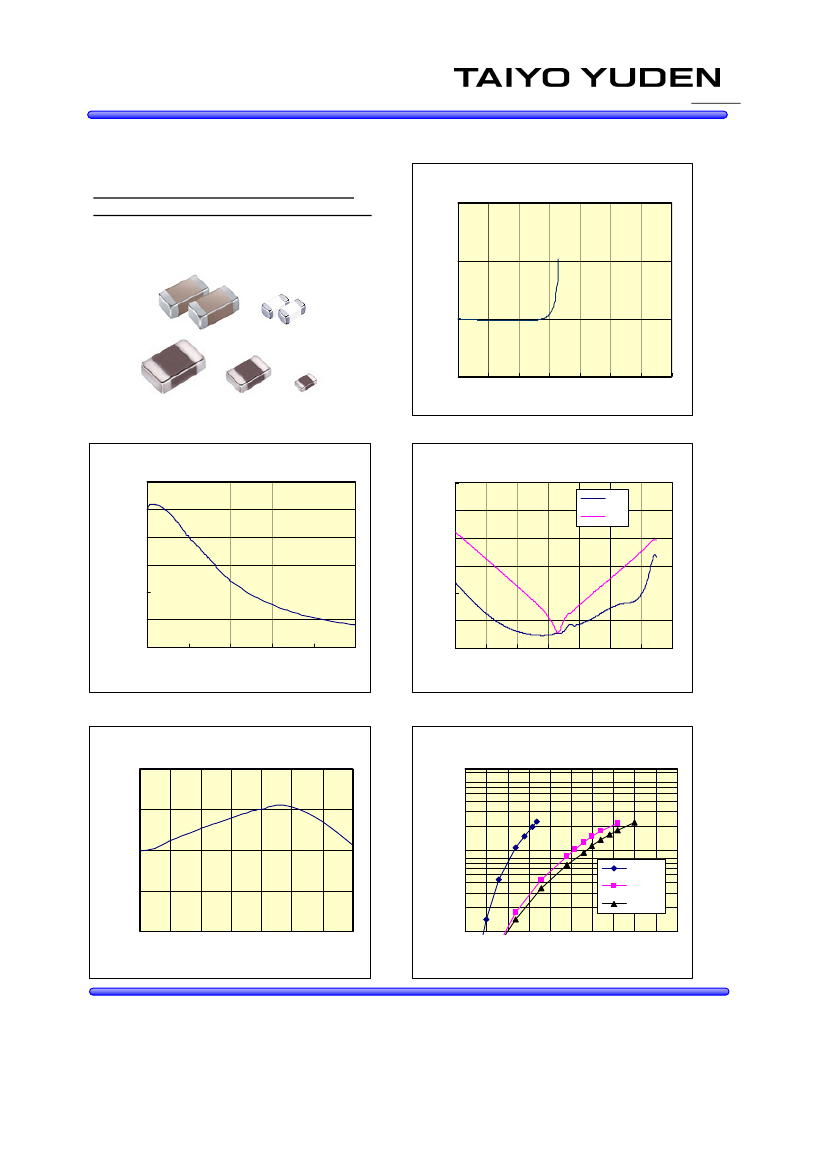

-Electrical Characteristics Data-
12HA07
RoHS compliance product
UMK325BJ106KM
Capacitance Freq.
Capacitance[uF]
100
10
1
0.001 0.01
0.1
Frequency[MHz]
1
10
100
1000 10000
20
0
-20
dC/C[%]
-40
-60
-80
-100
0
10
UMK325BJ106KM
DC Bias Char.
1000
100
UMK325BJ106KM
Impedance,ESR Freq.
ESR
Z
Z,ESR[OHM]
10
1
0.1
0.01
0.001
20
30
40
DC Bias Voltage[V]
50
0.001 0.01
0.1
1
10
100
1000 10000
Frequency[MHz]
UMK325BJ106KM
Capacitance Temp.
10
100
UMK325BJ106KM
Ripple Current
dTemp.[degreeC]
0
dC/C[%]
-10
10
10kHz
100kHz
1M Hz
-20
-30
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
1
0
0.5 1
1.5 2 2.5 3 3.5 4
Ripple Current[Arms]
4.5 5
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the Date at any time without notice.
Before making final selection, please check product specification
