MIMH305048AH-1.500MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MIMH305048AH-1.500MHZ

MIMH305048AH-1.500MHZ: DescriptionHCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN; CategoryPassive components oscillator; File Size48KB，1 Pages; ManufacturerMMD Monitor/Quartztek; Websitehttp://mmdcomp.com; Environmental Compliance

Download Datasheet Parametric Compare View All

MIMH305048AH-1.500MHZ Overview

HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN

MIMH305048AH-1.500MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	MMD Monitor/Quartztek
Reach Compliance Code	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK
maximum descent time	6 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	1.5 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS
Output load	5 TTL, 30 pF
physical size	7.2mm x 5.2mm x 1.7mm
longest rise time	6 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	YES
maximum symmetry	45/55 %

Preview

Download Datasheet

View All

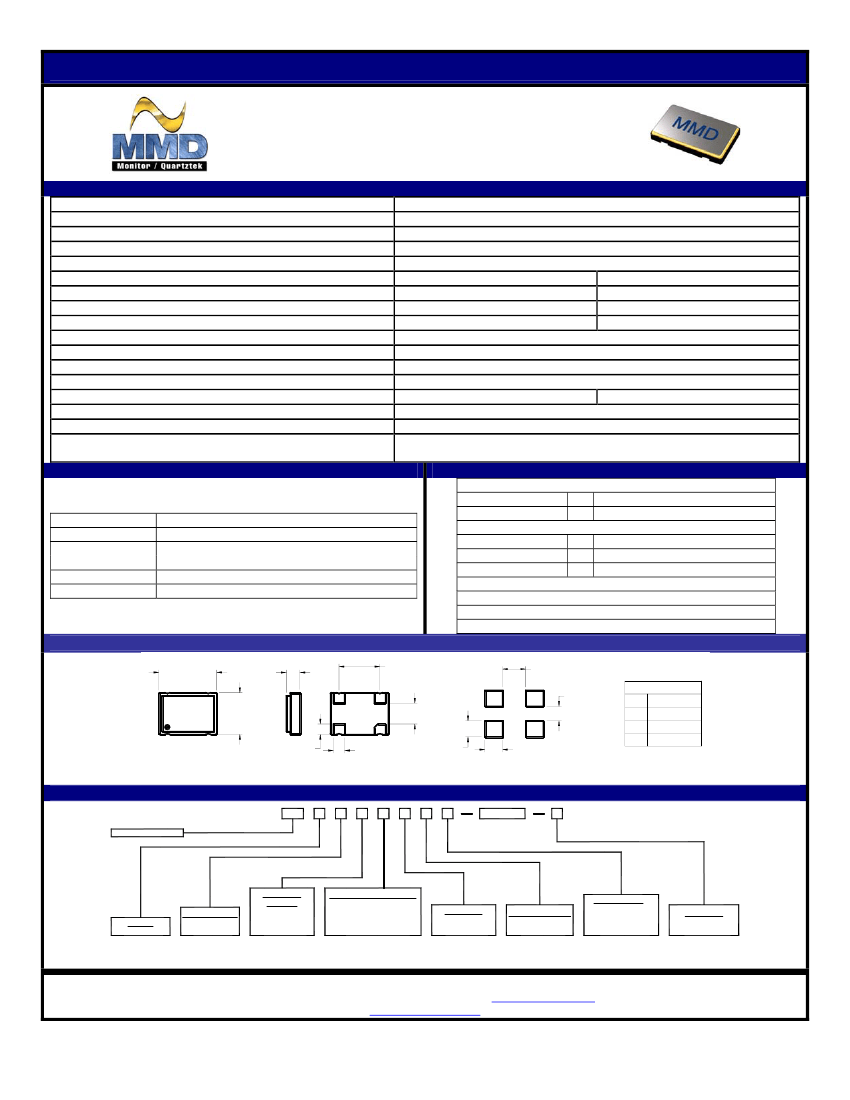

MIMH SERIES – 5 x 7 Ceramic Oscillator

5 x 7 Ceramic SMD 4 Pads Oscillator

Wide Frequency Range

-55°C to +125°C Operation

RoHS Compliant

ELECTRICAL SPECIFICATIONS:

Frequency Range

Freq Tolerance @ +25°C

Freq Stability (Inclusive of Temp., Load, Voltage, and Aging)

Operating Temp Range

Storage Temp. Range

Supply Voltage (Vdd)

Supply Current

1.500MHZ to 20.000MHZ

21.000MHZ to 50.000MHZ

51.000MHZ and above

Waveform

Logic “0”

Logic “1”

Symmetry (50% of wavefrom)

Load

Rise / Fall Time (20% to 80%)

Start Time

Tri-state Operation

1.500MHZ to 156.520MHZ

±25ppm

(See Part Number Guide for Options)

-55°C to +125°C

+3.3 VDC ±5%

+5.0 VDC ±5%

12 mA max

20 mA max

15 mA max

35 mA max

40 mA max

60 mA max

HCMOS

10% Vdd max

90% Vdd min

(See Part Number Guide for Options)

5 TTL Gates or 30pF Load max

10 TTL Gates or 50pF Load max

6 nSec max

10 mSec max

Vih = 70% of Vdd min to Enable Output

Vil = 30% max or grounded to Disable Output (High Impedance)

ENVIRONMENTAL/MECHANICAL SPECIFICATIONS:

MARKING DETAILS:

Line 1 = MXXXXX

M = MMD COMPONENTS

XXXXX = Frequency in MHZ

Line 2 = SYYMML

S = Internal Code

YYMM = 4 Digit Date Code (Year / Month)

L = Denotes RoHS Compliant

Line 3 = XXXXX

Internal use only

May vary with lots

Black dot to denote Pin 1

Shock

Vibration

Reflow Solder

Hermeticity

Solderability

MIL-STD 883, Method 2002, Test Condition B

MIL-STD 883, Method 2007, Test Condition B

+160°C for 120 sec max

+260°C for 10 sec. max

MIL-STD 883, Method 1014, Test Condition C

MIL-STD 883, Method 2003 (No Aging)

MECHANICAL DIMENSIONS:

7.20 [.283]

MAX

1.70 [.067]

MAX

5.08 [.200]

2.88 [.113]

Pin Connections

Pin 1 Tri-state or N/C

Pin 2 Case Ground

Pin 3 Output

2.00 [.079]

Pin 4 Supply Voltage

2.20 [.087]

Recommended Land

Pattern

1.81 [.071]

MARKING

5.20 [.205]

MAX

2.60 [.102]

1.30 [.051]

Dimension in Brackets are in Inches

External Bypass Capacitor is Recommended

1.40 [.055]

PART NUMBERING GUIDE:

MIM

5 x 7 SMD 4 PADS

Frequency

Output

H = HCMOS

Supply Voltage

3 = +3.3 VDC

5 = +5.0 VDC

Frequency

Stability

025 = ±25 ppm*

050 = ±50 ppm

100 = ±100 ppm

Operating Temperature

Blank = 0°C to +70°C

48 = -40°C to +85°C

50 = -55°C to +105°C

55 = -55°C to +125°C

Symmetry

Blank = 40/60%

A = 45/55%

Pin 1 Connection

Blank = N/C

H = Tri-state

Special Specs

Blank = No Screening

M = 100% Screening

over Temperature

Packaging

Blank = Bulk

T = Tape and Reel

Please Consult with MMD Sales Department for any other Parameters or Options

*±25 ppm between -40°C to +85°C only

MMD Components,

30400 Esperanza, Rancho Santa Margarita, CA, 92688

Phone: (949) 709-5075, Fax: (949) 709-3536,

www.mmdcomp.com

Sales@mmdcomp.com

Specifications subject to change without notice

Revision MIMH081109L

MIMH305048AH-1.500MHZ Related Products

	MIMH305048AH-1.500MHZ	MIMH5100H-156.520MHZ	MIMH5100H-156.520MHZ-T	MIMH5100H-1.500MHZ	MIMH5100H-1.500MHZ-T	MIMH502548AH-1.500MHZ	MIMH305050HM-1.500MHZ-T
Description	HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 156.52MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 156.52MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN	HCMOS Output Clock Oscillator, 1.5MHz Nom, ROHS COMPLIANT, CERAMIC, SMD, 4 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	MMD Monitor/Quartztek	MMD Monitor/Quartztek	MMD Monitor/Quartztek	MMD Monitor/Quartztek	MMD Monitor/Quartztek	MMD Monitor/Quartztek	MMD Monitor/Quartztek
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
Other features	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL	TRI-STATE; ENABLE/DISABLE FUNCTION; BULK	TRI-STATE; ENABLE/DISABLE FUNCTION; TAPE AND REEL
maximum descent time	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO
frequency stability	50%	100%	100%	100%	100%	25%	50%
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Nominal operating frequency	1.5 MHz	156.52 MHz	156.52 MHz	1.5 MHz	1.5 MHz	1.5 MHz	1.5 MHz
Maximum operating temperature	85 °C	70 °C	70 °C	70 °C	70 °C	85 °C	105 °C
Oscillator type	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS	HCMOS
Output load	5 TTL, 30 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	10 TTL, 50 pF	5 TTL, 30 pF
physical size	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm	7.2mm x 5.2mm x 1.7mm
longest rise time	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns	6 ns
Maximum supply voltage	3.465 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	3.465 V
Minimum supply voltage	3.135 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	3.135 V
Nominal supply voltage	3.3 V	5 V	5 V	5 V	5 V	5 V	3.3 V
surface mount	YES	YES	YES	YES	YES	YES	YES
maximum symmetry	45/55 %	40/60 %	40/60 %	40/60 %	40/60 %	45/55 %	40/60 %
Base Number Matches	-	1	1	1	1	-	-
