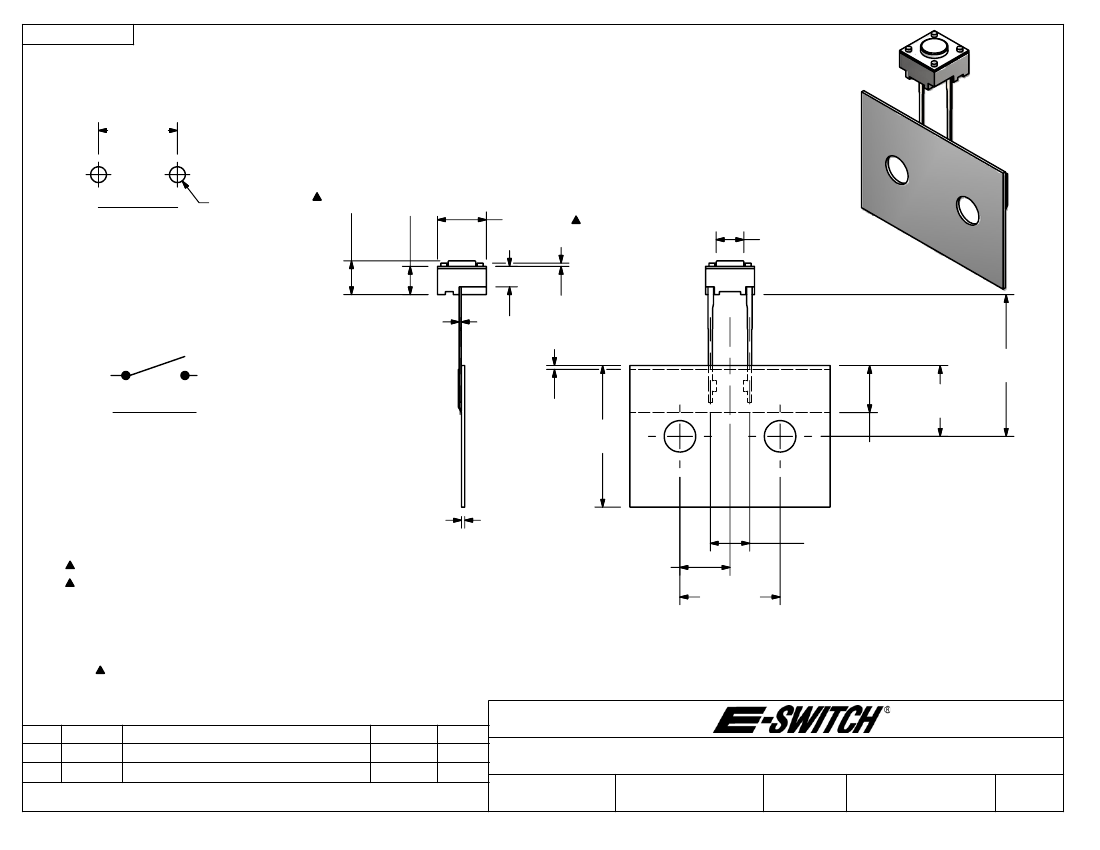

SHEET 1 OF 1
5.00
[.197 in]
PC MOUNTING
[.039 in]
n
1.00
4.30
3.60
[.169 in] [.142 in]
o
[.244 in]
6.20
n
3.50
[.138 in]
.25
[.010 in]
2.60
[.102 in]
.40
[.016 in]
18.00
`
.20
[.709
`
.008
in]
1
2
.50
[.020 in]
CIRCUIT: SPST
9.00
[.354 in]
18.00
[.709 in]
6.00
[.236 in]
NOTES:
1. ALL DIMENSIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4mm
X.XX=
`
0.25mm
3. CONTACT RATING: 50mA @ 12VDC
4. CONTACT MATERIAL: SILVER
5. OPERATING FORCE: 260
`
50gf
6. TRAVEL: 0.25 +0.2/-0.1mm
7. CONTACT RESISTANCE: 100m
W
MAX.
8. ELECTRICAL LIFE: 100,000 CYCLES
9. PACKAGING: 1,000 PCS RADIAL
10. 2002/95/EC (ROHS) COMPLIANT
11.
DENOTES CRITICAL PRAMETERS.
.40
[.016 in]
6.35
[.250 in]
12.70
[.500 in]
5.00
[.197 in]
B
A
REV
16884
15808
PCR NO
UPDATE NOTES, .30 DIM TO .25
RELEASED FOR PRODUCTION
DESCRIPTION
1/18/2007
2/23/06
DATE
TN
PH
BY
TITLE
SCALE
TL59NF260Q
2:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1/18/2007
TN
P010622
B
