SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0702, Rev. -
48CTQ060
48CTQ060S
48CTQ060-1
Green Products
48CTQ060/48CTQ060S /48CTQ060-1
SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
•
•
•
•
•
•
Switching power supply
Converters
Free-Wheeling diodes
Reverse battery protection
150°C T
J
operation
Center tap configuration
Low forward voltage drop
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and
moisture resistance
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Features:
48CTQ060
Case styles
48CTQ060S
48CTQ060-1
TO-220AB
D
2
PAK

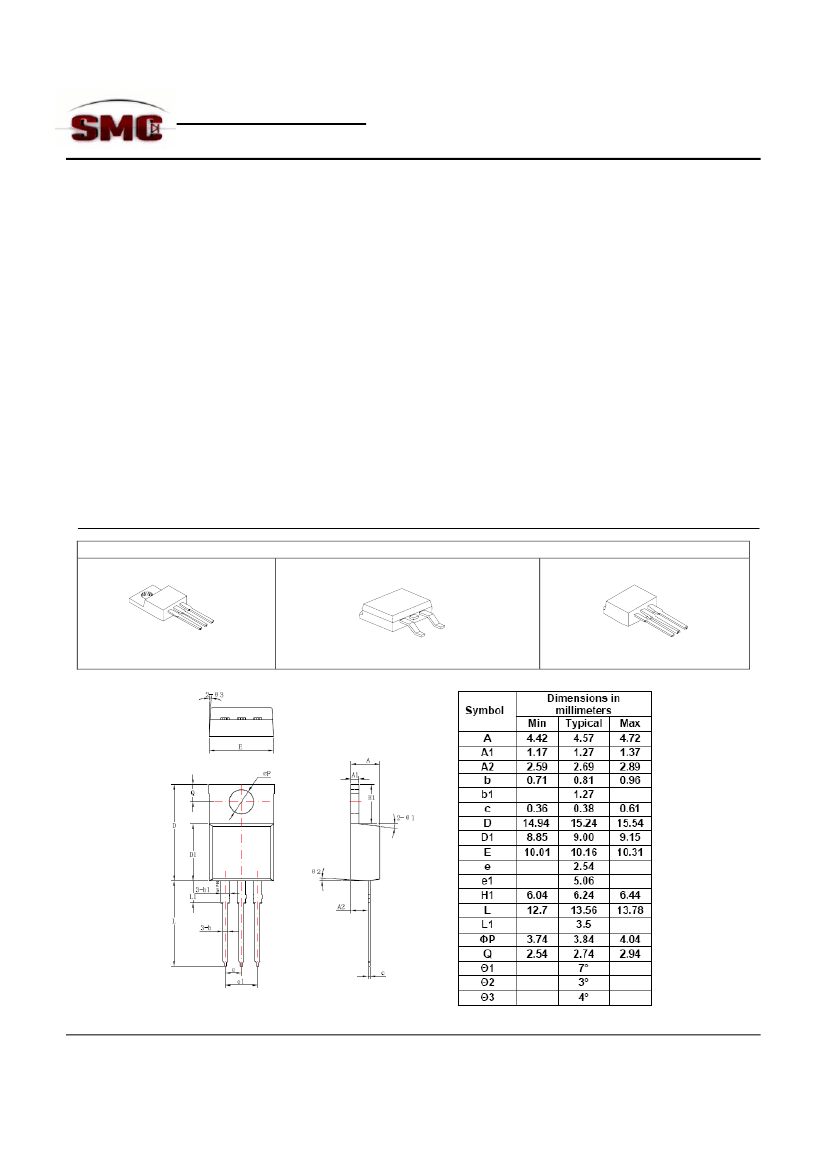

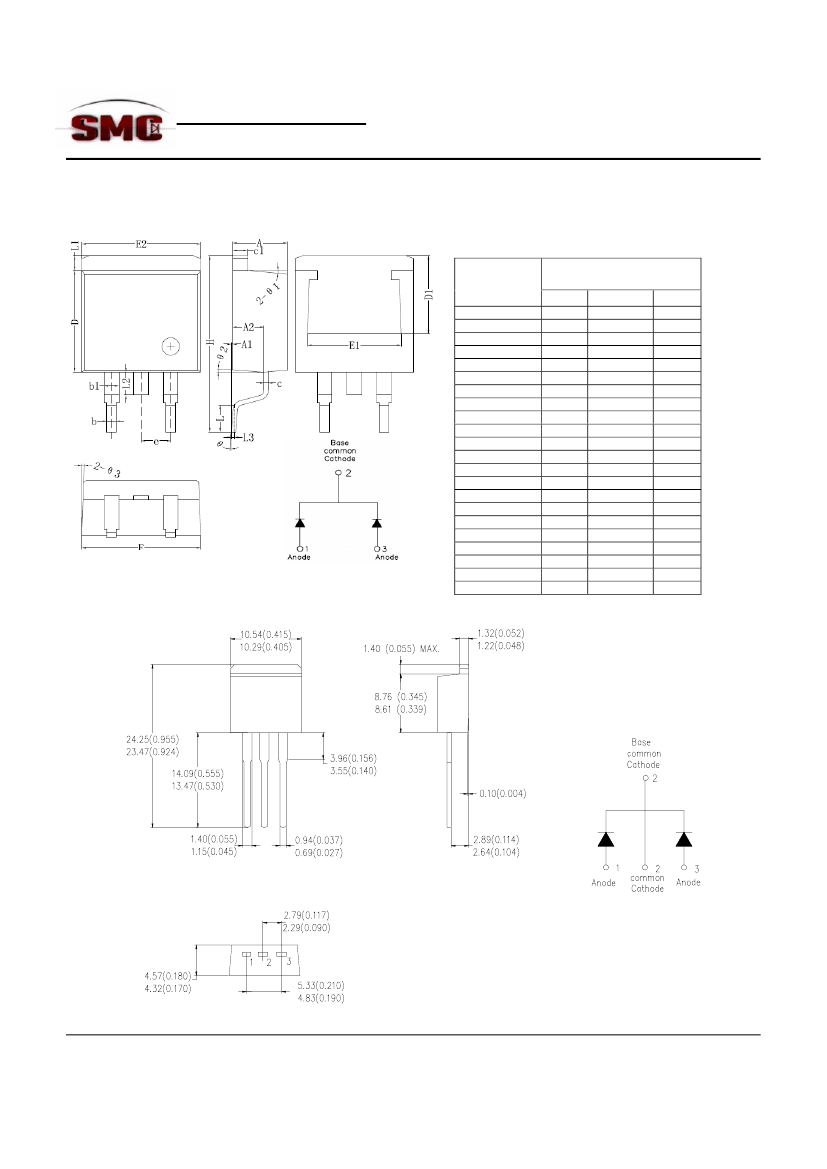

Mechanical Dimensions: In Inches / mm
TO-262
TO-220AB
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0702, Rev. -
48CTQ060
48CTQ060S
48CTQ060-1
Green Products
Symbol
A
A1
A2
b
b1
c
c1
D
D1
E
E1
E2
e
H
L
L1
L2
L3
e
e1
e2
e3
Dimensions in
millimeters
Min. Typical Max.
4.55
0
2.59
0.71
0.36
1.17
8.55
6.40
10.01
7.6
9.98
14.6
2.00
1.17
4.70
0.10
2.69
0.81
1.27
0.38
1.27
8.70
10.16
10.08
2.54
15.1
2.30
1.27
0.25BSC
-
5°
4°
4°
4.85
0.25
2.89
0.96
0.61
1.37
8.85
10.31
10.18
15.6
2.70
1.40
2.20
8°
0
D
2
PAK
TO-262
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0702, Rev. -
48CTQ060
48CTQ060S
48CTQ060-1
Green Products
Marking Diagram:
Where XXXXX is YYWWL
48CTQ060
SSG
YY
WW
L
= Part Name
= SSG
= Year
= Week
= Lot Number
48CTQ060
48CTQ060S
48CTQ060CT-1
Cautions：
Molding resin
Epoxy resin UL:94V-0
Ordering Information:
Device
48CTQ060
48CTQ060S
Package
TO-220AB
(Pb-Free)
D²PAK
(Pb-Free)
Shipping
50pcs / tube
800pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle
Non-Repetitive Surge Current
(per leg)
Symbol
V
RWM
I
F(AV)
Condition
-
50% duty cycle @T
C
=111°C,
rectangular wave form
8.3 ms, half Sine pulse
Max.
60
40
Units
V
A
I
FSM
310
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0702, Rev. -
48CTQ060
48CTQ060S
48CTQ060-1
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
*
Max. Reverse Current at DC
condition
Max. Reverse Current
Max. Junction Capacitance
Typical Series Inductance
Max. Voltage Rate of
Change(Rated V
R
)
*
Pulse Width < 300µs, Duty Cycle <2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
L
S
dv/dt
Condition
@ 20A, Pulse, T
J
= 25
°C
@ 40A, Pulse, T
J
= 25
°C
@ 20A, Pulse, T
J
= 125
°C
@ 40A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.61
0.83
0.58
0.75
2
89
1220
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per leg)
Typical Thermal Resistance,
case to Heat Sink
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
Condition
-
-
DC operation
Specification
-55 to +150
-55 to +150
2.0
Units
°C
°C
°C/W
Mounting surface, smooth and
0.50
°C/W
greased
wt
-
2
g
2
2
TO-220AB,D PAK,TO-262(Suffix“s”for D PAK; Suffix“-1”for TO-262)
R
θcs
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0702, Rev. -
48CTQ060
48CTQ060S
48CTQ060-1
Green Products
•

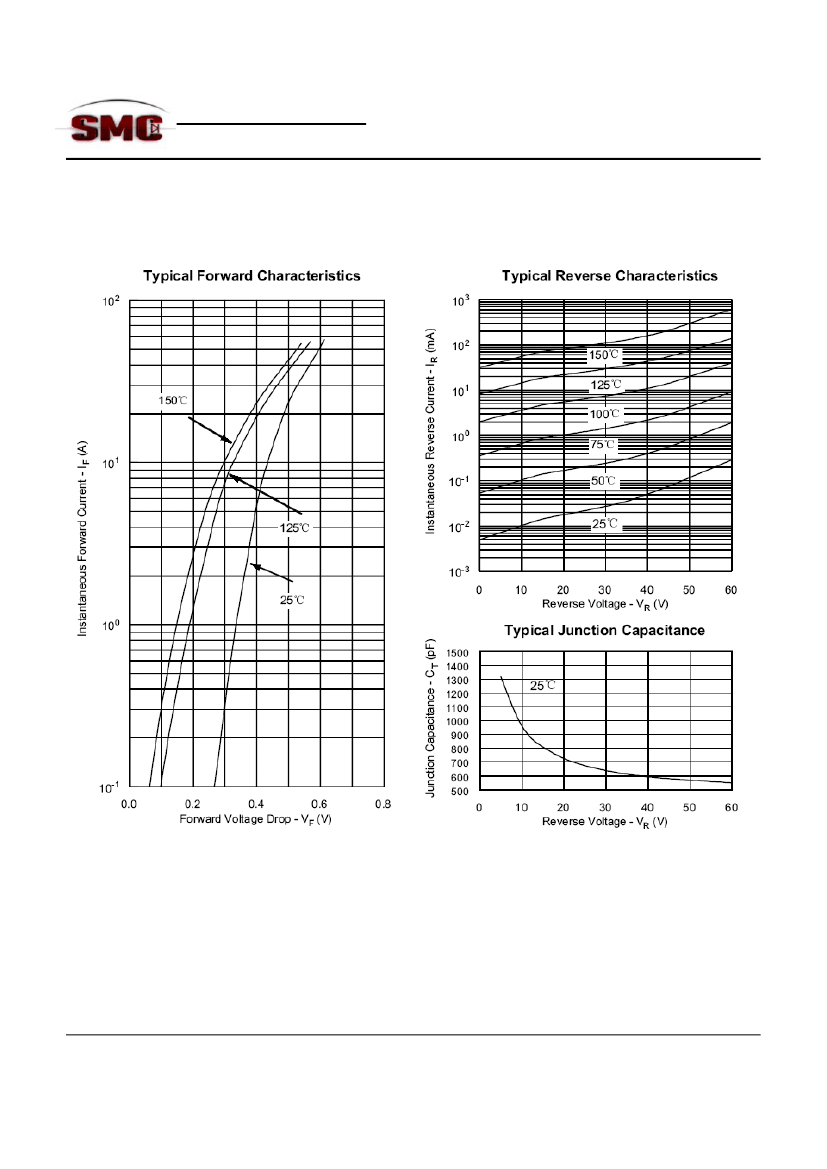

Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
