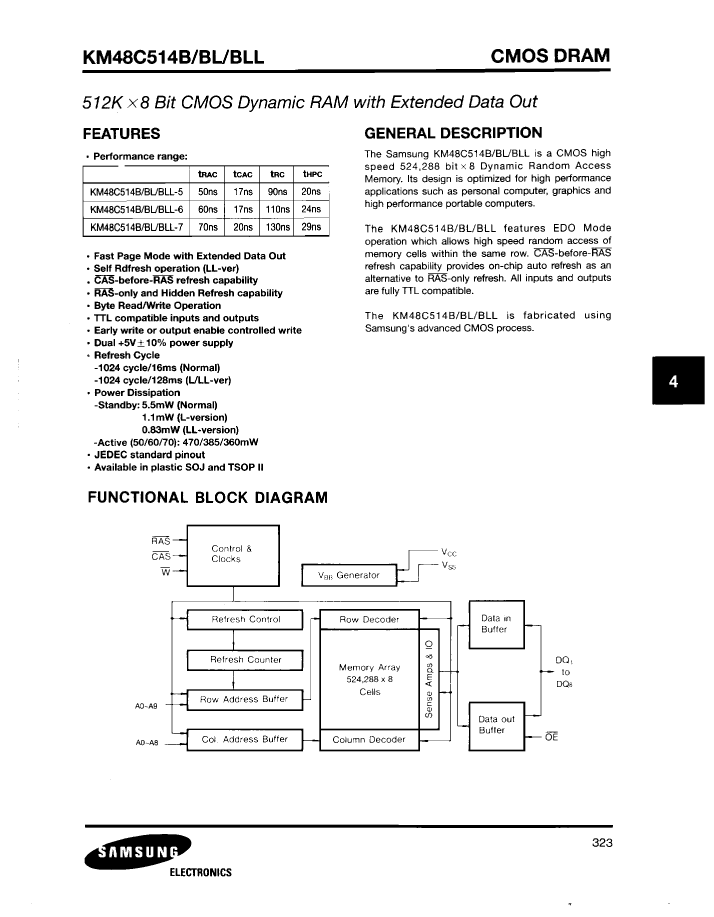

EDO DRAM, 512KX8, 50ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28

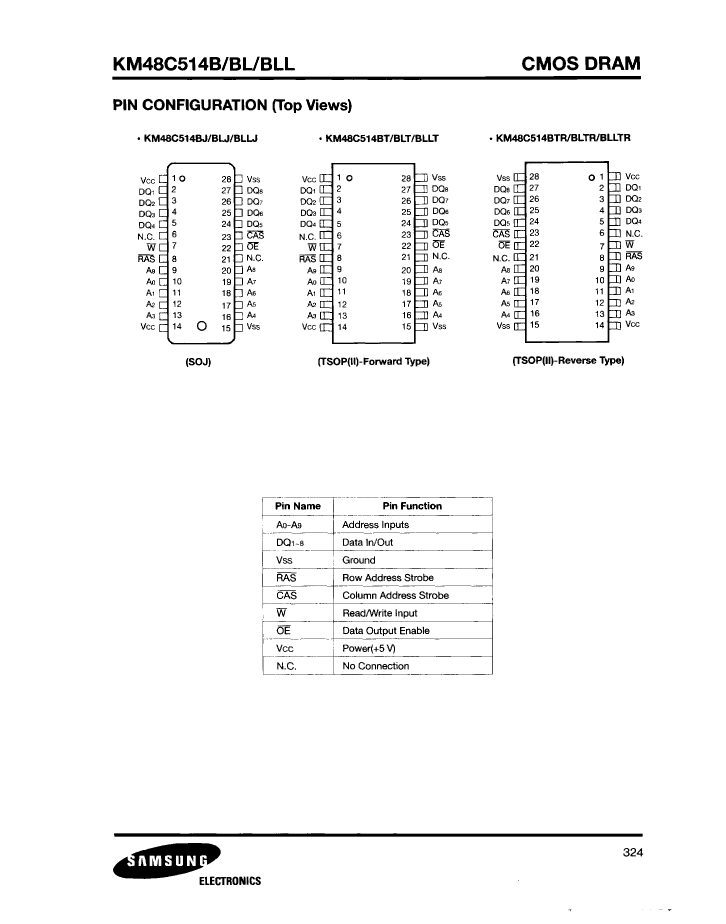

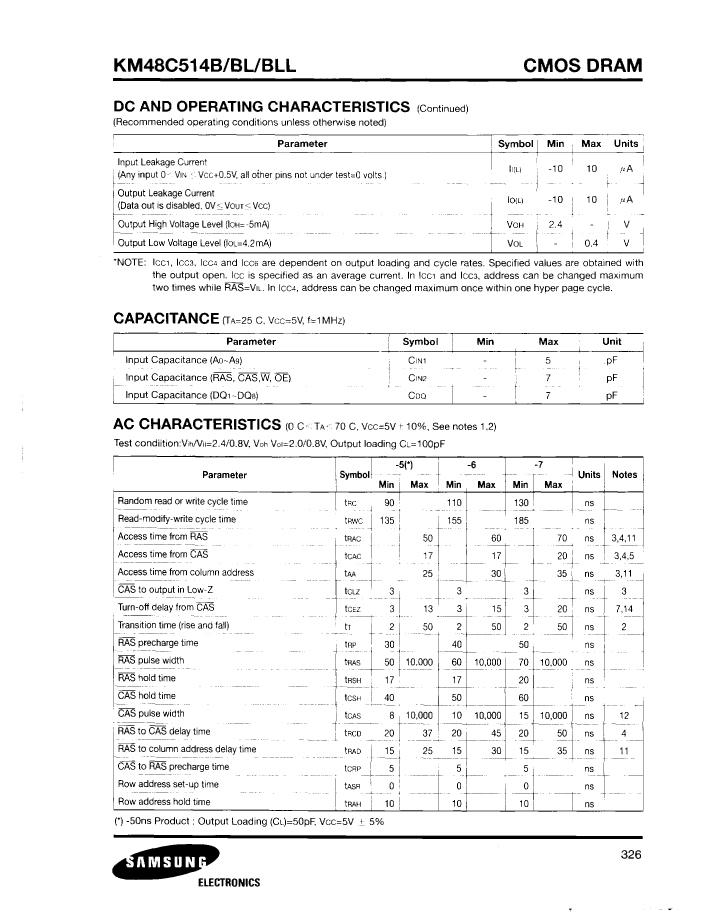

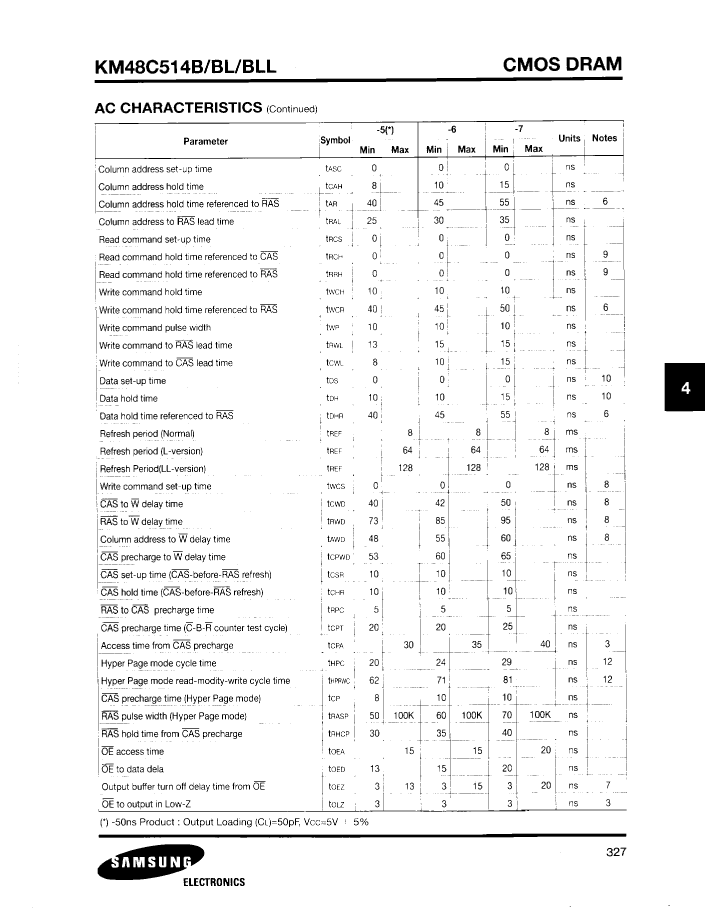

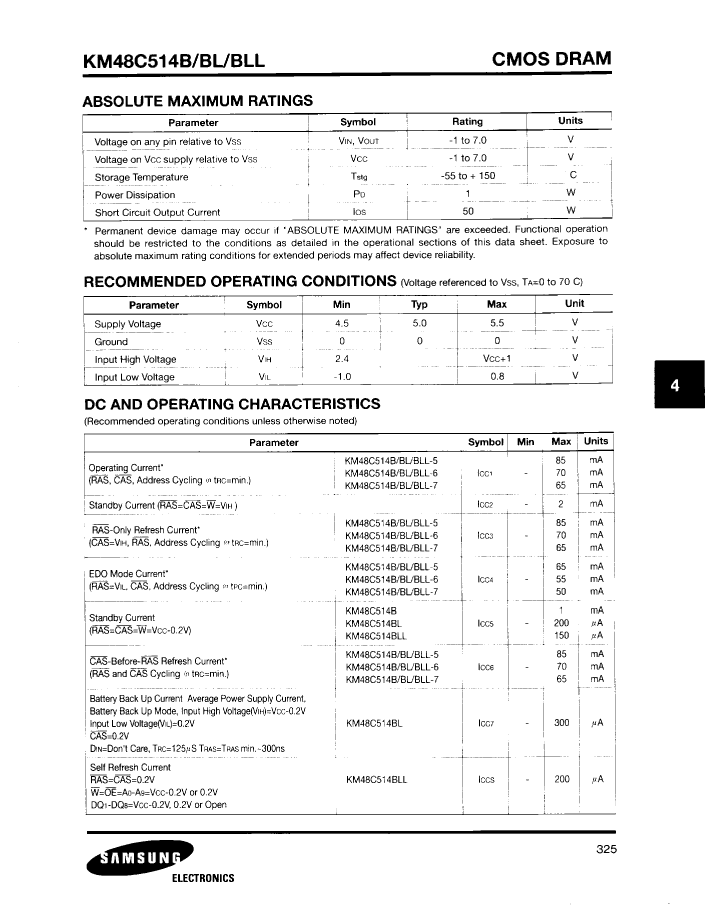

| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | SAMSUNG |
| Parts packaging code | TSOP |
| package instruction | TSOP2-R, TSOP28,.46 |
| Contacts | 28 |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| access mode | FAST PAGE WITH EDO |
| Maximum access time | 50 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH |
| I/O type | COMMON |
| JESD-30 code | R-PDSO-G28 |
| JESD-609 code | e0 |
| length | 18.41 mm |
| memory density | 4194304 bit |
| Memory IC Type | EDO DRAM |
| memory width | 8 |
| Number of functions | 1 |
| Number of ports | 1 |
| Number of terminals | 28 |
| word count | 524288 words |
| character code | 512000 |
| Operating mode | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C |
| Minimum operating temperature | |
| organize | 512KX8 |
| Output characteristics | 3-STATE |
| Package body material | PLASTIC/EPOXY |
| encapsulated code | TSOP2-R |
| Encapsulate equivalent code | TSOP28,.46 |
| Package shape | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE |
| power supply | 5 V |
| Certification status | Not Qualified |
| refresh cycle | 1024 |
| reverse pinout | YES |
| Maximum seat height | 1.2 mm |
| self refresh | YES |
| Maximum standby current | 0.00015 A |
| Maximum slew rate | 0.085 mA |
| Maximum supply voltage (Vsup) | 5.25 V |
| Minimum supply voltage (Vsup) | 4.75 V |
| Nominal supply voltage (Vsup) | 5 V |
| surface mount | YES |
| technology | CMOS |
| Temperature level | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING |
| Terminal pitch | 1.27 mm |
| Terminal location | DUAL |
| width | 10.16 mm |
| KM48C514BLLTR-5 | KM48C514BLLTR-7 | KM48C514BLLJ-6 | KM48C514BLLJ-5 | KM48C514BLLT-5 | KM48C514BLLT-6 | KM48C514BLLJ-7 | KM48C514BLLT-7 | KM48C514BLLTR-6 | |
|---|---|---|---|---|---|---|---|---|---|
| Description | EDO DRAM, 512KX8, 50ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28 | EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28 | EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, SOJ-28 | EDO DRAM, 512KX8, 50ns, CMOS, PDSO28, PLASTIC, SOJ-28 | EDO DRAM, 512KX8, 50ns, CMOS, PDSO28, PLASTIC, TSOP2-28 | EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, TSOP2-28 | EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, SOJ-28 | EDO DRAM, 512KX8, 70ns, CMOS, PDSO28, PLASTIC, TSOP2-28 | EDO DRAM, 512KX8, 60ns, CMOS, PDSO28, PLASTIC, REVERSE, TSOP2-28 |
| Is it Rohs certified? | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible | incompatible |
| Maker | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG | SAMSUNG |
| Parts packaging code | TSOP | TSOP | SOJ | SOJ | TSOP | TSOP | SOJ | TSOP | TSOP |
| package instruction | TSOP2-R, TSOP28,.46 | TSOP2-R, TSOP28,.46 | SOJ, SOJ28,.44 | SOJ, SOJ28,.44 | TSOP2, TSOP28,.46 | TSOP2, TSOP28,.46 | SOJ, SOJ28,.44 | TSOP2, TSOP28,.46 | TSOP2-R, TSOP28,.46 |
| Contacts | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| Reach Compliance Code | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknown | unknow |
| ECCN code | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 | EAR99 |
| access mode | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO | FAST PAGE WITH EDO |
| Maximum access time | 50 ns | 70 ns | 60 ns | 50 ns | 50 ns | 60 ns | 70 ns | 70 ns | 60 ns |
| Other features | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH | RAS ONLY/CAS BEFORE RAS/HIDDEN/SELF REFRESH |
| I/O type | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON | COMMON |
| JESD-30 code | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-J28 | R-PDSO-J28 | R-PDSO-G28 | R-PDSO-G28 | R-PDSO-J28 | R-PDSO-G28 | R-PDSO-G28 |
| JESD-609 code | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 | e0 |
| length | 18.41 mm | 18.41 mm | 18.415 mm | 18.415 mm | 18.41 mm | 18.41 mm | 18.415 mm | 18.41 mm | 18.41 mm |
| memory density | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bit | 4194304 bi |
| Memory IC Type | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM | EDO DRAM |
| memory width | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 |
| Number of functions | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of ports | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Number of terminals | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 | 28 |
| word count | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words | 524288 words |
| character code | 512000 | 512000 | 512000 | 512000 | 512000 | 512000 | 512000 | 512000 | 512000 |
| Operating mode | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS | ASYNCHRONOUS |
| Maximum operating temperature | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C | 70 °C |
| organize | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 | 512KX8 |
| Output characteristics | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE | 3-STATE |
| Package body material | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY | PLASTIC/EPOXY |
| encapsulated code | TSOP2-R | TSOP2-R | SOJ | SOJ | TSOP2 | TSOP2 | SOJ | TSOP2 | TSOP2-R |
| Encapsulate equivalent code | TSOP28,.46 | TSOP28,.46 | SOJ28,.44 | SOJ28,.44 | TSOP28,.46 | TSOP28,.46 | SOJ28,.44 | TSOP28,.46 | TSOP28,.46 |
| Package shape | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR | RECTANGULAR |
| Package form | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE | SMALL OUTLINE, THIN PROFILE | SMALL OUTLINE, THIN PROFILE |
| power supply | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| Certification status | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified | Not Qualified |
| refresh cycle | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 | 1024 |
| Maximum seat height | 1.2 mm | 1.2 mm | 3.76 mm | 3.76 mm | 1.2 mm | 1.2 mm | 3.76 mm | 1.2 mm | 1.2 mm |
| self refresh | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| Maximum standby current | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A | 0.00015 A |
| Maximum slew rate | 0.085 mA | 0.065 mA | 0.07 mA | 0.085 mA | 0.085 mA | 0.07 mA | 0.065 mA | 0.065 mA | 0.07 mA |
| Maximum supply voltage (Vsup) | 5.25 V | 5.5 V | 5.5 V | 5.25 V | 5.25 V | 5.5 V | 5.5 V | 5.5 V | 5.5 V |
| Minimum supply voltage (Vsup) | 4.75 V | 4.5 V | 4.5 V | 4.75 V | 4.75 V | 4.5 V | 4.5 V | 4.5 V | 4.5 V |
| Nominal supply voltage (Vsup) | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V | 5 V |
| surface mount | YES | YES | YES | YES | YES | YES | YES | YES | YES |
| technology | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS | CMOS |
| Temperature level | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL | COMMERCIAL |
| Terminal surface | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) | Tin/Lead (Sn/Pb) |
| Terminal form | GULL WING | GULL WING | J BEND | J BEND | GULL WING | GULL WING | J BEND | GULL WING | GULL WING |
| Terminal pitch | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm | 1.27 mm |
| Terminal location | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL | DUAL |
| width | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm | 10.16 mm |
