P4C1024L-100TILF

Description
Standard SRAM
Categorystorage    storage
File Size922KB，12 Pages
ManufacturerPyramid Semiconductor Corporation
Websitehttp://www.pyramidsemiconductor.com/
Download Datasheet Parametric View All

P4C1024L-100TILF Overview

Standard SRAM

P4C1024L-100TILF Parametric

Parameter NameAttribute value
MakerPyramid Semiconductor Corporation
Reach Compliance Codecompliant
Memory IC TypeSTANDARD SRAM

P4C1024L-100TILF Preview

P4C1024L
LOW POWER
128K x 8 CMOS STATIC RAM
FEATURES
VCC Current (Commercial/Industrial)
– Operating: 70mA/85mA
– CMOS Standby: 150µA/150µA
Access Times
– 55/70/100 ns (Commercial or Industrial)
Single 5V±10% Power Supply
Easy Memory Expansion Using
CE
1
, CE
2
, and
OE
Common Data I/O
Three-State Outputs
Fully TTL Compatible Inputs and Outputs
Advanced CMOS Technology
Automatic Power Down
Packages
– 32-Pin 600 mil Plastic and Ceramic DIP
– 32-Pin 445 mil SOP
– 32-Pin TSOP
– 32-Pin LCC (400x820 mil) [Two-Sided]
DESCRIPTIOn
The P4C1024L is a 1,048,576-bit low power CMOS static
RAM organized as 128Kx8. The CMOS memory requires
no clocks or refreshing, and has equal access and cycle
times. Inputs are fully TTL-compatible. The RAM operates
from a single 5V±10% tolerance power supply.
Access times of 55 ns, 70 ns, and 100 ns are available.
CMOS is utilized to reduce power consumption to a low
level.
The P4C1024L device provides asynchronous operation
with matching access and cycle times. Memory locations
are specified on address pins A
0
to A
16
. Reading is ac-
complished by device selection (CE
1
low and CE
2
high)
and output enabling (OE) while write enable (WE) remains
HIGH. By presenting the address under these conditions,
the data in the addressed memory location is presented
on the data input/output pins. The input/output pins stay
in the HIGH Z state when either CE
1
or
OE
is HIGH or
WE
or
CE
2
is LOW.
The P4C1024L is packaged in a 32-pin TSOP, 445 mil
SOP, 600 mil PDIP, or 32-pin LCC package.

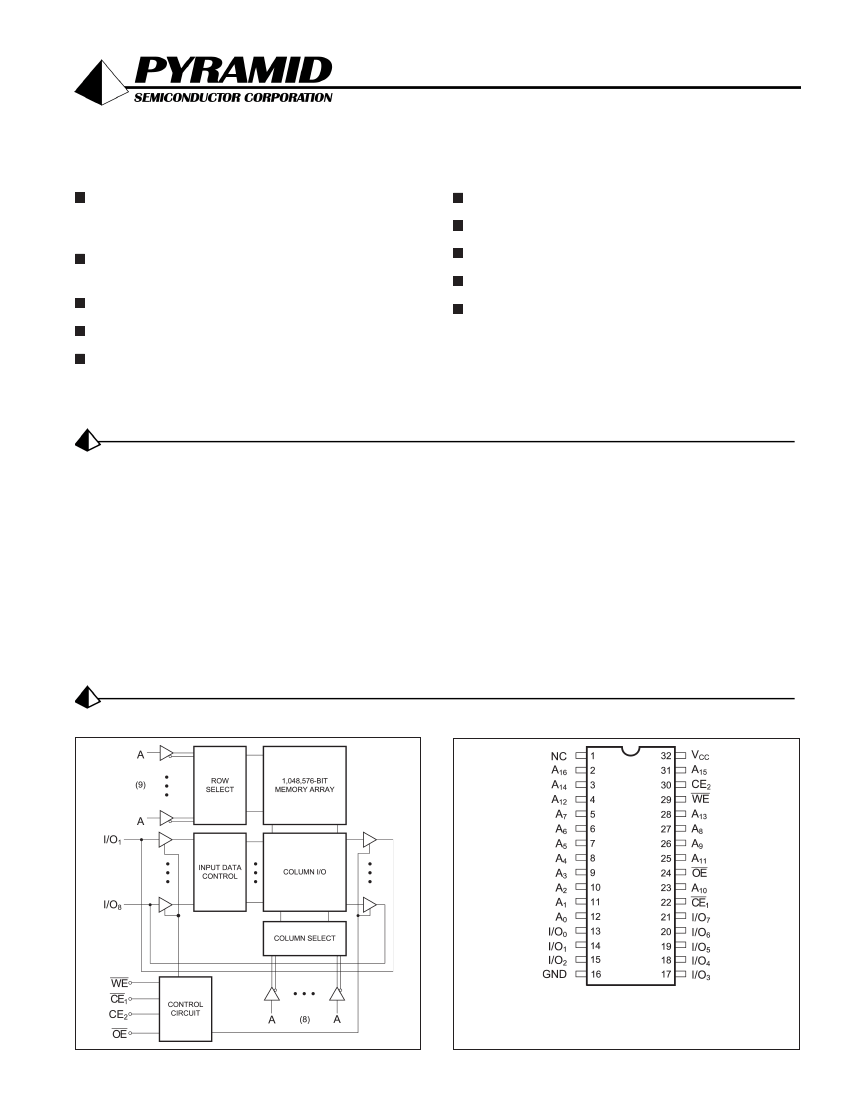

FUnCTIOnAL BLOCk DIAgRAM
PIn COnFIgURATIOnS
DIP(P600, C10), SOP (S12), LCC (L1)
TOP VIEW
TSOP configuration at end of datasheet
Document #
SRAM125
REV H
Revised May 2011
P4C1024L - LOW POWER 128K x 8 CMOS STATIC RAM
MAxIMUM RATIngS
(1)
Sym
V
CC
V
TERM
T
A
T
BIAS
T
STG
I
OUT
I
LAT
Parameter
Power Supply Pin with
Respect to GND
Terminal Voltage with
Respect to GND (up to
7.0V)
Operating Temperature
Temperature Under Bias
Storage Temperature
Output Current into Low
Outputs
Latch-up Current
Value
-0.5 to +7
-0.5 to V
CC
+ 0.5
-55 to +125
-55 to +125
-65 to +150
Unit
V
V
°C
°C
°C
mA
mA
RECOMMEnDED OPERATIng COnDITIOnS
grade
(2)
Commercial
Industrial
Military
Ambient Temp
0°C to 70°C
-40°C to +85°C
-55°C to +125°C
gnD
0V
0V
0V
V
CC
5.0V ± 10%
5.0V ± 10%
5.0V ± 10%
CAPACITAnCES
(4)
Sym
C
IN
C
OUT
Parameter
(V
CC
= 5.0V, T
A
= 25°C, f = 1.0MHz)
Conditions
V
IN
=0V
V
OUT
=0V
Max
7
9
Unit
pF
pF
Input Capacitance
Output Capacitance
DC ELECTRICAL CHARACTERISTICS
Sym Parameter
V
OH
V
OL
V
IH
V
IL
I
LI
Output High Voltage
(I/O
0
- I/O
7
)
Output Low Voltage
(I/O
0
- I/O
7
)
Input High Voltage
Input Low Voltage
(Over Recommended Operating Temperature & Supply Voltage)
(2)
Test Conditions
I
OH
=-1mA, V
CC
=4.5V
I
OL
=2.1mA
2.2
-0.5
MIL
Input Leakage Current
GND ≤ V
IN
≤ V
CC
IND
COM
MIL
I
LO
Output Leakage Current
V
CC
Current
TTL Standby Current
(TTL Input Levels)
V
CC
Current
CMOS Standby Current
(CMOS Input Levels)
GND ≤ V
OUT
≤ V
CC
,
CE
1
≥ V
IH
or CE
2
≤ V
IL
V
CC
=5.5V, I
OUT
=0mA
CE
1
=V
IH
or CE
2
=V
IL
V
CC
=5.5V, I
OUT
=0mA
CE
1
≥ V
CC
-0.2V, CE
2
≤ 0.2V
IND
COM
-10
-5
-2
-10
-5
-2
Min
2.4
0.4
V
CC
+ 0.3
0.8
+10
+5
+2
+10
+5
+2
3
mA
µA
µA
Max
Unit
V
V
V
V
I
SB
I
SB1
50
µA
Document #
SRAM125
REV H
Page 2
P4C1024L - LOW POWER 128K x 8 CMOS STATIC RAM
POWER DISSIPATIOn CHARACTERISTICS
Sym
I
CC
Parameter
Dynamic Operating Current
Temperature Range
Commercial
Industrial/Military
*
-55
70
85
-70
70
85
-100
70
85
-55
15
25
**
-70
15
25
-100
15
25
Unit
mA
mA
* Tested with outputs open and all address and data inputs changing at the maximum write-cycle rate.
The device is continuously enabled for writing, i.e., CE
2
≥ V
IH
(min),
CE
1
and
WE
≤ V
IL
(max),
OE
is high. Switching inputs are 0V
and 3V.
** As above but @ f=1 MHz and V
IL
/ V
IH
= 0V/V
CC
AC ELECTRICAL CHARACTERISTICS—READ CYCLE
(Over Recommended Operating Temperature & Supply Voltage)
Sym
t
RC
t
AA
t
AC
t
OH
t
LZ
t
HZ
t
OE
t
OLZ
t
OHZ
t
PU
t
PD
Parameter
Read Cycle Time
Address Access Time
Chip Enable Access Time
Output Hold from Address Change
Chip Enable to Output in Low Z
Chip Disable to Output in High Z
Output Enable Low to Data Valid
Output Enable Low to Low Z
Output Enable High to High Z
Chip Enable to Power Up Time
Chip Disable to Power Down
0
55
5
20
0
70
5
10
20
30
5
25
0
100
-55
Min
55
55
55
5
10
25
35
5
30
Max
Min
70
70
70
5
10
30
40
-70
Max
Min
100
100
100
-100
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns
TIMIng WAVEFORM OF READ CYCLE nO. 1 (OE COnTROLLED)
(1)
Document #
SRAM125
REV H
Page 3
P4C1024L - LOW POWER 128K x 8 CMOS STATIC RAM

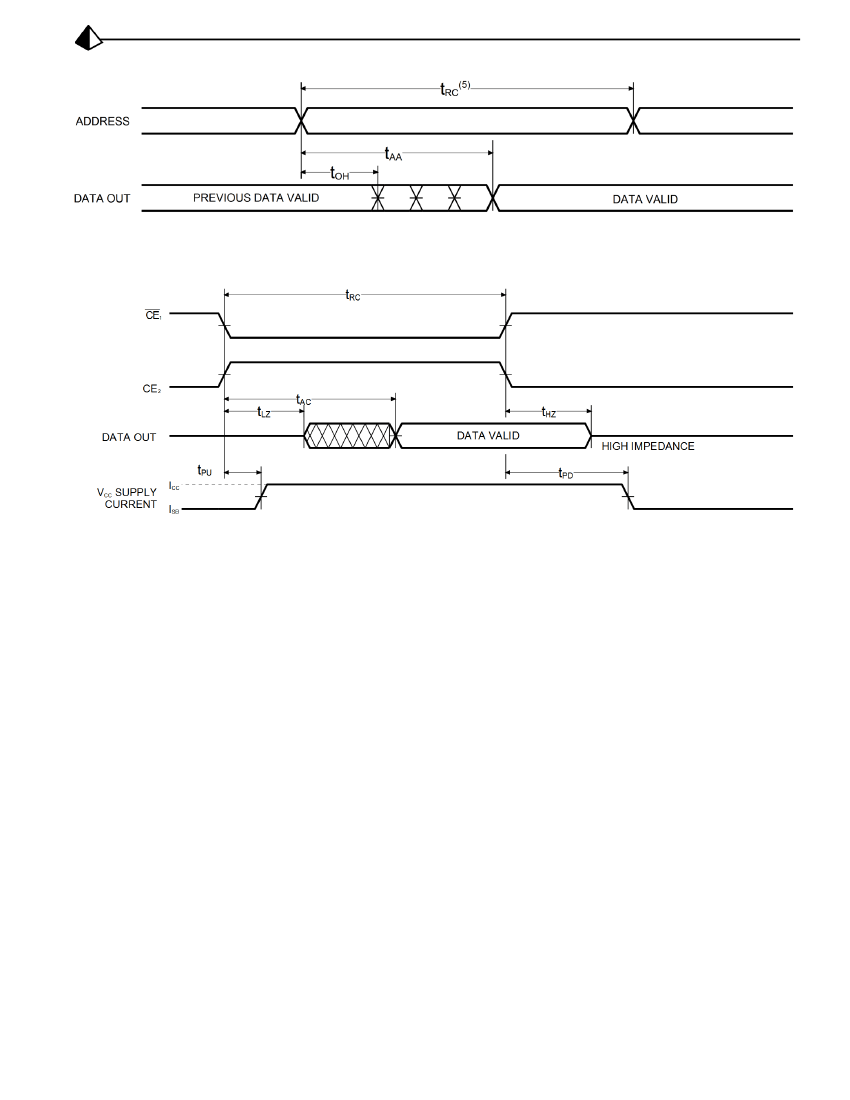

TIMIng WAVEFORM OF READ CYCLE nO. 2 (ADDRESS COnTROLLED)
TIMIng WAVEFORM OF READ CYCLE nO. 3 (CE COnTROLLED)
notes:
1. WE is HIGH for READ cycle.
2.
CE
1
and
OE
are LOW, and CE
2
is HIGH for READ cycle.
3. ADDRESS must be valid prior to, or coincident with later of
CE
1
transi-
tion LOW or CE
2
transition HIGH.
4. Transition is measured ± 200 mV from steady state voltage prior to
change, with loading as specified in Figure 1. This parameter is sampled
and not 100% tested.
5. READ Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM125
REV H
Page 4
P4C1024L - LOW POWER 128K x 8 CMOS STATIC RAM
AC CHARACTERISTICS—WRITE CYCLE
(V
CC
= 5V ± 10%, All Temperature Ranges)
(2)
Sym Parameter
t
WC
t
CW
t
AW
t
AS
t
WP
t
AH
t
DW
t
DH
t
WZ
t
OW
Write Cycle Time
Chip Enable Time to End of Write
Address Valid to End of Write
Address Setup Time
Write Pulse Width
Address Hold Time
Data Valid to End of Write
Data Hold Time
Write Enable to Output in High Z
Output Active from End of Write
5
-55
Min
55
50
50
0
40
0
25
0
25
5
Max
Min
70
60
60
0
50
0
30
0
30
5
-70
Max
Min
100
75
75
0
60
0
35
0
35
-100
Max
Unit
ns
ns
ns
ns
ns
ns
ns
ns
ns
ns

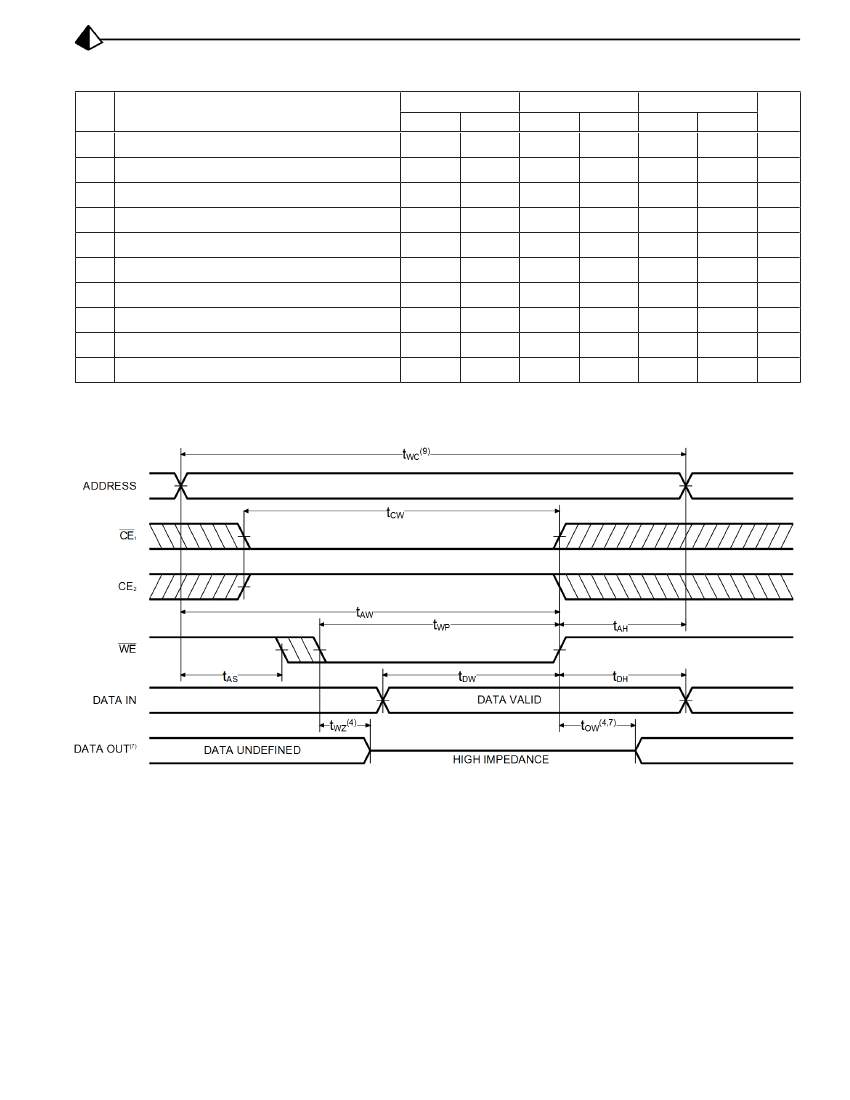

TIMIng WAVEFORM OF WRITE CYCLE nO. 1 (WE COnTROLLED)
(6)
Notes:
6.
CE
1
and
WE
are LOW and CE
2
is HIGH for WRITE cycle.
7.
OE
is LOW for this WRITE cycle to show t
WZ
and t
OW
.
8. If
CE1
goes HIGH or CE2 goes LOW simultaneously with
WE
HIGH,
the output remains in a high impedance state
9.
Write Cycle Time is measured from the last valid address to the first
transitioning address.
Document #
SRAM125
REV H
Page 5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

cyclic analog-to-digital converter

Langdun NTY-1 temperature regulating electric iron circuit diagram

Precision Unity Gain Buffer Circuit

Threshold signal generator circuit using TcA965

Basic feedback amplifier circuit

Simple complementary tube multivibrator

How to realize the laptop screen switching
Where is the switch between VGA and TFT handled, BIOS or application? I think only application can solve it, because the switching process will cause the screen to be blurred, which involves the graph...
niuaniuya Embedded System
Tetris is 25 years old, but it turns out it's not that old
"Puzzles" of different shapes, made up of small cubes, fall from the top of the screen one after another. Players try to make them form a complete strip or strips at the bottom of the screen by adjust...
水牛 Embedded System
What are the differences between STM32F103ZET6 and STM32F103RCT6
What are the differences between STM32F103ZET6 and STM32F103RCT6...
QWE4562009 Integrated technical exchanges
PCIE simulation and application assistance
Because the PCIE development board is very expensive, I can only simulate it myself, calling the PCIE core that comes with quartus, which has a chaining DMA design. The waveform is also simulated. But...
feimeng1 FPGA/CPLD
Questions about STK interaction
I want to use a computer to operate the STK in a SIM card. How can I do this? 1. Use the wavecom device and the AT command to perform the operation 2. I saw on the Internet that there are other FETCH ...
spy183 Embedded System
Questions for beginners of STM8: Is the original content always saved?
I just got the 3-in-1 development board and ran some routines. I found that every time I debugged with STLink, the program was automatically downloaded to the Flash (power off and restart the program ...
fm365fm365 stm32/stm8
Shortcut:   A0 A1 A2 A3 A4 A5 A6 A7 A8 A9 AA AB AC AD AE AF AG AH AI AJ AK AL AM AN AO AP AQ AR AS AT AU AV AW AX AY AZ B0 B1 B2 B3 B4 B5 B6 B7 B8 B9 BA BB BC BD BE BF BG BH BI BJ BK BL BM BN BO BP BQ BR BS BT BU BV BW BX BY BZ C0 C1 C2 C3 C4 C5 C6 C7 C8 C9 CA CB CC CD CE CF CG CH CI CJ CK CL CM CN CO CP CQ CR CS CT CU CV CW CX CY CZ D0 D1 D2 D3 D4 D5 D6 D7 D8 D9 DA DB DC DD DE DF DG DH DI DJ DK DL DM DN DO DP DQ DR DS DT DU DV DW DX DZ

Popular Components

  1. GB12864CSYBANDB-V01
  2. CRGV2512F1M87
  3. SIT9120AI-2BF-XXS166.666666G
  4. DTS23Y09-98DA [V001]
  5. 78233-750LF
  6. GMDE121P-RMI0E7-18SM
  7. RC0550BC162RFKNW
  8. SMDT0603FTD2740N
  9. BZX84C3V9T
  10. MMSZ5252A
  11. P6KE12A-AU_B0_000A1
  12. P4SMA9.1C_R1_10001

Popular Articles

  1. SEMI: Global semiconductor equipment shipments hit a new high in Q2 2021
  2. Fully automatic cell culture equipment with precision drive
  3. PEI-Genesis Celebrates 75th Anniversary
  4. STM8S Self-study Notes-006 GPIO input: key input and key filtering
  5. Geely intends to acquire Meizu Mobile Phones and both parties respond
  6. WPG World Peace Group's 50W in-vehicle wireless charging solution based on CPS products
  7. 51 MCU Introduction - IIC (I2C) Bus
  8. Advanced Energy's LCC1200 Series improves reliability and reduces total system cost in high-power industrial applications
  9. What is the measurement principle of illuminance meter?
  10. Have you ever used the pass/fail testing feature on a digital oscilloscope?

Technical ResourceMore

  1. Infrared camera monitoring technology
  2. Stepper motor control (including schematics and programs)
  3. High-Side Current Sensing - Difference Amplifiers vs. Current Sense Amplifiers
  4. Novel company logo based RFID UHF antenna
  5. Application of Current Limiting Technology in Brushless DC Motor Controller
  6. 3v and 5v mixed system interface problem
  7. Co051112864 Graphic LCD Source Code
  8. Metropolitan Area Network Planning and Design
  9. Design of Power Signal Monitor
  10. Design of Power Factor Correction Circuit with Single Cycle Control

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 317  1323  997  761  2030  7  27  21  16  41
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
