03800FL230100-11 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 03800FL230100-11

03800FL230100-11: DescriptionBoard Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator; CategoryThe connector The connector; File Size48KB，2 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

03800FL230100-11 Overview

Board Connector, 100 Contact(s), 2 Row(s), Male, Straight, 0.039 inch Pitch, Surface Mount Terminal, Black Insulator

03800FL230100-11 Parametric

Parameter Name	Attribute value
Maker	Ratioplast Electronics
Reach Compliance Code	compliant
body width	0.126 inch
body length	1.969 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	NYLON
Manufacturer's serial number	038
Plug contact pitch	0.039 inch
Match contact row spacing	0.039 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	3.6068 mm
Plating thickness	FLASH inch
Rated current (signal)	0.75 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	0.9906 mm
Termination type	SURFACE MOUNT
Total number of contacts	100

Preview

Download Datasheet

View All

Ratioplast-Electronics H.Wiedemann GmbH

Jockweg 66, D-32312 Lübbecke

Tel.: +49 (0) 5741 23661-0

Fax: +49 (0) 5741 23661-20

E-Mail: info@ratioplast.de

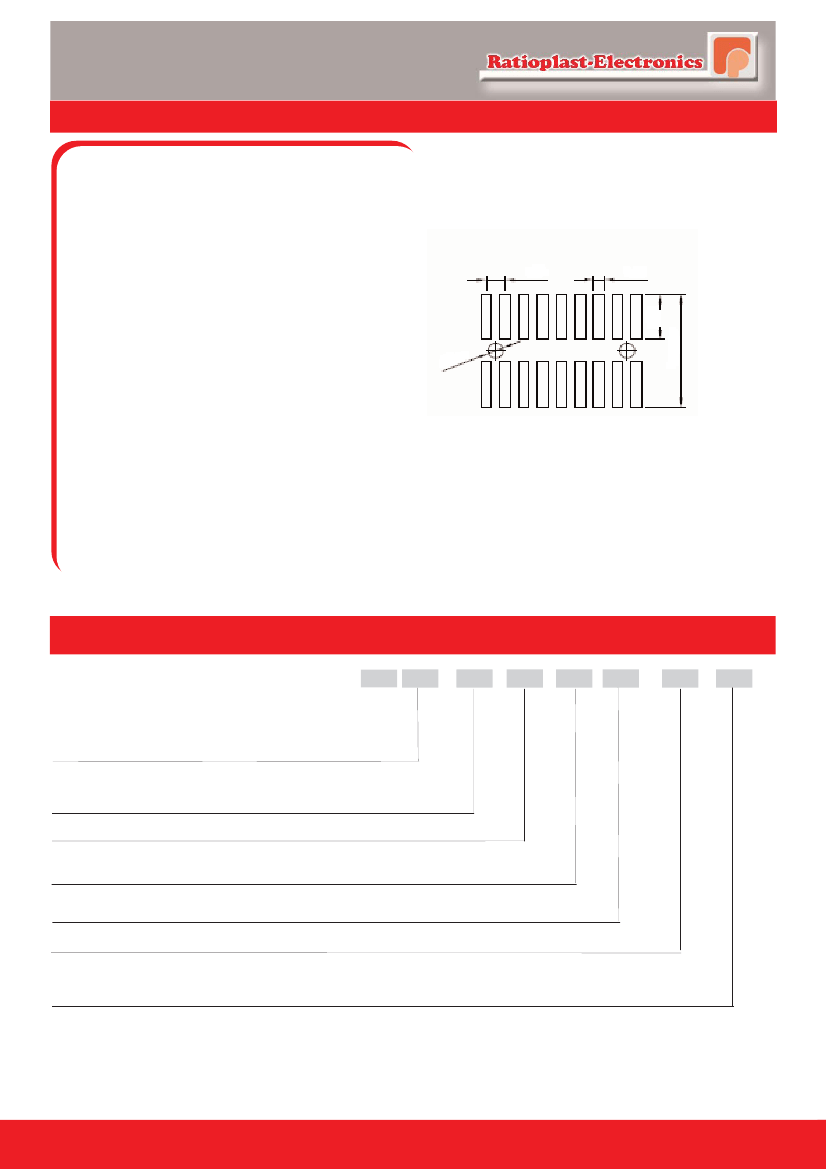

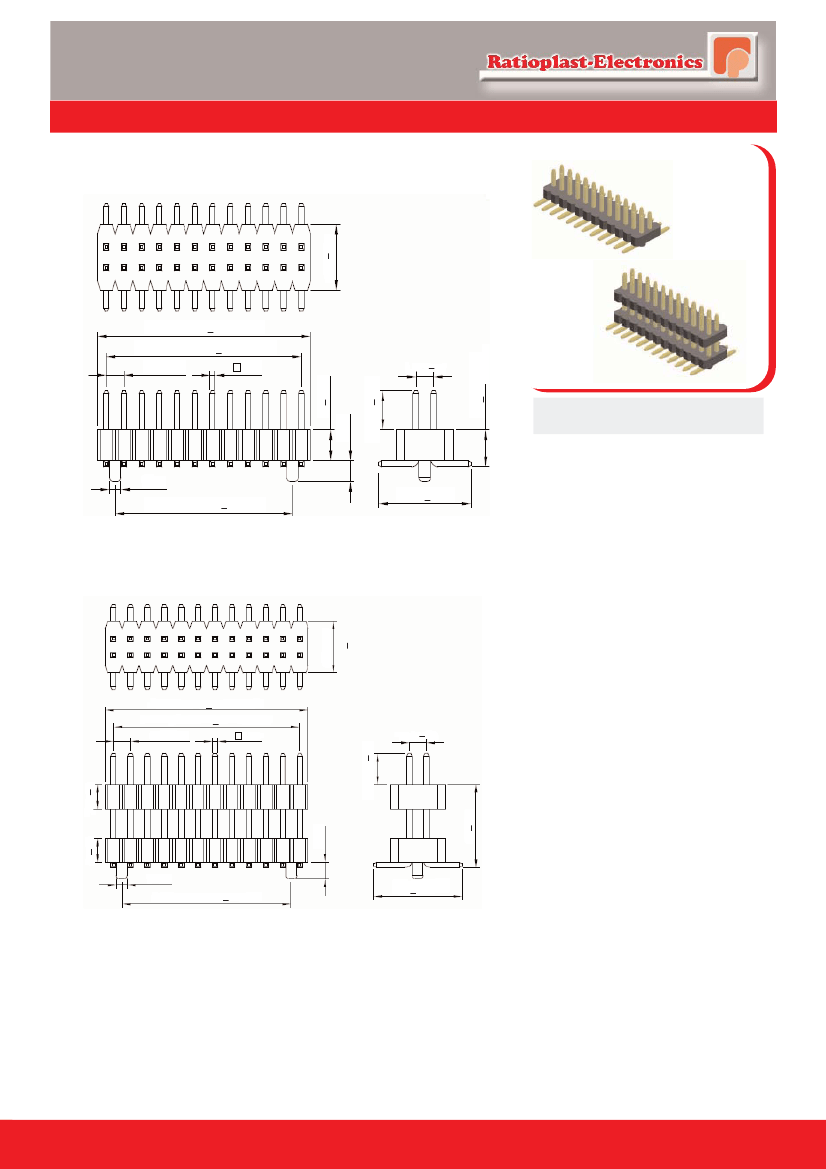

Serie 038

Technische Daten:

Isolierkörper

Farbe

Kontaktmaterial

Nennspannung

Nennstrom

Temperaturbereich

Lötwärmebeständigkeit

SMT STIFTLEISTE

SMT PINHEADER

RASTER 1,0mm mit Vierkantstift 0,3mm

PITCH 1,0mm with square contact 0,3mm

Empfohlenes Leiterplatten-Layout

(Toleranz +0,05)

Recommended P.C.B Layout

(Tolerance +0,05)

Nylon 6T

Hochtemperaturfest, UL94-V0

Schwarz

Messing

500 V AC

0,75 A

- 40°C ... +105°C

235°C (30-60 sek.)

max. 260°C (5 sek.)

1,00

0,54

Weitere technische Informationen zu den Produkten erhalten Sie auf

Anfrage

Technical Data

Insulator

Colour

Contact Material

Current Voltage

Current Rating

Temperature Range

Resistance to soldering

Ø0

,80

2,40

Nylon 6T

High temperature, UL94-V0

Black

Brass

500 V AC

0,75 A

- 40°C ... +105°C

235°C (30-60 sec.)

max. 260°C (5 sec.)

More technical Information on request

BESTELLBEISPIEL

HOW TO ORDER

BITTE ERSETZEN SIE `X` DURCH UNTEN AUFGEFÜHRTEN CODE

PLEASE REPLACE `X`WITH CODING LISTED BELOW

038 XX

XXX - XX

00 = Ohne Positionierhilfe - Without locating peg (Standard)

01 = Mit Positinierhilfe - With locating peg

Veredelung - Plating

FL = Flash Vergoldet - Flash gold plated(Au) (Standard)

Andere Veredelungen auf Anfrage - Other plating on request

2 = 2- reihig - 2- row

1 = Ein Isolierkörper - Singel Insulator

3 = Sandwich - Doublebody (L1= nach Kundenwunsch - Customer design)

0 = 1,00 mm Raster - Pitch

9 = Sonderraster - Other pitch

Polzahl - Number of contacts (040... 100)

01= Verpackt in Stangen ohne PP-Pad - Packed in tubes without PP-Pad (Standard)

11= Verpackt in Stangen mit PP-Pad (auf Anfrage) - Packed in tubes with PP-Pad (on request)

02 = Verpackt auf Rolle mit PP-Pad (auf Anfrage) - Reel packing with PP-Pad (on request)

Seite: 16

Version 1 / 2011

www.ratioplast.com

6,00
