8TQ080 /S
8TQ100 /S
Green Products
8TQ080/S/ 8TQ100/S
SCHOTTKY RECTIFIER
Applications:
•
•
•
•
•
•
•
•
•
•
•
•
•
Switching power supply
Redundant power subsystems
Converters
Free-Wheeling diodes
Reverse battery protection
150℃
T
J
operation
High purity, high temperature epoxy encapsulation for enhanced mechanical strength and
moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term reliability
This is a Pb
−
Free Device
All SMC parts are traceable to the wafer lot
Additional testing can be offered upon request
Features:

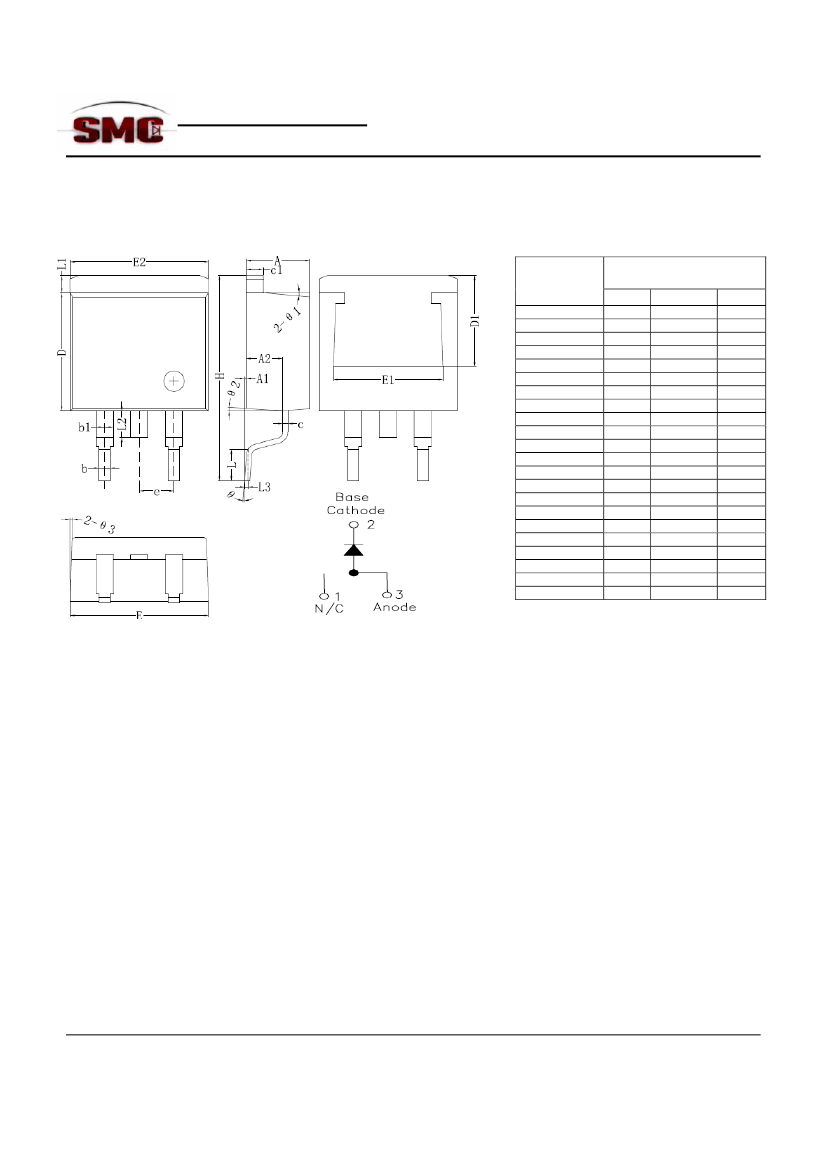

Mechanical Dimensions: In mm / Inches
Case styles
8TQ…
8TQ…S
D
2
PAK
TO-220AC
Symbol
A
A1
A2
b
b1
c
D
D1
E
E1
e1
H1
L
L1
ΦP
Q
Θ1
Θ2
Θ3
Dimensions in
millimeters
Min.
Typical
Max.
4.55
1.17
2.59
0.71
0.36
14.64
8.55
10.01
9.98
6.04
13.00
3.74
2.54
4.70
1.27
2.69
0.81
1.27
0.38
14.94
8.07
10.16
10.18
5.08
6.24
13.86
3.80
3.84
2.74
5°
4°
4°
4.85
1.37
2.89
0.96
0.61
15.24
8.85
10.31
10.38
6.44
14.08
4.04
2.94
TO-220AC
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0639, Rev. -
8TQ080 /S
8TQ100 /S
Green Products
Symbol
A
A1
A2
b
b1
c
c1
D
D1
E
E1
E2
e
H
L
L1
L2
L3
e
e1
e2
e3
Dimensions in
millimeters
Min. Typical Max.
4.55
0
2.59
0.71
0.36
1.17
8.55
6.40
10.01
7.6
9.98
14.6
2.00
1.17
4.70
0.10
2.69
0.81
1.27
0.38
1.27
8.70
10.16
10.08
2.54
15.1
2.30
1.27
0.25BSC
-
5°
4°
4°
4.85
0.25
2.89
0.96
0.61
1.37
8.85
10.31
10.18
15.6
2.70
1.40
2.20
8°
0
D
2
PAK
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0639, Rev. -
8TQ080 /S
8TQ100 /S
Green Products
Marking Diagram:
Where XXXXX is YYWWL
8TQ100
SSG
YY
WW
L
=Part Name
= SSG
= Year
= Week
= Lot Number
8TQ100
Cautions：
Molding resin
Epoxy resin UL:94V-0
8TQ100S
Ordering Information:
Device
8TQ100
8TQ100S
Package
TO-220AC
(Pb-Free)
D²PAK
(Pb-Free)
Shipping
50pcs / tube
800pcs / reel
For information on tape and reel specifications, including part orientation and tape sizes, please refer to our Tape and Reel Packaging
Specification.
Maximum Ratings:
Characteristics
Peak Inverse Voltage
Max. Average Forward
Max. Peak One Cycle Non-
Repetitive Surge Current
(per leg)
Non-Repetitive Avalanche
Energy
Repetitive Avalanche Current
Symbol
V
RWM
I
F(AV)
I
FSM
E
AS
I
AR
Condition
-
50% duty cycle @T
C
=116°C,
rectangular wave form
8.3 ms, half Sine pulse
T
J
=25℃,I
AS
=0.50A,L=60mH
Current decaying linearly to zero
in 1
μsec
Frequency limited by
T
J
max.V
A
=1.5×V
R
typical
Max.
80
(8TQ080)
100 (8TQ100)
8
330
7.5
0.50
Units
V
A
A
mJ
A
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
SANGDEST
MICROELECTRONICS
Technical Data
Data Sheet N0639, Rev. -
8TQ080 /S
8TQ100 /S
Green Products
Electrical Characteristics:
Characteristics
Max. Forward Voltage Drop
*
Max. Reverse Current at DC
condition
Max. Reverse Current
Max. Junction Capacitance
Typical Series Inductance
Max. Voltage Rate of
Change(Rated V
R
)
*
Pulse Width < 300µs, Duty Cycle <2%
Symbol
V
F1
V
F2
I
R1
I
R2
C
T
L
S
dv/dt
Condition
@ 8A, Pulse, T
J
= 25
°C
@ 8A, Pulse, T
J
= 125
°C
@V
R
= rated V
R
T
J
= 25
°C
@V
R
= rated V
R
T
J
= 125
°C
@V
R
= 5V, T
C
= 25
°C
f
SIG
= 1MHz
Measured lead to lead 5 mm from
package body
-
Max.
0.75
0.58
1.0
7
500
8.0
10,000
Units
V
V
mA
mA
pF
nH
V/μs
Thermal-Mechanical Specifications:
Characteristics
Max. Junction Temperature
Max. Storage Temperature
Maximum Thermal
Resistance Junction to Case
(per leg)
Typical Thermal
Resistance,case to Heat Sink
Approximate Weight
Case Style
Symbol
T
J
T
stg
R
θJC
R
θcs
Condition
-
-
DC operation
Specification
-55 to +150
-55 to +150
2.0
Units
°C
°C
°C/W
Mounting surface,smooth and
0.50
°C/W
greased
wt
-
2
g
2
2
2
TO-220AC,D PAK(Suffix“s”for D PAK;
“MBRB”for
D PAK)
•
Weiqi Street, Airport Development Zone, Jiangning District, Nanjing, China 211113
(86) 25-87123907
•
•
FAX (86) 25-87123900
•
World Wide Web Site - http://www.sangdest.com.cn
•
E-Mail Address - sales@ sangdest.com.cn
•
