NSP2010.05A: DescriptionRESISTOR, WIRE WOUND, 20W, 5%, 200ppm, 1ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT; CategoryPassive components The resistor; File Size425KB，2 Pages; ManufacturerSEI(Stackpole Electronics Inc.); Websitehttps://www.seielect.com/

Download Datasheet Parametric View All

NSP2010.05A Overview

RESISTOR, WIRE WOUND, 20W, 5%, 200ppm, 1ohm, THROUGH HOLE MOUNT, AXIAL LEADED, ROHS COMPLIANT

NSP2010.05A Parametric

Parameter Name	Attribute value
Maker	SEI(Stackpole Electronics Inc.)
package instruction	AXIAL LEADED, ROHS COMPLIANT
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FLAMEPROOF
JESD-609 code	e2
Manufacturer's serial number	NSP
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	250 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	BULK
Rated power dissipation(P)	20 W
Rated temperature	25 °C
resistance	1 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	WIRE WOUND
Temperature Coefficient	200 ppm/°C
Terminal surface	TIN COPPER
Terminal shape	WIRE
Tolerance	5%
Operating Voltage	700 V

Preview

Download Datasheet

View All

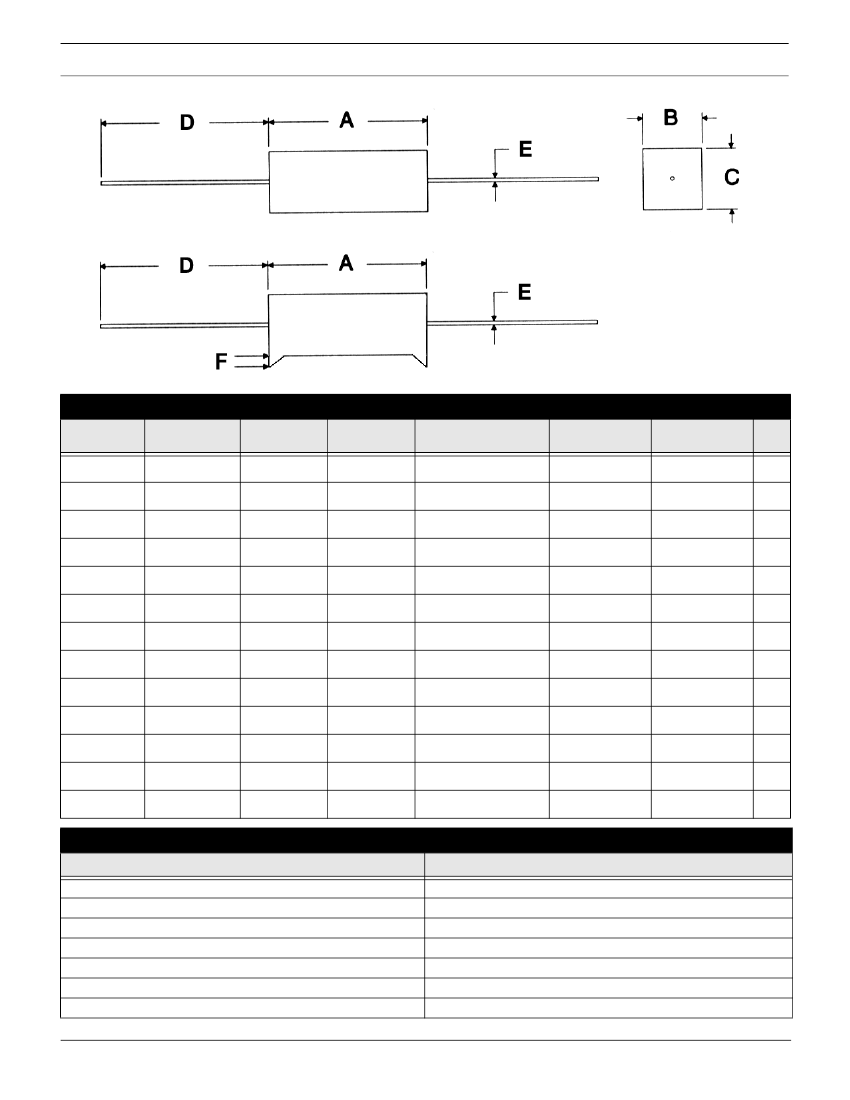

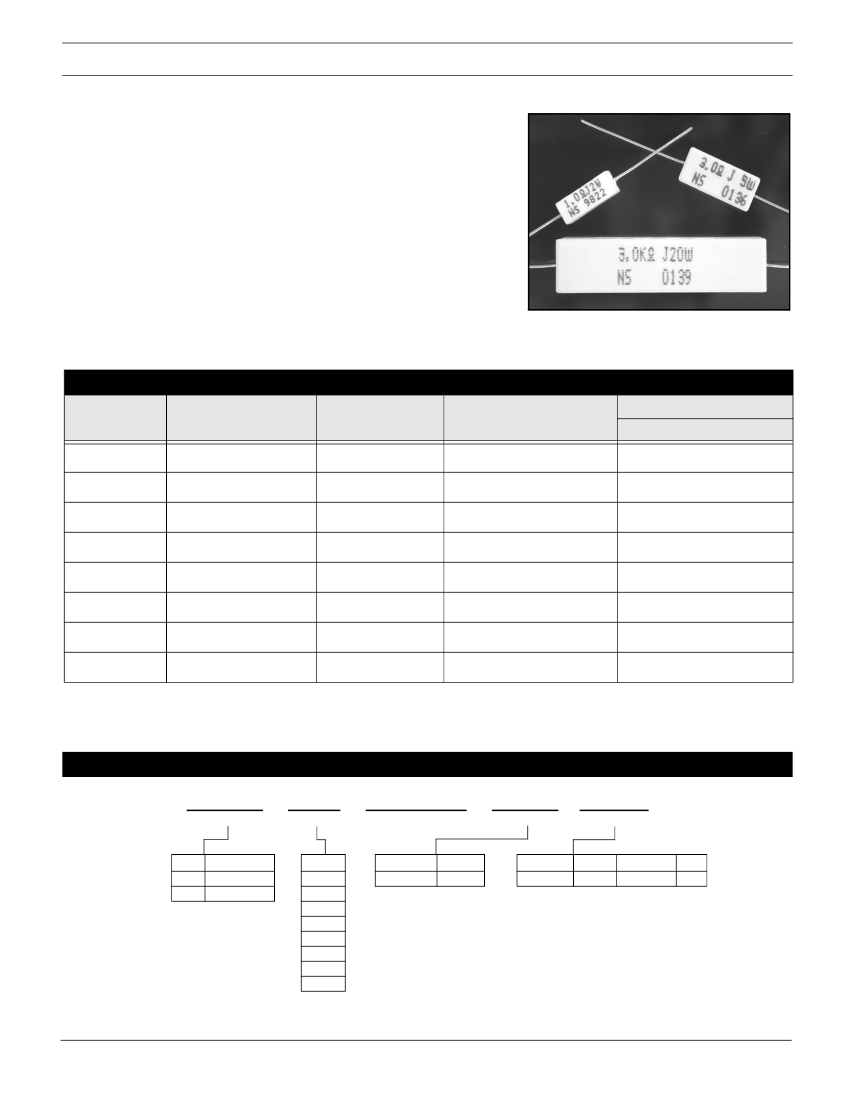

NSP/NSPP Series — Ceramic Housed - Consumer Grade

Features

• Flameproof construction

• Temperature coefficient of resistance of ±200ppm/°C

• Low resistance values

• Power derating is linear from 100% at 25°C to zero at 250°C

• Also available with standoffs as NSPP

• Other styles and configurations available; contact factory

• RoHS compliant / lead-free

Electrical Specifications

Type / Code

Power Rating

(Watts)

@ 25°C

2W

3W

5W

7W

10W

15W

20W

25W

Maximum Working

Voltage*

100V

200V

300V

350V

500V

600V

700V

Resistance Temperature

Coefficient

±200 ppm/°C

Ohmic Range and Tolerance

5%

0.1Ω – 20KΩ

0.1Ω – 2KΩ

0.1Ω – 5.1KΩ

NSP 2

NSP 3

NSP 5

NSP 7

NSP 10

NSP 15

NSP 20

NSP 25

* Lesser of

√PR

or maximum working voltage.

How to Order

NSP

SEI Type

7

Code

1.2K

Nominal Resistance

5%

Tolerance

A

Packaging

Code

NSP

Description

Standard

Code

2

3

5

7

10

15

20

25

Tolerance

5%

Values

E24

SEI Types Pkg Qty Description Code

All

1,000

Bulk

A

NSPP With Standoff

Toll Free: (888) SEI-SEIS

(888) 734-7347

www.seielect.com

61

email: marketing@seielect.com

Rev 10/06
