ZS5-46-G3T

Description
Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
CategoryThe connector    The connector
File Size64KB，1 Pages
ManufacturerYamaichi Electronics Co., Ltd.
Websitehttp://www.yamaichi.com/
Download Datasheet Parametric Compare View All

ZS5-46-G3T Overview

Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug

ZS5-46-G3T Parametric

Parameter NameAttribute value
MakerYamaichi Electronics Co., Ltd.
Reach Compliance Codeunknown
Other featuresNONE
Board mount optionsPEG
body width0.165 inch
subject depth0.177 inch
body length1.811 inch
Body/casing typePLUG
Connector typeBOARD CONNECTOR
Contact to complete cooperationAU
Contact point genderFEMALE
Contact materialPHOSPHOR BRONZE
contact modeRECTANGULAR
Contact styleSQ PIN-SKT
Dielectric withstand voltage500VAC V
Manufacturer's serial numberZS5
Plug contact pitch0.079 inch
Match contact row spacing0.079 inch
Installation methodSTRAIGHT
Installation typeBOARD
Number of connectorsONE
PCB row number2
Number of rows loaded2
Maximum operating temperature105 °C
Minimum operating temperature-40 °C
PCB contact patternRECTANGULAR
PCB contact row spacing5.7404 mm
Plating thickness10u inch
Rated current (signal)1.5 A
GuidelineUL
reliabilityCOMMERCIAL
Terminal length
Terminal pitch2.0066 mm
Termination typeSURFACE MOUNT
Total number of contacts46

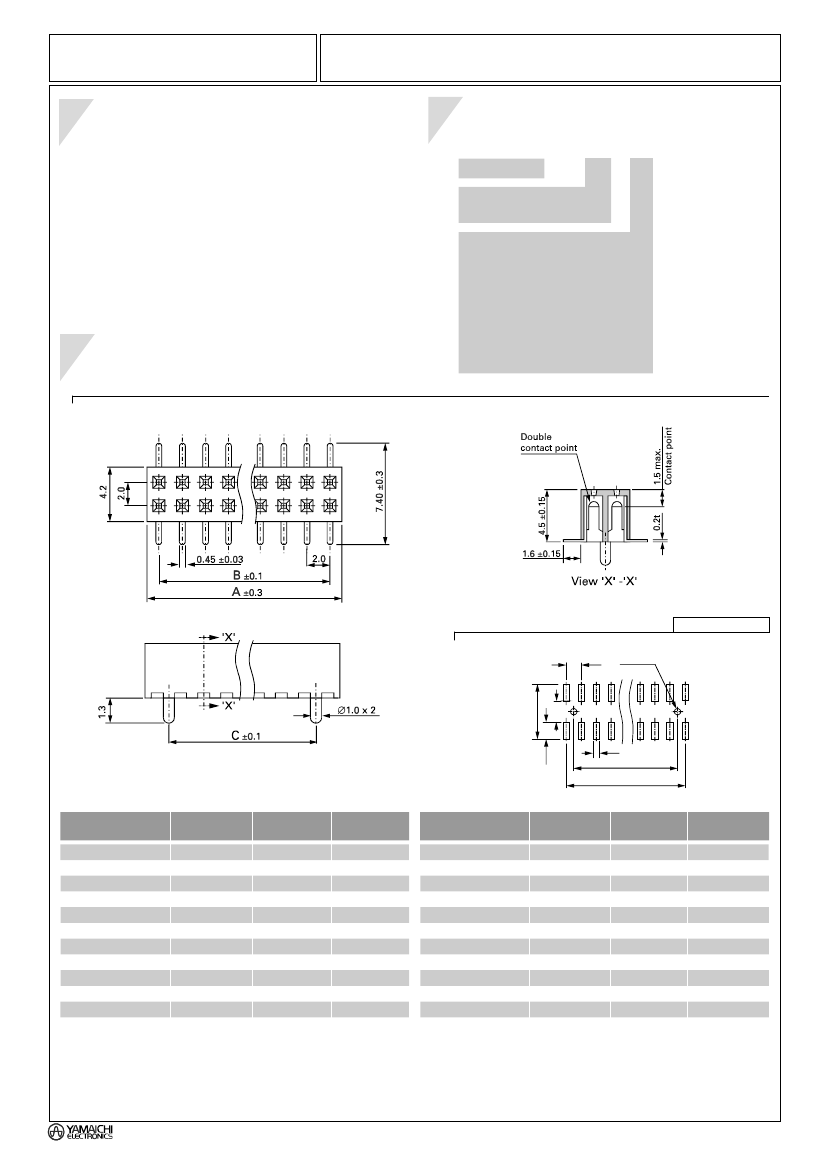

ZS5-46-G3T Preview

ZS5 Series
Specifications
180° SMD Socket
(Height 4.5mm)
Part Number
(Details)
ZS5
Series No.
No. of Contact Pins
(4 to 50)
Mating Face Plating:
G2T = Selective Gold
G3T = 10µ“ Selective Gold
G4T = 15µ“ Selective Gold
G5T = 30µ“ Selective Gold
G2 = Gold Flash
G3 = 10µ“ Gold over Nickel
G4 = 15µ“ Gold over Nickel
G5 = 30µ“ Gold over Nickel
Voltage Rating:
150 V AC
Current Rating:
1.5A
Operating Temperature Range: –40°C to +105°C
Withstanding Voltage:
500 V for 1 minute
-
**
G*
Materials and Finish
Housing: UL 94V-0 listed
Terminals: Phosphor Bronze
Contact Plating: Selective Gold or Gold over NIckel
Features
µ
Pin count from 4 to 50
Applicable Dimensions
(Reference Only)
Outline Connector Dimensions
Recommended PCB Layout
2.0
2 x
∅
1.1
Top View
8.5
3.0
2.75
0.8
C
±0.1
B
±0.1
Part Number
YAMAICHI ELECTRONICS - Munich 089 / 45109-0
ZS5-04-G*
ZS5-06-G*
ZS5-08-G*
ZS5-10-G*
ZS5-12-G*
ZS5-14-G*
ZS5-16-G*
ZS5-18-G*
ZS5-20-G*
ZS5-22-G*
ZS5-24-G*
ZS5-26-G*
Dim. A
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
26.0
Dim. B
2.0
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
24.0
Dim. C
–
–
4.0
6.0
8.0
10.0
12.0
14.0
16.0
18.0
20.0
22.0
Part Number
ZS5-28-G*
ZS5-30-G*
ZS5-32-G*
ZS5-34-G*
ZS5-36-G*
ZS5-38-G*
ZS5-40-G*
ZS5-42-G*
ZS5-44-G*
ZS5-46-G*
ZS5-48-G*
ZS5-50-G*
Dim. A
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
50.0
Dim. B
26.0
28.0
30.0
32.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
48.0
Dim. C
24.0
26.0
28.0
30.0
28.0
34.0
36.0
38.0
40.0
42.0
44.0
46.0
SPECIFICATIONS
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

ZS5-46-G3T Related Products

ZS5-46-G3T ZS5-26-G2 ZS5-26-G2T ZS5-26-G5T ZS5-26-G4 ZS5-26-G4T
Description Board Connector, 46 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug Board Connector, 26 Contact(s), 2 Row(s), Female, Straight, 0.079 inch Pitch, Surface Mount Terminal, Plug
Maker Yamaichi Electronics Co., Ltd. Yamaichi Electronics Co., Ltd. Yamaichi Electronics Co., Ltd. Yamaichi Electronics Co., Ltd. Yamaichi Electronics Co., Ltd. Yamaichi Electronics Co., Ltd.
Reach Compliance Code unknown unknown unknown unknow unknow unknow
Other features NONE NONE NONE NONE NONE NONE
Board mount options PEG PEG PEG PEG PEG PEG
body width 0.165 inch 0.165 inch 0.165 inch 0.165 inch 0.165 inch 0.165 inch
subject depth 0.177 inch 0.177 inch 0.177 inch 0.177 inch 0.177 inch 0.177 inch
body length 1.811 inch 1.024 inch 1.024 inch 1.024 inch 1.024 inch 1.024 inch
Body/casing type PLUG PLUG PLUG PLUG PLUG PLUG
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation AU AU AU AU AU ON NI AU
Contact point gender FEMALE FEMALE FEMALE FEMALE FEMALE FEMALE
Contact material PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE PHOSPHOR BRONZE
contact mode RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Contact style SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT SQ PIN-SKT
Dielectric withstand voltage 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V 500VAC V
Manufacturer's serial number ZS5 ZS5 ZS5 ZS5 ZS5 ZS5
Plug contact pitch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Match contact row spacing 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch 0.079 inch
Installation method STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD BOARD BOARD BOARD
Number of connectors ONE ONE ONE ONE ONE ONE
PCB row number 2 2 2 2 2 2
Number of rows loaded 2 2 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C -40 °C -40 °C
PCB contact pattern RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
PCB contact row spacing 5.7404 mm 5.7404 mm 5.7404 mm 5.7404 mm 5.7404 mm 5.7404 mm
Rated current (signal) 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A 1.5 A
Guideline UL UL UL UL UL UL
reliability COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL COMMERCIAL
Terminal pitch 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm 2.0066 mm
Termination type SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT SURFACE MOUNT
Total number of contacts 46 26 26 26 26 26
Plating thickness 10u inch FLASH inch - 30u inch 15u inch 15u inch
