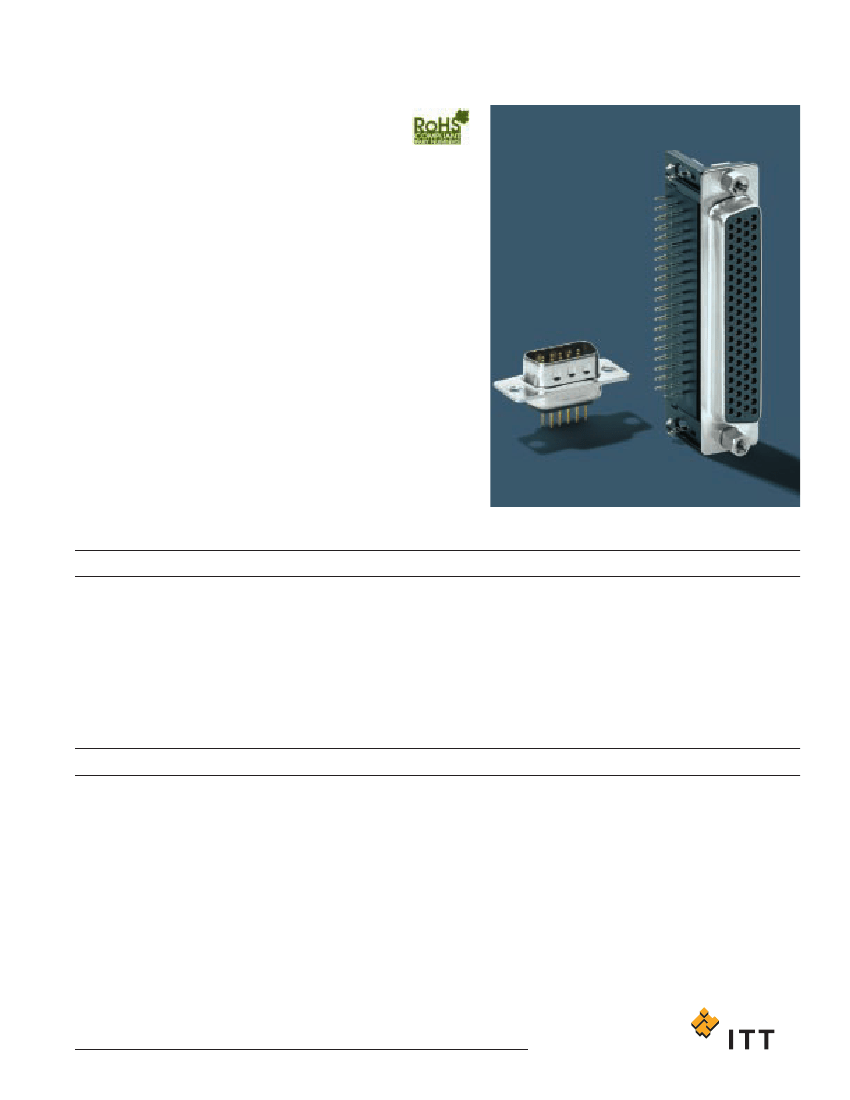

Cannon ZD Connectors
• Stamped contacts ZD* series connectors.
• Closed-entry socket insulator for secure
blind mating.
• Compatible with all other D*Subminiature
series.
• Particularly suitable for industrial
applications (control and measurement),
and for computer- telecom- or medical
equipment.
• Glass filled thermoplastic Insulator,
UL 94V-0 (E112081)
• Standard arrangement (9, 15, 25, 37, 50
contacts), and high density arrangement
(15, 26, 44, 62, 78) are available for both
male and female connectors
• The references mentioned in this catalogue
are class 3. See notes for class 2.
Electrical characteristics
Rated current
Dielectric withstanding voltage
Contact resistance
Operating temperature range
Insulation resistance Standard / High density
5 A (Standard density)
2 A (High density)
1 A (IDC)
1000 VAC for 1 min. (IDC 500 VAC for 1 min.)
20 mΩ on mated contacts
-55° / + 105°C
5000 MΩ at 500 VDC (IDC 1000 MΩ at 500 VDC)
Mechanical characteristics
Insulators
Male Contacts
Female Contacts
Finish
Shells
Mechanical endurance
Glass filled thermoplastic, black
Brass, stamped and formed
Phosphore bronze, stamped and formed
Gold over nickel in contact area, balance tin
Steel, plated
Class 3: 50 mating / unmating cycles min.
Class 2: 200 mating / unmating cycles min.

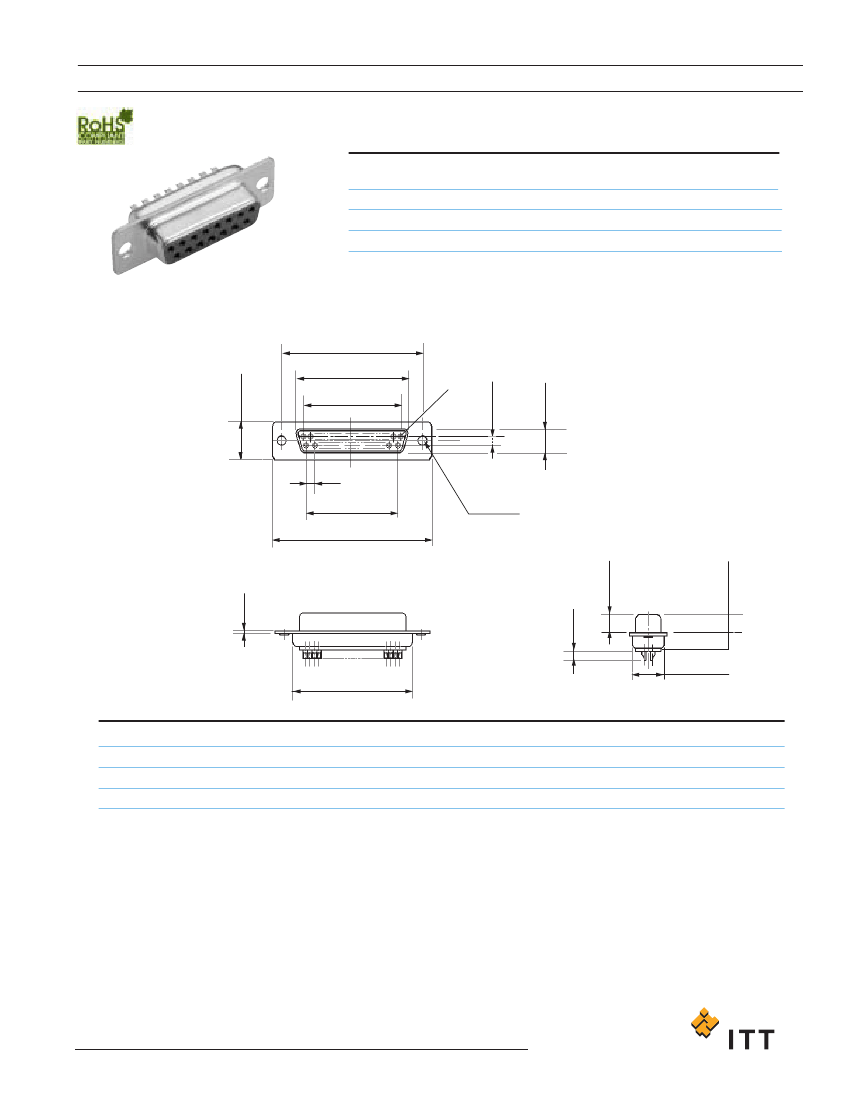

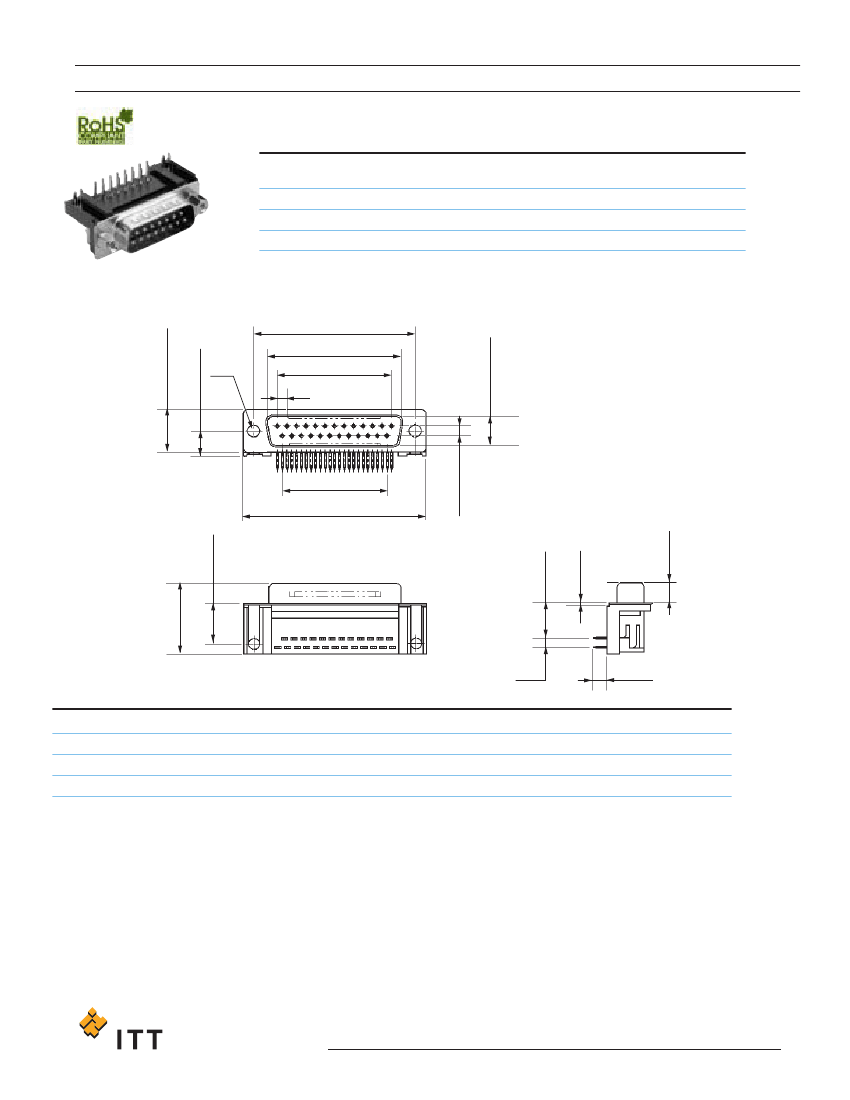

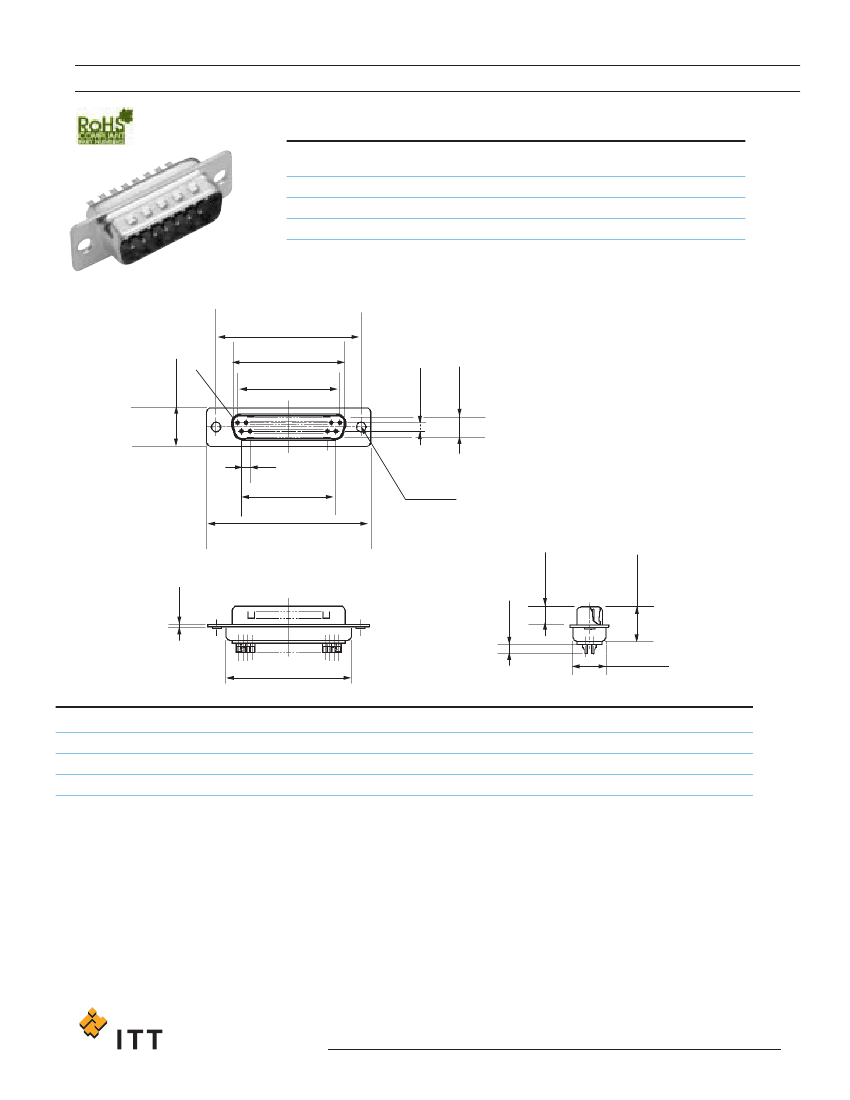

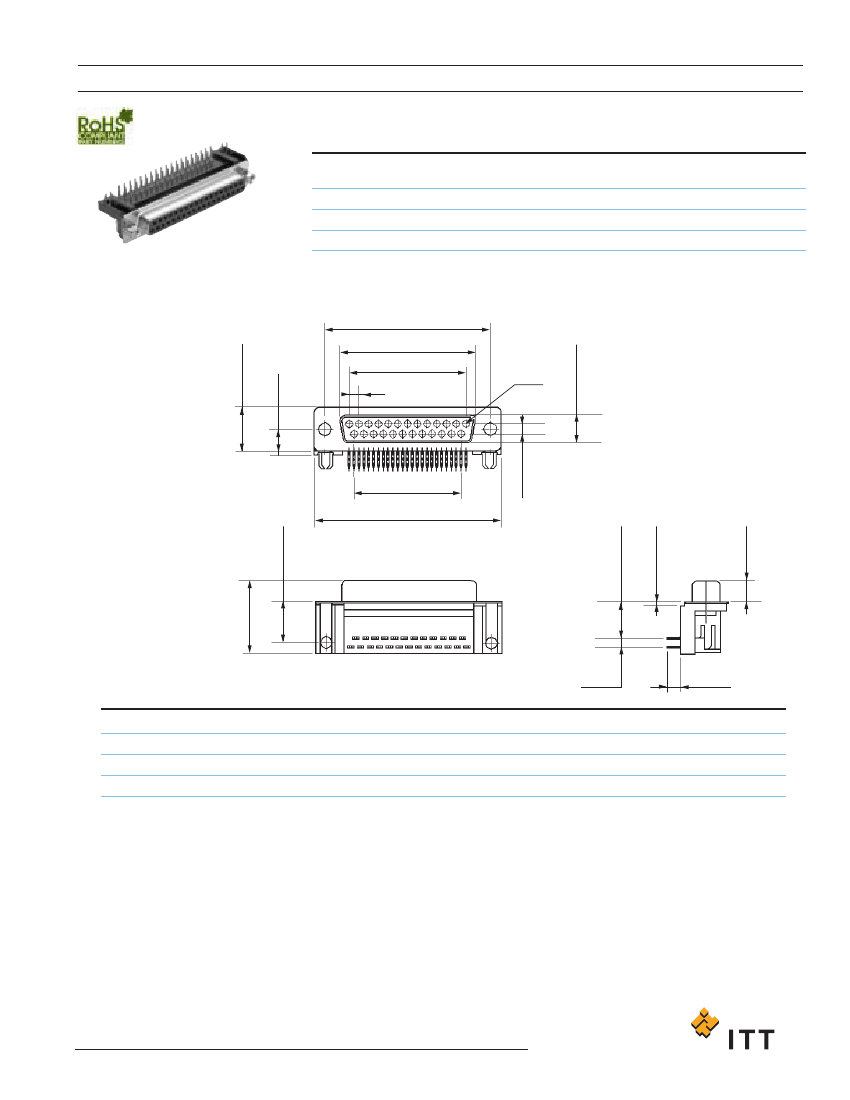

Dimensions shown in mm
