Spec Sheet
Multilayer Ceramic Capacitors (High dielectric type)
LMK212AB7106MG-T
Features
Item Summary
10uF±20%, 10V,
X7R, 0805/2012 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 3000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
10 uF ± 20 %
0805/2012
10 V
10 %
X7R
-55 to +125 ℃
150 %
External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
2.0 +0.15/-0.05 mm
1.25 +0.15/-0.05 mm
1.25 +0.15/-0.05 mm
0.50 ±0.25 mm
2018.11.10
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)

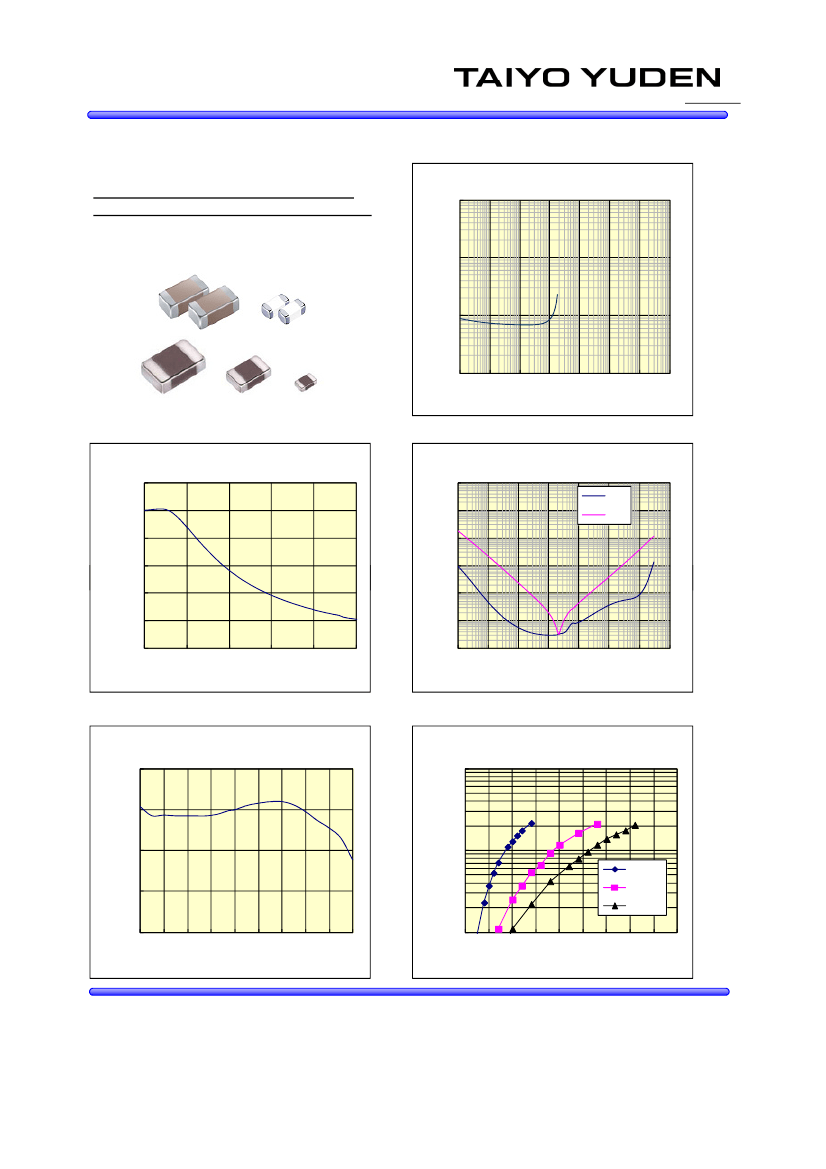

Multi Layer Ceramic Capacitor
○LMK212AB7106MG
10V 2012 X7R 10uF +/- 20% t=1.4mmMAX
10V 0805 X7R 10uF +/- 20% t=0.055inchMAX
1000
-Electrical Characteristics Data-
16R2A03
RoHS compliance product
LMK212AB7106MG
Capacitance Freq.
Capacitance[uF]
100
10
1
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
20
0
-20
LMK212AB7106MG
DC Bia s Cha r.
1000
100
LMK212AB7106MG
Impedance,ESR Freq.
ESR
Z
-40
-60
-80
-100
0
2
4
6
8
DC Bias Voltage[V]
10
Z,ESR[O
Z,ESR[OHM]
10
1
dC/C
dC/C[%]
0.1
0.01
0.001
0.001 0.01
0.1
1
10 100 1000 10000
Frequency[MHz]
LMK212AB7106MG
Ca pacitance Temp.
10
100
LMK212AB7106MG
Ripple Current
-10
dTemp.[degreeC]
0
dC/C[%]
10
10kHz
100kHz
1MHz
-20
-30
-55 -35 -15 5 25 45 65 85 105 125
Temperature[degreeC]
1
0
0.5
1
1.5 2 2.5 3 3.5
Ripple Current[Arms]
4
4.5
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
