OX5231A-HZ-2-5.000 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> OX5231A-HZ-2-5.000

OX5231A-HZ-2-5.000: DescriptionOscillator, 5MHz Min, 50MHz Max, 50MHz Nom; CategoryPassive components oscillator; File Size54KB，1 Pages; ManufacturerRaltron; Websitehttp://www.raltron.com/; Environmental Compliance

Download Datasheet Parametric View All

OX5231A-HZ-2-5.000 Overview

Oscillator, 5MHz Min, 50MHz Max, 50MHz Nom

OX5231A-HZ-2-5.000 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Raltron
package instruction	DIP12,.8,200
Reach Compliance Code	compliant
Installation features	THROUGH HOLE MOUNT
Number of terminals	12
Maximum operating frequency	50 MHz
Minimum operating frequency	5 MHz
Nominal operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Package body material	METAL
Encapsulate equivalent code	DIP12,.8,200
power supply	12,5 V
Certification status	Not Qualified
surface mount	NO

Preview

Download Datasheet

View All

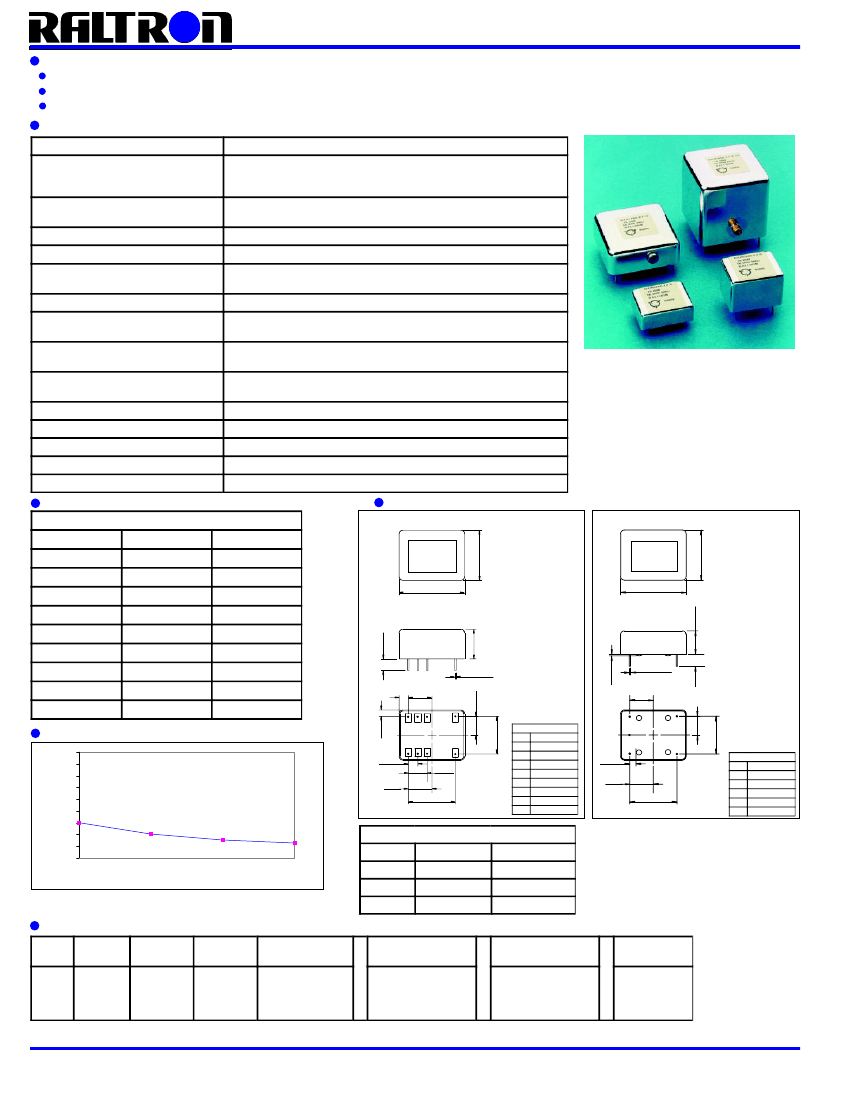

OVEN CONTROLLED CRYSTAL OSCILLATOR

FEATURES

STABILITY TO

0.01 PPM

LOW AGING CHARACTERISTICS

LOW PHASE NOISE

SERIES OX3000

SPECIFICATIONS

FREQUENCY RANGE

FREQUENCY STABILITY VS.

OPERATING TEMPERATURE

FREQUENCY STABILITY VS. AGING

OUTPUT WAVEFORM

LOAD

FREQUENCY STABILITY VS.

LOAD VARIATION

SUPPLY VOLTAGE

FREQUENCY STABILITY VS.

SUPPLY VARIATION

POWER CONSUMPTION

FREQUENCY ADJUSTMENT RANGE

CONTROL VOLTAGE RANGE

SLOPE

LINEARITY

REFERENCE VOLTAGE

STORAGE TEMPERATURE RANGE

5.00 MHz TO 50.00 MHz

±0.1 PPM OVER -20°C TO +70°C (AT-CUT) TYPICAL

±0.02 PPM OVER -20°C TO +70°C (SC-CUT) TYPICAL

(OTHER STABILITIES TEMPERATURE ARE AVAILABLE)

±1.0 PPB PER DAY AND ±0.1 PPM PER YEAR TYPICAL (AT-CUT)

±0.3 PPB PER DAY AND ±0.05 PPM PER YEAR TYPICAL (SC-CUT)

SEE TABLE 1

±0.02 PPM FOR ±10% VARIATION (AT-CUT)

±0.01 PPM FOR ±10% VARIATION (SC-CUT)

+12.0 VDC ± 5% (VCC) AND +5.0 VDC ± 5% (VDD) (-5.2 VDC FOR ECL)

±.01 PPM FOR ± 5% VARIATION (AT-CUT)

±0.05 PPM FOR ± 5% VARIATION (SC-CUT)

5.0 WATTS MAX FOR WARM-UP

2.0 WATTS MAX AT STEADY STATE

±5.0 PPM TYPICAL (AT-CUT)

±1.0 PPM TYPICAL (SC-CUT)

0 TO 6.0 +VDC

POSITIVE

±10%

+6.2 VDC OPTIONAL REFERENCE

-40°C TO +85°C

OUTPUT AND LOAD CHARACTERISTICS

TABLE 1

OUTPUT TYPE

CLIPPED SINE

TTL

HCMOS

ACMOS

100K ECL

SINEWAVE

10K ECL

PECL

CUSTOM

LOAD

10K//20 pF

3/5/10 GATES

50 OHMS

TBD

RALTRON CODE

OUTLINE DRAWING

30, 31 AND 34 PACKAGE

27.5

1.08

.MARKING

LABEL

36 PACKAGE

27.2

1.07

OX36

FUNCTION

V. CONT

N/C

VCC

OUTPUT

GROUND

6.35

.250

MARKING

LABEL

35.8

1.41

36.1

1.42

"H" HEIGHT

SEE TABLE 2

0.8 DIA

.031 DIA

10.16

.400

4.98

.196

12.70

.500

20.32

.800

PHASE NOISE CHARACTERISTICS

-20

-40

-60

dBc

-80

-100

-120

-140

-160

-180

10 Hz

100 Hz

1K Hz

10K hz

-120

-140

-150

-155

OX30, 31, 34

FUNCTION

OUTPUT

VDD

OPTIONAL REF.

CASE/GROUND

N/C

FREQ. ADJUST

N/C

VCC

2.5

.098

12.70

.500

25.4

1.00

5.08

.200

12.70

.500

10.16

.400

25.4

1.00

8.9

.350

17.6

.700

3.33

.131

TABLE 2 PACKAGE HEIGHTS

PACKAGE

inch

35.8 x 27.5 x 16 1.41 x 1.08 x .623

35.8 x 27.5 x 19 1.41 x 1.08 x .748

35.8 x 27.5 x 12 1.41 x 1.08 x .472

Offset from carrier

TYPICAL PHASE NOISE FOR HCMOS OUTPUT

SINEWAVE OUTPUT IS -5 dBc/Hz BETTER

PART NUMBERING SYSTEM

TYPE

OUTPUT

TYPE

TABLE 1

CODE

CRYSTAL

CUT

1: AT CUT

2: SC CUT

PACKAGE

TYPE

REVISION LEVEL

HZ: -20° C TO +70° C

TEMPERATURE

RANGE

FREQUENCY

STABILITY

10: 0.1 PPM

2: 0.02 PPM

IN MHz

FREQUENCY

RALTRON

ASSIGNED

EXAMPLE: OX2234A-HZ-2-20.000

Raltron Electronics Corporation 10651 NW 19th St. Miami, Florida 33172 U.S.A.

Tel: 305-593-6033 Fax: 305-594-3973 e-mail: sales@raltron.com Internet: http://www.raltron.com

4.5

.177

.030 DIA

0.76 DIA

0.8 DIA

.031 DIA

16.00

.623
