B37986-G5822-J54 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> B37986-G5822-J54

Preview

B37986-G5822-J54: DescriptionCeramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0082uF, 2010,; CategoryPassive components capacitor; File Size303KB，7 Pages; ManufacturerEPCOS (TDK)

Download Datasheet Parametric Compare View All

B37986-G5822-J54 Overview

Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0082uF, 2010,

B37986-G5822-J54 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	EPCOS (TDK)
package instruction	, 2010
Reach Compliance Code	unknown
capacitance	0.0082 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Delivery Modes
dielectric materials	CERAMIC
high	6.5 mm
JESD-609 code	e3
length	5 mm
multi-layer	Yes
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Radial
method of packing	Ammo Pack
positive tolerance	5%
Rated (DC) voltage (URdc)	50 V
series	B37986
size code	2010
Temperature characteristic code	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)
Terminal pitch	5 mm
width	2.5 mm

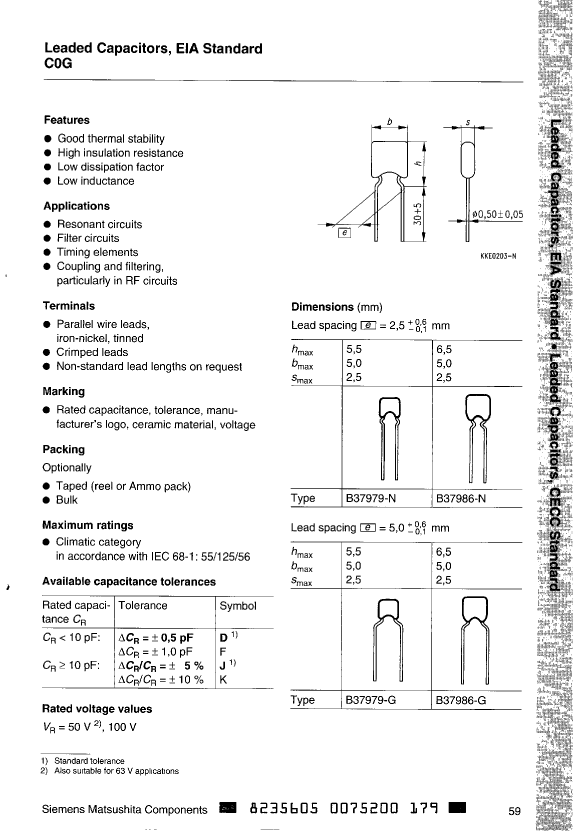

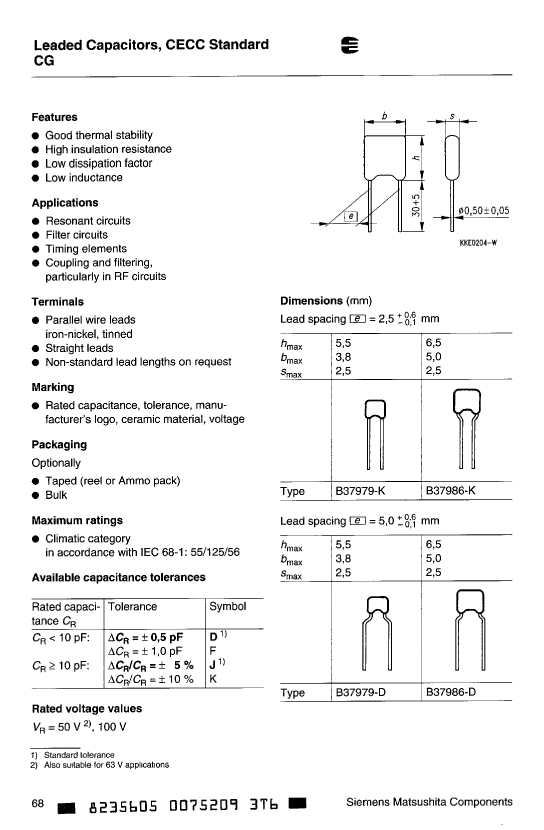

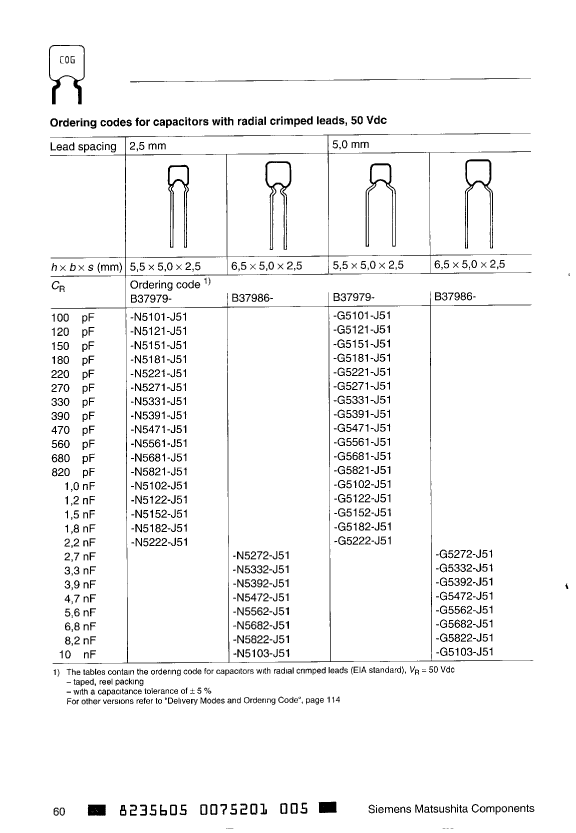

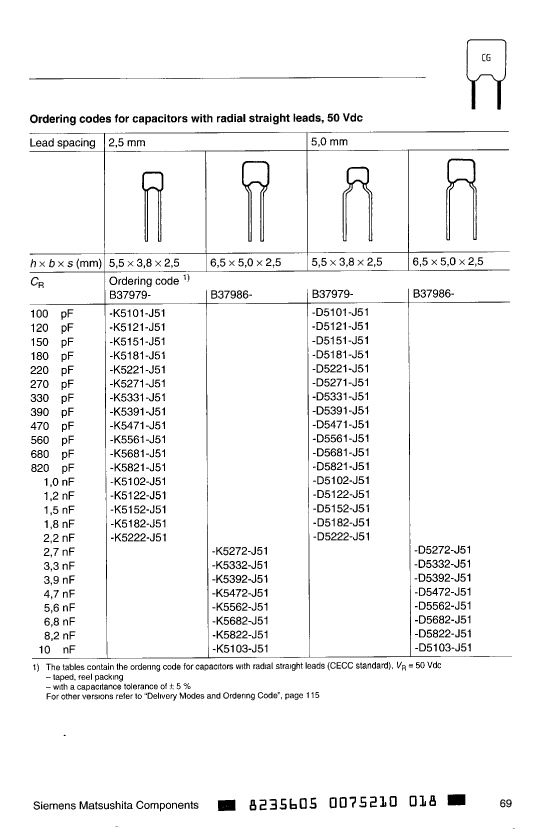

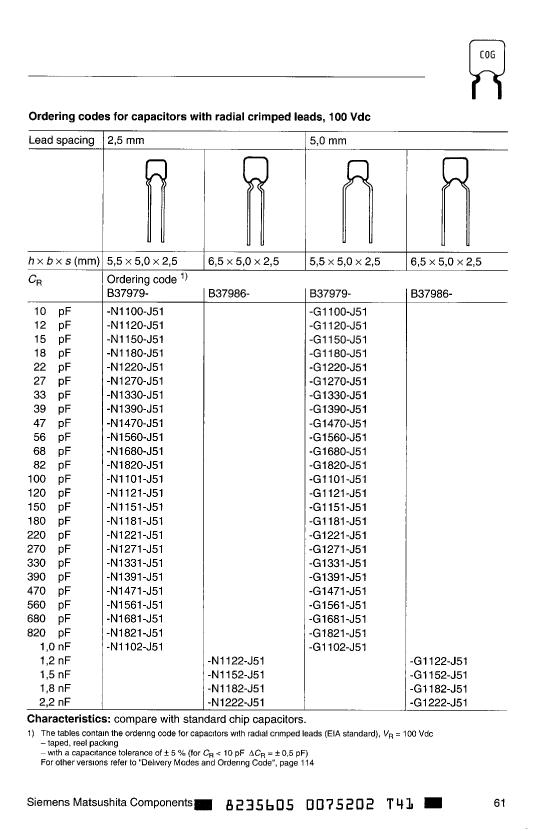

B37986-G5822-J54 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

B37986-G5822-J54 Related Products

	B37986-G5822-J54	B37986-G5472-J	B37986-G5472-J51	B37986-G5472-J54	B37986-N5392-J	B37986-N5103-J00	B37986-G1222-J00	B37986-K5392-J00
Description	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0082uF, 2010,	Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.0047uF, 2010	Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.0047uF, 2010	Ceramic Capacitor, Multilayer, Ceramic, 50V, C0G, -/+30ppm/Cel TC, 0.0047uF, 2010	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0039uF, 2010,	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.01uF, 2010,	Ceramic Capacitor, Multilayer, Ceramic, 100V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0022uF, 2010,	Ceramic Capacitor, Multilayer, Ceramic, 50V, 5% +Tol, 5% -Tol, C0G, -/+30ppm/Cel TC, 0.0039uF, 2010,
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
package instruction	, 2010	, 2010	,	, 2010	, 2010	, 2010	, 2010	, 2010
Reach Compliance Code	unknown	unknown	unknown	unknown	unknow	unknow	unknown	unknown
capacitance	0.0082 µF	0.0047 µF	0.0047 µF	0.0047 µF	0.0039 µF	0.01 µF	0.0022 µF	0.0039 µF
Capacitor type	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR	CERAMIC CAPACITOR
Custom functions	Delivery Modes	Delivery Modes	Delivery Modes	Delivery Modes	Delivery Modes	Delivery Modes	Delivery Modes	Delivery Modes
dielectric materials	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC	CERAMIC
high	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm	6.5 mm
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
length	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm	5 mm
multi-layer	Yes	Yes	Yes	Yes	Yes	Yes	Yes	Yes
negative tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Number of terminals	2	2	2	2	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package form	Radial	Radial	Radial	Radial	Radial	Radial	Radial	Radial
method of packing	Ammo Pack	Bulk	TR, 14 Inch	Ammo Pack	Bulk	Bulk	Bulk	Bulk
positive tolerance	5%	5%	5%	5%	5%	5%	5%	5%
Rated (DC) voltage (URdc)	50 V	50 V	50 V	50 V	50 V	50 V	100 V	50 V
Temperature characteristic code	C0G	C0G	C0G	C0G	C0G	C0G	C0G	C0G
Temperature Coefficient	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C	-/+30ppm/Cel ppm/°C
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Matte Tin (Sn)
Terminal pitch	5 mm	5 mm	5 mm	5 mm	2.5 mm	2.5 mm	5 mm	2.5 mm
width	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Maker	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	EPCOS (TDK)	-
series	B37986	-	-	-	B37986	B37986	B37986	B37986
size code	2010	2010	-	2010	2010	2010	2010	2010
ECCN code	-	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
