Q970013: DescriptionAll Dimension IN MM; File Size53KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

Q970013 Overview

All Dimension IN MM

Preview

Download Datasheet

View All

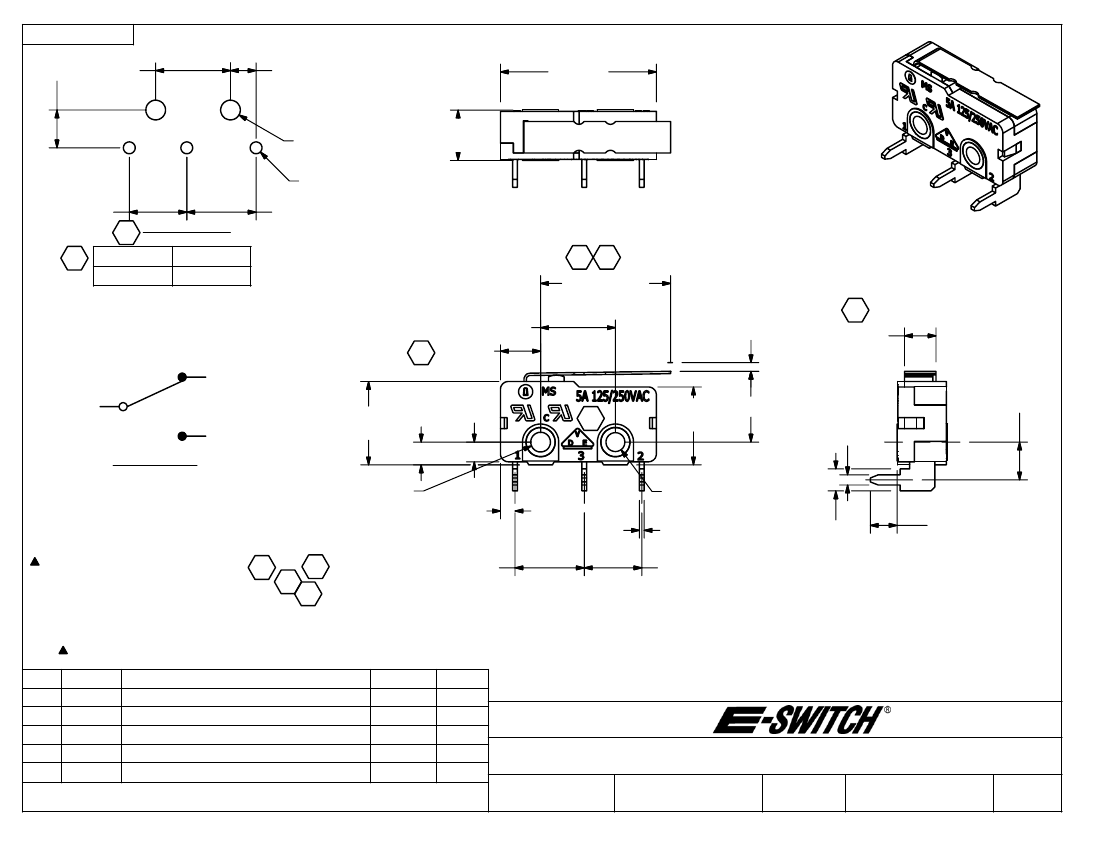

SHEET 1 OF 1

4.80

[.189 in]

9.50

[.374 in]

3.25

[.128 in]

19.80

[.780 in]

[.098 in]

1.75

[.069 in]

2.50

6.40

[.252 in]

7.30

[.287 in]

P.C. MOUNTING

P.T. (MM)

8.80

[.346 in]

ISOMETRIC

16.50

.50

[.650

.020

in]

9.50

[.374 in]

P.T.

4.00

[.157 in]

O.P. (MM)

9.1

0.8

3.8 MAX

O.P. = OPERATING POINT

P.T. = PRE-TRAVEL

5.10

[.201 in]

COM

CIRCUIT: SPDT

2.50

[.098 in]

NOTES:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=

0.4

X.XX=

0.25

3. RATING: 5A @125/250VAC UL, CUL, VDE APPROVED

4. OPERATING FORCE: 45

20 GRAMS

5. OPERATING TEMP: -25

C TO 85

6. ELECTRICAL LIFE: 50,000 CYCLES MIN. E

7. MECHANICAL LIFE: 1,000,000 CYCLES TYP.

8. INSULATION RESISTANCE: 100 MEGA-OHMS

9. DIELECTRIC STRENGTH: 1000VAC 1 MINUTE (INITAL VALUE)

10. CONTACT RESISTANCE: 100 MILLI-OHMS MAX.

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

1/3/06

15649

CHANGES NOTED

10.60

[.417 in]

2.50

2.90

[.098 in]

[.114 in]

9.90

[.390 in]

O.P.

1.30

[.051 in]

4.80

[.189 in]

1.85

[.073 in]

2.40

[.094 in]

.60

[.024 in]

7.30

[.287 in]

2.80

[.110 in]

3.40

[.134 in]

8.80

[.346 in]

REV

15283

15047

14969

14948

PCR NO

EDIT PC MOUNT, ROHS NOTE

CHANGED NOTE 4, ADDED MOUNTING

CHANGED DIMENSIONS AND NOTES

RELEASED FOR PRODUCTION

DESCRIPTION

9/15/05

6/30/05

6/2/05

5/24/05

DATE

TITLE

SCALE

MS0850502F045V2A

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

5/24/2005

Q970013
