UC342A6000G-T: DescriptionMica Capacitor, Mica, 100V, 2% +Tol, 2% -Tol, 50ppm/Cel TC, 0.0006uF, Surface Mount, 1812, CHIP; CategoryPassive components capacitor; File Size135KB，4 Pages; ManufacturerSoshin Electric Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

UC342A6000G-T Overview

Mica Capacitor, Mica, 100V, 2% +Tol, 2% -Tol, 50ppm/Cel TC, 0.0006uF, Surface Mount, 1812, CHIP

UC342A6000G-T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Soshin Electric Co., Ltd.
package instruction	, 1812
Reach Compliance Code	unknown
capacitance	0.0006 µF
Capacitor type	MICA CAPACITOR
dielectric materials	MICA
Installation features	SURFACE MOUNT
negative tolerance	2%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR
positive tolerance	2%
Rated (DC) voltage (URdc)	100 V
size code	1812
surface mount	YES
Temperature Coefficient	50ppm/Cel ppm/°C
Terminal shape	WRAPAROUND

UC342A6000G-T Preview

UC34 Type

Chip Mica Capacitor　4.5x3.2 Size

Superior RF characteristics with high withstanding voltage

High accuracy with less aging deterioration

(Contact us if you need non-standard capacitance tolerance)

Applications

Power circuit of wireless devices, RF power amplifier

Specifications

Ordering Cord:UC342A4700J (-T)

UC Chip Mica Capacitor:UC Series

34 Size(mm) L:4.5 W:3.2 T:2(max)

2A Rated Voltage 2A:100WVDC 2H:500WVDC

Nominal Capaciance (pF) Exa.:4700-->470pF 0150-->15pF

Capacitance Range 2A:241-820pF 2H:91.5-470pF

4700

10pF up to 100pF/0.5pF Step

101pF up to 1000pF/1pF Step

Tolerance

Capacitance (pF)

C

D

F

J

91.5-100

+⁄-0.25pF +⁄-0.5%

+⁄-1%

101-820

+⁄-1%

(-T) Taping UC34 : 1000pcs/Reel

Temperature Coefficient 0-50ppm/Deg.C

Operating Temperature Range -55 up to +125Deg.C

Insuration Resistance 10x10

4

M ohm min

G

J

+⁄-2% +⁄-5%

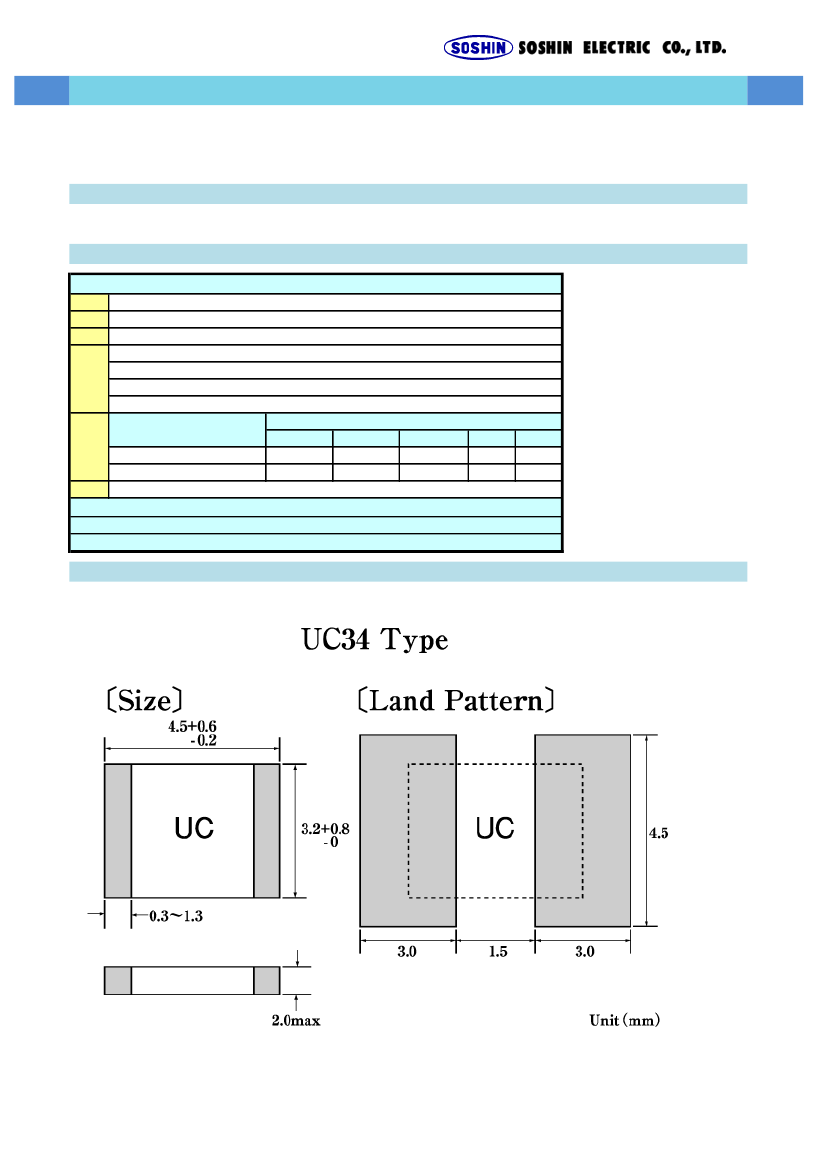

Land Pattern & Dimensions

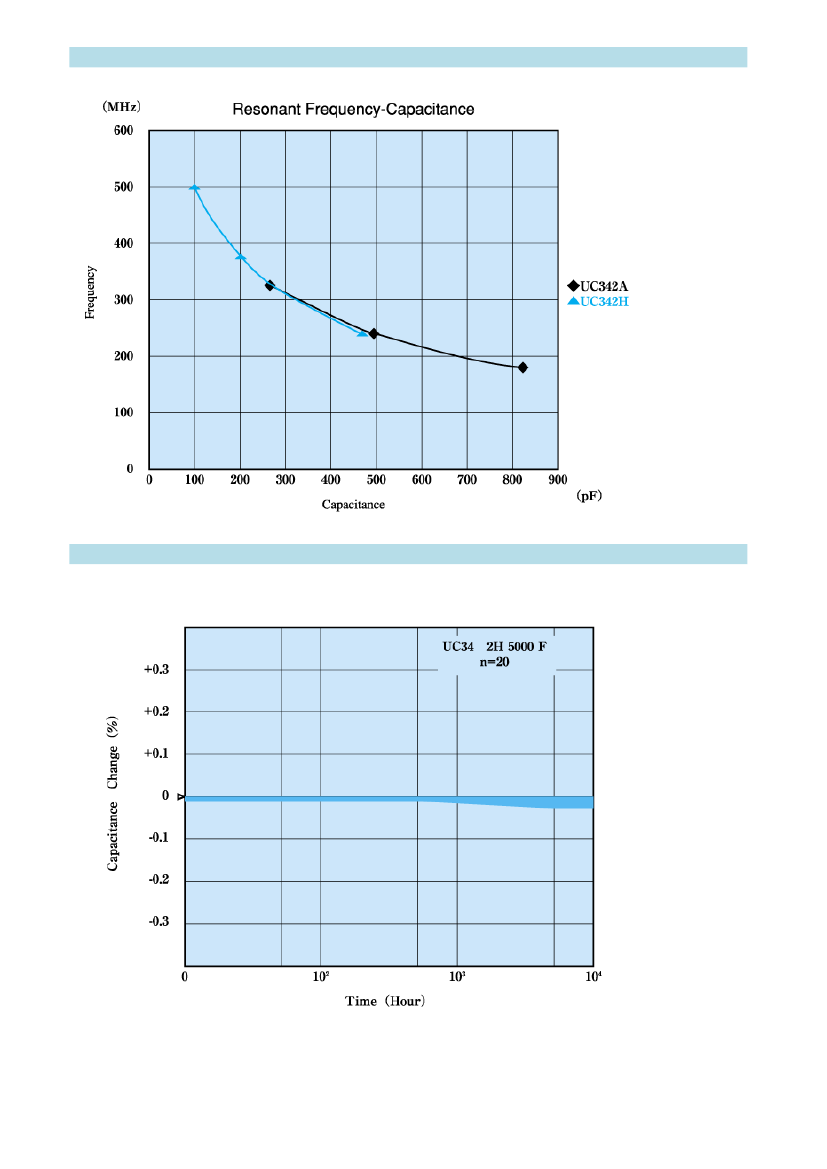

Characteristics 2 Resonant Frequency

Characteristics 3 Capacitance change vs. Time

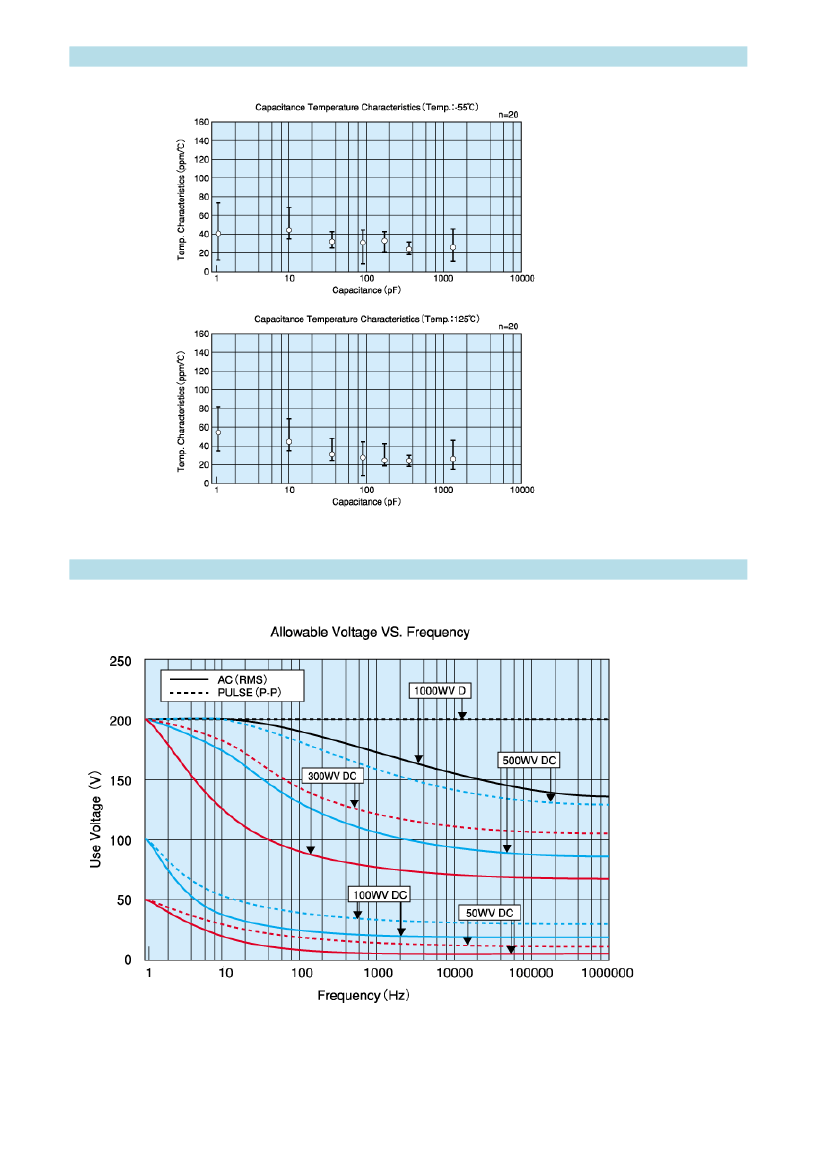

Characteristics (Common) 1 Capacitance vs. Temperature

（-55℃-125℃）

Characteristics (Common) 3　Allowable Voltage vs. Frequency

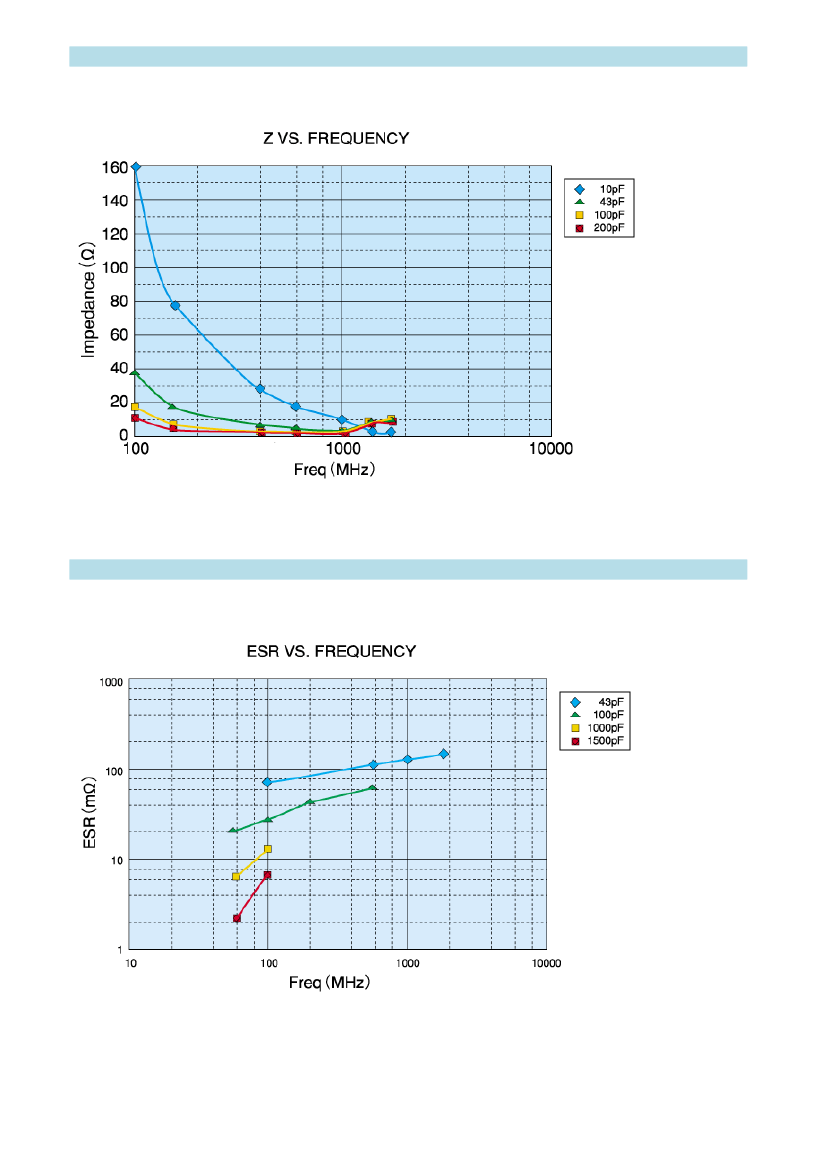

Characteristics (Common) 4　Frequency vs. Impedance

Characteristics (Common) 5　ESR vs. Frequency

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
