CDRH10D48MNNP-100NC

Description
General Purpose Inductor, 10uH, 25%, 1 Element, Ferrite-Core, SMD, 3939, ROHS COMPLIANT
CategoryPassive components    inductor
File Size268KB,5 Pages
ManufacturerSUMIDA
Websitehttp://www.sumida.com/
Environmental Compliance
Download Datasheet Parametric View All

CDRH10D48MNNP-100NC Overview

General Purpose Inductor, 10uH, 25%, 1 Element, Ferrite-Core, SMD, 3939, ROHS COMPLIANT

CDRH10D48MNNP-100NC Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerSUMIDA
package instruction3939
Reach Compliance Codeunknown
ECCN codeEAR99
uppercase and lowercase codes3939
structureMagnetically Shielded
core materialFerrite
DC Resistance0.024 Ω
Nominal inductance(L)10 µH
Inductor ApplicationsPOWER INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
Manufacturer's serial numberCDRH10D48MN
Number of functions1
Number of terminals2
Package height4.8 mm
Package length10 mm
Package formSMT
Package width10 mm
method of packingTape
Maximum rated current4.2 A
seriesCDRH10D48MN
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance25%
SMD Power Inductor
CDRH10D48MN
Description
• Ferrite drum core construction.
• Magnetically shielded.
• L W H: 10.5 10.5 5.0 mm Max.
• Product weight: 1.7g(Ref.)
• Moisture Sensitivity Level: 1
• RoHS compliance.
Environmental Data
• Operating temperature range: -40
+105
(excluding coil’s self temperature rise)
• Storage temperature range: -40
+105

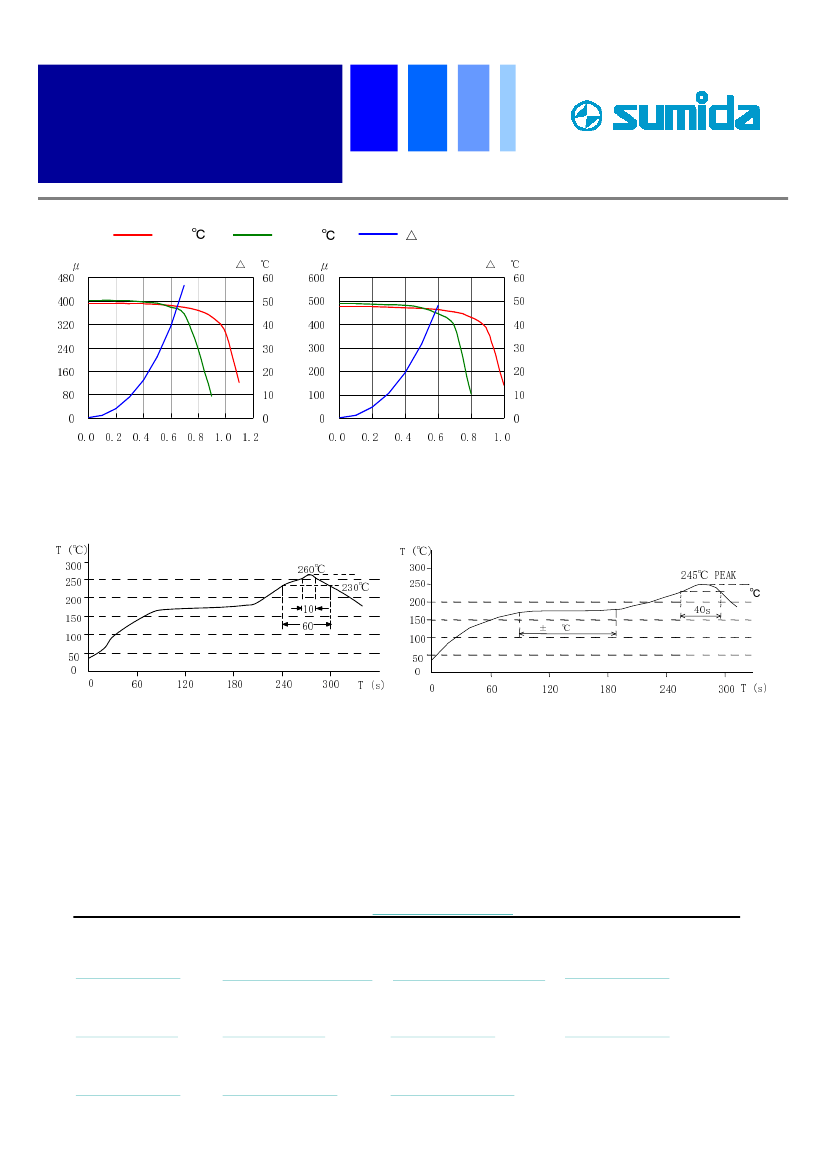

• Solder reflow temperature: 260
peak.
a
RoHS

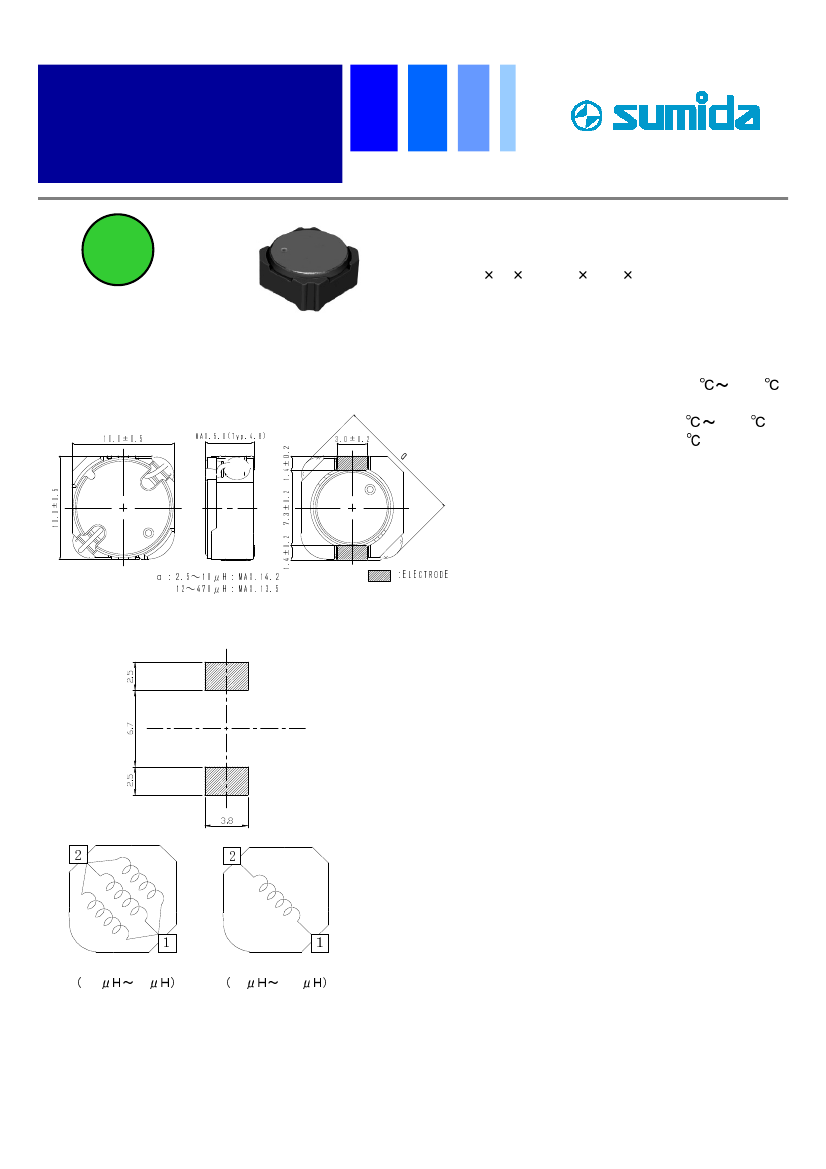

Dimension - [mm]
2.0±0.3
)8.4.pyT(0.5.XAM
5.0±0.01
Packaging
• Carrier tape and reel packaging.
• 12.9”diameter reel
• 500pcs per reel
EDORTCELE:
Applications
• Ideally used in LCD driver, DSC/DVC,
Notebook PC or the other portable equipment.
Land pattern and Schematics - [mm]
)Hμ
½Hμ
)Hμ
½Hμ
2.5
10
12
470
Page 1 of 5
Revised: 7-Jan-14
℃ ½℃
℃ ½℃
× ×
× ×
1
.
4
±
0
.
2
7
.
3
±
0
.
2
1
.
4
±
0
.
2

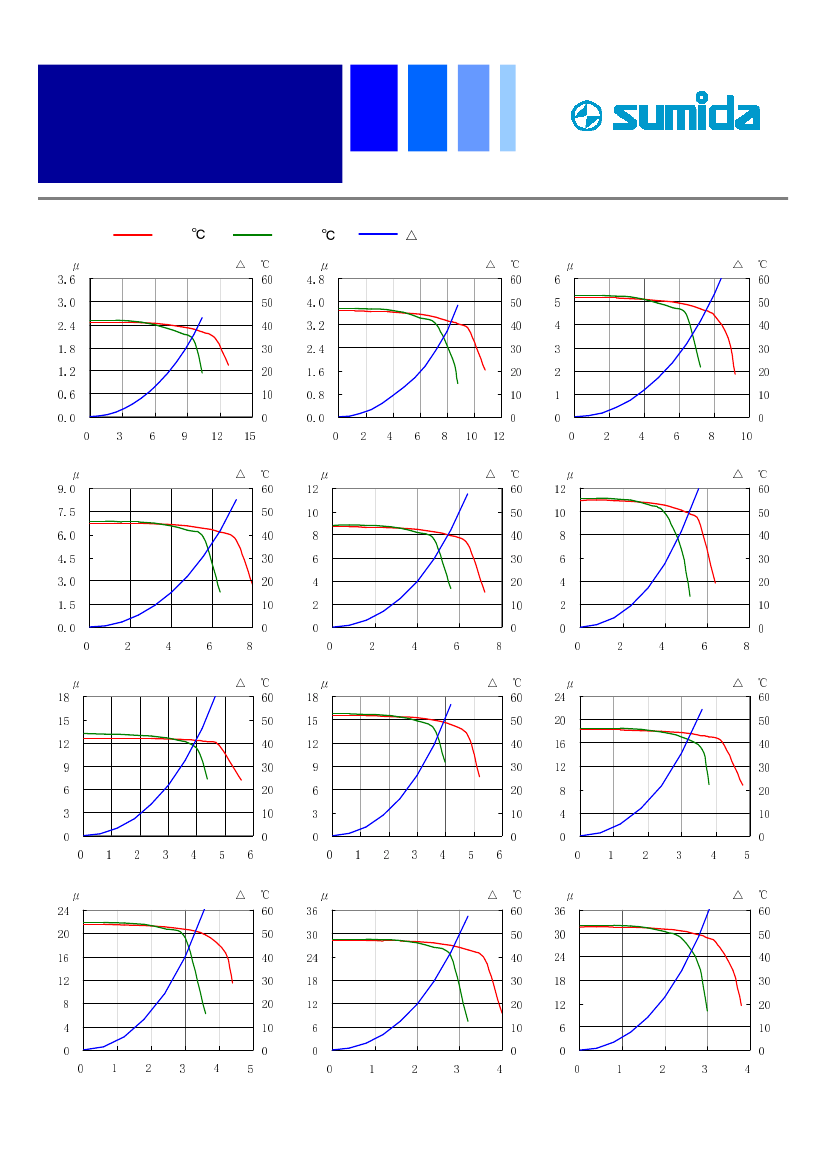

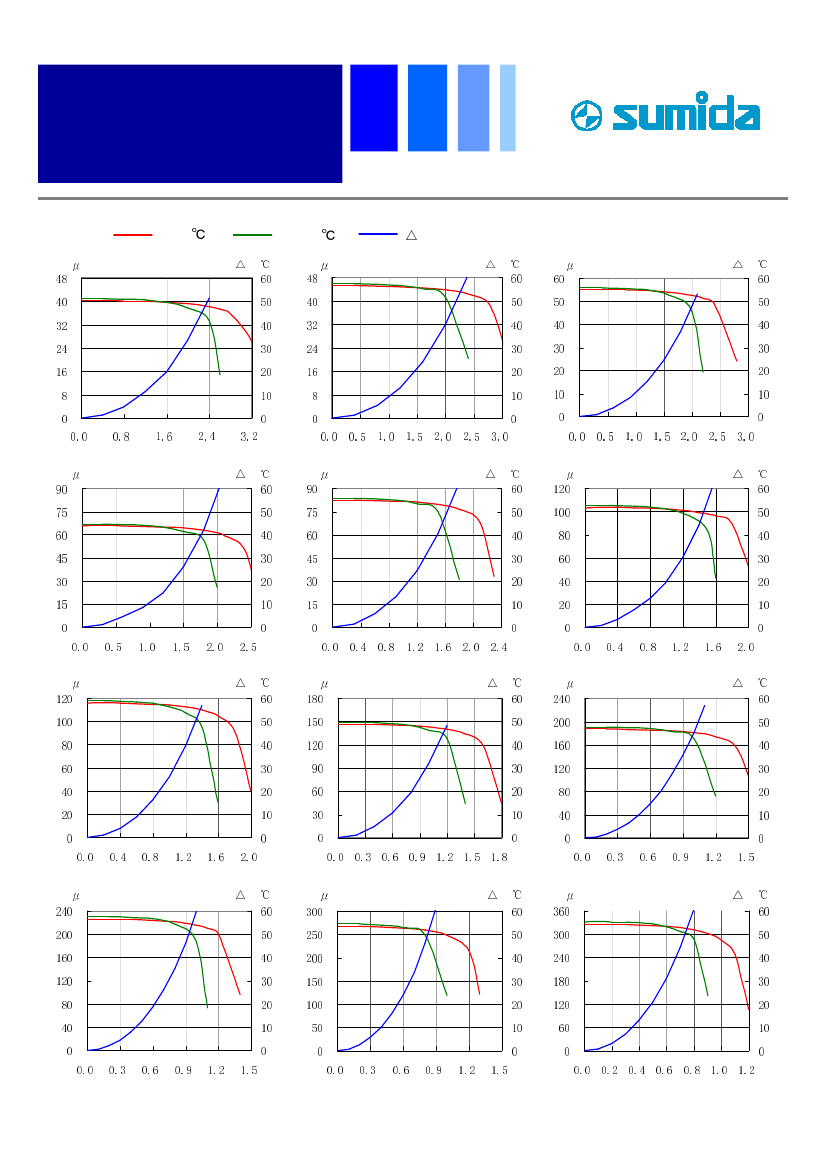

5.31.XAM:Hμ074½21
2.41.XAM:Hμ01½5.2:½
2
2
1
0
.
0
±
0
.
5
