SHEET 1 OF 1
2.50
[.098 in]

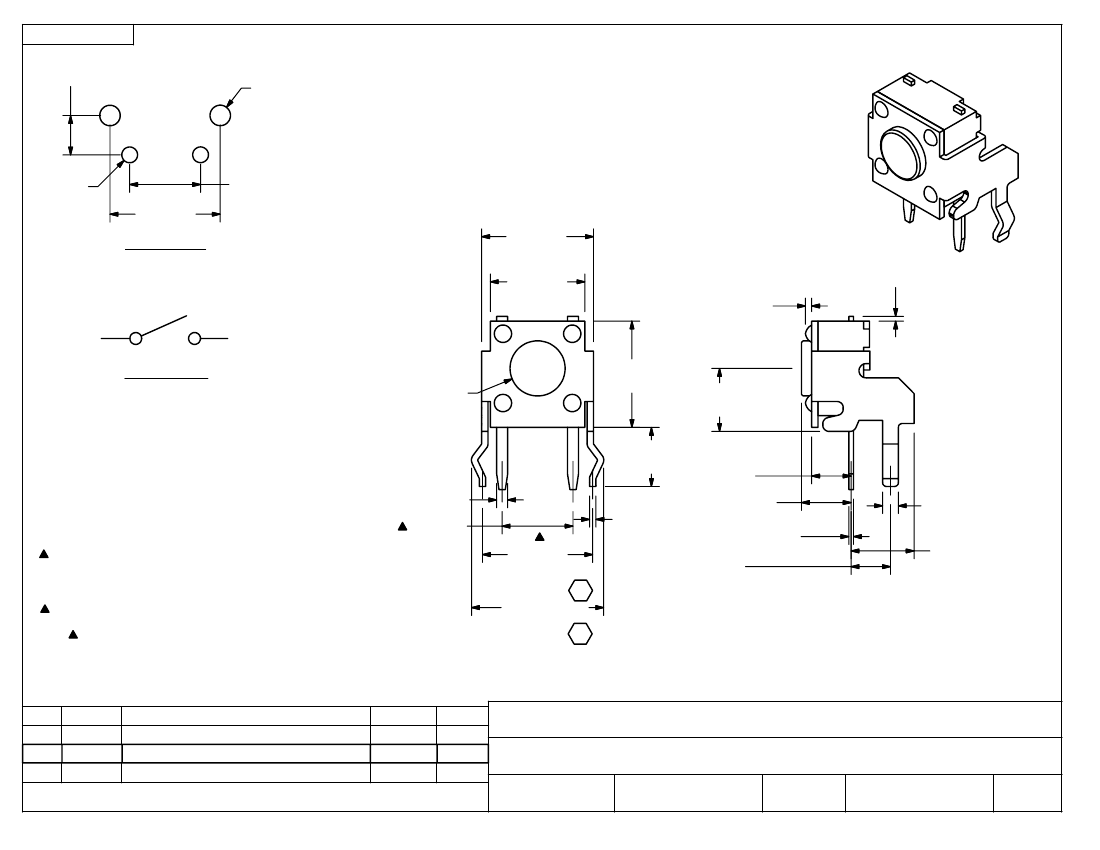

ISOMETRIC
n
1.30
[.051 in]
[.039 in]
7.00
[.276 in]
P.C.B. LAYOUT
n
1.00
4.50
[.177 in]
7.10
[.280 in]
6.00
[.236 in]
.30
[.012 in]
.40
[.016 in]
1
2
n
3.50
[.138 in]
CIRCUIT: SPST
6.75
[.266 in]
4.00
[.157 in]
3.75
[.148 in]
NOTES:
1. ALL DIMENSIONS IN MM
2. GENERAL TOLERANCE: X.X=±0.4
X.XX=±0.25
3. TERM. NOS. FOR REFERENCE ONLY.
4. RATING: 50VDC, 50mA
5. OPERATING FORCE: 160
`
50 gms
6. TRAVEL: 0.3mm
±
0.15
7. CONTACT RESISTANCE: 100 MILLI OHMS MAX. (INITIAL)
8. MECHANICAL/ELECTRICAL LIFE 100,000 CYCLES MIN.
9. MATERIAL: CONTACTS: SILVER
HOUSING & ACTUATOR: TO MEET UL 94V0
10. DENOTES CRITICAL PARAMETER
11. 2002/95/EC (ROHS) COMPLIANT
.70
[.028 in]
4.50
[.177 in]
7.00
[.276 in]
C
.40
[.016 in]
2.50
[.098 in]
3.15
[.124 in]
.30
[.012 in]
2.50
[.098 in]
1.00
[.039 in]
4.00
[.157 in]
8.40
`
.30
[.331
`
.012
in]
B
C
B
A
REV
19502
18677
14702
PCR NO
CHANGED TOLERANCE
LEG TOLERANCE WAS +/- 0.1
RELEASED FOR PRODUCTION
DESCRIPTION
12/07/10
10/9/09
2/18/05
DATE
BGL
BLR
AR
BY
TITLE
SCALE
TL1105WF160Q94V0
4:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
10/9/2009
BLR
P020232
C
