250A18Y823MV4E datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 250A18Y823MV4E

250A18Y823MV4E: DescriptionISOLATED C NETWORK, 25V, Y5V, 0.082uF, SURFACE MOUNT, CHIP-8, CHIP; CategoryPassive components capacitor; File Size97KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

250A18Y823MV4E Overview

ISOLATED C NETWORK, 25V, Y5V, 0.082uF, SURFACE MOUNT, CHIP-8, CHIP

250A18Y823MV4E Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Johanson Dielectrics
package instruction	CHIP,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	0.082 µF
Capacitor type	ARRAY/NETWORK CAPACITOR
JESD-609 code	e3
length	3.2 mm
Manufacturer's serial number	A18
Installation features	SURFACE MOUNT
negative tolerance	20%
Network Type	ISOLATED C NETWORK
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	85 °C
Minimum operating temperature	-30 °C
encapsulated code	CHIP
Package shape	RECTANGULAR PACKAGE
method of packing	TR, EMBOSSED, 7 INCH
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V
Maximum seat height	1.5 mm
surface mount	YES
Temperature characteristic code	Y5V
Temperature Coefficient	-82/+22% ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal pitch	0.76 mm
Terminal shape	WRAPAROUND
width	1.6 mm

Preview

Download Datasheet

View All

APACITOR

RRAYS

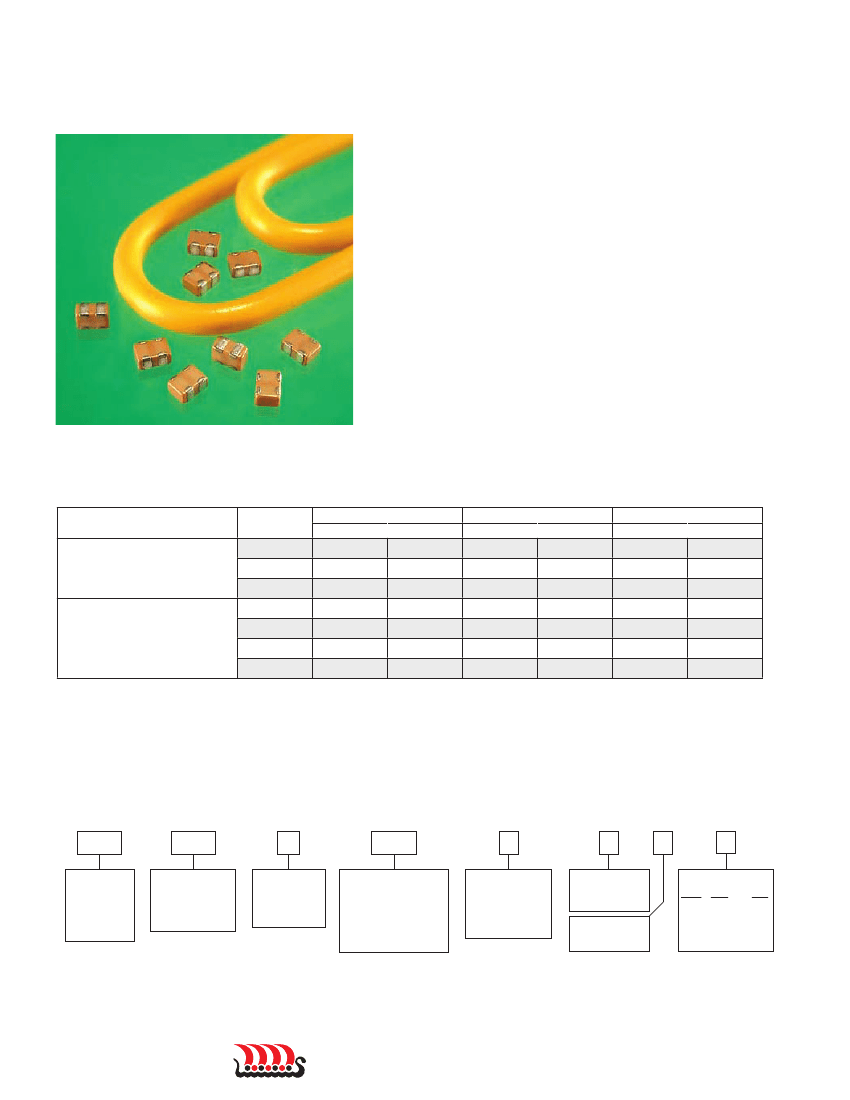

Capacitor arrays combine separate multi-layer ceramic

capacitors of the same value in a single passive

component. The primary advantages of this device are a

reduction in PCB space and placement time. The arrays

are offered in three standard dielectrics and feature barrier

terminations and tape & reel packaging.

EATURES

• Multiple Caps in One Chip

• Reduces Circuit Size

• Easier Handling

• Lower Placement Cost

• Increased Throughput

PPLICATIONS

• Cellular / Pagers

• Handheld Equipment

• PCMCIA Cards

• Camcorders

• PC’s & Peripherals

APACITANCE

/ V

OLTAGE

ELECTION

HIP

IZE

A11 / 0405

RATED

VOLTAGE

10 VDC

16 VDC

25 VDC

16 VDC

25 VDC

50 VDC

100 VDC

330 pF

10 pF

470 pF

220 pF

NPO DIELECTRIC

min.

MAX.

10 pF

680 pF

X7R DIELECTRIC

min.

MAX.

560 pF

.033 µF

.015 µF

6800 pF

220 pF

.047 µF

.033 µF

.022 µF

.047 µF

.022 µF

.010 µF

4700 pF

.150 µF

.068 µF

.010 µF

.220 µF

.100 µF

.047 µF

Y5V DIELECTRIC

min.

MAX.

A18 / 0612

Available capacitance values include the following significant R12 retma values and their multiples:

1.0 1.2 1.5 1.8 2.2 2.7 3.3 3.9 4.7 5.6 6.8 8.2 ( 1.0 = 1.0, 10, 100, 1000, etc.)

Please contact the factory for size/voltage/value combinations not shown.

OW TO

RDER

- C

APACITOR

RRAYS

160

VOLTAGE

100 = 10 V

160 = 16 V

250 = 25 V

500 = 50 V

101 = 100 V

A11

CASE SIZE

A11 = 0405

A18 = 0612

DIELECTRIC

N = NPO

W = X7R

Y = Y5V

100

CAPACITANCE

1st two digits are

significant; third digit

denotes number of zeros

10 = 1.0 pF

101 = 100 pF

TOLERANCE

J = ± 5%

K = ± 10%

M = ± 20%

Z = + 80 - 20%

TERMINATION

V = Ni barrier w/

100% Sn Plating

MARKING

4 = Unmarked

TAPE MODIFIER

Code Type

Reel

E Embossed 7”

U Embossed 13”

Tape specifications

conform to EIA RS481

P/N written: 160A11N100JV4E

www.johanson dielectrics.com
