QL16X24B-0CG144M/883 datasheet, PDF

Datasheet> All Categories > Programmable logic devices> Programmable logic> QL16X24B-0CG144M/883

QL16X24B-0CG144M/883: DescriptionField Programmable Gate Array, 384-Cell, CMOS, CPGA144,; CategoryProgrammable logic devices Programmable logic; File Size335KB，16 Pages; ManufacturerQuickLogic Corporation; Websitehttps://www.quicklogic.com

Download Datasheet Parametric Compare View All

QL16X24B-0CG144M/883 Overview

Field Programmable Gate Array, 384-Cell, CMOS, CPGA144,

QL16X24B-0CG144M/883 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	QuickLogic Corporation
Reach Compliance Code	compliant
JESD-30 code	S-XPGA-P144
JESD-609 code	e0
Number of entries	122
Number of logical units	384
Output times	114
Number of terminals	144
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	PGA
Encapsulate equivalent code	PGA144,15X15
Package shape	SQUARE
Package form	GRID ARRAY
power supply	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG
Terminal pitch	2.54 mm
Terminal location	PERPENDICULAR

Preview

Download Datasheet

View All

Military 5.0V pASIC 1 Family

Military 5.0V pASIC 1 Family - Very-High-Speed CMOS FPGA

Military 5.0V pASIC 1 Family

EVICE

IGHLIGHTS

Device Highlights

Features

EATURES

Total of 180 I/O pins

Very High Speed

ViaLink“ metal-to-metal programmable technol-

ogy, allows counter speeds over 150 MHz and

logic cell delays of under 2 ns at 5V, and over 80

MHz at 3.3V operation.

-172 Bidirectional Input/Output pins

-6 Dedicated Input/High-Drive pins

-2 Clock/Dedicated input pins with fanout-

independent, low-skew clock networks

-PCI 2.1 Compliant I/Os

High Usable Density

Up to a 24-by-32 array of 768 logic cells provides

22,000 usable PLD gates in 208-pin PQFP and

208-pin CQFP packages.

Input + logic cell + output delays under 6 ns

Chip-to-chip operating frequencies up to 110 MHz

Internal state machine frequencies up to 150 MHz

Clock skew < 0.5 ns

Input hysteresis provides high noise immunity

Built-in scan path permits 100% factory testing of

logic and I/O cells and functional testing with Auto-

matic Test Vector Generation (ATVG) software

after programming

208 pin PQFP pin for pin compatible with the

208 CQFP

0.65µ CMOS process with ViaLink programming

technology

PCI-Output Drive

Fully PCI 2.1 compliant input/output capability.

(including drive current)

Device

ASIC

Gates

PLD

Gates

Package

Max

I/O

Qualification

Level

SMD

5962-

QL8x12B

QL12x16B

QL16x24B

QL24x32B

1,000

2,000

4,000

8,000

2,000

4,000

7,000

14,000

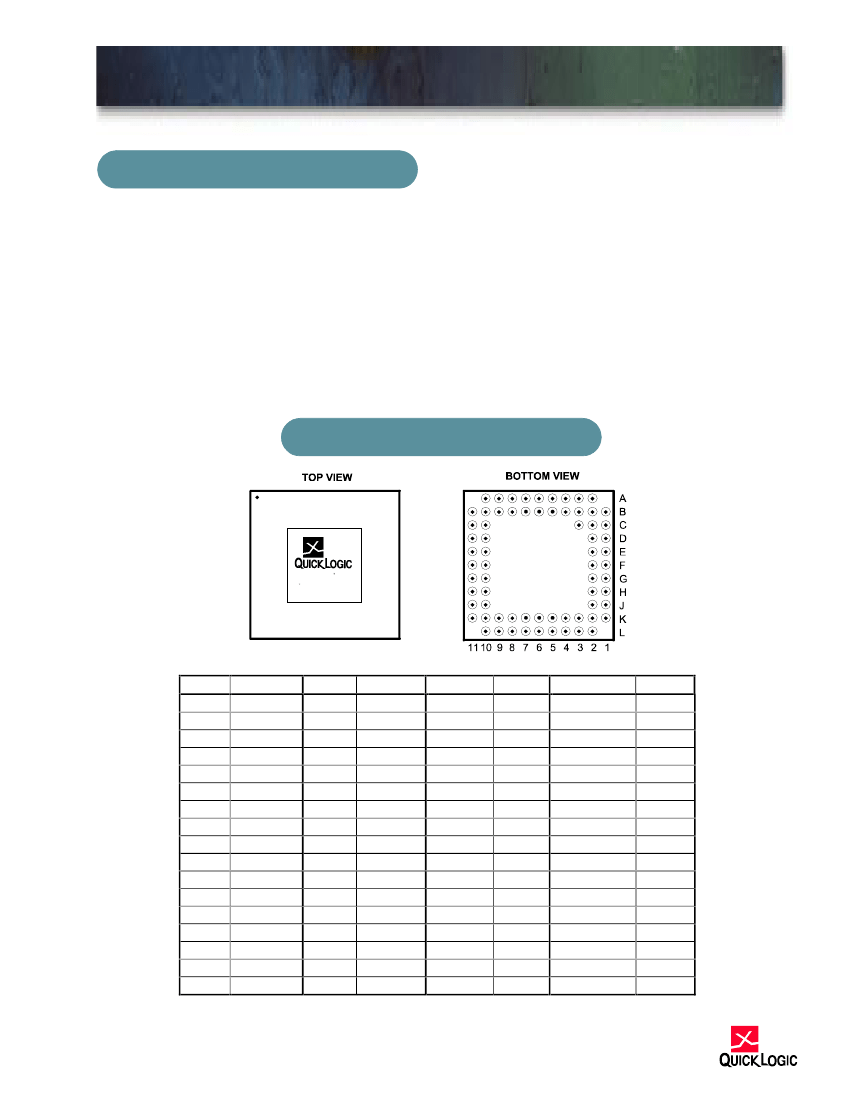

68CPGA

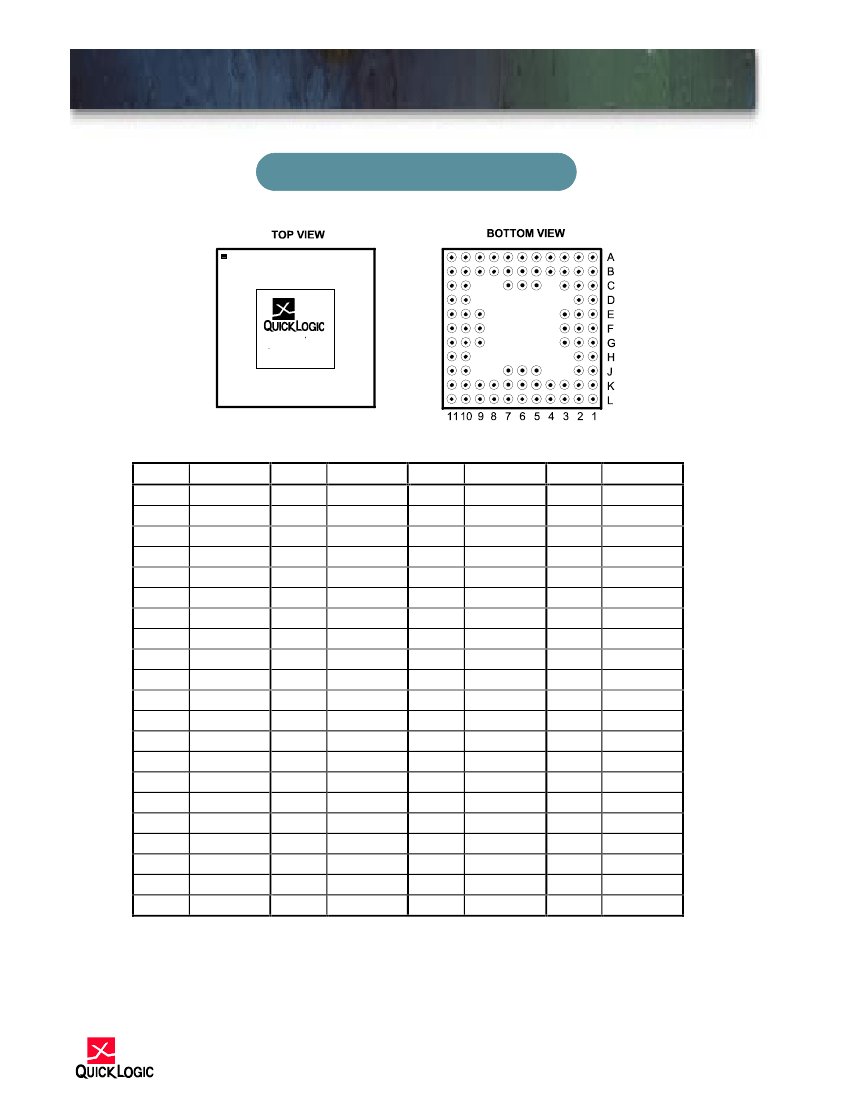

84CPGA

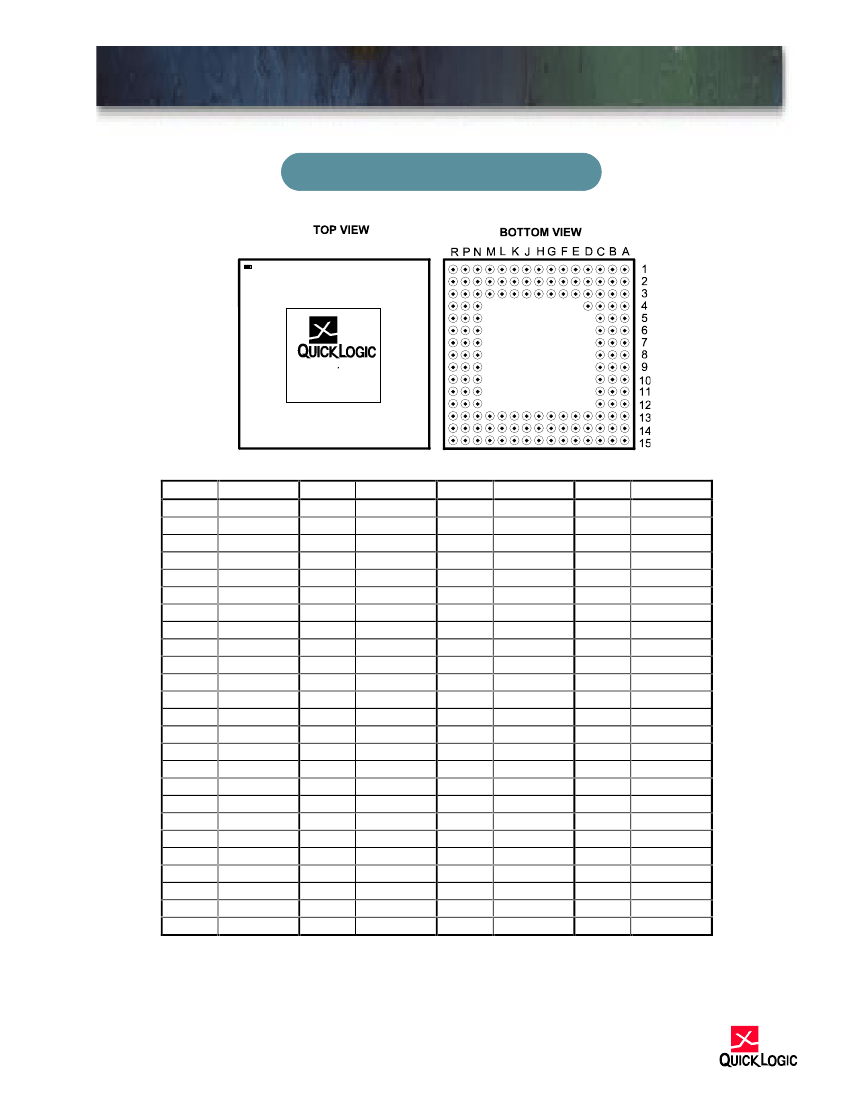

144CPGA

160 CQFP

208CQFP

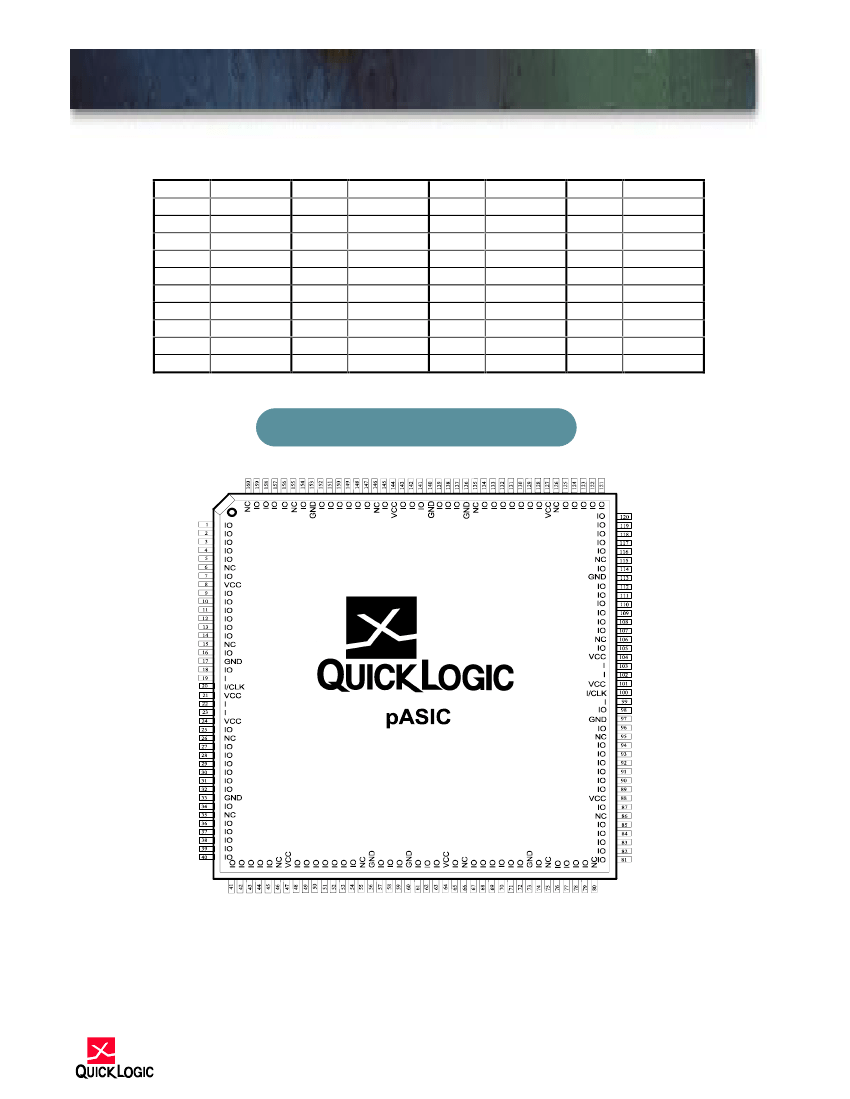

208PQFP

122

180

M, /883

96836

95599

96837

M = Military Temperature (-55 to +125 degrees C)

/883 = MIL-STD-883 qualified

TABLE 1: Selector Table

Rev B

8-7

QL16X24B-0CG144M/883 Related Products

	QL16X24B-0CG144M/883	QL16X24B-2PF144M	QL16X24B-0CF160M/883	QL16X24B-1CF160M/883	QL16X24B-1CG144M/883	QL12X16B-0CG84M/883	QL16X24B-2CG144M	QL16X24B-2PF100M	QL24X32B-0PF144M/883
Description	Field Programmable Gate Array, 384-Cell, CMOS, CPGA144,	Field Programmable Gate Array	Field Programmable Gate Array, 384-Cell, CMOS, CQFP160,	Field Programmable Gate Array, 384-Cell, CMOS, CQFP160,	Field Programmable Gate Array, 384-Cell, CMOS, CPGA144,	Field Programmable Gate Array, 192-Cell, CMOS, CPGA84,	Field Programmable Gate Array	Field Programmable Gate Array	Field Programmable Gate Array, 768-Cell, CMOS, PQFP144,
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	unknown	unknown	compliant
Is it Rohs certified?	incompatible	-	incompatible	incompatible	incompatible	incompatible	-	-	incompatible
Maker	QuickLogic Corporation	-	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	QuickLogic Corporation	-	-	-
JESD-30 code	S-XPGA-P144	-	S-XQFP-F160	S-XQFP-F160	S-XPGA-P144	S-XPGA-P84	-	-	S-PQFP-G144
JESD-609 code	e0	-	e0	e0	e0	e0	-	-	e0
Number of entries	122	-	122	122	122	76	-	-	123
Number of logical units	384	-	384	384	384	192	-	-	768
Output times	114	-	114	114	114	68	-	-	115
Number of terminals	144	-	160	160	144	84	-	-	144
Maximum operating temperature	125 °C	-	125 °C	125 °C	125 °C	125 °C	-	-	125 °C
Minimum operating temperature	-55 °C	-	-55 °C	-55 °C	-55 °C	-55 °C	-	-	-55 °C
Package body material	CERAMIC	-	CERAMIC	CERAMIC	CERAMIC	CERAMIC	-	-	PLASTIC/EPOXY
encapsulated code	PGA	-	GQFF	GQFF	PGA	PGA	-	-	QFP
Encapsulate equivalent code	PGA144,15X15	-	TPAK160,1.8SQ,25	TPAK160,1.8SQ,25	PGA144,15X15	PGA84M,11X11	-	-	QFP144,.87SQ,20
Package shape	SQUARE	-	SQUARE	SQUARE	SQUARE	SQUARE	-	-	SQUARE
Package form	GRID ARRAY	-	FLATPACK, GUARD RING	FLATPACK, GUARD RING	GRID ARRAY	GRID ARRAY	-	-	FLATPACK
power supply	5 V	-	5 V	5 V	5 V	5 V	-	-	5 V
Programmable logic type	FIELD PROGRAMMABLE GATE ARRAY	-	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	FIELD PROGRAMMABLE GATE ARRAY	-	-	FIELD PROGRAMMABLE GATE ARRAY
Certification status	Not Qualified	-	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	-	Not Qualified
Filter level	38535Q/M;38534H;883B	-	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	38535Q/M;38534H;883B	-	-	38535Q/M;38534H;883B
Nominal supply voltage	5 V	-	5 V	5 V	5 V	5 V	-	-	5 V
surface mount	NO	-	YES	YES	NO	NO	-	-	YES
technology	CMOS	-	CMOS	CMOS	CMOS	CMOS	-	-	CMOS
Temperature level	MILITARY	-	MILITARY	MILITARY	MILITARY	MILITARY	-	-	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	-	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	-	-	Tin/Lead (Sn/Pb)
Terminal form	PIN/PEG	-	FLAT	FLAT	PIN/PEG	PIN/PEG	-	-	GULL WING
Terminal pitch	2.54 mm	-	0.635 mm	0.635 mm	2.54 mm	2.54 mm	-	-	0.5 mm
Terminal location	PERPENDICULAR	-	QUAD	QUAD	PERPENDICULAR	PERPENDICULAR	-	-	QUAD
