KDMIX-FS1-NS-BGF datasheet, PDF

Datasheet> All Categories > The connector> The connector> KDMIX-FS1-NS-BGF

KDMIX-FS1-NS-BGF: DescriptionTelecom and Datacom Connector, 19 Contact(s), Male, Straight, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT; CategoryThe connector The connector; File Size732KB，1 Pages; ManufacturerKycon

Download Datasheet Parametric Compare View All

KDMIX-FS1-NS-BGF Overview

Telecom and Datacom Connector, 19 Contact(s), Male, Straight, Surface Mount Terminal, Locking, Receptacle, ROHS COMPLIANT

KDMIX-FS1-NS-BGF Parametric

Parameter Name	Attribute value
Maker	Kycon
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	HDMI, SHIELDED
Board mount options	PEG
body width	0.24 inch
subject depth	0.457 inch
body length	0.591 inch
Body/casing type	RECEPTACLE
Connector type	TELECOM AND DATACOM CONNECTOR
Contact to complete cooperation	GOLD FLASH
Contact completed and terminated	GOLD FLASH
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	10 mΩ
DIN compliance	NO
Dielectric withstand voltage	300VAC V
Durability	10000 Cycles
empty shell	NO
Filter function	NO
IEC compliance	NO
Insulation resistance	100000000 Ω
insulator material	POLYETHYLENE
JESD-609 code	e4
MIL compliance	NO
Mixed contacts	NO
Installation option 1	LOCKING
Installation option 2	MOUNTING FLANGE
Installation method	STRAIGHT
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	1
Number of ports	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLAR PIN POSITION
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Shell surface	NICKEL
Shell material	COPPER ALLOY
Terminal pitch	0.508 mm
Termination type	SURFACE MOUNT
Total number of contacts	19
UL Flammability Code	94V-0

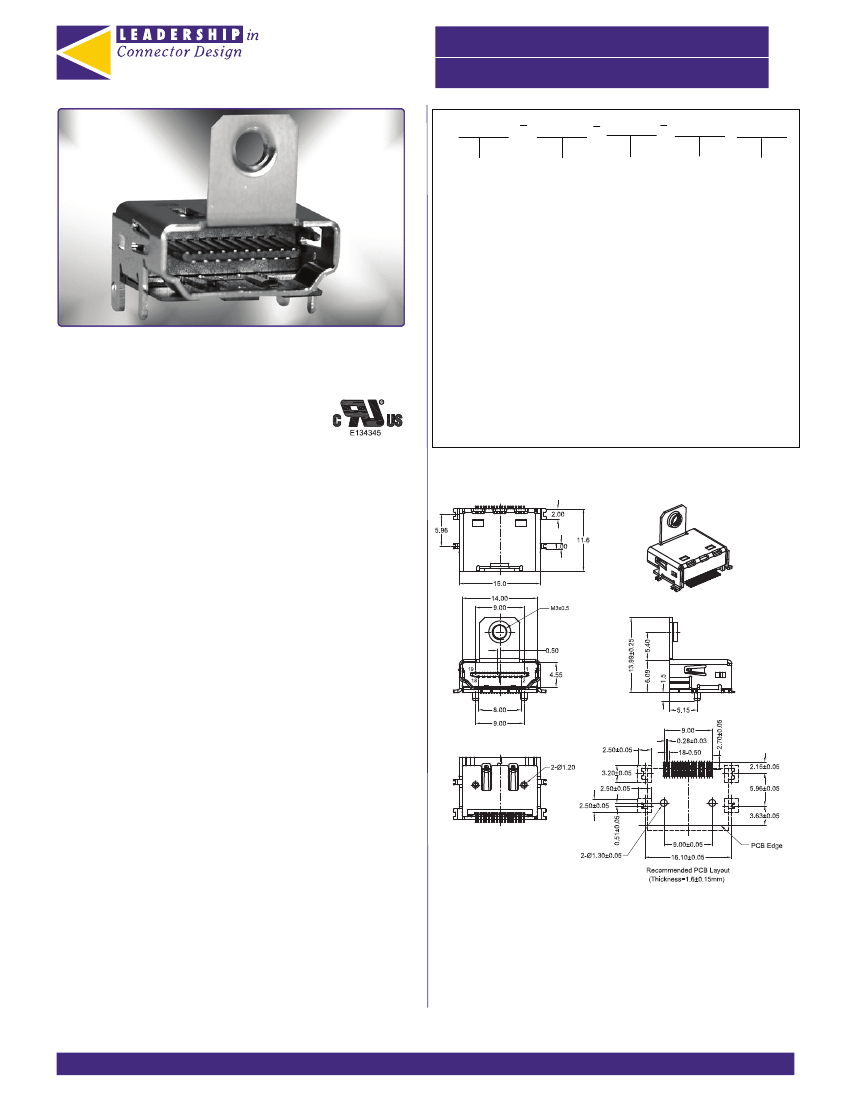

KDMIX-FS1-NS-BGF Preview

KYCON

RoHS

HDMI

KDMIX

Series

(TM)

Ordering Information

Series

KDMIX - HDMI

(TM)

Shield

Option

Top

Spring

Insulator

Option

Plating

Option

Shield Option

FS1 - SMT Shield Tabs,Flange

FS2 - Through Hole Shield Tabs,Flange

Different Length for Front and Back Tabs

Top Spring

NS - Without

Top Spring

WS - With

Top Spring

Insulator

Option

B - Black

Plating

Option

Blank - 30µ” Gold

GF - Gold Flash

HDMI

(TM)

SMT and Through Hole Shield Flange

With/Without Top Spring

Features

•

Metal Shields Provide Better ESD Protection

Provides Low Impedance Mismatch

19 Position Receptacle

Panel Mount Flange Option Adds Mechanical Stability and

Provides Additional Grounding

KDMIX Series

KDMIX-FS1-NS-B

Performance Specifications

Materials and Finish

Shell:

Copper Alloy, Nickel Plated

Insulator:

UL94V-0 Rated Thermoplastic, Color-Black

Contacts:

Copper Alloy

Plating:

Standard: 30µ” Gold Plated over Nickel

GF: Gold Flash

Mechanical Characteristics

Insertion Force:

44.1N Max.

Extraction Force:

9.8N Min., 39.2N Max.

Durability:

10K Mating Cycles

Electrical Characteristics

Rated Voltage:

40V AC (RMS)

Rated Current:

0.5Amps Min.

Contact Resistance:

10 milliohms Max.

Insulation Resistance:

10 Megohms Min. (mated)

100 Megohms Min. (unmated)

Dielectric Withstanding:

300V AC (mated)

500V AC (unmated)

Operating Temperature:

-25°C to 85°C

2013

KYCON, Inc. • Tel: +1 408-494-0330 • US: 1-888-KYCON-22 • Fax: +1 408-494-0325 • www.kycon.com

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >
