RoHS

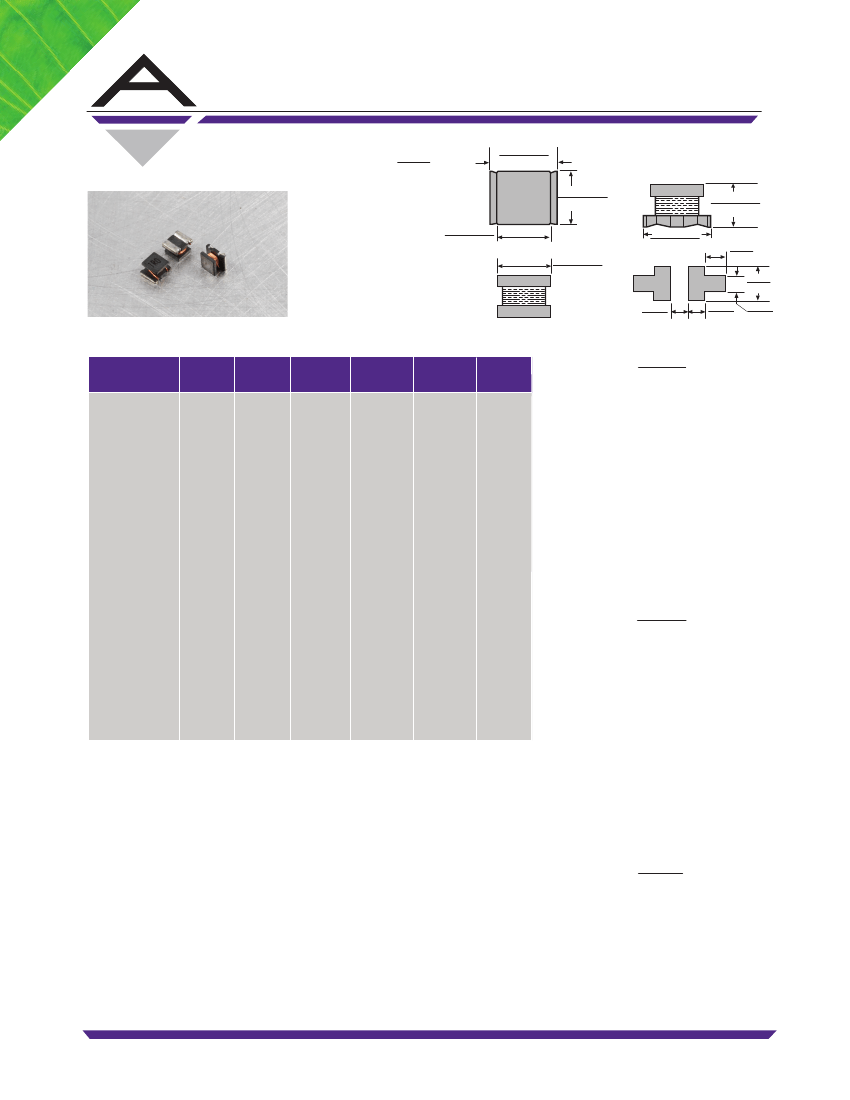

Low Resistance Chip Inductors
Dimensions:
Inches
(mm)
0.126±0.012
(3.20±0.30)
0.098±0.008
(2.49±0.20)
0.098±0.008
(2.49±0.20)
0.098±0.008
(2.49±0.20)
0.126±0.012
(3.20±0.30)
LRC20L
0.079±0.008
(2.01±0.20)
0.049
(1.24)
0.078
(1.98)
(MHz)
Allied
Part
Number
LRC20L-R15M-RC
LRC20L-R27M-RC
LRC20L-R47M-RC
LRC20L-1R0M-RC
LRC20L-1R5M-RC
LRC20L-2R2M-RC
Inductance
(µh)
Tolerance
(%)
Test
Freq.
(MHz)
1
1
1
1
1
1
SRF
Min.
(MHz)
400
250
150
100
85
64
RDC
(
Ω
) +/-30%
Rated
Current
(A)
1.45
1.25
1.10
1.00
0.90
0.79
0.039
(.991)
0.039
(.991)
0.039
(.991)
Features
• Miniature SMT wire-wound open
magnetic path construction inductors
with low DCR, high current capacity
and High Impedance Characteristics.
• Excellent solder heat resistance for
flow and reflow soldering methods.
• Excellent for use as choke coils
in DC/DC converter and DC power
supply circuits.
Electrical
Inductance Range:
.15µh to 10
µh.
Tolerance:
20% for all values
Test Frequency:
Inductance measured
ll
on an HP4192 at 1MHz
Operating Temp. Range:
i-25°
to +85°C.
Rated Current:
Based on Temperature
.15
.27
.47
1.0
1.5
2.2
20
20
20
20
20
20
0.028
0.034
0.042
0.060
0.063
0.097
LRC20L-3R3M-RC
LRC20L-4R7M-RC
LRC20L-6R8M-RC
3.3
4.7
6.8
20
20
20
1
1
1
55
43
30
0.130
0.150
0.210
0.70
0.65
0.60
LRC20L-100M-RC
10
20
1
26
0.30
0.45
All specifications subject to change without notice.
rise not to exceed 35ºC. Inductance Drop
10% typical.
Resistance to Soldering Heat:
Pre heat:
150ºC ± 10ºC / 1-2 min. Solder temp:
260ºC ± 5ºC for 10 sec. ± 1 sec.
Physical
Packaging:
2000 pieces per 7 inch reel.
714-665-1140
ALLIED COMPONENTS INTERNATIONAL
11/11/11
www.alliedcomponents.com
