LM3302P datasheet, PDF - EEWORLD Datasheet

LM3302P: DescriptionIC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,14PIN,PLASTIC; CategoryAnalog mixed-signal IC Amplifier circuit; File Size310KB，5 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric View All

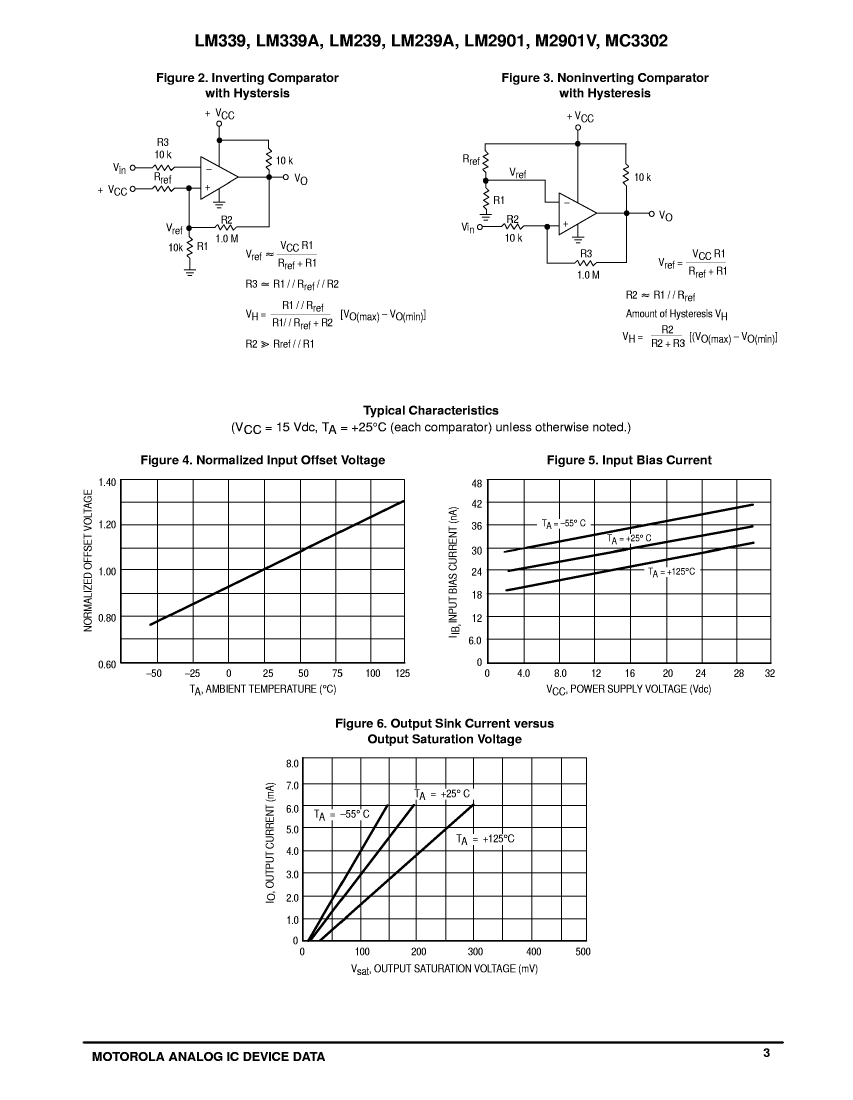

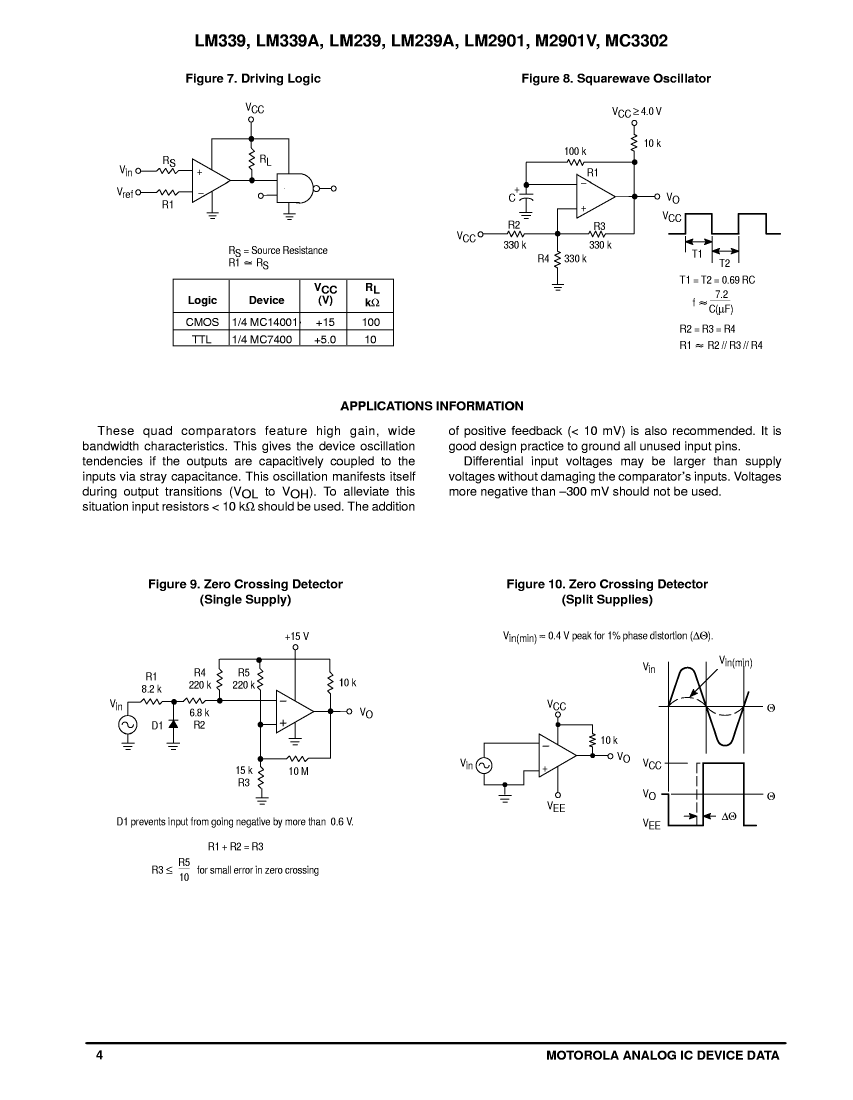

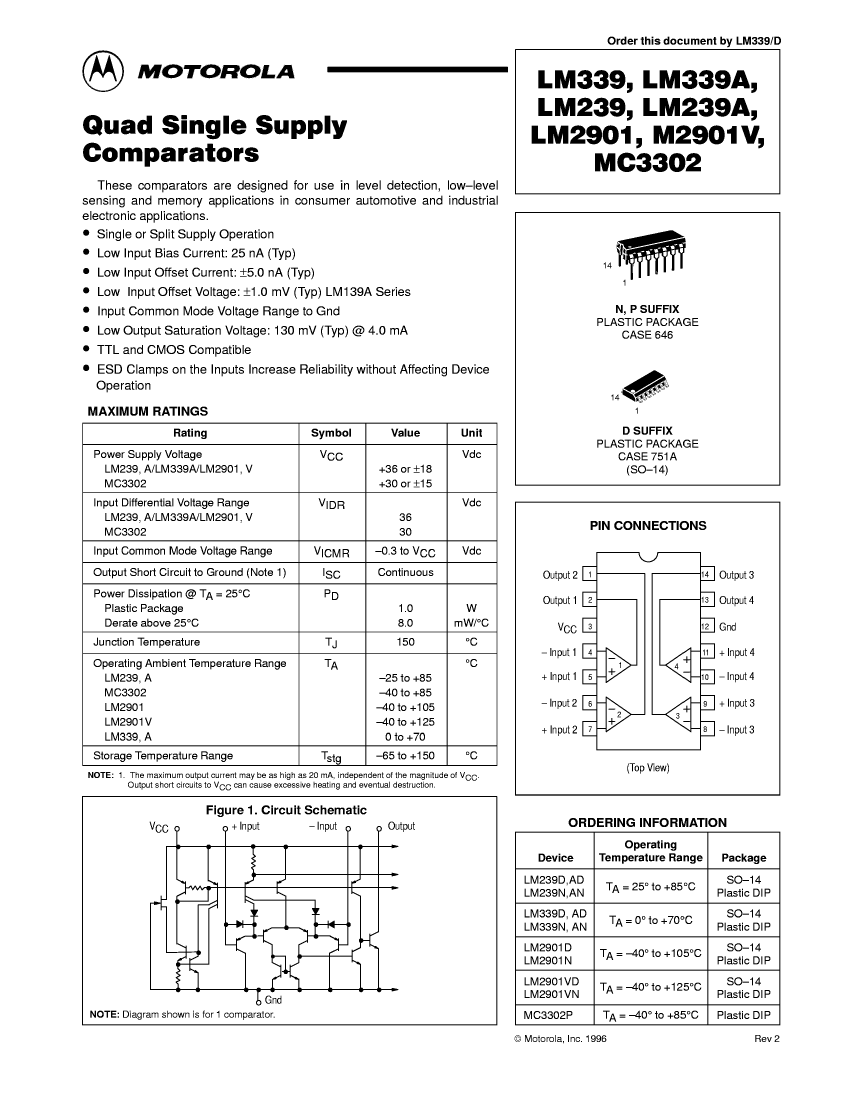

LM3302P Overview

IC,VOLT COMPARATOR,QUAD,BIPOLAR,DIP,14PIN,PLASTIC

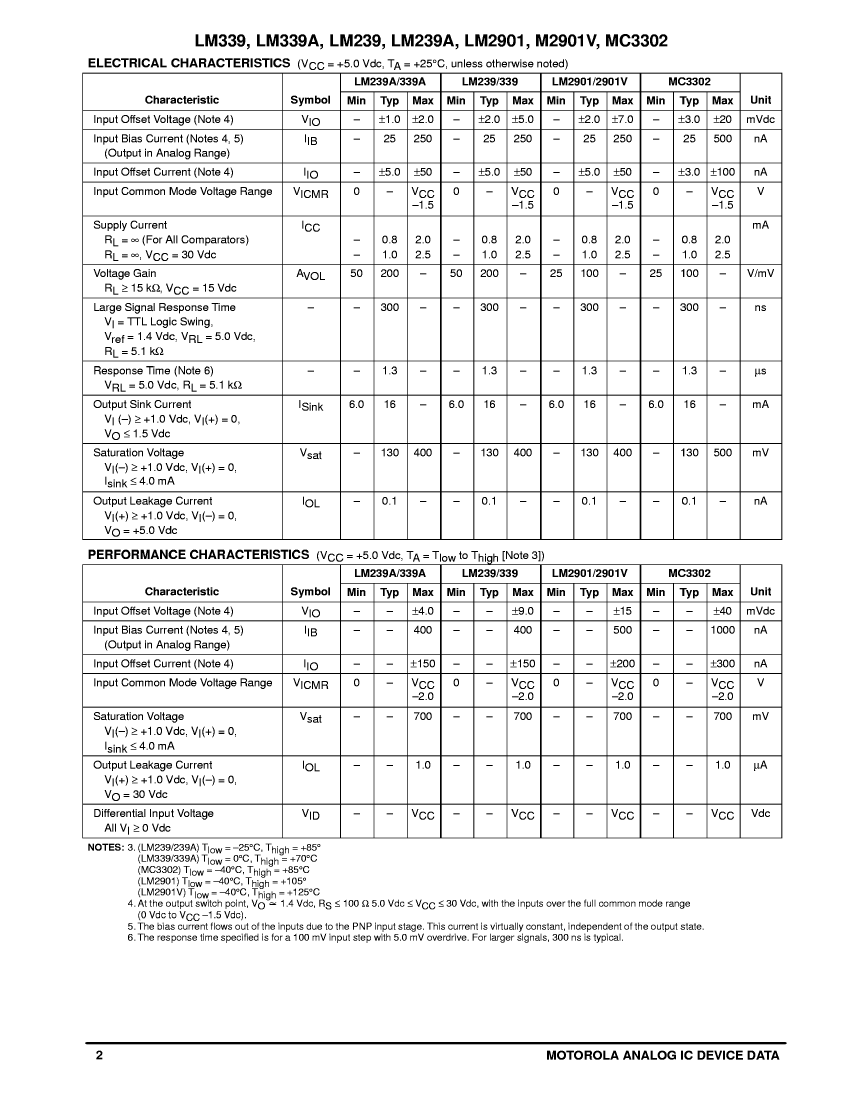

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	ON Semiconductor
Reach Compliance Code	unknown
Amplifier type	COMPARATOR
Maximum bias current (IIB) at 25C	0.5 µA
Maximum input offset voltage	40000 µV
JESD-30 code	R-PDIP-T14
JESD-609 code	e0
Number of functions	4
Number of terminals	14
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C

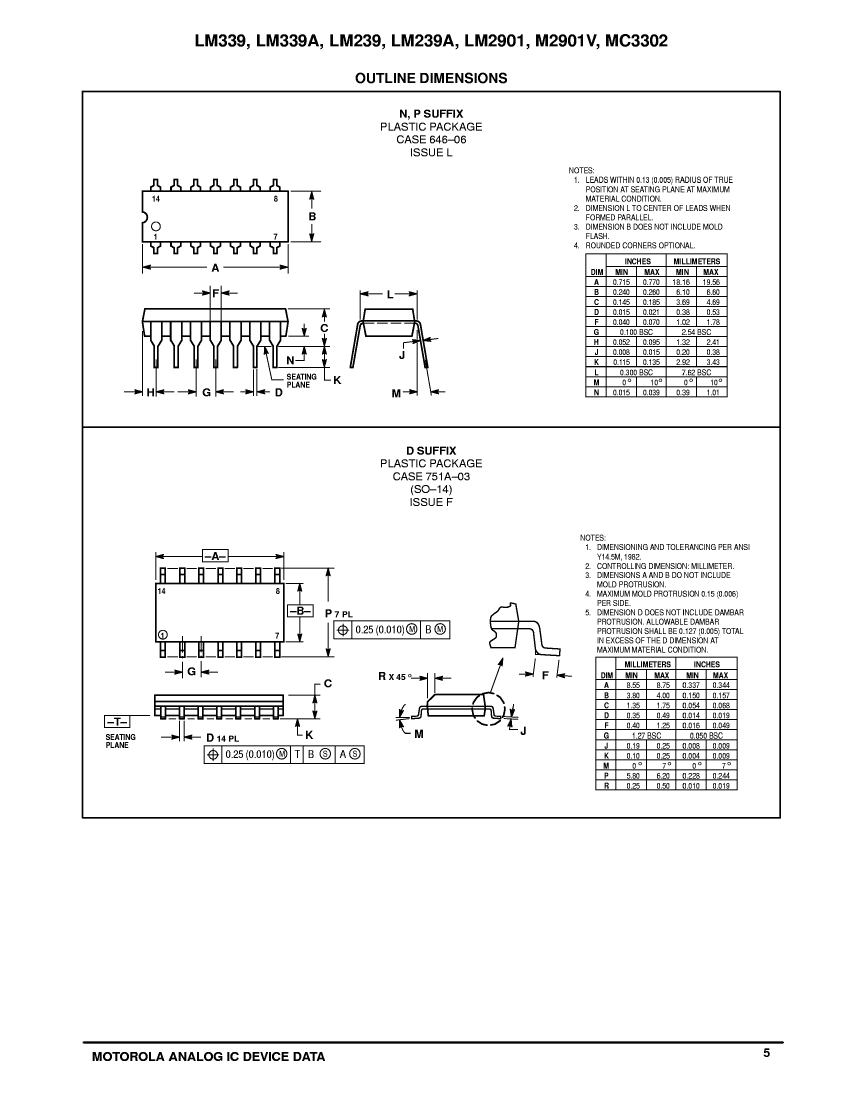

Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP14,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5/28 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum slew rate	2.5 mA
surface mount	NO
technology	BIPOLAR
Temperature level	INDUSTRIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
