LM339AGC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> Amplifier circuit> LM339AGC

LM339AGC: DescriptionQUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20; CategoryAnalog mixed-signal IC Amplifier circuit; File Size224KB，11 Pages; ManufacturerSTMicroelectronics; Websitehttp://www.st.com/

Download Datasheet Parametric Compare View All

LM339AGC Overview

QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20

LM339AGC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	STMicroelectronics
Parts packaging code	QLCC
package instruction	QCCN, LCC20,.35SQ
Contacts	20
Reach Compliance Code	not_compliant
ECCN code	EAR99
Amplifier type	COMPARATOR
Maximum average bias current (IIB)	0.3 µA
Maximum bias current (IIB) at 25C	0.1 µA
Maximum input offset voltage	4000 µV
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
length	8.89 mm
Negative supply voltage upper limit
Nominal Negative Supply Voltage (Vsup)
Number of functions	4
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output type	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
power supply	5 V
Certification status	Not Qualified
Nominal response time	1300 ns
Maximum seat height	1.86 mm
Maximum slew rate	2 mA
Supply voltage upper limit	36 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	BIPOLAR
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
width	8.89 mm

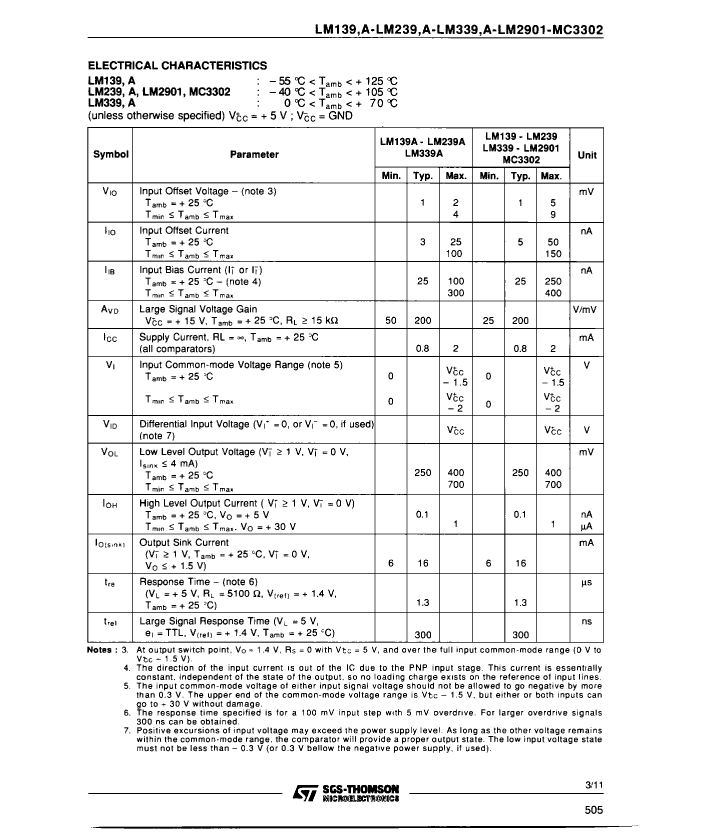

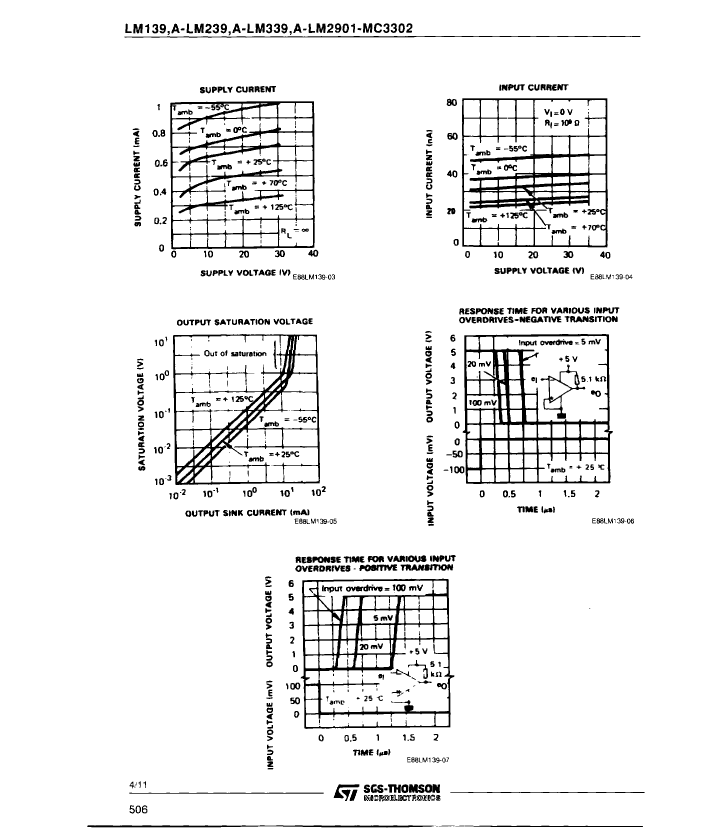

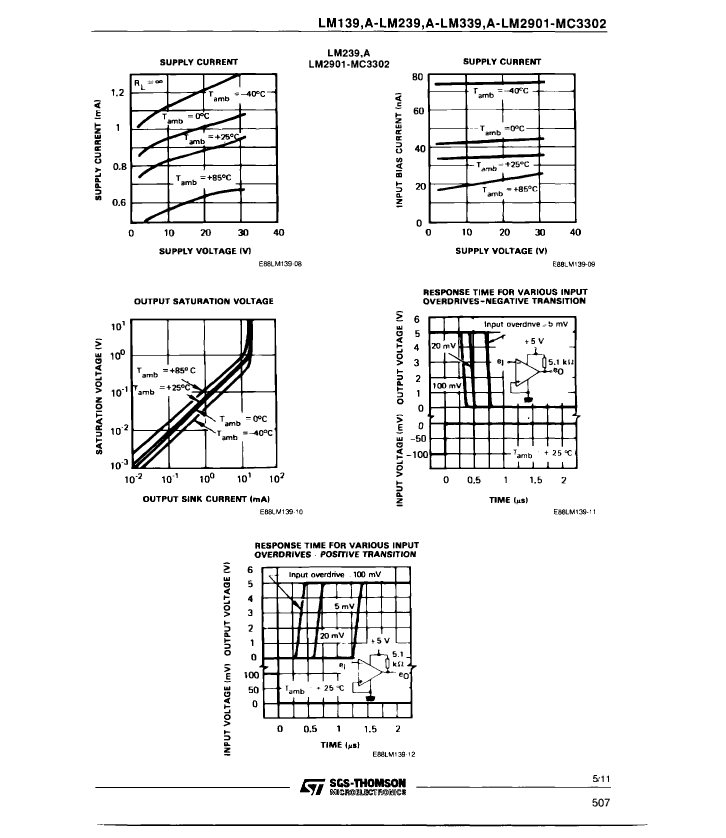

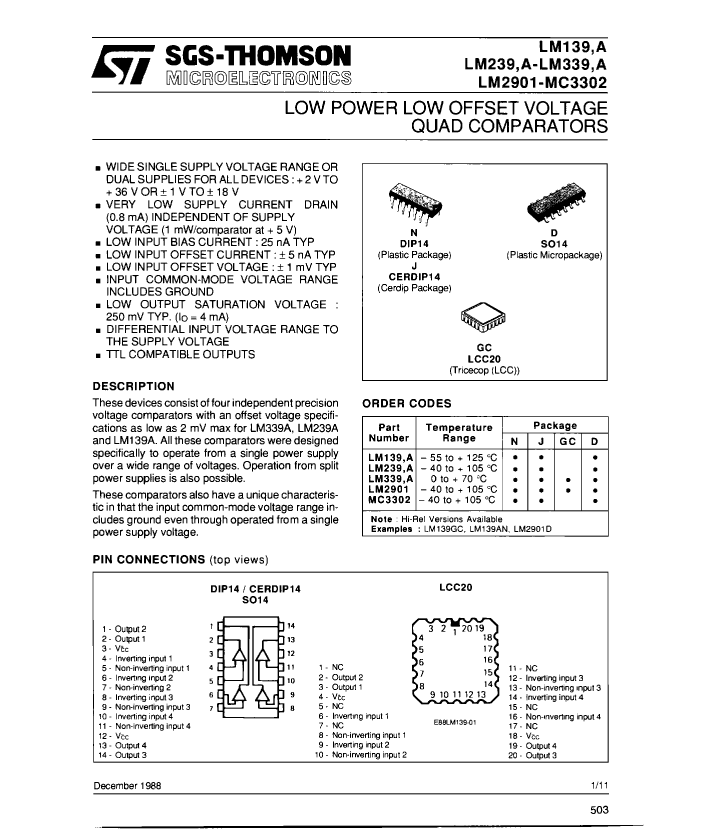

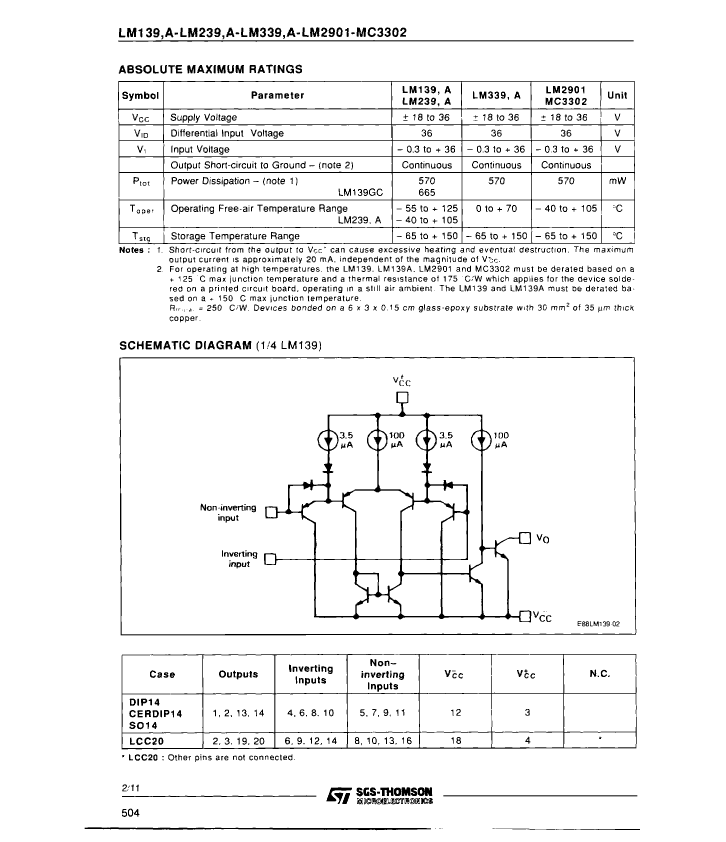

Preview

Download Datasheet

View All

LM339AGC Related Products

	LM339AGC	MC3302J	MC3302N	LM2901GC	MC3302D	LM339GC
Description	QUAD COMPARATOR, 4000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CDIP14, CERDIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDIP14, PLASTIC, DIP-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, PDSO14, MICRO, PLASTIC, SO-14	QUAD COMPARATOR, 9000uV OFFSET-MAX, 1300ns RESPONSE TIME, CQCC20, LCC-20
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	QLCC	DIP	DIP	QLCC	SOIC	QLCC
package instruction	QCCN, LCC20,.35SQ	CERDIP-14	DIP, DIP14,.3	QCCN, LCC20,.35SQ	SOP, SOP14,.25	QCCN, LCC20,.35SQ
Contacts	20	14	14	20	14	20
Reach Compliance Code	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant	not_compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Amplifier type	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR	COMPARATOR
Maximum average bias current (IIB)	0.3 µA	0.4 µA	0.4 µA	0.4 µA	0.4 µA	0.4 µA
Maximum bias current (IIB) at 25C	0.1 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA	0.25 µA
Maximum input offset voltage	4000 µV	9000 µV	9000 µV	9000 µV	9000 µV	9000 µV
JESD-30 code	S-CQCC-N20	R-CDIP-T14	R-PDIP-T14	S-CQCC-N20	R-PDSO-G14	S-CQCC-N20
JESD-609 code	e0	e0	e0	e0	e0	e0
Number of functions	4	4	4	4	4	4
Number of terminals	20	14	14	20	14	20
Maximum operating temperature	70 °C	105 °C	105 °C	105 °C	105 °C	70 °C
Minimum operating temperature	-	-40 °C	-40 °C	-40 °C	-40 °C	-
Output type	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR	OPEN-COLLECTOR
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN	DIP	DIP	QCCN	SOP	QCCN
Encapsulate equivalent code	LCC20,.35SQ	DIP14,.3	DIP14,.3	LCC20,.35SQ	SOP14,.25	LCC20,.35SQ
Package shape	SQUARE	RECTANGULAR	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE
Package form	CHIP CARRIER	IN-LINE	IN-LINE	CHIP CARRIER	SMALL OUTLINE	CHIP CARRIER
power supply	5 V	5 V	5 V	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Nominal response time	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns	1300 ns
Maximum seat height	1.86 mm	5.08 mm	5.08 mm	1.86 mm	1.75 mm	1.86 mm
Maximum slew rate	2 mA	2 mA	2 mA	2 mA	2 mA	2 mA
Supply voltage upper limit	36 V	36 V	36 V	36 V	36 V	36 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES
technology	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR	BIPOLAR
Temperature level	COMMERCIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD	THROUGH-HOLE	THROUGH-HOLE	NO LEAD	GULL WING	NO LEAD
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	QUAD	DUAL	DUAL	QUAD	DUAL	QUAD
width	8.89 mm	7.62 mm	7.62 mm	8.89 mm	3.9 mm	8.89 mm
Maker	STMicroelectronics	-	STMicroelectronics	STMicroelectronics	STMicroelectronics	STMicroelectronics
length	8.89 mm	-	-	8.89 mm	8.65 mm	8.89 mm
