T611005: DescriptionAll Dimension In MM; File Size105KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T611005 Overview

All Dimension In MM

Preview

Download Datasheet

View All

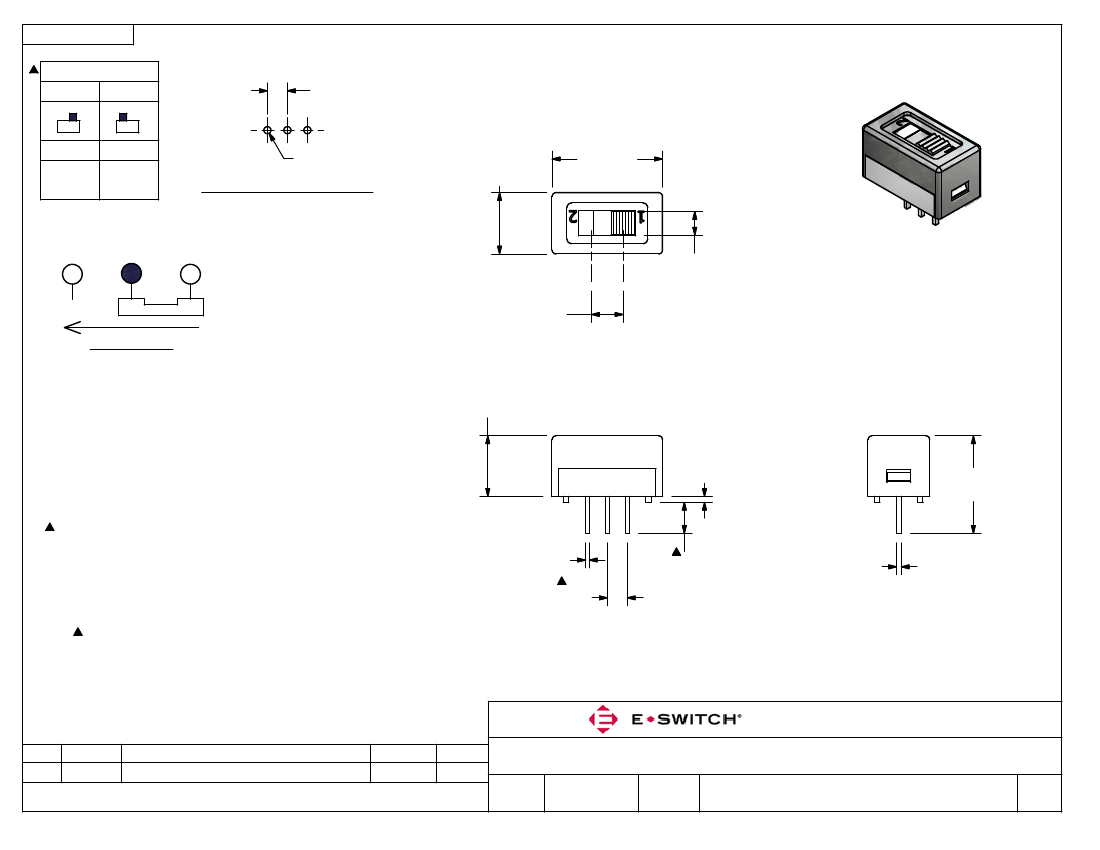

SHEET 1 OF 1

SWITCH FUNCTION

POS. 1

POS. 2

2.54

[.100 in]

2-1

2-3

[.035 in]

RECOMMENDED P.C.B. LAYOUT

.90

7.80

[.307 in]

14.00

[.551 in]

[.118 in]

3.00

4.00

[.157 in]

CURCUT: SPDT

POS 2

POS 1

7.70

[.303 in]

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 1A @ 250VAC

3A @ 120VAC OR 28VDC

6. MECHANICAL LIFE: 20,000 ACTUATIONS AT FULL LOAD.

7. CONTACT RESISTANCE: 50mΩ MAX. INITIAL

8. INSULATION RESISTANCE: 1,000 MΩ MIN.

9. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

10. OPERATING TEMP.: -40°C to 80°C

11.

DENOTES CRITICAL PARAMETER.

12. 2002/95/EC (ROHS) COMPLIANT

.76

[.030 in]

12.40

[.488 in]

.50

[.020 in]

2.54

[.100 in]

3.94

[.155 in]

.60

[.024 in]

REV

20401

PCR NO

REVISED AND REDRAWN

DESCRIPTION

1/16/12

DATE

BGL

TITLE

SCALE

600SP1S1M1Q

DATE

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

2:1

1/16/2012

BGL

T611005

DWG

REV
