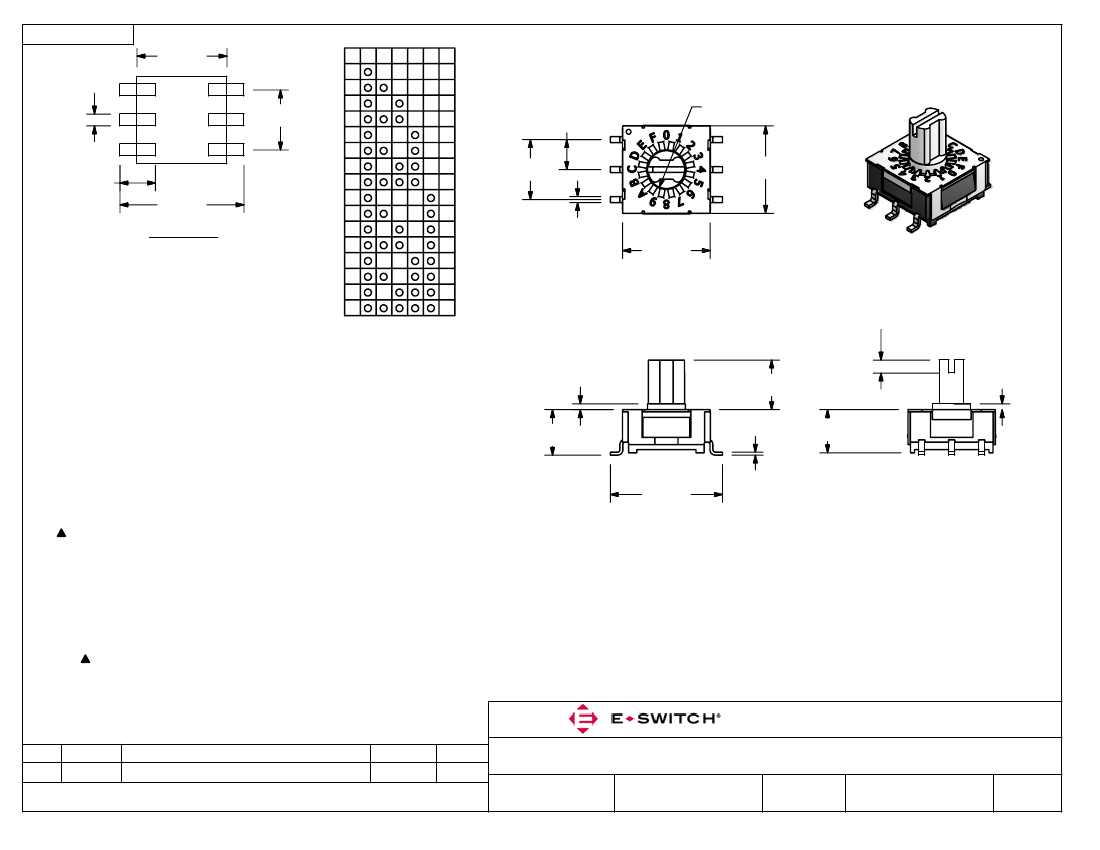

SHEET 1 OF 1
1.00
[.039 in]
7.62
[.300 in]
1
C
4
8
C
2
5.08
[.200 in]
REAL CODE
C 1 2 4 8
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
0
1
2
3
4
5
6
7
8
9
A
B
C
D
E
F
n
3.20
[.126 in]
2.54
[.100 in]
1
5.08
[.200 in]
C
4
.50
[.020 in]
7.40
[.291 in]
8
C
2
7.40
[.291 in]
3.00
[.118 in]
10.50
[.413 in]
PCB LAYOUT
1.10
[.043 in]
.50
[.020 in]
4.20
[.165 in]
3.65
[.144 in]
4
9.50
[.374 in]
2
2
C
.50
[.020 in]
NOTES:
1. ALL DIMESNIONS IN MM [INCH]
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
3. TERMINAL NUMBERS FOR REFERENCE ONLY
4. OPERATING FORCE: 120gf/cm
`
30gf
5. CONTACT RATING: 100mA, 42V DC (SWITCHING)
400mA 42V DC (NON-SWITCHING)
6. CONTACT RESISTANCE: 80m
W
MAX.
7. INSULATION RESISTANCE: 100M
W
MIN @ 250VDC
8. DIELECTRIC STRENGTH: 250VAC 1 MIN.
9. LIFE: 25,000 STEPS
10. OPERATING TEMPERATURE: -60
~
C TO 125
~
C
11. PACKAGING:600 PCS TAPE AND REEL
12. IP RATING: IP67
13. DENOTES CRITICAL PARAMETER
14. 2002/95/EC (ROHS) COMPLIANT
3.85
[.152 in]
.25
[.010 in]
8
A
REV
20711
PCR NO
RELEASE TO PRODUCTION
DESCRIPTION
08/22/12
DATE
rc
BY
TITLE
SCALE
RDMER16S1R
3:1
DATE
DR
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
8/22/2012
rc
DWG
REV
U100012
