STUD HOLE
W
E DIA
D DIA
G
C
B
INSPECTION WINDOW
T
A
LISTED
587H
E52164
CERTIFIED
LR31212
NOTES:
1. MATERIAL: HIGH CONDUCTIVITY SEAMLESS COPPER TUBE
2. PLATING: ELECTRO-TIN
3. WIRE TYPE: STRANDED COPPER; CLASS B:
COMPACT, COMPRESSED OR CONCENTRIC,
CLASS C: CONCENTRIC
4. UL LISTED WIRE CONNECTOR: YES, FOR APPLICATIONS UP TO 35 KV.
CONSULT CABLE MANUFACTURER FOR
VOLTAGE STRESS RELIEF INSTRUCTIONS
WITH APPLICATIONS GREATER THAN 2000 VOLTS.
5. UL TEMPERATURE RATING: 90 C
6. CSA CERTIFIED WIRE CONNECTOR: YES

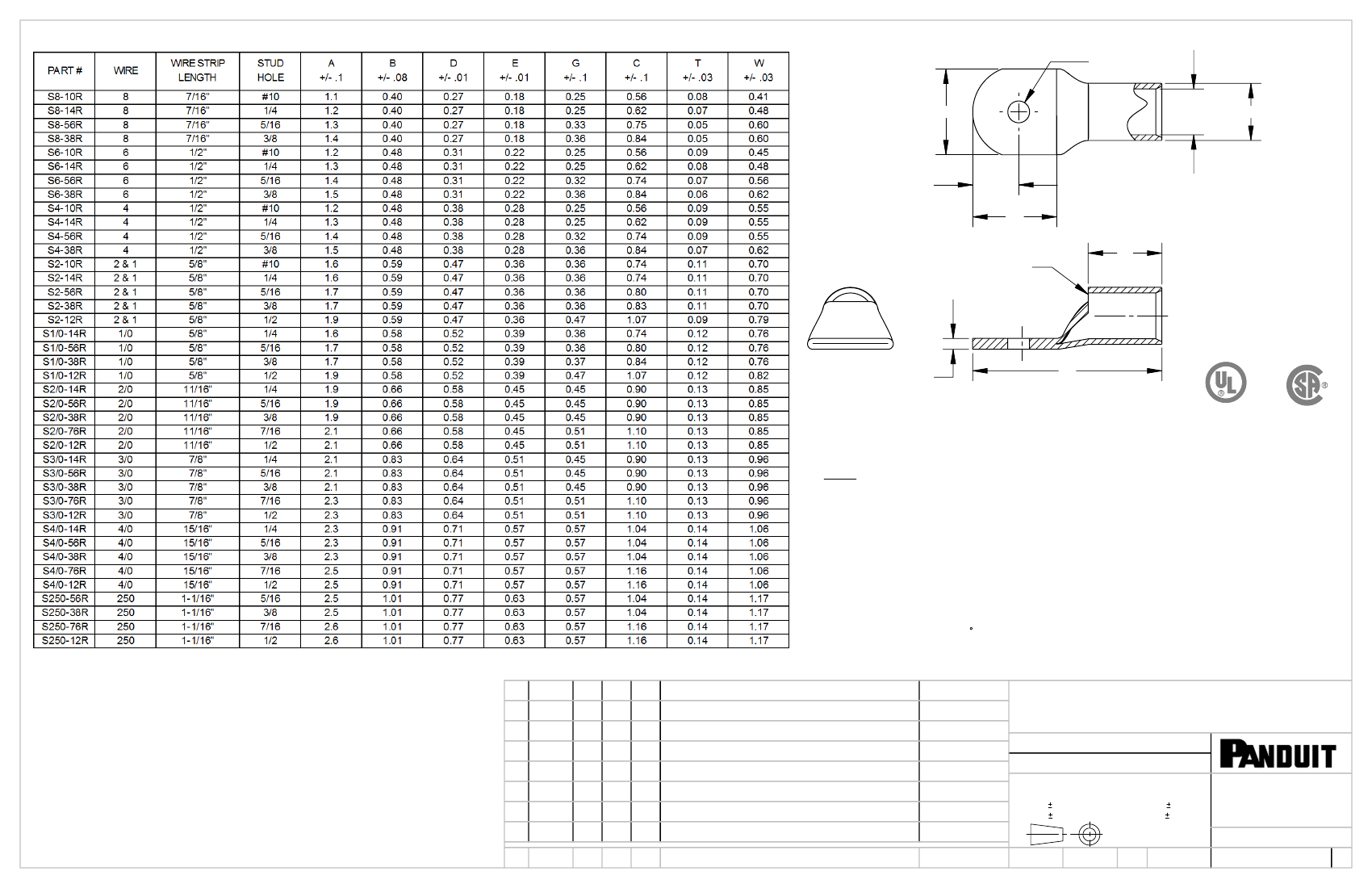

TITLE
TUBULAR TERMINALS
CUSTOMER DRAWING
ITEM REVISION NAME
DATASET FILE NAME
N41178BA/11
11
8/14
REVISED NOTES
JHNU TLCO RGB CONVERTED DWG TO SOLIDWORKS
N41178BA-C41178/11.SLDDRW
MATERIAL
UNLESS OTHERWISE SPECIFIED,
DIMENSIONAL TOLERANCES ARE: IN [mm]
.X
.XXX
.XX
ANGLES
THIRD ANGLE
PROJECTION
SEE NOTES
C41178
SIZE
N41178BA-C41178
DRAWING NUMBER
REV
DATE
BY
CHK APR
DESCRIPTION
ECN
DRAWN BY
EJD
DATE
CHK
WJB
SCALE
N/A
SHEET 1 0F 1
B
