CXAD120-470Z: DescriptionGeneral Purpose Inductor, 47uH, 20%, 1 Element, SMD, 1515, CHIP, 1515, ROHS COMPLIANT; CategoryPassive components inductor; File Size69KB，1 Pages; ManufacturerMaruwa

Download Datasheet Parametric View All

CXAD120-470Z Overview

General Purpose Inductor, 47uH, 20%, 1 Element, SMD, 1515, CHIP, 1515, ROHS COMPLIANT

CXAD120-470Z Parametric

Parameter Name	Attribute value
Maker	Maruwa
package instruction	1515
Reach Compliance Code	unknown
ECCN code	EAR99
uppercase and lowercase codes	1515
DC Resistance	2.1 Ω
Nominal inductance(L)	47 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Number of functions	1
Number of terminals	2
Maximum rated current	0.3 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	NO
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Tolerance	20%

Preview

Download Datasheet

View All

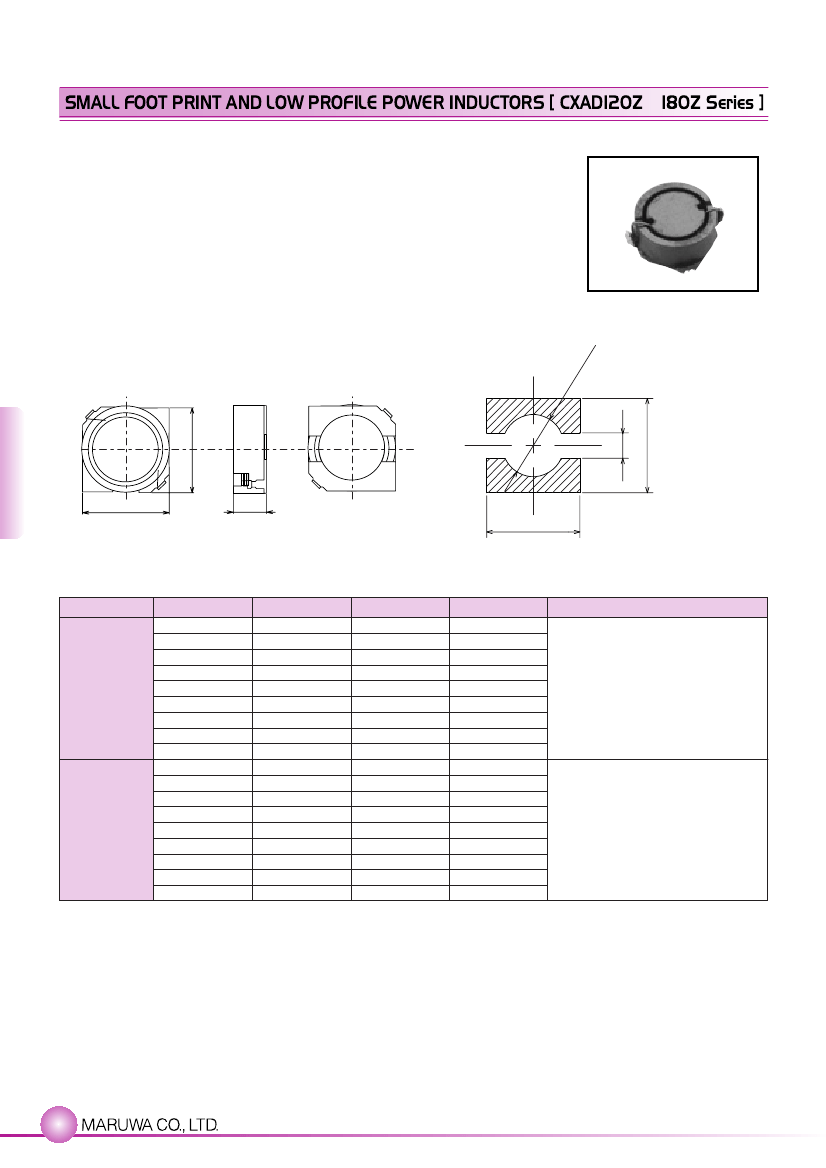

SMALL FOOT PRINT AND LOW PROFILE POWER INDUCTORS [ CXAD120Z

・

180Z Series ]

■Features

• Low profile less than 1.2mm/1.8mm

• Low noise and leakage flux by closed magnetic path

• RoHS Compliant

MARUWA

G

ENERAL CATALOG

■Applications

DC/DC converters for

• Small sized LCDs

• Cellular phones, and PDAs

•

Digital video/still cameras

2 .7

φ

■Dimensions/Land

pattern (for ref.) <mm>

POWER INDUCTORS

0.2

3.8

0.2

H

H=1.20mm max: CXAD120

H=1.80mm max: CXAD180

4.1

■Part

number list・Specifications

（

Typical

）

Series

Part number

CXAD120-2R2Z

CXAD120-3R3Z

CXAD120-4R7Z

CXAD120-6R8Z

Inductance L(

μH

)

※

(1)

DC resistance Rdc( )

※

(2)

Rated current

Idc1/ Idc2(A)

※(3)

2.2 20%

3.3 20%

4.7 20%

6.8 20%

10 20%

15 20%

22 20%

33 20%

47 20%

2.2 20%

3.3 20%

4.7 20%

6.8 20%

10 20%

15 20%

22 20%

33 20%

47 20%

0.12

0.18

0.22

0.27

0.43

0.72

1.10

1.80

2.10

0.060

0.076

0.108

0.160

0.210

0.310

0.420

0.630

0.930

1.35

1.05

0.90

0.80

0.70

0.55

0.45

0.35

0.30

1.90/1.90

1.40/1.60

1.20/1.30

0.09/1.10

0.80/0.95

0.65/0.75

0.50/0.65

0.40/0.55

0.32/0.45

Operating temperature range Ta(

℃

)

※

(4)

1.1

CXAD120Z

CXAD120-100Z

CXAD120-150Z

CXAD120-220Z

CXAD120-330Z

CXAD120-470Z

CXAD180-2R2Z

CXAD180-3R3Z

CXAD180-4R7Z

CXAD180-6R8Z

CXAD180Z

CXAD180-100Z

CXAD180-150Z

CXAD180-220Z

CXAD180-330Z

CXAD180-470Z

※Note ： (1)Ta=25℃、Idc=0A (2)Ta=25℃ (3)CXAD120：Inductance

change ratio

I△L/LI≦10% or △T≦40℃

CXAD180：Idc1：Inductance

change ratio

I△L/LI≦10%

Idc2:Temperature

rise

△T≦40℃

(4)Including temperature rise. Custom specifications are available.

62

4.1

–25~100
