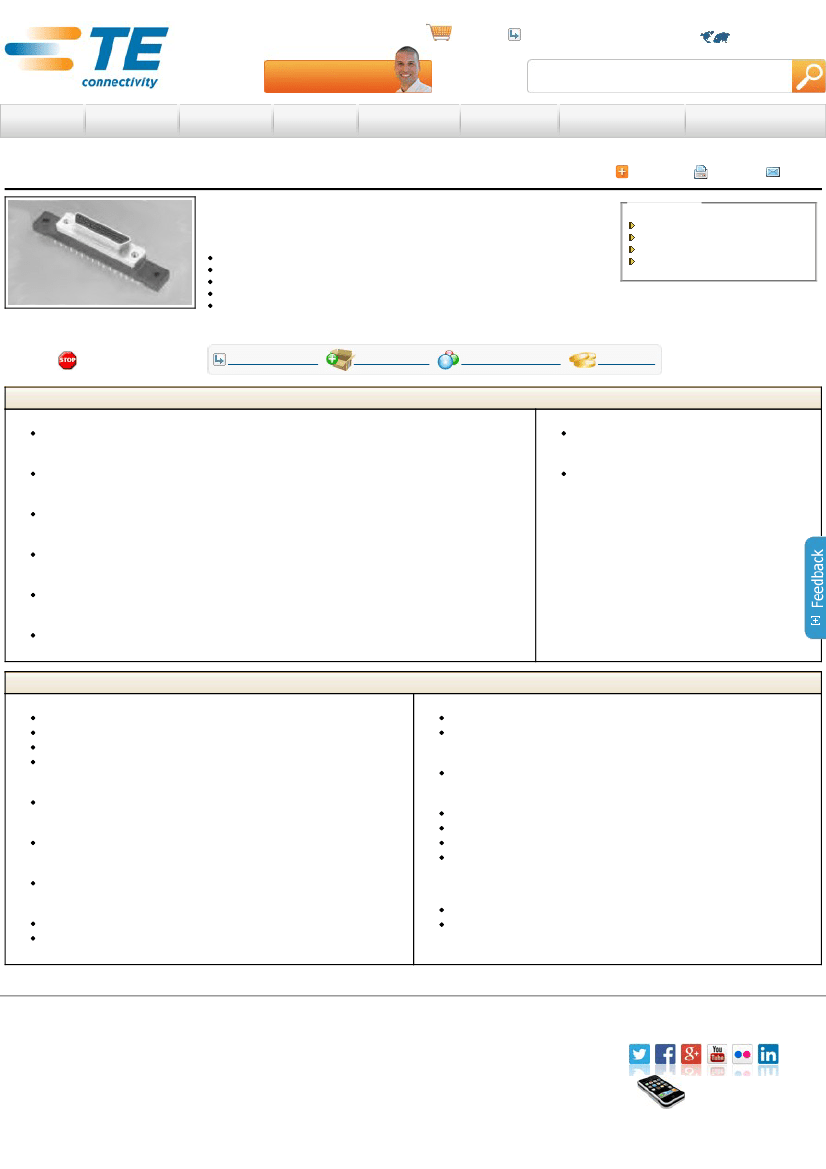

D MICROMINIATURE CONNECTOR
| Parameter Name | Attribute value |
| Is it Rohs certified? | incompatible |
| Maker | TE Connectivity |
| Reach Compliance Code | unknown |
| ECCN code | EAR99 |
| Other features | STANDARD: MIL-DTL-83513 |
| Board mount options | HOLE .096 |
| body width | 0.308 inch |
| subject depth | 0.355 inch |
| body length | 1.39 inch |
| Body/casing type | RECEPTACLE |
| Connector type | D MICROMINIATURE CONNECTOR |
| Contact arrangement | S15P0 |
| Contact to complete cooperation | NOT SPECIFIED |
| Contact point gender | FEMALE |
| Contact material | NOT SPECIFIED |
| contact mode | STAGGERED |
| Contact resistance | 8 mΩ |
| Contact style | RND PIN-SKT |
| Dielectric withstand voltage | 600VAC V |
| Durability | 500 Cycles |
| empty shell | NO |
| Filter function | NO |
| maximum insertion force | 2.78 N |
| Insulation resistance | 5000000000 Ω |
| insulator material | POLYPHENYLENE SULFIDE |
| Plug contact pitch | 0.05 inch |
| Match contact row spacing | 0.043 inch |
| Plug information | MULTIPLE MATING PARTS AVAILABLE |
| Mixed contacts | NO |
| Installation method | STRAIGHT |
| Installation type | BOARD |
| Number of connectors | ONE |
| PCB row number | 2 |
| Number of rows loaded | 2 |
| Maximum operating temperature | 125 °C |
| Minimum operating temperature | -55 °C |
| Options | GENERAL PURPOSE |
| PCB contact pattern | STAGGERED |
| PCB contact row spacing | 2.54 mm |
| Plating thickness | 50u inch |
| Rated current (signal) | 3 A |
| Guideline | MIL |
| reliability | COMMERCIAL |
| Shell surface | NICKEL |
| Shell material | METAL |
| Housing size | B |
| Terminal length | 0.172 inch |
| Terminal pitch | 2.54 mm |
| Termination type | SOLDER |
| Total number of contacts | 15 |
| Evacuation force-minimum value | 0.139 N |
