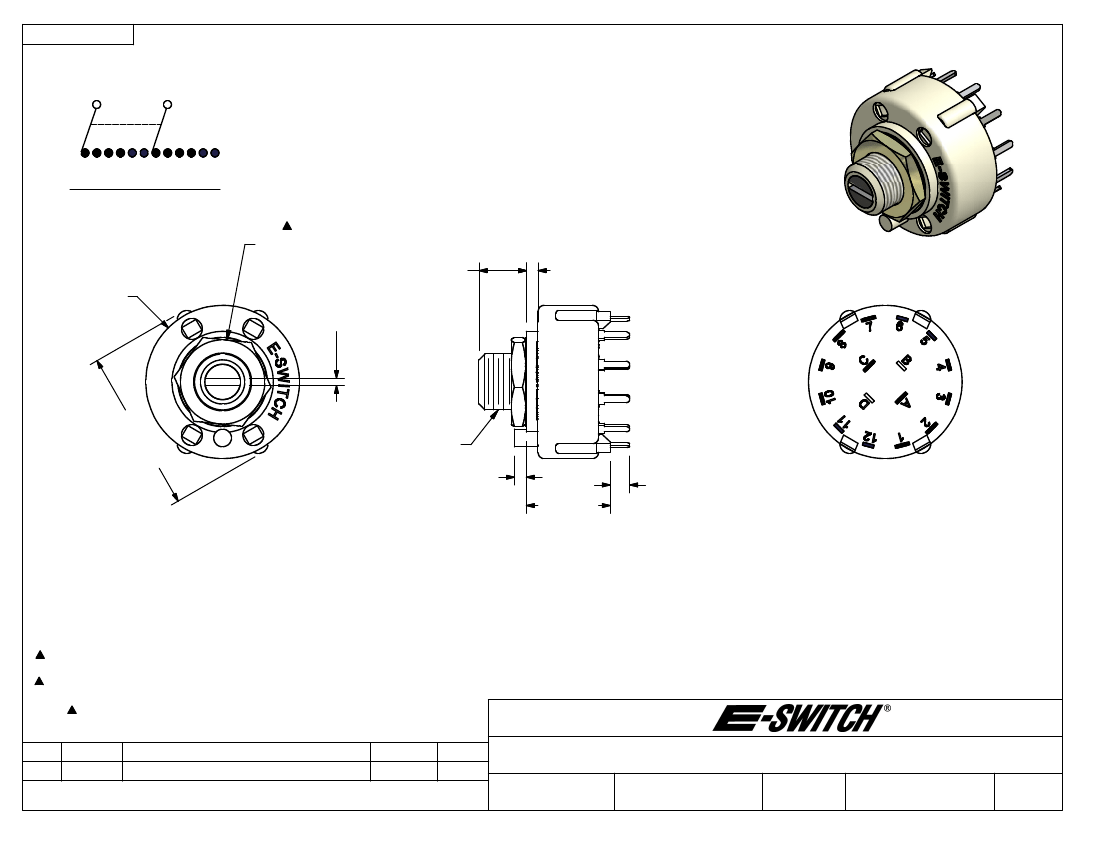

CONTACT CONFIGURATION
TIMING (BBM) NON-SHORTING
HARDWARE SUPPIED
ON SWITCH
8.00
[.315 in]
n
26.00
[1.024 in]
2.00
[.079 in]
ISOMETRIC
1.20
[.047 in] x 1.5 DEEP
NOTE:
1. ALL DIMENSIONS IN MM[INCH].
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
3. TERM. NOS. FOR REFERANCE ONLY.
4. CONTACT MATERIAL: SILVER
5. CONTACT RATING: 150MILLIAMP, 250VAC/DC
350MILLIAMP, 110VAC/DC
6. CONTACT RATING (NON-SWITCHING) 5A
7. OPERATING FORCE 425
`
100CM/STANDARD
8. OPERATING TEMP: -30
~
C TO 85
~
C
9. CIRUIT DP: 6 POSITION 30
~
INDEX.
10. DIELECTRIC STRENGTH: 1000V RMS MIN.@ SEA LEVEL.
11. HARDWARE SUPPLIED ON SWITCH:
LOCKWASHER, HEXNUT, STOP RING
12. DENOTES CRITICAL PARAMETER.
0
.5 n]
27 83 i
.0
[1
3/8-32 UNEF-2A
THREADS
2.00
[.079 in]
14.20
[.559 in]
3.40
[.134 in]
C
REV
14502
PCR NO
REVISED AND REDRAWN
DESCRIPTION
11/12/04
DATE
AR
BY
TITLE
SCALE
KC26D01NPS
1.5:1
DATE
DR
DWG
REV
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
10/5/01
CJB
G523726
C
