SHEET 1 OF 1
A
B
C
D
1 2 3 4 5 6 7 8 9 10 11 12

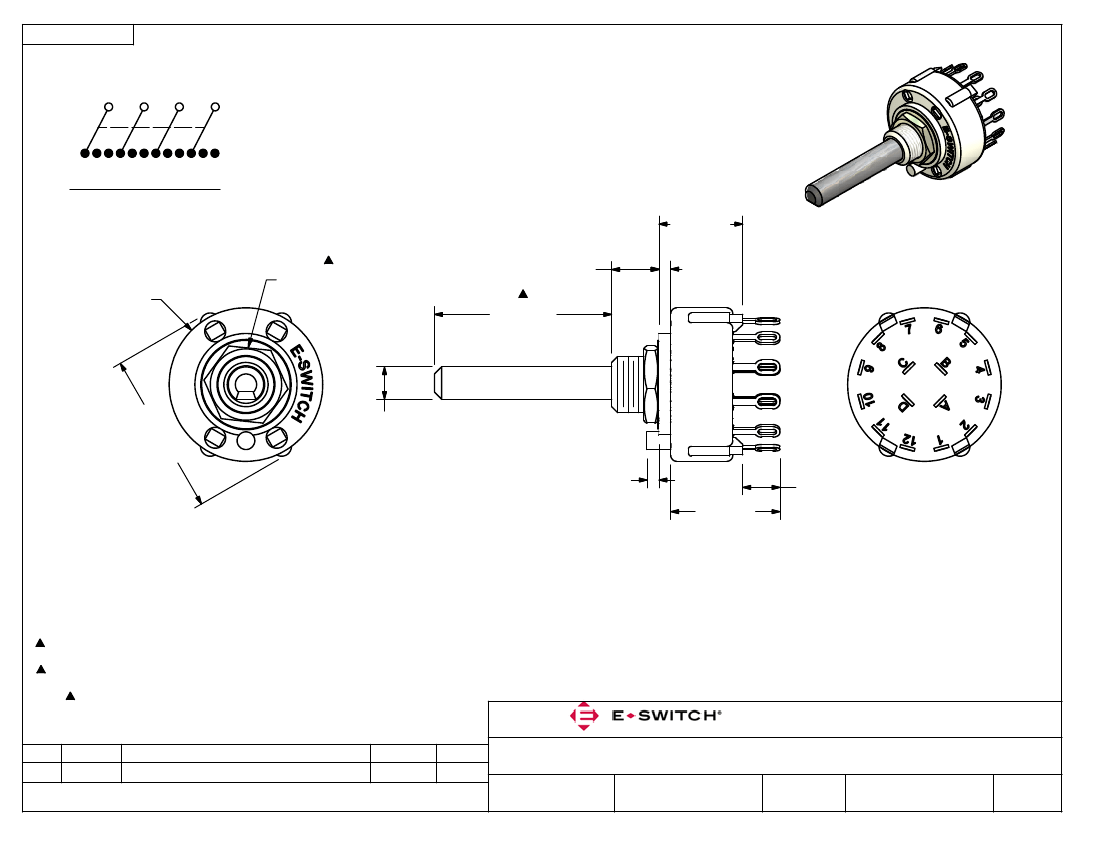

CONTACT CONFIGURATION
TIMING (BBM) NON-SHORTING
14.20
[.559 in]
8.00
[.315 in]
30.00
[1.181 in]
2.00
[.079 in]
n
26.00
[1.024 in]
HARDWARE SUPPLIED
ON SWITCH
NOTE:
1. ALL DIMENSIONS IN MM[INCH].
2. GENERAL TOLERANCE: X.X=
`
0.4
X.XX=
`
0.25
3. TERM. NOS. FOR REFERENCE ONLY.
4. CONTACT MATERIAL: GOLD FLASH OVER SILVER PLATE
5. CONTACT RATING: 0.3A @ 125V AC
6. CONTACT RESISTANCE: < 50m OHMS
7. OPERATING FORCE: 0.8
`
0.3 Kg-cm
8. OPERATING TEMP: -30
~
C TO 85
~
C
9. CIRCUIT 4P: 4 POLE: 3 POSITIONS, 30
~
INDEX
10. DIELECTRIC STRENGTH: AC500V - 1 MIN.
11. HARDWARE SUPPLIED ON SWITCH:
LOCKWASHER, HEXNUT
12. DENOTES CRITICAL PARAMETER.
.50 n]
27 83 i
.0
[1
5.50
[.217 in]FLAT
2.00
[.079 in]
18.50
[.728 in]
6.30
[.248 in]
A
REV
20428
PCR NO
RELEASED FOR PRODUCTION
DESCRIPTION
1/26/12
DATE
BGL
BY
TITLE
SCALE
KC43A30.001NLF
1.5:1
DATE
THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY
TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED
1/26/2012
DR
BGL
DWG
G510283
REV
A
