CDRH26D11NP-1R0PC datasheet, PDF

Datasheet> All Categories > Passive components> inductor> CDRH26D11NP-1R0PC

CDRH26D11NP-1R0PC: DescriptionGeneral Purpose Inductor, 1uH, 25%, 1 Element, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size129KB，2 Pages; ManufacturerSUMIDA; Websitehttp://www.sumida.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

CDRH26D11NP-1R0PC Overview

General Purpose Inductor, 1uH, 25%, 1 Element, SMD, ROHS COMPLIANT

CDRH26D11NP-1R0PC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	SUMIDA
Reach Compliance Code	unknown
ECCN code	EAR99
DC Resistance	63.8 Ω
Nominal inductance(L)	1 µH
Inductor Applications	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH
Number of functions	1
Number of terminals	2
Maximum rated current	1.8 A
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	0.1 MHz
Tolerance	25%

Preview

Download Datasheet

View All

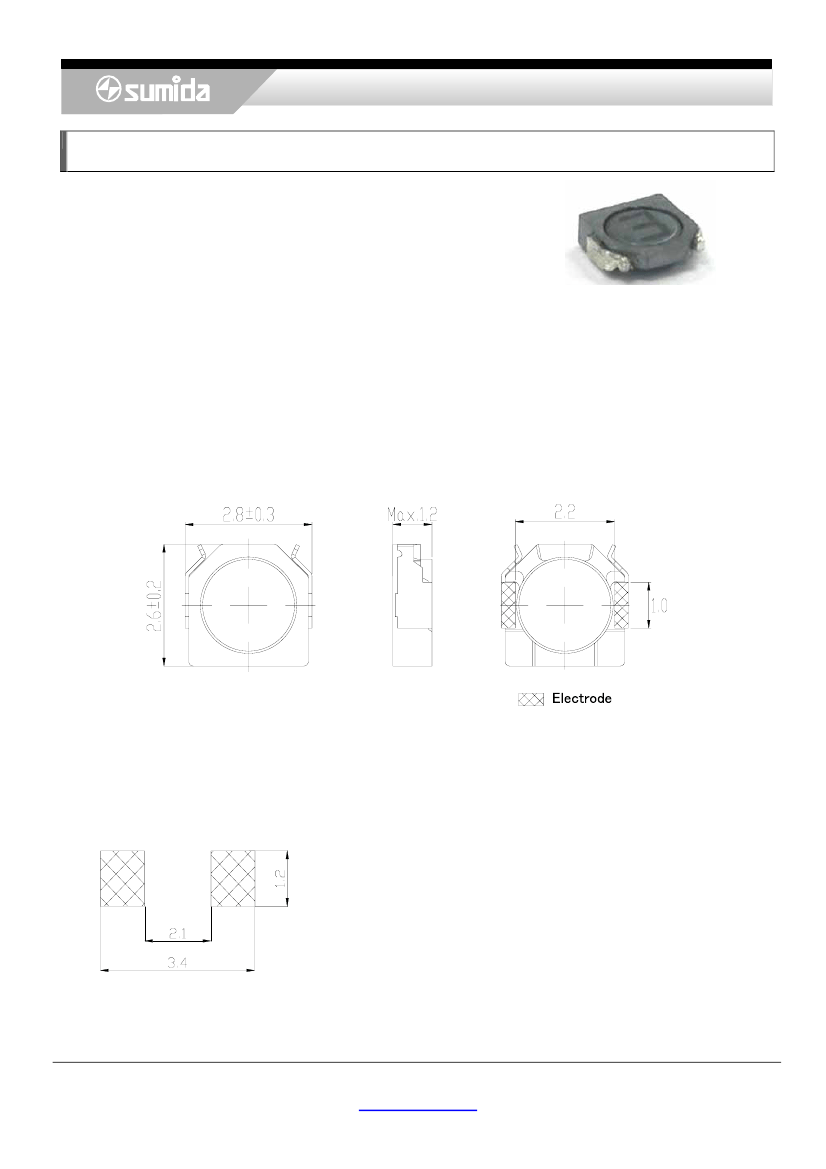

Power Inductors <SMD Type: CDRH Series>

Type: CDRH26D11

◆

Product Description

・3.0×2.8mm

Max.(L×W),1.0mm Max. Height.

・Inductance

range: 1½15μH.

・Rated

current range:0.36½1.44A.

・Custom

design is available.

◆

Feature

・Magnetically

shielded construction.

・Ideally

used in Mobilephone,PDA,MP3,DSC/DVC etc as DC-DC Converter inductors.

・RoHS

Compliance.

◆

Dimensions (mm)

Dimensions without tolerance are approx.

◆

Land Pattern (mm)

Please refer to the sales offices on our website for a representative near you

www.sumida.com

1/2

CDRH26D11NP-1R0PC Related Products

	CDRH26D11NP-1R0PC	CDRH26D11NP-1R4PC	CDRH26D11NP-1R0PB	CDRH26D11NP-1R4PB
Description	General Purpose Inductor, 1uH, 25%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.4uH, 25%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1uH, 25%, 1 Element, SMD, ROHS COMPLIANT	General Purpose Inductor, 1.4uH, 25%, 1 Element, SMD, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
DC Resistance	63.8 Ω	71.1 Ω	63.8 Ω	71.1 Ω
Nominal inductance(L)	1 µH	1.4 µH	1 µH	1.4 µH
Inductor Applications	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR	POWER INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
Manufacturer's serial number	CDRH	CDRH	CDRH	CDRH
Number of functions	1	1	1	1
Number of terminals	2	2	2	2
Maximum rated current	1.8 A	1.7 A	1.8 A	1.7 A
Shape/Size Description	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
shield	YES	YES	YES	YES
surface mount	YES	YES	YES	YES
Terminal location	DUAL ENDED	DUAL ENDED	DUAL ENDED	DUAL ENDED
Terminal shape	WRAPAROUND	WRAPAROUND	WRAPAROUND	WRAPAROUND
Test frequency	0.1 MHz	0.1 MHz	0.1 MHz	0.1 MHz
Tolerance	25%	25%	25%	25%
Base Number Matches	-	1	1	1
