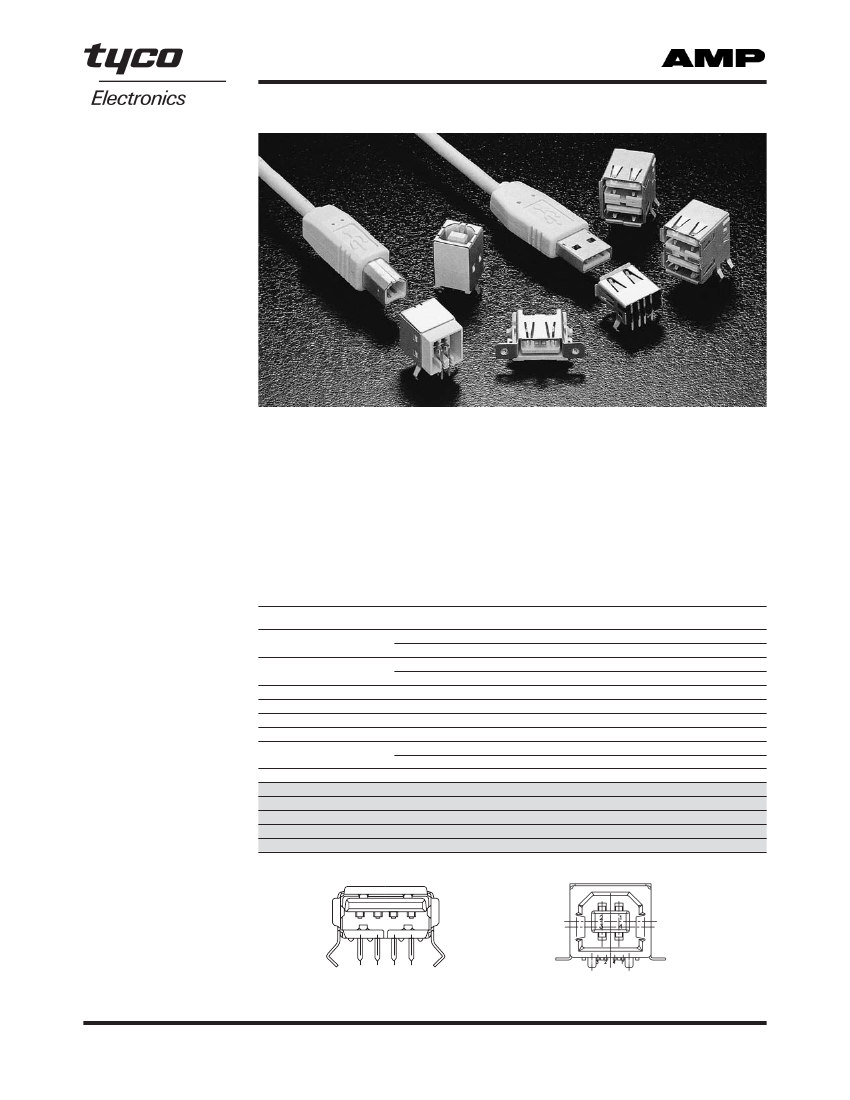

Connector System for Universal Serial Bus (USB)
Product Facts
■
■
Plug and Play capability
Hot pluggable, permits
attaching or detaching
peripherals without power
down or reboot
Single 4-position connector,
polarized for proper orienta-
tion
Complete family of board-
mount receptacles, includ-
ing right-angle, thru-hole,
thru-hole type B, side-by-
side, and stacked
Cable mount overmold plug
kits for both standard and
type B applications
Consolidates serial parallel,
keyboard, mouse and game
ports
Compatible with asynchro-
nous and isochronous data
transfer methods
The Tyco Electronics
Connector System will
accommodate the two differ-
entially driven data wires that
provide bi-directional, simul-
taneous signals for full speed
12Mbps or for low speed
1.5Mbps used in Universal
Series Bus (USB) Systems.
The Tyco Electronics USB
System is a complete inter-
Part Matrix
Product
Header
Header
Header
Header
Header
Header
Plug
Plug Kit
Header
Header
Header
Plug Shell
Plug Housing
Series
A
A
A
A
A
A
A
A
B
B
B
B
B
Part
Number
787616-1
440260-1
353929-1
353928-1
787617-1
440448-1
1470007-2
1364428-1
1470697-1
1470695-1
1364978-1
787780-1
787834-1
1734346-1
796007-2
796006-4
RoHS
Compliant
202303-1
292336-1
5353929-1
1734038-1
5787617-1
1-1734181-2
1-1734383-2
1734366-1
1734080-1
1734028-1
1734372-1
292304-1
5787834-1
1734346
796007-3
5796006-4
Orientation
Right-Angle
Right-Angle
Panel Mount, RA
Panel Mount, RA
Double Stack, RA
Triple Stack, RA
Quad Stack, RA
Vertical
Edge Mount
Edge Mount
Cable Appl.
Right-Angle
Vertical
Right-Angle
Cable Appl.
Cable Appl.
SMT/
Thru-Hole
Thru-Hole
Thru-Hole
SMT
SMT
Thru-Hole
Thru-Hole
Thru-Hole
Thru-Hole
SMT
SMT
Thru-Hole
Thru-Hole
SMT
Page
Number
2
2
3
4
5
6
7
8
9
9
10
11
11
12
12
12
■
■
■
■
■
connection technology for
I/O devices, including: key-
boards, mice, game port,
serial port devices, digital
audio, printers, scanners,
modems, joy sticks, and
other telecommunication
devices. Designed for
outside-of-box, user
friendly applications, the
Tyco Electronics system
consists of a single
4-position boardmount
receptacle and mating
cable mount overmolded
plug. Boardmount recepta-
cles are available in stan-
dard, Type B, stacked and
side-by-side configurations,
adding to the system’s
versatility to meet all USB
applications.
Table of Contents
Standard USB
Series A Receptacle
Assemblies . . . . . . . . . . . 2-10
Series B Receptacle
Assemblies . . . . . . . . . . 11-12
Cable Assemblies. . . . . . . . . 13
Mini USB
Connectors . . . . . . . . . . . 14-16
Plugs . . . . . . . . . . . . . . . . . . 17
Cable Assembly . . . . . . . . . . 18
RJ45 Over USB
. . . . . . . . . . . . 19
MAG45 Modular Jacks with
Integrated Magnetics
. . . . . 20
USB/IEEE Combo.
. . . . . . . . . . 21
1
2
3
4
©2006 by Tyco Electronics Corporation. All
Rights Reserved.
AMP, MAG45 and Tyco are trademarks.
Other products, logos, and company names
mentioned herein may be trademarks of their
respective owners.
Series A
Series B
1
Catalog 7-1773442-0
Issued 03-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967

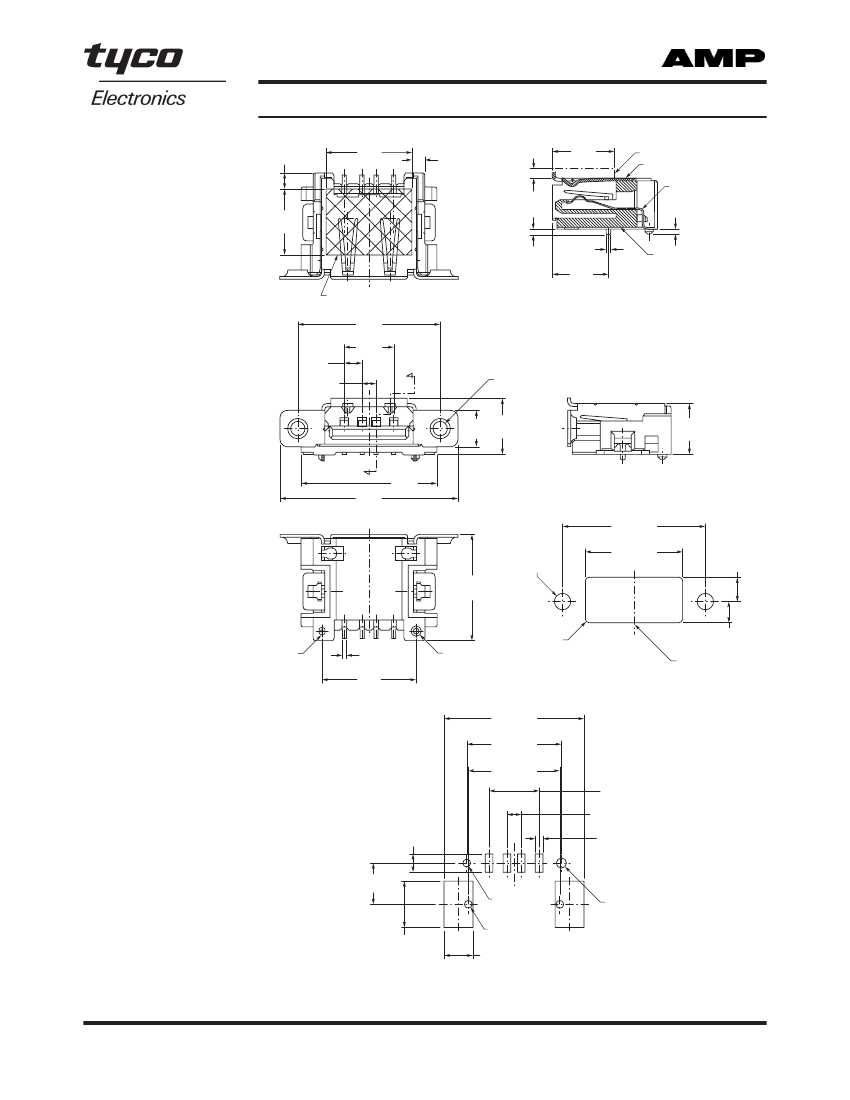

Connector System for Universal Serial Bus (USB)

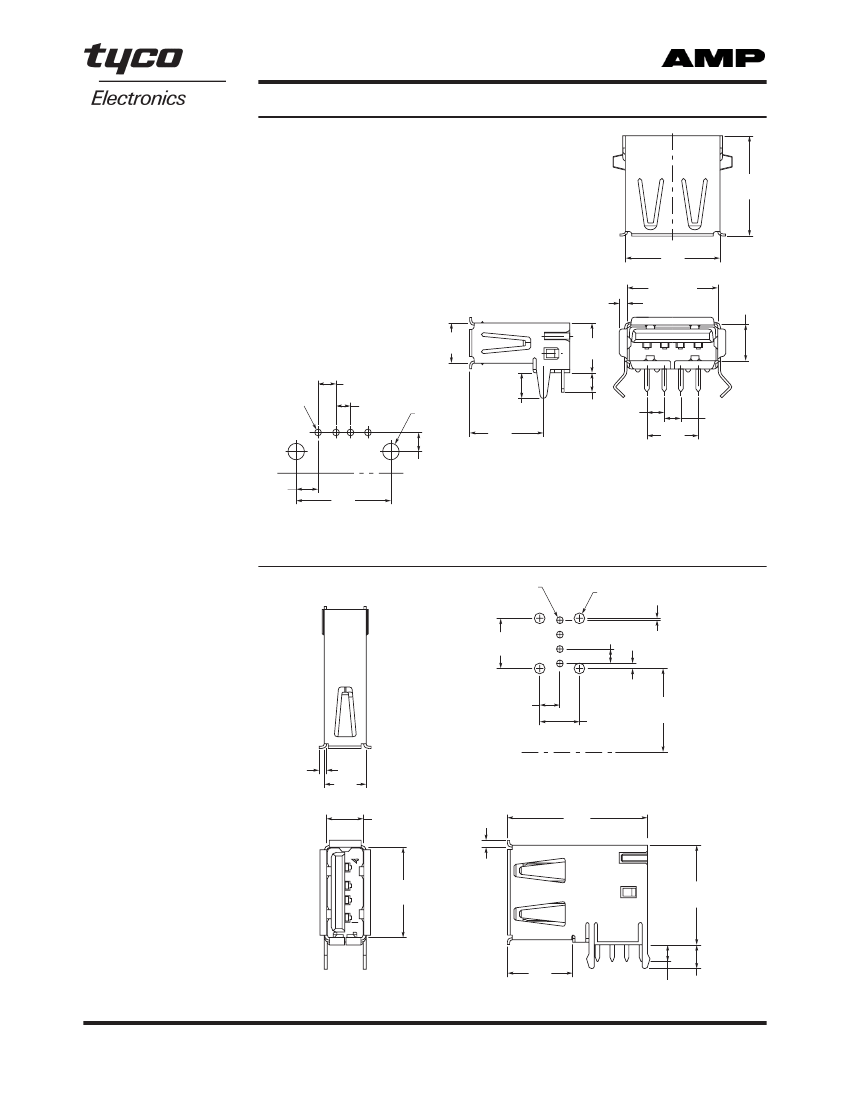

Series A Receptacle Assemblies
Right-Angle, Thru-Hole
Part Number
202303-1
Loose Piece
Performance Data
USB Connector System
Voltage Rating
— 30VAC (rms)
Current Rating
— Signal application
only, 1 amp per contact
Temperature Rating
— –55 to 85˚C
(unless limited by cable or overmold)
Termination Resistance
—
30mq, max.
Insulation Resistance
—
1,000 Mq, min.
Dielectric Withstanding Voltage
—
750VAC
Capacitance
— 2pf max.
Durability
— 1,500 cycles
Mating Force
— 35N per contact, max.
Unmating Force
— 10N per contact,
max.
14.00
[.551]
Solder Tail Length
— 2.84 [.112]
Recommended PCB Thickness
—
1.57 [.062]
Product Specification
108-1586
1.07
[.042]
13.13
[.517]
12.50
±
0.10
[.492
±
.004
]
5.12
±
0.10
[.202
±
.004
]
5.75
[.226]
7.01
[.276]
1
2
3
4
Ø 0.92
±
0.08
[.036
±
.003
]
4 Plcs.
2.50
2 Plcs.
[.098]
2.00
[.079]
Ø 2.30
±
0.08
[.091
±
.003
]
2 Plcs.
3.61
[.142]
10.28
[.405]
2.84
[.112]
2.50
[.098]
7.00
[.276]
2.00
[.079]
Universal Series Bus
Speed
— 12 Mb/s
Max. No. of Peripherals
— 63
Max. Distance
— 5m max.
Data Transfer
— Asynchronous
2.71
[.107]
3.07
[.121]
13.14
[.517]
Recommended PCB Layout
Right-Angle, Thru-Hole,
Flag
Part Number
292336-1
Loose Piece
Solder Tail Length
— 2.29 [.090]
Recommended PCB Thickness
—
1.57 [.062]
Ø 0.92
±
0.08
[.036
±
.003
]
4 Plcs.
Ø 1.35
±
0.05
[.053
±
.002
]
4 Plcs.
2.00
[.079]
7.00
[.276]
0.27
[.011]
2.72
[.107]
0.73
[.029]
5.44
[.214]
11.76
[.463]
Product Specification
108-1586
1.00
[.039]
Recommended PCB Layout
5.76
[.227]
5.12
±
0.10
[.202
±
.004
]
19.29
[.759]
1.00
[.039]
12.50
±
0.10
[.492
±
.004
]
13.83
[.544]
8.88
[.350]
3.60
2.29
[.090] [.142]
2
Catalog 7-1773442-0
Issued 03-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Connector System for Universal Serial Bus (USB)
Series A Receptacle Assemblies
(Continued)
Panel Mount Right Angle
SMT Type
Part Number
5353929-1
Emboss Tape Mounted, ea. 350
Tape Width
— 44.00 [1.732]
2.20
[.087]
12.00
[.472]
1.85
[.073]
1.20
[.047]
8.50
[.335]
Shell Contact Moving Area
Shell
Contact
0.70
[.028]
9.00
[.354]
0.80
[.031]
0.60
[.024]
7.70
[.303]
Housing
Part Number
353583-1
Tray Pack, ea. 55
Product Specification
108-5563
Tape (Part Number 353929-1 only)
20.00
[.787]
7.00
[.276]
Section X-X
2.50
[.098]
2.00
[.079]
X
M2
5.00 7.80
[.197] [.307]
7.00
[.276]
X
25.00
[.984]
19.00
[.748]
20.00
±
0.05
[.787
±
.002
]
Ø 2.30
±
0.05
[.091
±
.002
]
14.40
[.567]
13.50
±
0.10
[.531
±
.004
]
3.50
±
0.05
[.138
±
.002
]
Ø 1.00
[.039]
0.60
[.024]
13.30
[.524]
Ø 1.40
[.055]
R 0.50
[.020]
2.65
±
0.05
[.104
±
.002
]
Panel Cutout
PC Board Side
19.70
±
0.05
[.776
±
.002
]
13.30
±
0.05
[.524
±
.002
]
12.90
±
0.05
[.508
±
.002
]
7.00
±
0.05
[.276
±
.002
]
2.00
[.079]
2.50
±
0.05
[.098
±
.002
]
1.20
[.047]
5.50
±
0.05
[.217
±
.002
]
Ø 1.10
±
0.05
[.043
±
.002
]
Ø 1.00
±
0.05
[.039
±
.002
]
4.10
±
0.10
[.161
±
.004
]
Ø 1.50
±
0.05
[.059
±
.002
]
6.20
±
0.10
[.244
±
.004
]
Recommended PCB Layout
(Component Side)
3
Catalog 7-1773442-0
Issued 03-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Connector System for Universal Serial Bus (USB)
Series A Receptacle Assemblies
(Continued)
Panel Mount Right Angle
SMT Type, Reverse Mating
Part Number
1734038
Emboss Tape Mounted, ea. 350
Tape Width
— 44.00 [1.732]
0.80
[.031]
2.20
[.087]
12.00
[.472]
1.85
[.073]
1.20
[.047]
8.50
[.335]
Shell Contact Moving Area
Shell
Contact
0.70
[.028]
9.00
[.354]
0.60
[.024]
7.70
[.303]
Housing
Part Number
353576-1
Tray Pack, ea. 55
Product Specification
108-5563
Tape (Part Number 353928-1 only)
20.00
[.787]
7.00
[.276]
Section X-X
2.50
[.098]
2.00
[.079]
X
M2
5.00 7.80
[.197] [.307]
7.00
[.276]
X
25.00
[.984]
19.00
[.748]
20.00
±
0.05
[.787
±
.002
]
Ø 2.30
±
0.05
[.091
±
.002
]
14.40
[.567]
13.50
±
0.10
[.531
±
.004
]
3.50
±
0.05
[.138
±
.002
]
Ø 1.00
[.039]
0.60
[.024]
13.30
[.524]
Ø 1.40
[.055]
R 0.50
[.020]
2.65
±
0.05
[.104
±
.002
]
Panel Cutout
PC Board Side
19.70
±
0.05
[.776
±
.002
]
13.30
±
0.05
[.524
±
.002
]
12.90
±
0.05
[.508
±
.002
]
7.00
±
0.05
[.276
±
.002
]
2.00
[.079]
2.50
±
0.05
[.098
±
.002
]
1.20
[.047]
5.50
±
0.05
[.217
±
.002
]
Ø 1.10
±
0.05
[.043
±
.002
]
Ø 1.00
±
0.05
[.039
±
.002
]
4.10
±
0.10
[.161
±
.004
]
Ø 1.50
±
0.05
[.059
±
.002
]
6.20
±
0.10
[.244
±
.004
]
Recommended PCB Layout
(Component Side)
4
Catalog 7-1773442-0
Issued 03-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
Connector System for Universal Serial Bus (USB)
Series A Receptacle Assemblies
(Continued)

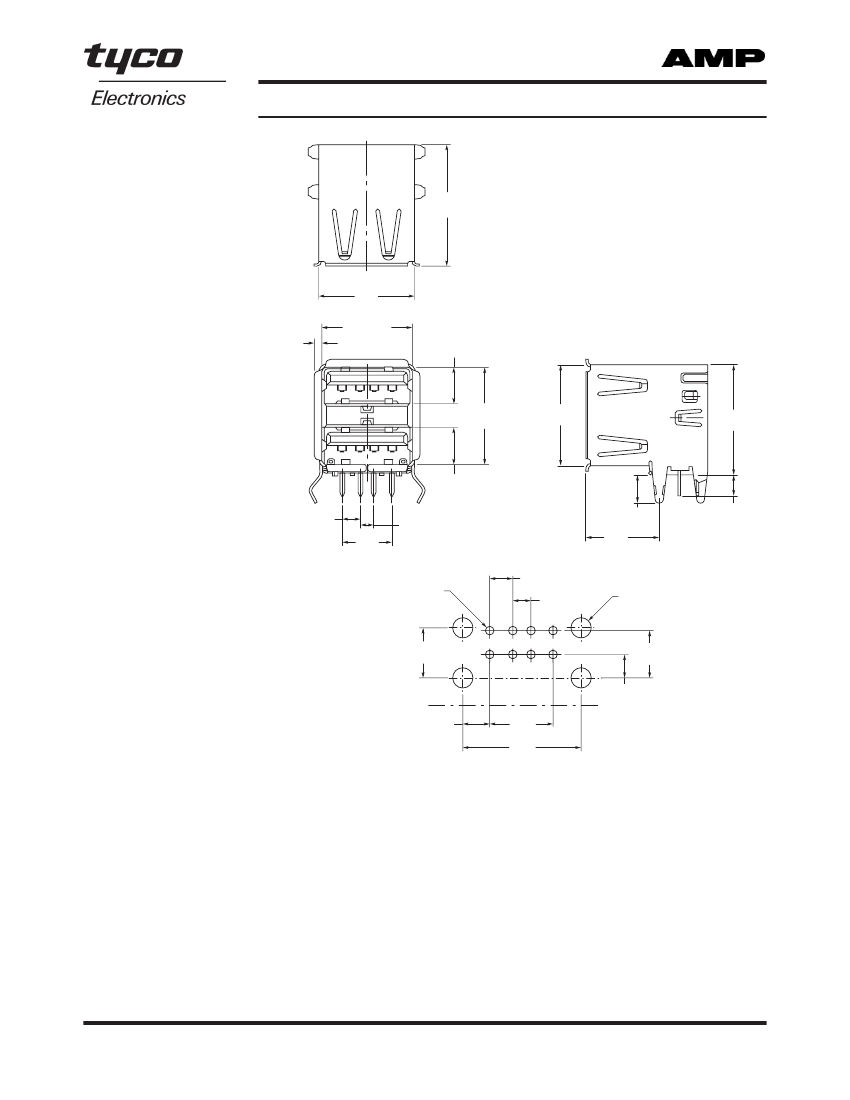

Right Angle Stacked, Thru-
Hole
Part Number
5787617-1
Loose Piece
Solder Tail Length
— 2.84 [.112]
Recommended PCB Thickness
—
1.57 [.062]
17.00
[.669]
13.13
[.517]
12.50
±
0.10
[.492
±
.004
]
Material and Finish
Housing
— Thermoplastic, UL94V-0
Shell
— Copper alloy, plated bright tin
Contacts
— Copper alloy, plated
0.076µm min. gold over 0.76µm min.
palladium-nickel on the mating end,
3.8µm min. tin lead on solder tails all
over 1.27µm min. nickel underplating or
0.076µm min. Gold on the mating end,
3.8µm min. tin lead on solder tails all
over 1.27µm min. nickel underplating.
1.07
[.042]
5.12
±
0.10
[.202
±
.004
]
13.62
±
0.10
[.536
±
.004
]
14.25
[.561]
15.51
[.611]
5.12
±
0.10
[.202
±
.004
]
2.50
[.098]
7.00
[.276]
2.50
[.098]
2.00
[.079]
3.99
[.157]
10.28
[.405]
2.84
[.112]
2.00
[.079]
Ø 0.92
±
0.08
[.036
±
.003
]
8 Plcs.
Ø 2.30
±
0.08
[.091
±
.003
]
4 Plcs.
5.68
[.224]
5.33
[.210]
2.71
[.107]
3.07
[.121]
7.00
[.267]
13.14
[.517]
Recommended PCB Layout
5
Catalog 7-1773442-0
Issued 03-06
www.tycoelectronics.com
Dimensions are in millimeters
and inches unless otherwise
specified. Values in brackets
are standard equivalents.
Dimensions are shown for
reference purposes only.
Specifications subject
to change.
USA: 1-800-522-6752
Canada: 1-905-470-4425
Mexico: 01-800-733-8926
C. America: 52-55-5-729-0425
South America: 55-11-3611-1514
Hong Kong: 852-2735-1628
Japan: 81-44-844-8013
UK: 44-141-810-8967
京公网安备 11010802033920号
EEWORLD
