HIGH PERFOMANCE
OUTDOOR BLOCK
UPCONVERTERS
AND BLOCK
DOWN-
CONVERTERS

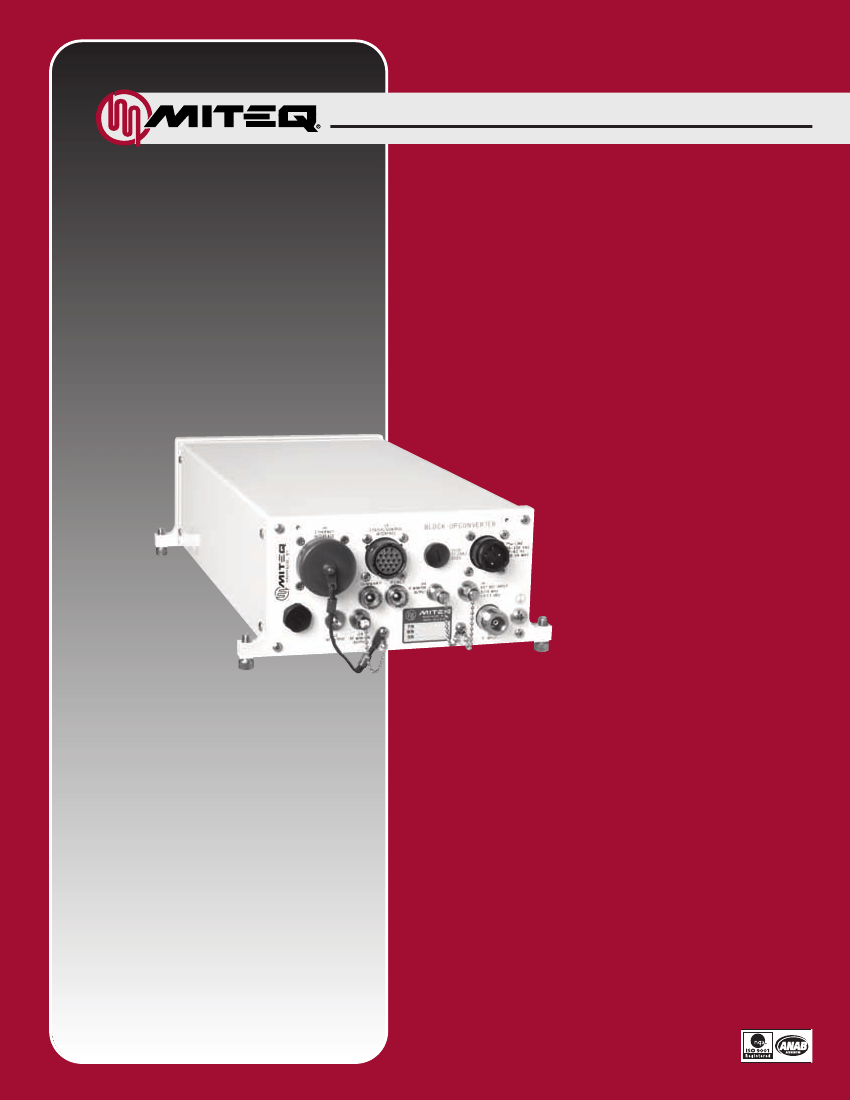

This series of outdoor block upconverters and down-
converters are designed for antenna mounting.
FEATURES
• Small weather resistant enclosure
• Automatic 5/10 MHz internal/
external reference selection
• RS485/RS422 and 10/100Base-T
Ethernet remote control
• RF input/output signal
monitor ports
• 30 dB gain control
• 32 memory locations
• High frequency stability
• Summary alarm
• AC power supply (CE mark)
A strong set of monitor and control functions support
powerful remote control. A contact closure summary
alarm is provided for fault monitoring.
A continuously updated log of time stamped records of
activity is also provided.
OPTIONS
•
•
•
•
•
•
Higher performance package
Higher frequency stability
Lower phase noise
LO level monitor
Lower gain
DC power
SPECIFICATIONS
Input
Frequency (GHz)
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
1
1
3.4
3.4
3.7
7.25
10.7
10.95
11.2
11.45
11.7
11.7
12.2
18.3
19.7
20.2
20.2
28.3
29.25
29.25
30
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
1.525
1.75
1.35
1.45
1.45
1.7
1.45
1.75
2.05
1.25
1.2
1.45
1.2
1.7
1.95
2
2
4.2
4.2
4.2
7.75
11.7
11.7
12
12.25
12.5
12.75
12.75
18.8
20.2
21.2
21.2
28.8
29.5
30
31
Output
Frequency (GHz)
5.85
5.85
6.7
7.9
12.75
13.75
14
17.3
17.3
18.1
28.35
29
29.25
29.25
30
30
20.2
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
0.95
1
0.95
0.95
0.95
0.95
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
6.425
6.65
7.1
8.4
13.25
14.5
14.5
18.1
18.4
18.4
Ka-BAND
28.6
29.5
29.5
30
31
31
21.2
1.75
1.75
1.45
1.45
1.95
1.7
1.75
1.75
1.75
2
1.5
Ka-BAND
1.45
1.45
1.95
2
1.45
1.2
1.7
1.95
17.35
18.75
19.25
19.2
27.35
28.3
28.3
29.25
DNB-WS-18.55
DNB-WS-19.95
DNB-WS-20.7
DNB-WS-20.7-1
DNB-WS-28.55
DNB-WS-29.375
DNB-WS-29.625
DNB-WS-30.5
27.4
28.05
28.3
28.3
29.05
29
19.2
DOWNCONVERTERS
5.15
8.55/11
8.55/11.3
6.3
9.75
10
10.25
10.5
10.75
10.75
11.25
DNB-WS-3.8-IN*
DNB-WS-3.8D
DNB-WS-3.95D
DNB-WS-7.5
DNB-WS-11.2
DNB-WS-11.325
DNB-WS-11.6
DNB-WS-11.85
DNB-WS-12.1
DNB-WS-12.225
DNB-WS-12.475
UPB-WS-28.475
UPB-WS-29.25
UPB-WS-29.375
UPB-WS-29.625
UPB-WS-30.5**
UPB-WS-30.5-1**
UPB-WS-20.7-1**
LO
Frequency (GHz)
7.375
4.9
5.75
6.95
11.8
12.8
13.05
16.35
16.35
17.15
Model
Number
UPB-WS-6.1-IN*
UPB-WS-6.25
UPB-WS-6.9
UPB-WS-8.15
UPB-WS-13
UPB-WS-14.125
UPB-WS-14.25
UPB-WS-17.7
UPB-WS-17.85**
UPB-WS-18.25
UPCONVERTERS
* Model includes frequency inversion.
** 1 GHz IF bandwidths.
INPUT CHARACTERISTICS
Return loss (50 ohms)....................................... 18 dB minimum
LO leakage........................................................ -80 dB maximum (downconverters)
Signal monitor ................................................... -20 dBc nominal
OUTPUT CHARACTERISTICS
Return loss ........................................................ 18 dB minimum
Signal monitor ................................................... -20 dBc nominal
Power output (1 dB compression) .................... +13 dBm minimum (upconverters),
+18 dBm minimum (downconverters)
SPECIFICATIONS (CONT.)
TRANSFER CHARACTERISTICS
Gain
Upconverters................................................ 33 dB, ±3 dB at 23°C
Downconverters ........................................... 38 dB, ±3 dB at 23°C
Gain adjustment ................................................ 30 dB in 0.2 dB steps
Gain stability...................................................... ±0.25 dB/day maximum at constant temperature
Amplitude response .......................................... ±0.25 dB/±40 MHz maximum, ±1 dB over RF frequency band
Image rejection.................................................. 80 dB minimum
Noise figure (at minimum attenuation).............. 15 dB maximum (20 dB for upconverters with 1 GHz IF bandwidth
and Ka-band above 22 GHz)
Intermodulation distortion (third order) ............. With two inband signals at 0 dBm output, third order
intermodulation products are less than 60 dBc minimum
(downconverters) and 50 dBc minimum
(upconverters, and all Ka-band units)
Spurious outputs (inband)
Signal related ............................................... 65 dBc minimum up to 0 dBm output (including 2x1 spurious on 1
GHz IF bandwidth units)
Signal independent ...................................... -75 dBm maximum
Phase noise ...................................................... See graph
Frequency stability ............................................ ±5 x 10
-8
, -40 to +60°C (higher stability options available),
5 x 10
-9
/day typical (fixed temperature after 24 hour on time)
Automatic reference configuration .................... External 5 or 10 MHz at +4 ±3 dBm. If external reference is
above +1 dBm, the internal reference oscillator will lock to the
external reference input. Reference oscillator acts as an analog
phase lock with a 0.1 Hz nominal loop bandwidth. Typical loop
suppression of the external reference is as follows: 28 dB at 1 Hz
offset; 65 dB at 10 Hz offset; 100 dB at 100 Hz offset
Upconverter mute.............................................. 60 dB minimum on summary alarm or mute command
Remote interface............................................... 10/100Base-T Ethernet interface providing Web-browser based
configuration, SNMP 1.0 configuration, alarm reporting via
SNMP trap, telnet access, password protection and selectable
RS485/RS422. Refer to MITEQ’s Technical Note 25T060 for details.
INDICATOR AND ALARMS
LO out-of-lock.................................................... Red LED (front panel)
Power ON indicator........................................... Green LED (front panel)
Summary alarm................................................. Contact closure staus for DC voltage and local oscillator
(Programmable LNA current alarm for downconverters
+12 VDC up to 500 mA maximum)
PHASE NOISE CHARACTERISTICS
(1.0 Hz BANDWIDTH)
-20
-40
27-30 GHz
INTELSAT IESS308/309
PHASE NOISE (dBc/Hz)
-60
16-20 GHz
-80
Maximum MITEQ
Performance
-100
9–16 GHz
and Dual Conversion Units
-120
Maximum External Reference
-140
-160
10
100
1K
10K
100K
1M
FREQUENCY OFFSET FROM CARRIER (Hz)
10M
OPTIONS
1.
High performance package.
Power output (1 dB compression) .......... 20 dBm minimum (15 dBm minimum, Ka-band upconverters)
Gain slope .............................................. 0.03 dB/MHz maximum
Gain stability............................................ ±0.25 dB/day maximum at constant temperature,
±1 dB peak-to-peak maximum/-40 to +60°C
Group delay ............................................ 1 ns peak-to-peak maximum
Spurious outputs (inband)
Signal related ...................................... 65 dBc minimum up to 0 dBm output
Signal independent .............................. -80 dBm maximum
Intermodulation distortion (third order).... With two inband signals at 0 dBm output, third order
intermodulation products are less than 60 dBc minimum and
50 dBc minimum (Ka-band upconverters)
High performance phase noise (dBc/Hz) (maximum/typical).
LO Frequency
Up to 6.7 GHz
6.7 LO < 8 GHz
8 LO < 12 GHz
12 LO < 13.4 GHz
13.4 LO < 16 GHz
16 LO < 24 GHz
24 LO < 29.5 GHz
10
-54
-53
-48
-48
-47
-42
-41
100
-78
-76
-73
-72
-70
-67
-64
OFFSET (Hz)
1K
10K
-108
-116
-107
-114
-103
-112
-102
-110
-100
-108
-98
-106
-94
-102
100K
-119
-117
-115
-113
-111
-109
-107
1M
-136
-134
-132
-130
-128
-126
-124
2.
Noise spectral density ............................ -87 dBm/4 kHz maximum (upconverters below 1 GHz IF bandwidth),
-82 dBm/4 kHz maximum (down and upconverters
with 1 GHz IF bandwidth)
AM/PM conversion (at 0 dBm output) .... 0.1°/dB maximum
Upconverter mute.................................... 80 dB minimum on summary alarm, external mute
Input command or remote control
Lower gain.
Gain......................................................... 20 ±3 dB at 23°C, 18 dB NF (20 dB for upconverters with 1 GHz
bandwidth and downconverters above 22 GHz),
(2x1 signal related, 65 dBc at -10 dBm output)
Gain......................................................... 10 ±3 dB at 23°C, 20 dB NF (22 dB for upconverters with 1 GHz
bandwidth and downconverters above 22 GHz),
(2x1 signal related, 65 dBc at -10 dBm output)
LO level alarm.
Summary alarm is generated for loss of power in any of the required local oscillators.
3.
8.
10.
Higher frequency stability reference.
±5 x 10
-9
, -40 to +60°C,
1 x 10
-9
/day typical (fixed temperature after 24 hour on time).
NOTE: Converter may require 7-10 days to reach stability after long storage periods.
OPTIONS (CONT.)
14.
Low noise option (downconverters only).
Available Noise Temperature
Frequency (GHz)
At +25°C (Maximum)
3.40 - 4.20
35
3.70 - 4.20
35
7.25 - 7.75
50
10.70 - 11.70
80
10.95 - 11.70
70
11.45 - 12.25
70
11.70 - 12.50
70
12.20 - 12.75
70
18.30 - 18.80
140
19.70 - 20.20
140
20.20 - 21.20
140
NOTE: Gain increase to 62 ±3 dBm.
19.
DC power input.
A.
+24 to +32 VDC input
B.
+42 to +60 VDC input
C.
-42 to -60 VDC input
27.
RF connector option .............. RF connector on rear panel as per Outline Drawing 3 Waveguide TBD
Interface Input
CPR-229GN
CPR-229GN
CPR-112G
WR-75 Grooved Flange
WR-75 Grooved Flange
WR-75 Grooved Flange
WR-75 Grooved Flange
WR-75 Grooved Flange
WR-42 Grooved Flange
WR-42 Grooved Flange
WR-42 Grooved Flange
GENERAL SPECIFICATIONS
PRIMARY POWER REQUIREMENTS
Voltage .................................................... 90–250 VAC
Frequency ............................................... 47–63 Hz
Consumption ........................................... 12 W typical
PHYSICAL
Weight ..................................................... 15 pounds nominal
Connectors
Front panel connectors
RF band
Below 22 GHz ............................... SMA female compatible
Above 26.5 GHz ............................ WR-28 grooved
L-band............................................... N female
RF band monitor............................... SMA female compatible
L-band monitor.................................. SMA female
External reference input ................... SMA female
Status/Control interface .................... MS3116F14-18P for summary alarm, RS422/485*, and LNA power
Remote interface .............................. RJ-45 female for Ethernet, RS422/485 available on status connector
Primary power input.......................... FCI clipper series CL1M1102*
*Note: Unit supplied with mating connector.
ENVIRONMENTAL
Operating
Ambient temperature ......................... -40 to +60°C
Atmospheric pressure ........................ Up to 10,000 feet
Nonoperating
Ambient temperature ......................... -50 to +70°C
Atmospheric pressure ........................ Up to 40,000 feet
Shock and vibration ........................... Normal handling by commercial carriers
