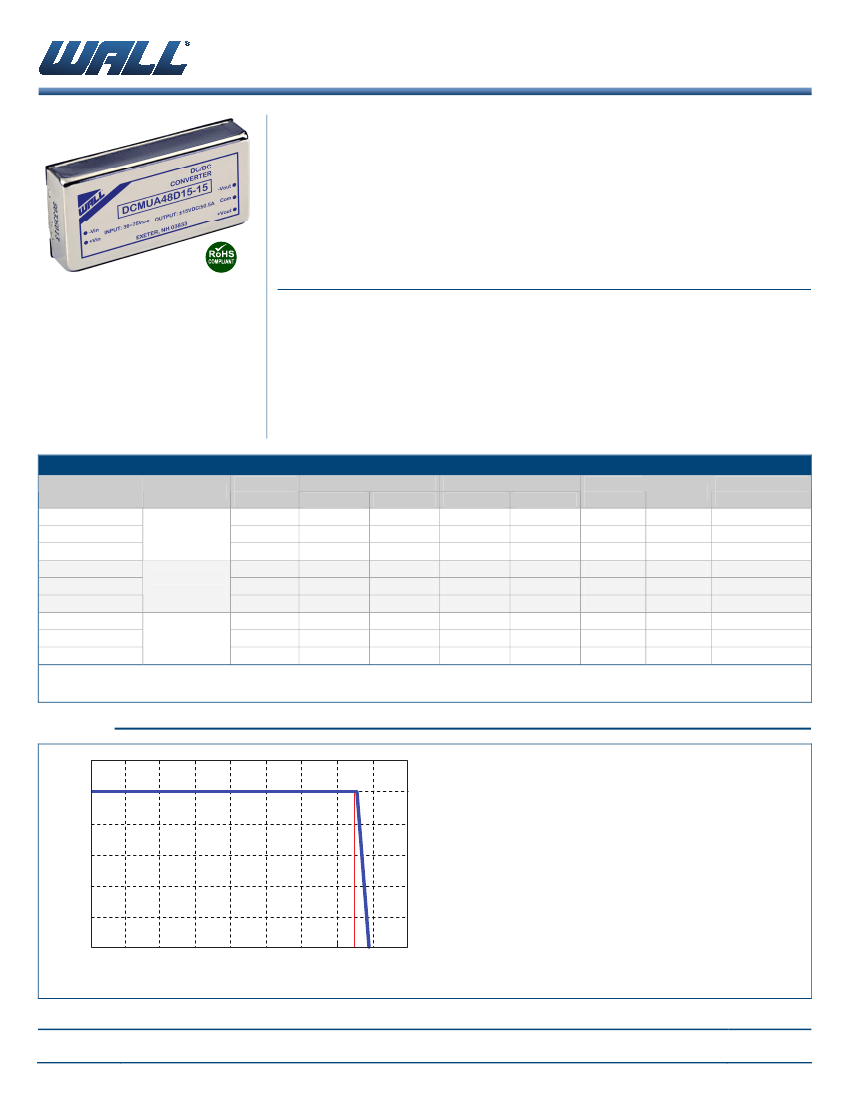

DCMUA15 SERIES
15 Watts DC/DC Power Converters
FEATURES
•
Single and Dual Outputs
•
15 Watts Output Power
•
1500VDC I/O Isolation
•
High Efficiency up to 87%
•
Lead Free Design, RoHS Compliant
•
High Power Density
Size:
2.0 x 1.0 x 0.4 inches
50.8 x 25.4 x 10.2 mm
Applications:
•
Battery Operated Equipment
•
Telecom
•
Industry Control Systems
•
Wireless Networks
•
Measurement Equipment
•
Military Applications
•
Fixed Switching Frequency
•
2:1 Input Voltage Ranges: 9-18VDC, 18-36VDC, & 36-75VDC
•
Shielded Metal Case with Insulated Base-plate
•
-55°C to +95°C Operating Temperature Range
•
Industry Standard 2.0” x 1.0” x 0.4” DIP Package
•
Short Circuit, Over Voltage, Over Load Protection
•
IEC/EN 60950-1 Safety Approvals
•
Custom Designs Available
DESCRIPTION
The DCMUA15 series of isolated DC/DC power converters provides 15 Watts of continuous output
power in a 2.0” x 1.0” x 0.4” shielded metal case. This series consists of single and dual output models
with 2:1 input voltage ranges of 9-18VDC, 18-36VDC, and 36-75VDC. Some features include high
efficiency up to 87%, 1500VDC I/O isolation, and -55°C to +95°C extended operating temperature
range. The DCMUA15 series is RoHS compliant and has short circuit, over load, and over voltage
protection. These converters are best suited for use in military applications, battery operated
equipment, measurement equipment, telecom, wireless networks, industry control systems, and
anywhere where isolated, tightly regulated voltages and compact size are required.
MODEL SELECTION TABLE
Model Number
DCMUA12S5-15
DCMUA12S12-5
DCMUA12D15-15
DCMUA24S5-15
DCMUA24S12-5
DCMUA24D15-15
DCMUA48S5-15
DCMUA48S12-5
DCMUA48D15-15
Input Voltage
12 VDC
(9 – 18 VDC)
24 VDC
(18 – 36 VDC)
48 VDC
(36 – 75 VDC)
Output
Voltage
5 VDC
12 VDC
±15 VDC
5 VDC
12 VDC
±15 VDC
5 VDC
12 VDC
±15 VDC
Output Current
Min Load
(1)
Full Load
0mA
3000mA
40mA
1250mA
0mA
±500mA
0mA
3000mA
0mA
1250mA
0mA
±500mA
0mA
3000mA
0mA
1250mA
0mA
±500mA
Input Current
No Load
Full Load
16mA
1624mA
20mA
1525mA
26mA
1525mA
9mA
801mA
10mA
753mA
18mA
762mA
5mA
396mA
6mA
377mA
9mA
382mA
Output
Power
15W
15W
15W
15W
15W
15W
15W
15W
15W
Efficiency
81%
86%
86%
82%
87%
86%
83%
87%
86%
Maximum
Capacitive Load
3300µF
1000µF
±68µF
3300µF
1000µF
±100µF
3300µF
680µF
±100µF
NOTES
1. Output current under this value will not damage these devices; however, they may not meet all listed specifications.
DERATING
120
100
Output Power (%)
80
60
40
20
0
-55
-35
-15
25
45
65
5
Ambient Temperature (°C)
85
95
100
105
125
09/12/2013
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 1 of 4
Wall Industries, Inc.
Rev A
DCMUA15 SERIES
15 Watts DC/DC Power Converters
TECHNICAL SPECIFICATIONS: DCMUA15 SERIES
All specifications are based on 25°C, nominal input voltage, and maximum output current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
TEST CONDITIONS
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
Nominal Vin and full load
Min
9
18
36
Nom
Max
Unit
Input Surge Voltage (100ms max)
Input Reflected Ripple Current
Input Current
Input Filter
Sourcing Current of Remote Control Pin
Idle Input Current (at Remote OFF State)
Nominal Vin
Nominal Vin
12
18
24
36
48
75
25
50
100
250
See Table
Pi Type
0.2
3
See Table
+1
See Table
See Table
See Table
400
+0.8
+1.0
+1.0
+5
15
75
±0.02
±5
1400
VDC
VDC
mAp-p
mA
mA
OUTPUT SPECIFICATIONS
Output Voltage
Voltage Accuracy
Output Current
Minimum Load
Maximum Capacitive Load
Start-up Time
Line Regulation
Load Regulation
Output Power
Ripple & Noise
Temperature Coefficient
Transient Response Overshoot
Transient Response Settling Time
Full load and nominal Vin
-1
%
Nominal Vin and constant resistive load
LL to HL at full load
Single output models
25% load to full load
Balanced output
Dual output models
Unbalanced load 25% to full load
20MHz bandwidth
di/dt=0.8A/µs
50% load step change
5VDC output models
12VDC output models
15VDC output models
-0.8
-1.0
-1.0
-5
ms
%
%
W
mVp-p
%/°C
% of Vo
µs
PROTECTION
Over Voltage Protection
Short Circuit Protection
Over Load Protection
Reverse Voltage Protection
Zener Diode Clamp
6.2
VDC
15
18
continuous, automatic recovery
150
%
1.0
A
See Table
1500
1
580
300
With derating (see derating curve)
-55
-55
5
+95
+100
+125
95
Free air convection
1,960,000 hours
VDC
GΩ
pF
KHz
°C
°C
°C
% RH
% of full load at nominal input
GENERAL SPECIFICATIONS
Efficiency
Isolation Voltage (Input to Output)
Isolation Resistance (Input to Output)
Isolation Capacitance
Switching Frequency
Nominal input
Input to Output
500VDC
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Maximum Case Surface Temperature
Storage Temperature
Relative Humidity
Cooling
MTBF
PHYSICAL SPECIFICATIONS
Case Material
Base Material
Potting Material
Weight
Dimensions (L x W x H)
Nickel-coated copper
Non-conductive black plastic
Silicon rubber (UL94V-0)
1.06oz (30g)
2.0 x 1.0 x 0.4 inches (50.8 x 25.4 x 10.2 mm)
09/12/2013
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 2 of 4
Wall Industries, Inc.
Rev A
DCMUA15 SERIES
15 Watts DC/DC Power Converters

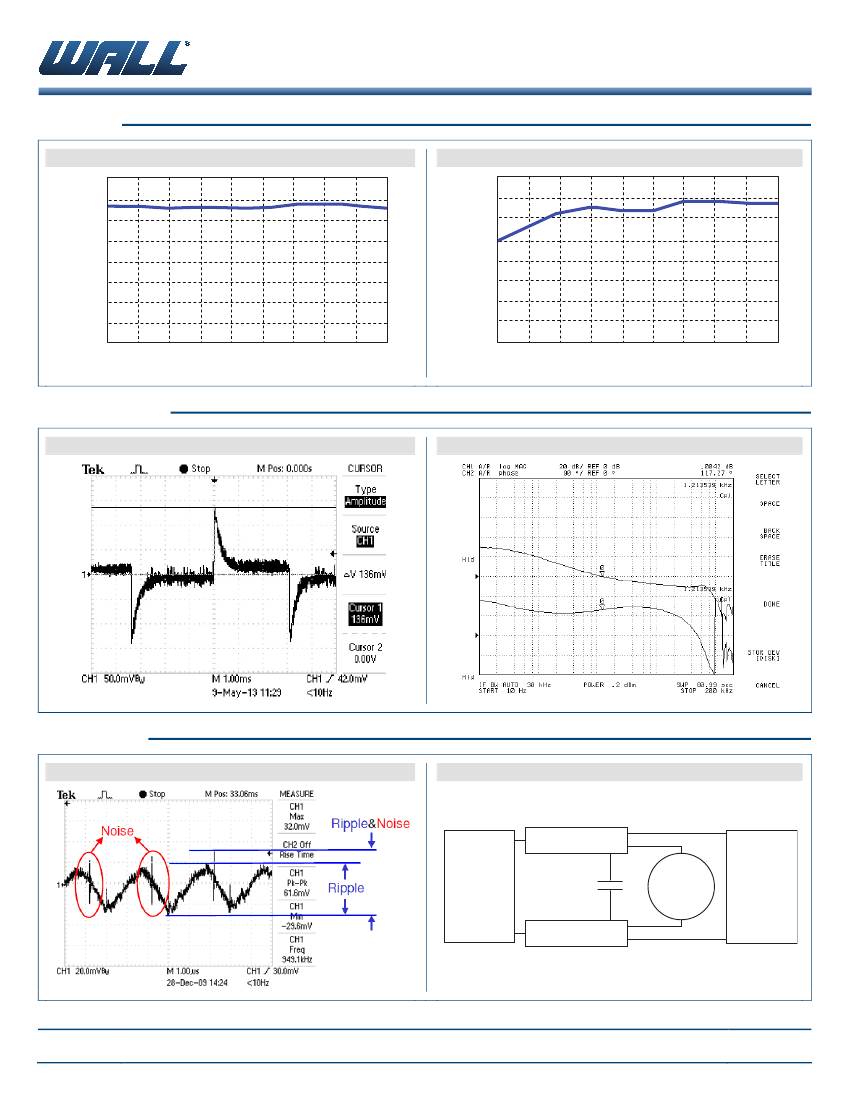

EFFICIENCY
DCMUA48S5-15 Efficiency vs Input Voltage
90
85
80
Efficiency (%)
DCMUA48S5-15 Efficiency vs Output Current
90
85
80
Efficiency (%)
75
70
65
60
55
50
36
40
44
48
52
56
60
Input Voltage (VDC)
64
68
75
75
70
65
60
55
50
0.3
0.6
0.9
1.2
1.5
1.8
2.1
Output Current (A)
2.4
2.7
3.0
CHARACTERISTICS
DCMUA48S5-15 Transient Response at 50%~100% Max Load
DCMUA48S5-15 Loop Gain & Phase at Vin=48VDC, Full Load
RIPPLE & NOISE
Ripple & Noise (0-20MHz BW)
Output Ripple & Noise Measurement Test Circuit
Copper Strip
DC/DC
Converter
0.47µF
Oscilloscope
Load
Copper Strip
09/12/2013
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 3 of 4
Wall Industries, Inc.
Rev A
DCMUA15 SERIES
15 Watts DC/DC Power Converters
MECHANICAL DRAWING
Unit: inches (mm)
2.0 (50.8)
3
0.4 (10.16) 0.4 (10.16)
0.2
0.3
0.4 (10.16) (5.08) (7.62)
1
Bottom View
2
4
Pin
1
2
3
4
5
PIN ASSIGNMENT
Single
Dual
+Vin
+Vin
-Vin
-Vin
+Vout
+Vout
No Pin
Common
-Vout
-Vout
1.0 (25.4)
5
0.6 (15.2)
0.8 (20.32)
Ø0.04 (Ø1.0)
NOTES
1. Tolerance: ±0.02 (±0.5)
2. Case Material: nickel-coated copper
3. Base Material: non-conductive black plastic
4. Potting Material: silicon rubber (UL94V-0)
5. Weight: 1.06oz (30g)
6. All dimensions are for reference only
0.2
0.4 (10.16) (5.08)
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development engineers will
provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008 certification is just one
example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working closely with its
customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to provide ongoing
support for your project above and beyond the design and production phases. Give us a call today to discuss your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)597-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
37 Industrial Drive
Exeter, NH 03833
09/12/2013
Wall Industries, Inc. • 37 Industrial Drive, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797
website: www.wallindustries.com • e-mail: sales@wallindustries.com
Page 4 of 4
