B3B-EH-TS

Description
Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
CategoryThe connector    The connector
File Size141KB,6 Pages
ManufacturerJST
Download Datasheet Parametric Compare View All

B3B-EH-TS Overview

Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,

B3B-EH-TS Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerJST
Reach Compliance Codeunknown
ECCN codeEAR99
Other featuresPOLARIZED
Connector typeBOARD CONNECTOR
Contact to complete cooperationTIN OVER COPPER
Contact completed and terminatedTin/Lead (Sn/Pb)
Contact point genderMALE
Contact materialBRASS
DIN complianceNO
Filter functionNO
IEC complianceNO
JESD-609 codee0
MIL complianceNO
Plug informationMULTIPLE MATING PARTS AVAILABLE
Mixed contactsNO
Installation methodSTRAIGHT
Installation typeBOARD
Number of rows loaded1
OptionsGENERAL PURPOSE
Terminal pitch2.5 mm
Termination typeSOLDER
Total number of contacts3
UL Flammability Code94V-0

B3B-EH-TS Preview

Crimp
EH
CONNECTOR

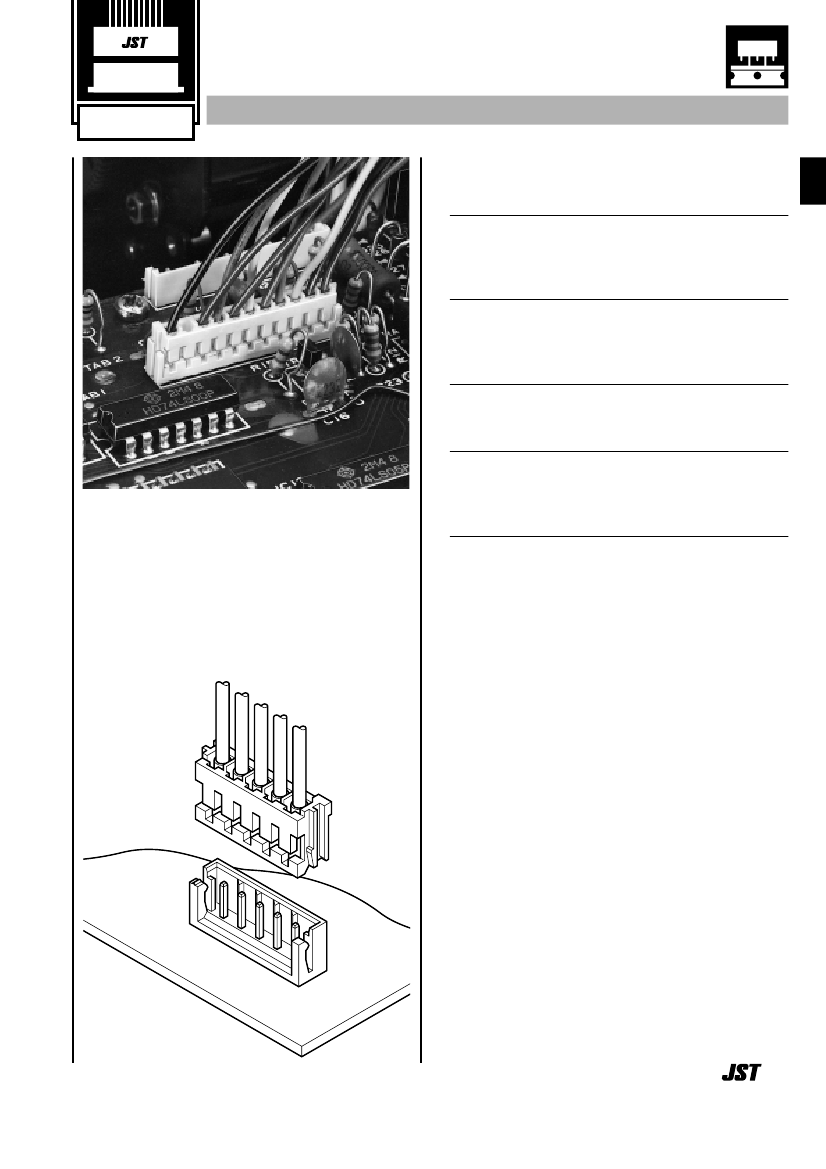

Disconnectable Crimp style connectors
• Compact and slim
3.8mm (.150") wide.
Radial Tape
2.5mm
(.098") pitch
Features ––––––––––––––––––––––––
This connector is designed to be compact and unusually thin.
It measures only 8.1mm (.319") high after mounting and is just
• Highly reliable contact
The contact has long dimples near the center that ensure
continuity of low voltage and low current circuits at all times,
even under conditions of vibration and abusive prying.
• Polarizing guides
The header and housing have guides to prevent improper
mating.
• Whisker prevention
The contact material is treated with a reflow process, and the
square post is copper-undercoated and tin/lead-plated for
whisker prevention.
This, the thinnest, 2.5mm (.098") pitch
connector, is 8.1mm (.319") in height after
mounting and 3.8mm (.150") in width. It is
designed to meet the demand for the high-
density connection of internal wires to
printed circuit boards. It is compact, highly
reliable and low in cost.
• Easy and effective crimping
Although the contact is compact, it has a long wire strip length,
2.6±0.4mm (.102"±.016"). This long length is very useful for
automatic crimping and when crimping shielded wires.
Specifications –––––––––––––––––––
JST
2
3
4
5
B
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 800V AC/minute
• Applicable wire: AWG #32 to #22
• Applicable PC board thickness: 0.8 to 1.6mm(.031" to .063")
* Contact JST for details.
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R75089
51
EH
CONNECTOR
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Model No.
5.7(.224)
2.85(.112)
2.05(.081)
1.1(.039)
2.0(.079)
mm
2
0.05 to 0.3
0.032 to 0.08
Applicable wire
Q'ty /
AWG # Insulation O.D. mm(in.) reel
30 to 22
32 to 28
1.0 to 1.9(.039 to .075)
0.5 to 1.1(.020 to .043)
10,000
SEH-001T-P0.6
SEH-003T-P0.6L
Material and Finish
Phosphor bronze, tin-plated
1.6(.063)
Note: 1. Contact JST for gold-plated contacts.
¨
2. SEH-003T-P0.6L is not TUV approved.
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Cir-
cuits
2
B
A
Model No.
EHR- 2
EHR- 3
EHR- 4
EHR- 5
EHR- 6
EHR- 7
EHR- 8
EHR- 9
EHR-10
EHR-11
EHR-12
EHR-13
EHR-14
EHR-15
Dimensions mm(in.)
A
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .866)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
B
7.0( .276)
9.5( .374)
12.0( .472)
14.5( .571)
17.0( .669)
19.5( .768)
22.0( .866)
24.5( .965)
27.0(1.063)
29.5(1.161)
32.0(1.260)
34.5(1.358)
37.0(1.457)
39.5(1.555)
Q'ty /
bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
0.6
(.024)
2.25
(.089) 2.5(.098)
3
3.8(.150)
4
5
6
7
1
2
3
6
7
6.5(.256)
JST
8
9
10
Circuit No.1
0.7
(.028)
11
12
13
14
15
Material
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
EHR-2-o o-
(blank)…natural (white)
K…black R…red TR…tomato red E…blue Y…yellow
L…lemon yellow M…green O…orange N…brown PL…purple
PK…pink H…gray LE…light blue FY…vivid yellow
52
EH
CONNECTOR

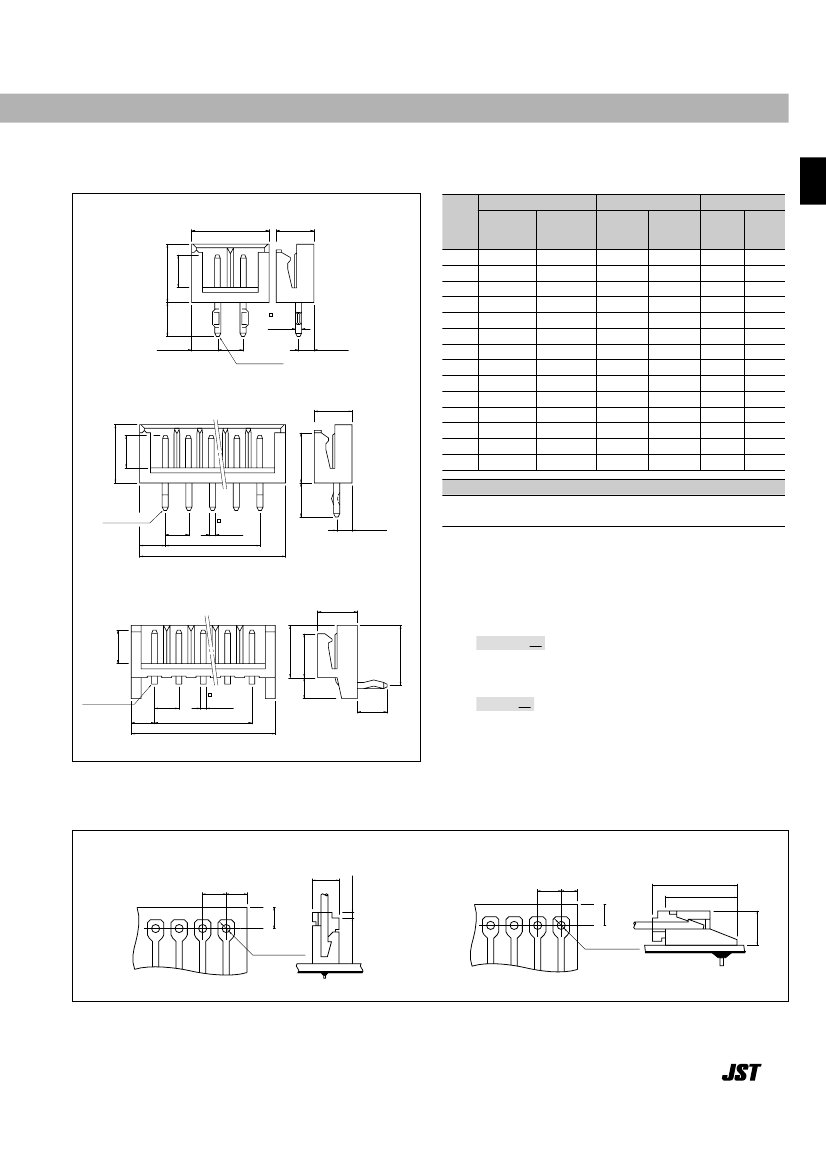

Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
The shrouded headers are interchangeable with those of the HR crimp style and insulation displacement connectors.
Top entry type
(2 circuits)
6.0(.236)
3.3(.130)
Model No.
B
3.8(.150)
Dimensions mm.(in)
A
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .866)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
Q'ty / box
Top entry
type
1,000
1,000
1,000
1,000
1,000
1,000
500
500
500
500
500
250
250
250
Cir-
cuits
2
3
4
5
Top entry
type
B 2B-EH-A
B 3B-EH-A
B 4B-EH-A
B 5B-EH-A
B 6B-EH-A
B 7B-EH-A
B 8B-EH-A
B 9B-EH-A
B10B-EH-A
B11B-EH-A
B12B-EH-A
B13B-EH-A
B14B-EH-A
B15B-EH-A
Side entry
type
S 2B-EH
S 3B-EH
S 4B-EH
S 5B-EH
S 6B-EH
S 7B-EH
S 8B-EH
S 9B-EH
S10B-EH
S11B-EH
S12B-EH
S13B-EH
S14B-EH
S15B-EH
B
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .886)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
37.5(1.476)
40.0(1.575)
Side entry
type
1,000
1,000
1,000
1,000
500
500
500
500
500
250
250
250
250
250
3.2(.126)
0.64
(.025)
A
Circuit No.1
1.6(.063)
6
7
8
9
2.5(.098)
(3 to 15 circuits)
3.8(.150)
10
11
12
6.0(.236)
3.3(.130)
13
5.1(.201)
14
15
3.2(.126)
Material and Finish
Post: Brass, copper-undercoated, tin/lead plated
Wafer: Nylon 66, UL94V-0, natural (white)
Circuit No.1
2.5
2.5 (.098)
(.098)
0.64
(.025)
A
B
1.6(.063)
Note:
1. Also available and identified as model BxxB-EH is a top entry type having a
post extension length of 4.0mm(.157")
¨
2. Top entry type headers are not TUV approved.
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
<Top entry type>
6.7(.264)
Side entry type
4.2(.165)
4.0(.157)
6.0(.236)
2.2
(.087) 5.2(.205)
ex.
B2B-EH-A-o o-
(blank)…natural (white)
K…black R…red E…blue Y…yellow M…green
S2B-EH-o o-
(blank)…natural (white)
K…black R…red TR…tomato red E…blue Y…yellow
L…lemon yellow M…green O…orange N…brown P…purple
PK…pink H…gray LE…light blue FY…vivid yellow
Circuit No.1
2.5
(.098)
2.5
(.098)
A
B
0.64
(.025)
<Side entry type>
3.2
(.126)
ex.
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
Top entry type
0.6(.024)
2.5±0.05
2.5
(.098±.002) (.098)
min.
2.2
(.087)
min.
3.8
(.150)
Side entry type
2.5±0.05
(.098±.002)
1.9
(.074)
min.
6.7
(.264)
min.
10.3(.406)
8.2(.323)
4.2
(.165)
7.5(.295)
0.1
0.9
+ 0
(.035
+.004
)dia.
0
0.1
0.9
+ 0
(.035
+.004
)dia.
0
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material such as FR-4 are used, the hole dimensions
should be larger. The dimensions above should serve as a guideline. Contact JST for details.
53
EH
CONNECTOR
Shrouded header on radial-tape –––––––––––––––––––––––––––––––––––––––––––––
<Taping specifications conform to EIAJ-RC-1008B and JIS C0805.>
•The shrouded headers are interchangeable with those of the HR crimp style and insulation displacement connectors .
¨
•Shrouded
headers on radial-tape are not TUV approved.
TS type
(2 circuits)
7.5(.295)
2.5(.098)
5.4(.213)
[1.0(.039)]
6.5
1.5(.059) (.255)
4.4
(.173)
2.2(.087)
Cir-
cuits
2
3
4
5
6
7
Model No.
B2B-EH-TS
B3B-EH-TS
B4B-EH-TS
B5B-EH-TS
B6B-EH-TS
B7B-EH-TS
B8B-EH-TS
Dimensions mm(in.)
A
-
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
B
-
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
Q'ty /
box
1,400
1,400
700
700
700
700
700
0.64(.025) dia.
8
Material and Finish
Pin: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
B2B-EH-TS-o o-
(blank)…natural (white)
K…black R…red E…blue Y…yellow M…green N…brown
(3 to 8 circuits)
2.5(.098)
2.5(.098)
B
A
0.64(.025) dia.
[1.0(.039)]
1.5(.059)
2.8(.110) 6.5(.256)
5.6(.220)
4.4
(.173)
2.2(.087)
0.64(.025) dia.
TV4 type
2.5(.098)
2.5(.098)
B
A
0.64(.025)
2.8(.110) 6.5(.256)
5.6(.220)
4.4
(.173)
2.2(.087)
Cir-
cuits
3
4
5
6
7
Model No.
B3B-EH-TV4
B4B-EH-TV4
B5B-EH-TV4
B6B-EH-TV4
B7B-EH-TV4
B8B-EH-TV4
Dimensions mm(in.)
A
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
B
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
Q'ty /
box
1,400
700
700
700
700
700
[0.7(.028) dia.]
[0.7(.028) dia.]
8
Material and Finish
Post: Brass, copper-undercoated, tin/lead-plated
Wafer: Nylon 66, UL94V-0, natural (white)
54
EH
CONNECTOR

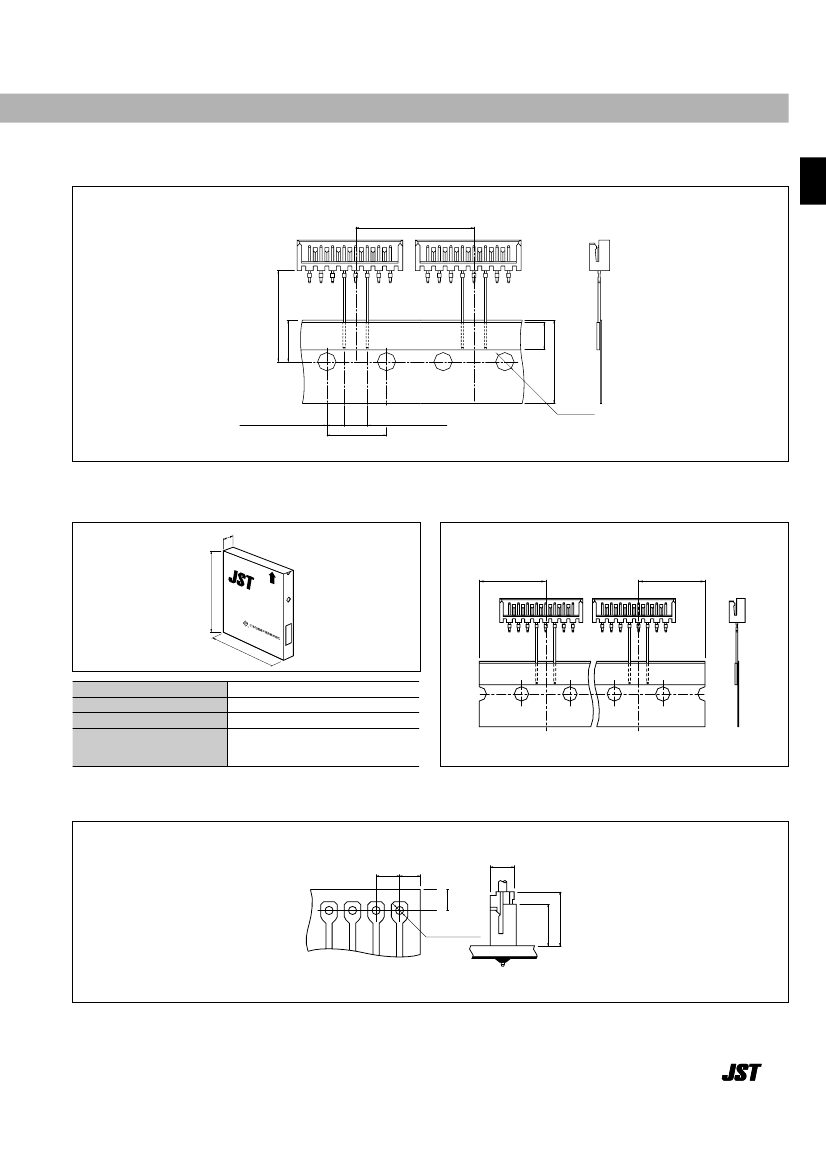

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
2 and 3 circuits: 12.7(.500)
4 to 8 circuits: 25.4(1.000)
20.0(.787)
9.0(.354)
6.0
(.236)
18.0(.709)
2circuits: 2.5(.098)
3 to 8 circuits: 5.0(.197)
12.7(.500)
4.0
(.157)dia.
2circuits: 5.1(.201)
3 to 8 circuits: 3.85(.152)
Note: Conforms to JIS C0825.
Packaging specifications –––––––––––––––––––––––––––––––––––––––––––––––––––
D
Distance between the end of the tape and the first connector's center
line (either end)
Tail tape
H
TERMIN
ALS &
CONN
ECTOR
S
Lead tape
R
W
Package type
Distance between folds
Box size
Distance between the end of the
tape and the first connector´s
center line (either end)
Flat pack (zigzag folded)
24 indexing holes per fold (304.8mm/12")
(316x45x330mm)12.4"(W)x1.8"(D) x13.0"(H)
19.05mm(.750")
PC board layout
(viewed from soldering side)
and Assembly layout –––––––––––––––––––
4.4
(.173)
2.5±0.05
2.5
(.098±.002) (.098)
min.
2.2
(.087)
min.
0.1
0.9
+ 0
.004
(.035
+0
)dia.
Note:
1. Tolerances are non-cumulative: ±0.05mm(±.002" ) for all centers.
2. Hole dimension differ according to the kind of PC board and piercing method. If PC boards made of hard material such as FR-4 are used, the hole dimensions
should be larger. The dimensions above should serve as a guideline. Contact JST for details.
6.5(.256)
8.6(.339)
55

B3B-EH-TS Related Products

B3B-EH-TS B2B-EH-TS B6B-EH-TS
Description Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal,
Is it lead-free? Contains lead Contains lead Contains lead
Is it Rohs certified? incompatible incompatible incompatible
Maker JST JST JST
Reach Compliance Code unknown unknown unknown
ECCN code EAR99 EAR99 EAR99
Other features POLARIZED POLARIZED POLARIZED
Connector type BOARD CONNECTOR BOARD CONNECTOR BOARD CONNECTOR
Contact to complete cooperation TIN OVER COPPER TIN OVER COPPER TIN OVER COPPER
Contact completed and terminated Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb) TIN LEAD OVER COPPER
Contact point gender MALE MALE MALE
Contact material BRASS BRASS BRASS
DIN compliance NO NO NO
Filter function NO NO NO
IEC compliance NO NO NO
JESD-609 code e0 e0 e0
MIL compliance NO NO NO
Plug information MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE MULTIPLE MATING PARTS AVAILABLE
Mixed contacts NO NO NO
Installation method STRAIGHT STRAIGHT STRAIGHT
Installation type BOARD BOARD BOARD
Number of rows loaded 1 1 1
Options GENERAL PURPOSE GENERAL PURPOSE GENERAL PURPOSE
Terminal pitch 2.5 mm 2.5 mm 2.5 mm
Termination type SOLDER SOLDER SOLDER
Total number of contacts 3 2 6
UL Flammability Code 94V-0 94V-0 94V-0
C program for single chip microcomputer to generate positive and negative square wave signals
The chip used is AT89S52. The initial idea is 1: output 1-2MHz square wave signal through one of the output ports P1.1. 2: timer 1 is used as a timer, set the half cycle of the square wave signal to g...
q254947131 Embedded System
Share some information about multi-language fonts.
A few days ago, I saw someone discussing the issue of minority language fonts on the forum. I found that many TXs have encountered similar problems - some hired artists to make fonts, read or converte...
小杜鹃 Analog electronics
[Nucleo-L432 review] + STM32Cube, Coremark performance test
[size=3]I. Brief introduction of STM32Cube and Coremark[/size][size=3] [/size] 1. STM32Cube is a comprehensive software platform that includes every series of ST products. The platform includes STM32C...
dianhang stm32/stm8
Show the process of WEBENCH design + Butterworth low-pass filter
1. Select lowpass2. Set the cutoff frequency [img]https://12.eewimg.cn/bbs/data/attachment/forum/201408/17/141719u14424vsbkqs7qky.jpg.thumb.jpg[/img] 3. Select Butterworth filter4. Generate schemati...
nwx8899 Analogue and Mixed Signal
Please explain the principle of phase sensitive detection
I recently learned about synchronous detection and found a circuit (phase-sensitive detection) as shown in Figure 0. The simulation result is shown in Figure 2. I don't know how Figure 1 produced such...
wwwlizhencom Analog electronics
test...
...
mjj19680827 Embedded System

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 2830  1597  1388  1260  2146  57  33  28  26  44
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
