TECHNICAL DATASHEET
Rev. B
DCMUA SERIES
2:1 Wide Input Voltage Ranges
Single and Dual Outputs
2.0” x 1.0” x 0.4” Encapsulated Shielded Metal Package
5 Watt DC/DC Power Converters
FEATURES
Single and Dual Outputs
2:1 Input Voltage Ranges: 9-18VDC, 18-36VDC, and 36~75VDC
High Power Density
Fixed Switching Frequency: 300KHz
1500VDC I/O Isolation
High Efficiency up to 87%
Short Circuit, Over Voltage, Over Load, and Reverse Voltage
Protection
APPLICATIONS
Battery Powered Equipment
Telecommunication Applications
Distributed Power Systems
Industrial Applications
Process Control Equipment
Transportation Equipment
Military Applications
Shielded Metal Case with Insulated Base-plate
Industry Standard 2.0” x 1.0” x 0.4” DIP Package
Lead Free Design, RoHS Compliant
Extended Operating Temperature Range: -55°C to +95°C
Remote ON/OFF Control
Custom Designs Available
DESCRIPTION

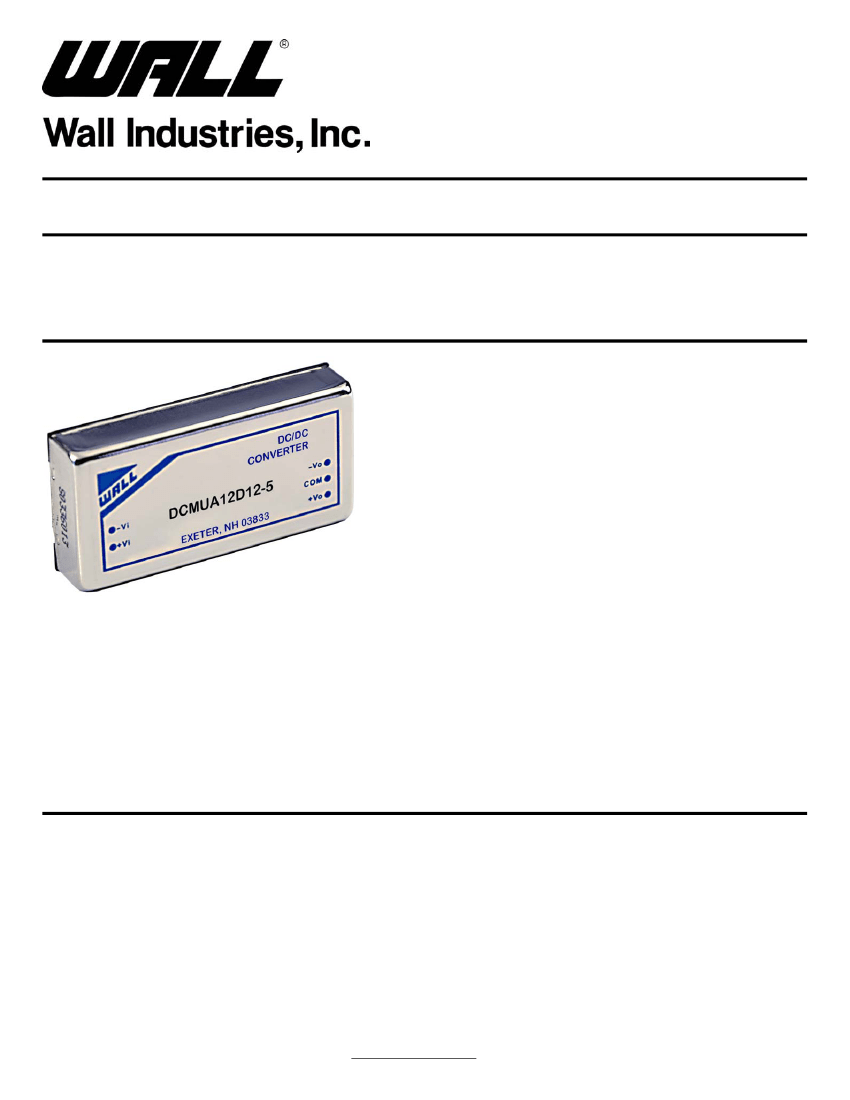

The DCMUA series of isolated DC/DC power converters provides 5 Watts of continuous output power in a 2.0” x 1.0” x
0.4” shielded metal case. This series consists of single and dual output models with 2:1 input voltage ranges of 9-18VDC,
18~36VDC, and 36~75VDC. Some features include high efficiency up to 87%, 1500VDC I/O isolation, and -55°C to
+95°C extended operating temperature range. The DCMUA series is RoHS compliant and has short circuit, over load, over
voltage, and reverse voltage protection. These converters are best suited for use in military applications, battery operated
equipment, measurement equipment, telecom, wireless networks, industry control systems, and anywhere where isolated,
tightly regulated voltages and compact size are required.
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
08/08/2012
Page 1 of 5
Rev. B
DCMUA Series
Single & Dual Outputs
2:1 Wide Input Voltage Ranges
5 Watt DC/DC Power Converters
TECHNICAL SPECIFICATIONS: DCMUA SERIES
All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.
We reserve the right to change specifications based on technological advances.
SPECIFICATION
INPUT SPECIFICATIONS
Input Voltage Range
TEST CONDITIONS
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
12VDC nominal input models
24VDC nominal input models
48VDC nominal input models
Nominal Vin and full load
Min
9
18
36
Nom
12
24
48
Max
18
36
75
25
50
100
Unit
VDC
Input Surge Voltage (100ms max)
Input Reflected Ripple Current
Input Current
Input Filter
Sourcing Current of Remote Control Pin
Idle Input Current (at Remote OFF State)
OUTPUT SPECIFICATIONS
Output Voltage
Voltage Accuracy
Output Current
Minimum Load
Maximum Capacitive Load
Start-up Time
Line Regulation
Load Regulation
Output Power
Ripple & Noise
Temperature Coefficient
Transient Response Overshoot
Transient Response Settling Time
PROTECTION
Over Voltage Protection
Short Circuit Protection
Over Load Protection
Reverse Voltage Protection
GENERAL SPECIFICATIONS
Efficiency
Isolation Voltage
Isolation Resistance
Isolation Capacitance
Switching Frequency
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature
Maximum Case Surface Temperature
Storage Temperature
Relative Humidity
Cooling
Soldering Temperature
MTBF
PHYSICAL SPECIFICATIONS
Case Material
Base Material
Potting Material
Weight
Dimensions (L x W x H)
VDC
mAp-p
Nominal Vin
Nominal Vin
250
See Table
Pi Type
0.2
3
See Table
mA
mA
Full load and nominal Vin
-1
+1
See Table
See Table
See Table
400
+0.5
+0.5
+0.5
+5
5
75
±0.02
±5
300
%
Nominal Vin and constant resistive load
LL to HL at full load
Single output models
25% load to full load
Balanced output
Dual output models
Unbalanced load 25% to full load
20MHz bandwidth
di/dt=0.8A/µs
50% load step change
3.3VDC output models
5VDC output models
12VDC output models
15VDC output models
-0.5
-0.5
-0.5
-5
0
ms
%
%
W
mVp-p
%/°C
% of Vo
µs
Zener Diode Clamp
% of full load at nominal input
3.9
6.2
VDC
15
18
continuous, automatic recovery
150
%
1.0
A
See Table
1500
1
580
300
-55
-55
5
+95
+105
+125
95
Free air convection
260°C/10sec. max.
1,960,000 hours
VDC
GΩ
pF
KHz
°C
°C
°C
% RH
Nominal input
Input to Output
Input to Output (500VDC)
24VDC nominal input
With derating (see derating curve)
Lead-free wave soldering
Nickel-coated copper
Non-conductive black plastic
Silicon rubber (UL94V-0)
1.06oz (30g)
2.0 x 1.0 x 0.4 inches (50.8 x 25.4 x 10.2 mm)
08/08/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 2 of 5
Rev. B
DCMUA Series
Single & Dual Outputs
2:1 Wide Input Voltage Ranges
5 Watt DC/DC Power Converters
MODEL SELECTION TABLE
SINGLE OUTPUT MODELS
Model Number
DCMUA12S3.3-5
DCMUA12S5-5
DCMUA12S12-5
DCMUA12S15-5
DCMUA24S3.3-5
DCMUA24S5-5
DCMUA24S12-5
DCMUA24S15-5
DCMUA48S3.3-5
DCMUA48S5-5
DCMUA48S12-5
DCMUA48S15-5
48 VDC
(36 – 75 VDC)
24 VDC
(18 – 36 VDC)
12 VDC
(9 – 18 VDC)
Input Voltage
Range
Output
Voltage
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
3.3 VDC
5 VDC
12 VDC
15 VDC
Output Current
Min Load
(1)
20mA
0mA
0mA
0mA
20mA
0mA
0mA
0mA
20mA
0mA
0mA
0mA
Full Load
1500mA
1000mA
416mA
333mA
1500mA
1000mA
416mA
333mA
1500mA
1000mA
416mA
333mA
Input Current
No Load
7mA
7mA
18mA
22mA
4mA
4mA
10mA
12mA
1.6mA
1.7mA
6mA
7mA
Full Load
558mA
549mA
514mA
514mA
275mA
268mA
254mA
251mA
142mA
134mA
129mA
127mA
Output
Power
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
5W
Efficiency
78%
80%
85%
85%
79%
82%
86%
87%
77%
82%
85%
86%
Maximum
(2)
Capacitive Load
4700µF
2200µF
330µF
220µF
3200µF
2200µF
330µF
220µF
3300µF
2200µF
220µF
147µF
DUAL OUTPUT MODELS
Model Number
DCMUA12D5-5
DCMUA12D12-5
DCMUA12D15-5
DCMUA24D5-5
DCMUA24D12-5
DCMUA24D15-5
DCMUA48D5-5
DCMUA48D12-5
DCMUA48D15-5
48 VDC
(36 – 75 VDC)
24 VDC
(18 – 36 VDC)
12 VDC
(9 – 18 VDC)
Input Voltage
Range
Output
Voltage
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
±5 VDC
±12 VDC
±15 VDC
Output Current
Min Load
(1)
57mA
0mA
0mA
57mA
0mA
0mA
57mA
0mA
0mA
Full Load
±500mA
±208mA
±167mA
±500mA
±208mA
±167mA
±500mA
±208mA
±167mA
Input Current
No Load
6mA
27mA
30mA
4mA
15mA
15mA
22mA
8mA
8mA
Full Load
535mA
520mA
516mA
264mA
254mA
252mA
134mA
127mA
127mA
Output
Power
5W
5W
5W
5W
5W
5W
5W
5W
5W
Efficiency
82%
84%
85%
83%
86%
87%
82%
86%
86%
Maximum
(2)
Capacitive Load
1100µF
100µF
69µF
990µF
122µF
147µF
1000µF
220µF
13µF
NOTES
1. Output current under this value will not damage these devices; however, they may not meet all listed specifications.
2. For each output.
08/08/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 3 of 5
Rev. B
DCMUA Series
Single & Dual Outputs
2:1 Wide Input Voltage Ranges
5 Watt DC/DC Power Converters

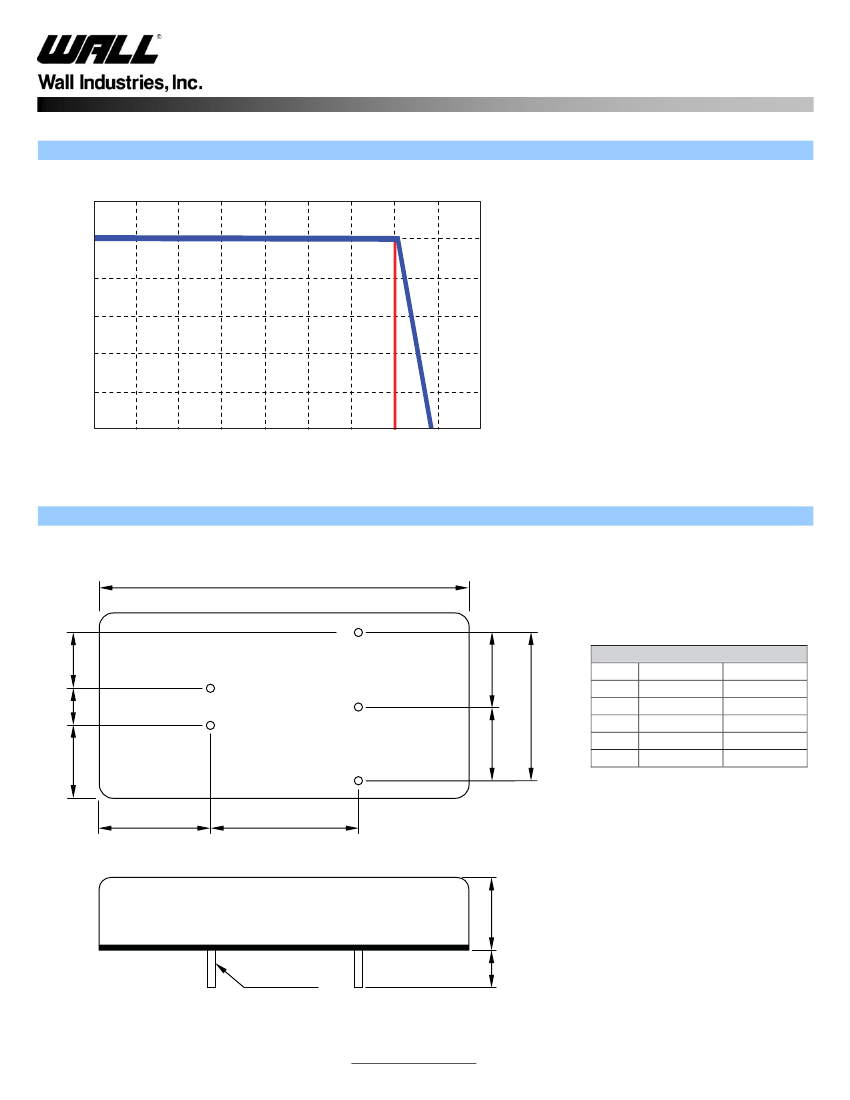

DERATING CURVE
Power Derating Curve
120
100
Output Power (%)
80
60
40
20
0
-55
100
-35
-15
5
25
45
65
85
105
125
Ambient Temperature (°C)
MECHANICAL DRAWING
Unit: inches (mm)
2.0 (50.8)
3
0.4 (10.16) 0.4 (10.16)
0.2
0.3
0.4 (10.16) (5.08) (7.62)
1
Bottom View
2
4
Pin
1
2
3
4
5
PIN ASSIGNMENT
Single
Dual
+Vin
+Vin
-Vin
-Vin
+Vout
+Vout
No Pin
Common
-Vout
-Vout
Tolerance: ±0.02 (±0.5)
1.0 (25.4)
5
0.6 (15.2)
0.8 (20.32)
0.2
0.4 (10.16) (5.08)
Ø0.04 (Ø1.0)
08/08/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 4 of 5
Rev. B
DCMUA Series
Single & Dual Outputs
2:1 Wide Input Voltage Ranges
5 Watt DC/DC Power Converters
COMPANY INFORMATION
Wall Industries, Inc. has created custom and modified units for over 50 years. Our in-house research and development
engineers will provide a solution that exceeds your performance requirements on-time and on budget. Our ISO9001-2008
certification is just one example of our commitment to producing a high quality, well-documented product for our customers.
Our past projects demonstrate our commitment to you, our customer. Wall Industries, Inc. has a reputation for working
closely with its customers to ensure each solution meets or exceeds form, fit and function requirements. We will continue to
provide ongoing support for your project above and beyond the design and production phases. Give us a call today to discuss
your future projects.
Contact
Wall Industries
for further information:
Phone:
Toll Free:
Fax:
E-mail:
Web:
Address:
(603)778-2300
(888)587-9255
(603)778-9797
sales@wallindustries.com
www.wallindustries.com
5 Watson Brook Rd.
Exeter, NH 03833
08/08/2012
Wall Industries, Inc. 5 Watson Brook Road Exeter, NH 03833
603-778-2300 www.wallindustries.com Fax 603-778-9797
Page 5 of 5
