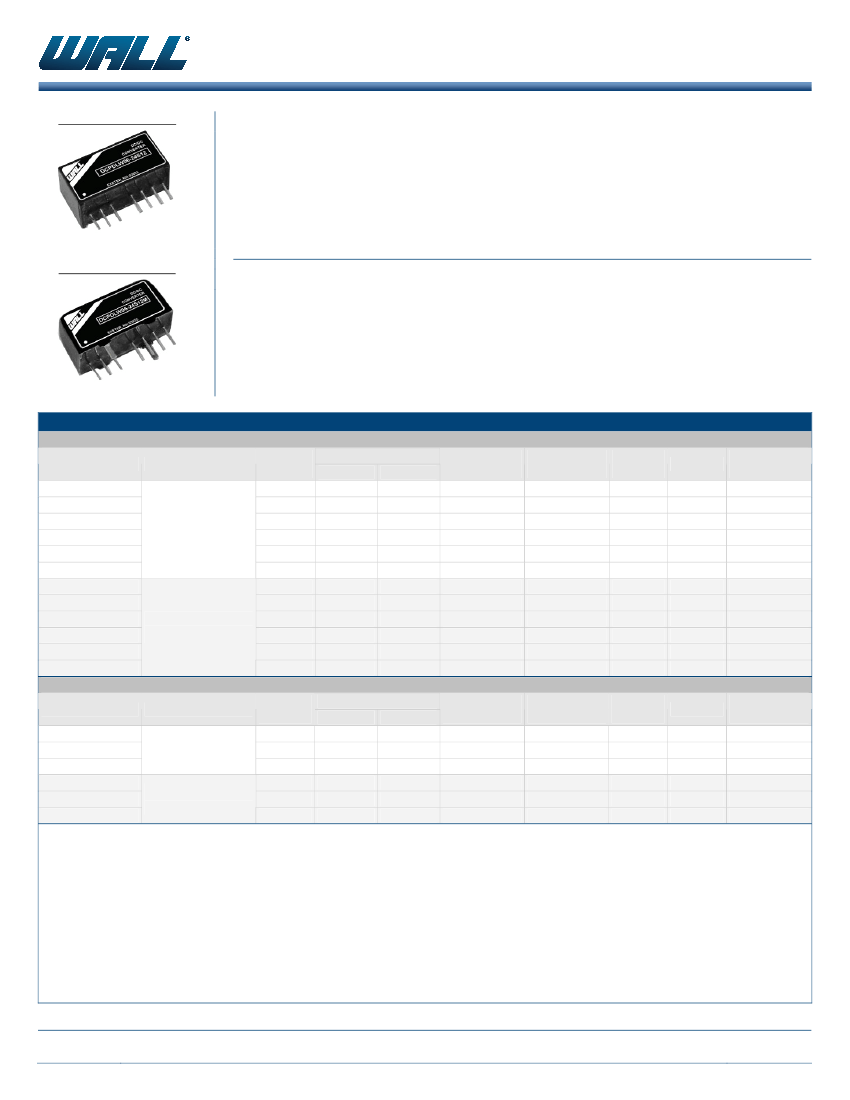

DCPDLW06 SERIES

6 Watt DC/DC Power Converters

Plastic Case (Standard)

FEATURES



0.86” x 0.44” x 0.36” SIP Package



High Efficiency up to 87%



Remote ON/OFF Control



4:1 Ultra Wide Input Voltage Ranges



6 Watts Maximum Output Power



1600VDC I/O Isolation (Optional 3000VDC Isolation)



Continuous Short Circuit Protection



Plastic (Standard) & Metal (Suffix “M”) Case Types Available



CE Mark Meets 2006/95/EC, 93/68/EEC, & 2004/108/EC



UL60950-1, EN60950-1, & IEC60950-1 Safety Approvals



Compliant to RoHS EU Directive 2011/65/EU

Size:

0.86 x 0.44 x 0.36 inches

Metal Case (Suffix “M”)



Fixed Switching Frequency

DESCRIPTION

The DCPDLW06 series of DC/DC power converters provides 6 watts of output power in a 0.86 x 0.44 x 0.36 inch

SIP package. This series has single and dual output models with 4:1 ultra wide input voltage ranges of 9-36VDC

and 18-75VDC. Some features include high efficiency up to 87%, 1600VDC (standard) or 3000VDC (suffix “H”)

I/O isolation, remote ON/OFF control, and continuous short circuit protection. Both plastic (standard) and

metal (suffix “M”) case types are available for this series. All models are RoHS compliant and have UL60950-1,

EN60950-1, and IEC60950-1 safety approvals. This series is best suited for use in industry control systems,

wireless networks, measurement equipment, telecom/datacom, and semiconductor equipment.

Size:

0.86 x 0.44 x 0.36 inches

MODEL SELECTION TABLE

SINGLE OUTPUT MODELS

Model Number

DCPDLW06-24S3.3

DCPDLW06-24S05

DCPDLW06-24S09

DCPDLW06-24S12

DCPDLW06-24S15

DCPDLW06-24S24

DCPDLW06-48S3.3

DCPDLW06-48S05

DCPDLW06-48S09

DCPDLW06-48S12

DCPDLW06-48S15

DCPDLW06-48S24

Input Voltage Range

Output

Voltage

3.3 VDC

5 VDC

9 VDC

12 VDC

15 VDC

24 VDC

3.3 VDC

5 VDC

9 VDC

12 VDC

15 VDC

24 VDC

Output

Voltage

±5 VDC

±12 VDC

±15 VDC

±5 VDC

±12 VDC

±15 VDC

Output Current

Min Load Max Load

0mA

1500mA

0mA

1200mA

0mA

666mA

0mA

500mA

0mA

400mA

0mA

250mA

0mA

1500mA

0mA

1200mA

0mA

666mA

0mA

500mA

0mA

400mA

0mA

250mA

Output Current

Min Load Max Load

0mA

±600mA

0mA

±250mA

0mA

±200mA

0mA

±600mA

0mA

±250mA

0mA

±200mA

Output

Ripple & Noise

50mVp-p

Output

Ripple & Noise

50mVp-p

No Load

(2)

Input Current

4mA

No Load

Input Current

6mA

8mA

6mA

8mA

Output

Power

5W

6W

5W

6W

Output

Power

6W

Efficiency

81%

84%

86%

87%

88%

87%

81%

84%

85%

87%

Maximum

Capacitive Load

4700µF

2200μF

1400μF

1100μF

1000μF

470μF

4700µF

2200μF

1400μF

1100μF

1000μF

470μF

Maximum

Capacitive Load

±1400μF

±660μF

±470μF

±1400μF

±660μF

±470μF

24 VDC

(9 - 36 VDC)

48 VDC

(18 - 75 VDC)

DUAL OUTPUT MODELS

Model Number

DCPDLW06-24D05

DCPDLW06-24D12

DCPDLW06-24D15

DCPDLW06-48D05

DCPDLW06-48D12

DCPDLW06-48D15

Input Voltage Range

24 VDC

(9 - 36 VDC)

48 VDC

(18 - 75 VDC)

Efficiency

84%

87%

84%

87%

NOTES

1. The DCPDLW06 series standard models can only meet EMI Class A and Class B with external components added. Please contact factory for more

information.

2. An external input filter capacitor is required if the module has to meet EN61000-4-4, EN61000-4-5. We recommend connecting an aluminum electrolytic

capacitor (Nippon chemi-con KY series, 220μF/100V) in parallel.

3. Two case types are available for this series. Plastic case is standard; for the metal case add the suffix “M” to the model number. See the model number

setup on page 7 for ordering details.

4. 1600VDC I/O isolation is standard; for 3000VDC I/O isolation add the suffix “H” to the model number (Ex: DCPDLW06-24S12H). 3000VDC I/O isolation is

only available for plastic case models.

CAUTION:

This power module is not internally fused. An input line fuse must always be used.

07/10/2013

Wall Industries, Inc. • 5 Watson Brook Road, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

Page 1 of 6

Wall Industries, Inc.

Rev A

DCPDLW06 SERIES

6 Watt DC/DC Power Converters

SPECIFICATIONS: DCPDLW06 SERIES

All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

SPECIFICATION

INPUT SPECIFICATIONS

Input Voltage Range

Input Surge Voltage (1 sec)

Input Current

Input Reflected Ripple Current (See Note 1)

Input Filter

TEST CONDITIONS

24VDC nominal input models

48VDC nominal input models

24VDC nominal input models

48VDC nominal input models

No Load

24VDC nominal input models

48VDC nominal input models

Min

9

18

Typ

24

48

Max

Unit

VDC

36

75

50

100

See Table

20

40

Capacitor type

See Table

+1.0

+0.2

+0.5

+1.0

+5.0

See Table

50

75

100

250

30

+0.02

mAp-p

OUTPUT SPECIFICATIONS

Output Voltage

Voltage Accuracy

Line Regulation

Load Regulation

Cross Regulation (Dual Output Models)

Output Power

Output Current

Minimum Load

Maximum Capacitive Load

Full load an nominal Vin

Low line to high line at full load

No load to full load

Asymmetrical load 25% / 100% FL

Single Output Models

Dual Output Models

-1.0

-0.2

-0.5

-1.0

-5.0

%

0

Minimum input and constant resistive load

3.3V output model

5V & 9V output models

20MHz Bandwidth

12V & 15V output models

24V output model

25% load step change

Nominal input and constant resistive load

-0.02

Referenced to -INPUT pin and CTRL pin applied current

(See Application Circuits on page 4)

Referenced to -INPUT pin and CTRL pin applied current

(See Application Circuits on page 4)

%

Ripple & Noise

mVp-p

Transient Response Recovery Time

Power Up

Start-Up Time

Remote On/Off

Temperature Coefficient

μs

ms

%/°C

REMOTE ON/OFF

Positive Logic

Negative Logic

Remote Off Input Current

DC/DC ON

DC/DC OFF

DC/DC ON

DC/DC OFF

2

Open or high impedance

3

4

mA

3

4

mA

Open or high impedance

2.5

mA

PROTECTION

Short Circuit Protection

Over Load Protection

% of rated Iout; hiccup mode

Nominal input voltage and full load

Standard models

Suffix “M” models

Suffix “H” models (only available with plastic case)

Suffix “M” models

500VDC

Standard models

Suffix “M” models

Suffix “H” models (only available with plastic case)

522

1600

3000

1000

1

Continuous, automatic recovery

180

%

See Table

580

638

GENERAL SPECIFICATIONS

Efficiency

Switching Frequency

Input to Output

Isolation Voltage (1 min)

Input to Case

Output to Case

Isolation Resistance

Isolation Capacitance

KHz

VDC

GΩ

50

pF

07/10/2013

Wall Industries, Inc. • 5 Watson Brook Road, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

Page 2 of 6

Wall Industries, Inc.

Rev A

DCPDLW06 SERIES

6 Watt DC/DC Power Converters

SPECIFICATIONS: DCPDLW06 SERIES

All specifications are based on 25°C, Nominal Input Voltage, and Maximum Output Current unless otherwise noted.

We reserve the right to change specifications based on technological advances.

SPECIFICATION

ENVIRONMENTAL SPECIFICATIONS

Operating Ambient Temperature

Storage Temperature

Relative Humidity

Thermal Shock

Vibration

Without derating

TEST CONDITIONS

Standard models

Suffix “M” models

Suffix “H” models

Min

-40

-55

5

Typ

Max

Unit

°C

% RH

MTBF

BELLCORE TR-NWT-000332. Case 1: 50% Stress, Ta = 40°C

Standard models

MIL-HDBK-217F, Ta=25°C, Full load

Suffix “M” models

(G/B controlled environment)

Suffix “H” models

Standard models

Suffix “M” models

Suffix “H” models

Standard models

Suffix “M” models

Suffix “H” models

Standard models

Suffix “M” models

Suffix “H” models

+71

+75

+71

+125

95

MIL-STD-810F

3,381,000 hours

840,800 hours

940,400 hours

840,800 hours

PHYSICAL SPECIFICATIONS

Weight

0.17oz (4.8g)

0.21oz (5.9g)

0.17oz (4.8g)

0.86x0.36x0.44 inch (21.8x9.1x11.2 mm)

Non-conductive black plastic

Copper

Non-conductive black plastic

none

Silicon (UL94-V0)

IEC60950-1, UL60950-1, EN60950-1

Class A, Class B

Air ±8KV

Contact ±6KV

20 V/m

±2KV

10 Vrms

Perf. Criteria A

Dimensions (L x W x H)

Case Material

Base Material

Potting Material

SAFETY & EMC CHARACTERISTICS

Safety Approvals

EMI (See Note 1)

ESD

Radiated Immunity

Fast Transient (See Note 2)

Surge (See Note 2)

Conducted Immunity

EN55022

EN61000-4-2

EN61000-4-3

EN61000-4-4

EN61000-4-5

EN61000-4-6

DERATING CURVES

DCPDLW06-48S05 Derating Curve

120

100

Output Power (%)

120

100

Output Power (%)

DCPDLW06-48S05M Derating Curve

80

60

40

Natural Convection

80

60

40

Natural Convection

20

0

-40

-20

0

20

40

60

71

20

0

75

80

100

120

-40

-20

0

20

40

60

80 90 100

120

Ambient Temperature (°C)

07/10/2013

Wall Industries, Inc. • 5 Watson Brook Road, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

Page 3 of 6

Wall Industries, Inc.

Rev A

DCPDLW06 SERIES

6 Watt DC/DC Power Converters

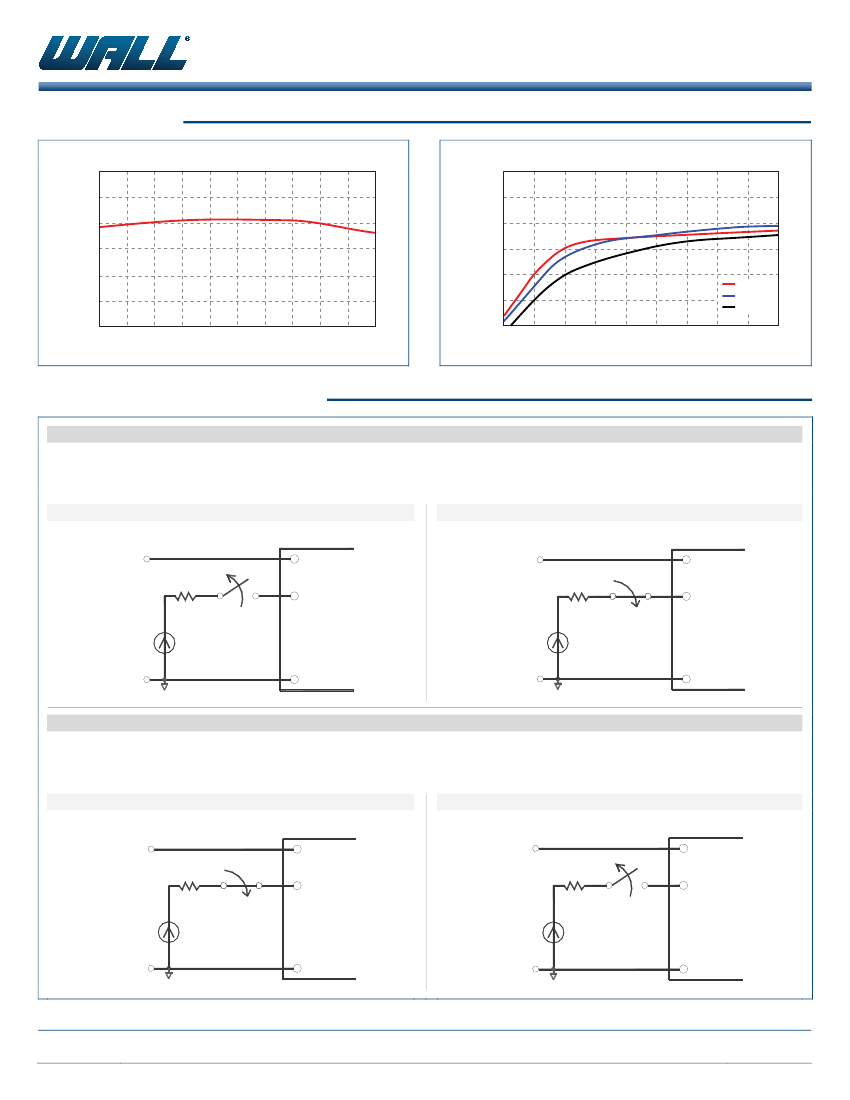

EFFICIENCY CURVES

DCPDLW06-48S05 Efficiency vs Input Voltage

90

85

Efficiency (%)

DCPDLW06-48S05 Efficiency vs Output Current

96

90

84

78

72

66

60

Vin=18V

Vin=48V

Vin=75V

80

75

70

65

60

18

24

30

36

42

48

54

60

66

72

75

Input Voltage (VDC)

10

20

30

40

50

60

70

80

90

100

% of Full Load

REMOTE ON/OFF APPLICATION CIRCUITS

Positive Logic

The positive logic structure turns the DC/DC module ON during a logic High on the CTRL pin and turns the DC/DC module OFF during a logic low

on the CTRL pin. The CTRL pin is an open collector/drain logic input signal (Von/off) that is referenced to GND. When not using the remote

ON/OFF feature please open circuit between the CTRL pin and input pin to turn the module ON.

DC/DC ON

DC/DC CONVERTER

+INPUT

1kΩ

CTRL

DC/DC OFF

DC/DC CONVERTER

+INPUT

1kΩ

CTRL

3mA Current

Source

-INPUT

3mA Current

Source

-INPUT

Negative Logic

The negative logic structure turns the DC/DC module OFF during a logic High on the CTRL pin and turns the DC/DC module ON during a logic

low on the CTRL pin. The CTRL pin is an open collector/drain logic input signal (Von/off) that is referenced to GND. When not using the remote

ON/OFF feature please open circuit between the CTRL pin and input pin to turn the module ON.

DC/DC ON

DC/DC CONVERTER

+INPUT

1kΩ

CTRL

DC/DC OFF

DC/DC CONVERTER

+INPUT

1kΩ

CTRL

3mA Current

Source

-INPUT

3mA Current

Source

-INPUT

07/10/2013

Wall Industries, Inc. • 5 Watson Brook Road, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

Page 4 of 6

Wall Industries, Inc.

Rev A

DCPDLW06 SERIES

6 Watt DC/DC Power Converters

MECHANICAL DRAWINGS

Plastic Case (Standard)

Unit: inches (mm)

0.86 (21.8)

PIN CONNECTIONS (Standard Models)

SINGLE

DUAL

1

-INPUT

2

+INPUT

3

CTRL

5

NC

6

+OUTPUT

7

-OUTPUT

COMMON

8

NC

-OUTPUT

PIN CONNECTIONS (Suffix “H” Models)

SINGLE

DUAL

1

-INPUT

2

+INPUT

3

CTRL

5

NO PIN

6

+OUTPUT

7

-OUTPUT

COMMON

8

NC

-OUTPUT

0.44 (11.2)

0.16

(4.1)

1

2

3

5

0.100 (2.54)

0.700 (17.78)

6

7

8

0.01 (0.25)

Rectangular Pin

0.02 (0.5)

FRONT VIEW

0.36 (9.1)

BOTTOM VIEW

0.13

(3.3)

NOTES

1. Tolerance: X.XX±0.02 (X.X±0.5)

X.XXX±0.01 (X.XX±0.25)

2. Pin Pitch Tolerance: ±0.01 (±0.25)

3. Pin Dimension Tolerance: ±0.004 (±0.1)

4. All dimensions are for reference only

0.08 (2.0)

0.02 (0.5)

Metal Case (Suffix “M”)

Unit: inches (mm)

0.02 (0.6)

0.44 (11.2)

0.02 (0.6)

FRONT VIEW

0.09

(2.5)

0.04 (1.0)

PIN NO. 9, 12

1

0.08 (2.0)

2

3

5

0.100 (2.54)

0.700 (17.78)

0.86 (21.8)

0.42 (10.6)

9

6

7

8

0.02 (0.6)

0.09

(2.5)

1

2

3

5

6

7

8

9

10

11

12

PIN CONNECTIONS

SINGLE

DUAL

-INPUT

+INPUT

CTRL

NC

+OUTPUT

-OUTPUT

COMMON

NC

-OUTPUT

CASE

STAND OFF

CASE

0.16 (4.1)

0.14

(3.5)

0.14

(3.5)

PIN NO. 10, 11

0.01 (0.25)

Rectangular Pin

10

11

12

0.02 (0.5)

07/10/2013

Wall Industries, Inc. • 5 Watson Brook Road, Exeter, NH 03833 • Tel: 603-778-2300 • Toll Free: 888-597-9255 • Fax 603-778-9797

website: www.wallindustries.com • e-mail: sales@wallindustries.com

0.38 (9.55)

0.36 (9.1)

BOTTOM VIEW

NOTES

1. Tolerance: X.XX±0.02 (X.X±0.5)

X.XXX±0.01 (X.XX±0.25)

2. Pin Pitch Tolerance: ±0.01 (±0.25)

3. Pin Dimension Tolerance: ±0.004 (±0.1)

4. All dimensions are for reference only

0.13 (3.3)

Page 5 of 6

DCPDLW06-48S12

DCPDLW06-48S12 Overview

Preview

Recommended Resources
