47725-2130 Overview

MX150 Male Connector

47725-2130 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerMolex
Reach Compliance Codecompli
Connector typeCOMBINATION LINE CONNECTOR

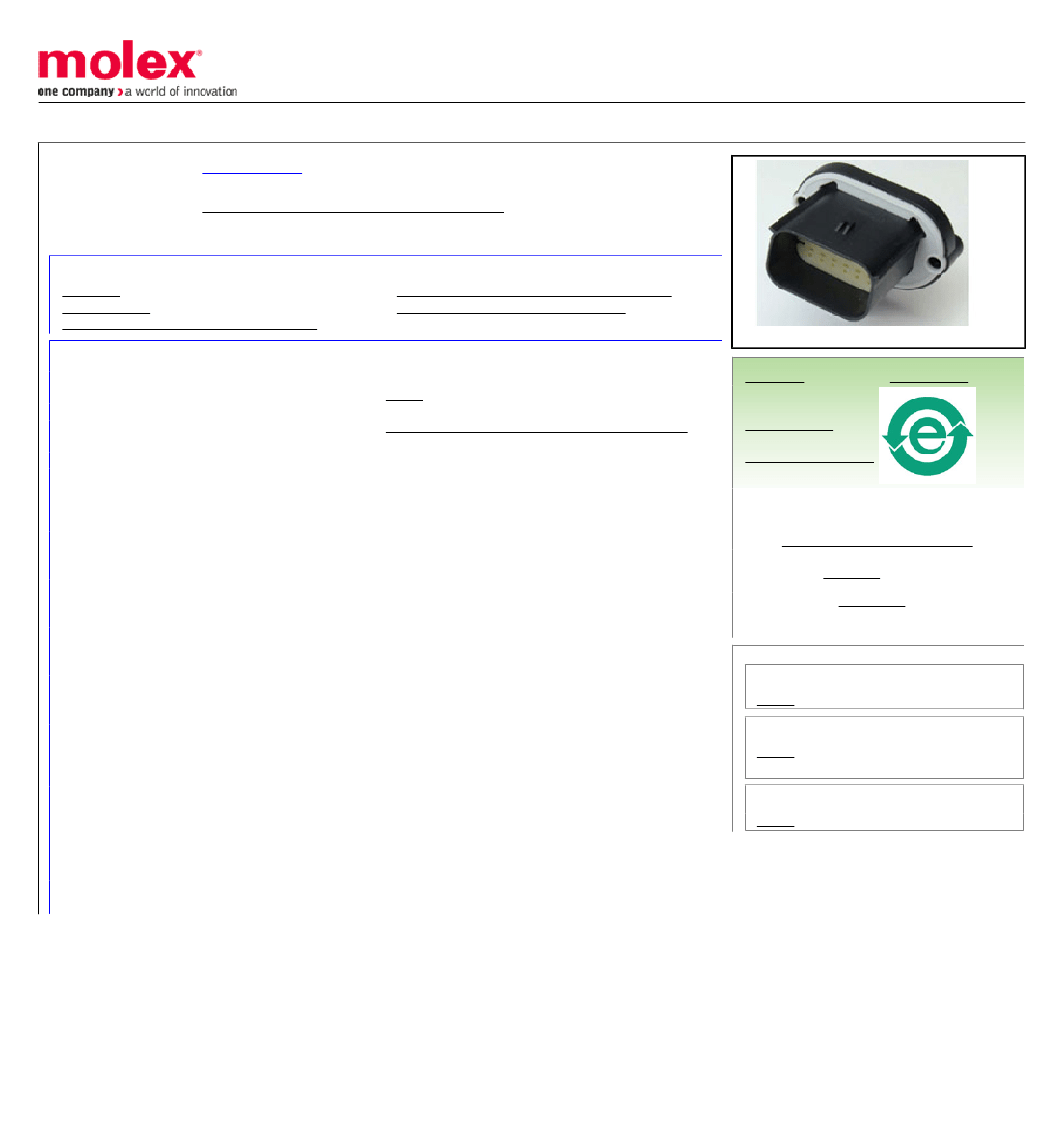

This document was generated on 10/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Overview:
Description:
47725-2130
Active
MX150™ Sealed and Unsealed Connector System
MX150™ Male Connector, Panel Mount, Dual Rows, 12 Circuits, Polarization C, Black
Housing and Gray Gasket
Documents:
3D Model
Drawing (PDF)
Product Specification PS-47725-000 (PDF)
Application Specification AS-47725-001 (PDF)
RoHS Certificate of Compliance (PDF)
Series
image - Reference only
General
Product Family
Series
Application
Overview
Product Name
UPC
Crimp Housings
47725
Power, Wire-to-Wire
MX150™ Sealed and Unsealed Connector System
MX150™
884982262942
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Contains SVHC: No
Low-Halogen Status
Low-Halogen
China RoHS
Physical
Circuits (maximum)
Circuits Detail
Color - Resin
Gender
Glow-Wire Compliant
Keying to Mating Part
Lock to Mating Part
Material - Resin
Net Weight
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Polarized to Mating Part
Stackable
Temperature Range - Operating
12
12
Black, Natural
Male
No
Yes
Yes
Modified Polystyrene Alloy
16.263/g
2
Bag
Yes
3.50mm
Yes
No
-40°C to +125°C
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Search Parts in this Series
47725Series
Mates With
33472 3.50mm Pitch MX150™ Sealed
Female Connector
Use With
33000 MX150™ Terminal
Electrical
Current - Maximum per Contact
22A
Material Info
Reference - Drawing Numbers
Application Specification
Product Specification
Sales Drawing
AS-47725-001
PS-47725-000
SD-47725-210
This document was generated on 10/03/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
