VFTX300-GDGA-10MHZ datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> oscillator> VFTX300-GDGA-10MHZ

Preview

VFTX300-GDGA-10MHZ: DescriptionClipped Sine Output Oscillator, 10MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, SMD, 4 PIN; CategoryPassive components oscillator; File Size189KB，3 Pages; ManufacturerCTS [CTS Corporation]; Environmental Compliance

Download Datasheet Parametric View All

VFTX300-GDGA-10MHZ Overview

Clipped Sine Output Oscillator, 10MHz Nom, ROHS COMPLIANT, HERMETIC SEALED, SMD, 4 PIN

VFTX300-GDGA-10MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	CTS [CTS Corporation]
Reach Compliance Code	unknown
Ageing	1 PPM/YEAR
Maximum control voltage	2.5 V
Minimum control voltage	0.5 V
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	5 ppm
frequency stability	2.5%
Manufacturer's serial number	VFTX300
Installation features	SURFACE MOUNT
Nominal operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
Oscillator type	CLIPPED SINE
Output impedance	10000 Ω
Output level	0.8 V
physical size	3.2mm x 2.5mm x 1.0mm
Maximum supply voltage	2.625 V
Minimum supply voltage	2.35 V
Nominal supply voltage	2.5 V
surface mount	YES

Preview

Download Datasheet

View All

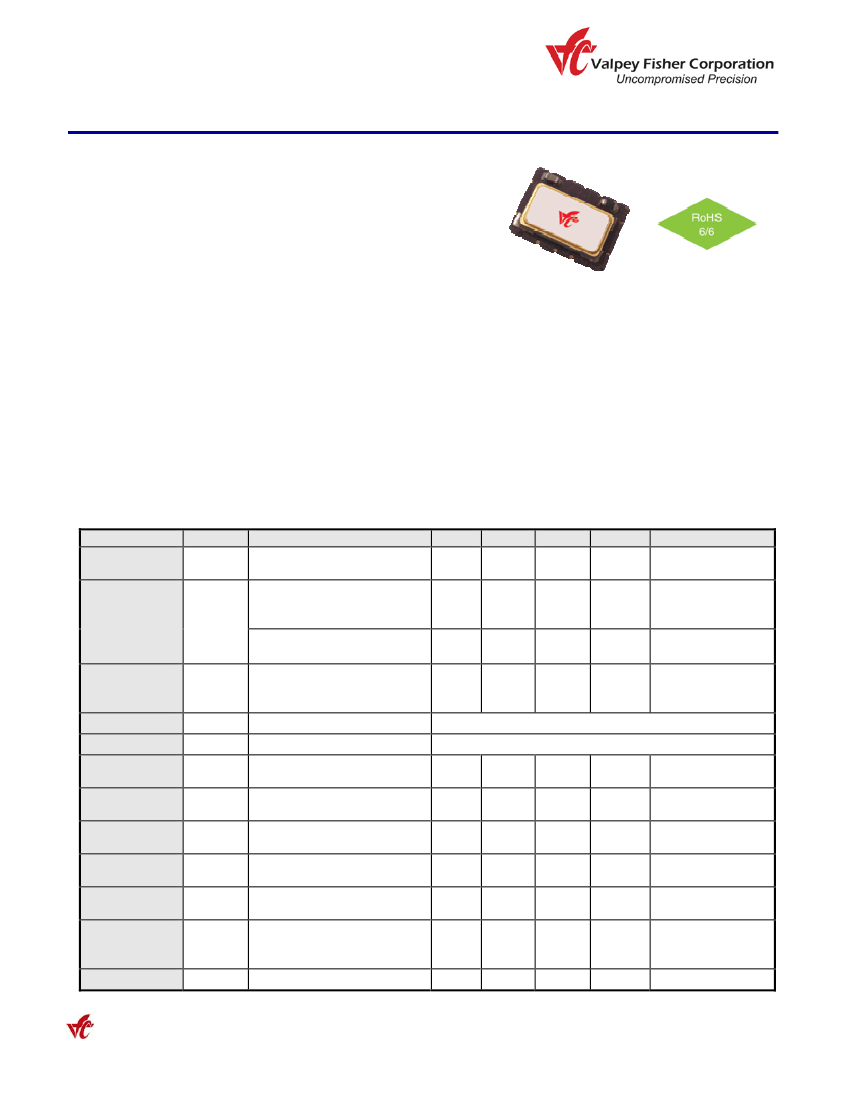

VFTX300

TCXO with Voltage Control Option

3.2x2.5mm Surface Mount,

Clipped Sine

Features



Frequency range of 10MHz to 40MHz

Very Low Phase Noise

Excellent Frequency Stability

Clipped Sine Wave Output

Low Aging, Vacuum sealed Crystal

Available as a VCXO

Applications



Optical Networking,

SONET/SDH

10 Gbit Ethernet

Frequency Translation

Electrical Specifications

Parameter

Frequency

Range

Frequency

Stability

Operating

Temperature

Range

Output

Load

Supply

Voltage

Supply

Current

Voltage

Control

Input

Impedance

Pullability

SSB Phase

Noise

Start up

@100 Hz

@ 1 KHz

@10 KHz

-115

-135

-148

2

Symbol

F

Vs. Operating

Temperature

Vs. Supply Voltage

Vs. Aging / Year

T

Clipped Sine

10KΩ//10pF

Vcc

Icc

Vc

0.5

500

1.5

2.85

2.35

3.0

2.5

3.15

2.625

2.0

2.5

V

mA

V

KΩ

ppm

dBc/Hz

10

ms

See “How to

Order”

Fo=13MHz

Order Code F

Order Code G

-40



0.2



1

+85

Condition

Min

10

Typ

Max

40

Unit

MHz

ppm

ppm/V

ppm

C

Order Code G

See “How to

Order”

See “How to

Order”

Note

∆F/F

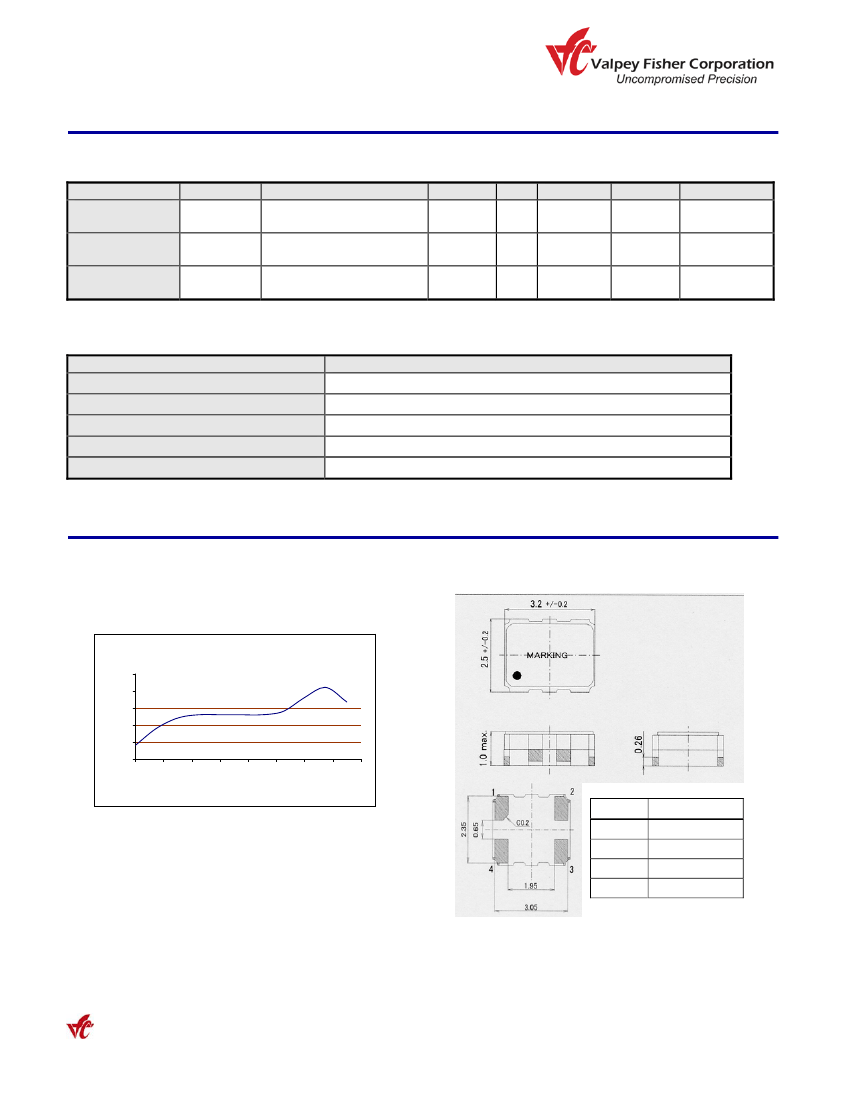

0.8Vp-p minimum
