TMA65 Series
TRUMPower
FEATURES
•
•
•
•
+5V to +48V Output Voltage Range
0.9 to 0.95 Power Factor
No Load Power Consumption < 500 mW
Comply with CEC, Energy Star, ERP& EISA Efficiency Level V
•
Class I with IEC320/C14 AC Inlet
40-65W Medical Grade Power Adapters
INPUT & OUTPUT SPECIFICATIONS
Input Voltage ......................... 90 to 264 VAC
Input Frequency .................... 47 to 63 Hz
Input Current ........................ 2.5A (rms) max. @ 90 VAC;
.......................................... 1.0A (rms) max. @ 264 VAC
No Load Power .................... <0.5W
Output Voltage & Current ..... See table
Output Voltage Regulation ... ±5% max.
Ripple and Noise ................. See table
Earth Leakage Current ........ <300µA @ 264 VAC
Short-Circuit Protection ........ Auto recovery
Overload Protection ............. Auto recovery
Overvoltage Protection ......... Latch & shutdown, AC recycle
GENERAL SPECIFICATIONS
Switching Frequency ........... 63 KHz
Efficiency ............................ 87% minimum at average load,
115 VAC/230 VAC input, except 5V
output model
Power Factor ...................... >0.95 @115 VAC, >0.90 @230 VAC,
at full load
Hold-up Time ..................... >16 ms typical at full load, 115 VAC
Inrush Current .................... 50A peak @ 115 VAC, 100A peak @
230 VAC, cold start @ 25°C
Withstand Voltage ......... ..... >5,656 VDC, input to output,
>2,121 VDC, input to ground
Operating Temperature ..... 0°C to +70°C ambient
Derating .............................. Derate from 100% at +51°C
linearly to 50% at +70°C
Storage Temperature ...... ... -20°C to +85°C
Operating Humidity ............ 20% to 90%
MTBF ................................... >183K hours at full load and 25°C
ambient temperature calculated
per MIL-HDBK-217F
STANDARDS & COMPLIANCES
EMC Standards .................... EN 60601-1-2, EN 55011 Class B,
FCC Part 18 Class B
Safety Standards .................. IEC/EN/UL 60601-1 3rd edition,
ANSI/AAMI ES 60601-1:2005,
CSA C22.2 No. 60601-1:08
Agency Approvals ................. UL, cUL, TUV, CB, CE (LVD)
Other Compliances .............. RoHS, CEC, Energy Star, ERP &
EISA efficiency level V
MODELS LIST
Product No.
TMA65-05
TMA65-12
TMA65-15
TMA65-18
TMA65-24
TMA65-36
TMA65-48
Output
Voltage
5V
12V
15V
18V
24V
36V
48V
Max. Output
Current
8A
5A
4A
3.6A
2.7A
1.8A
1.35A
Output
Regulation
± 5%
± 5%
± 5%
± 3%
± 3%
± 3%
± 3%
Ripple & Noise
(Vp-p)
(1)
100mV
120mV
150mV
180mV
240mV
360mV
480mV
Max. Output
P o w er
40W
60W
60W
65W
65W
65W
65W
Notes:
1) Ripple and noise are measured at output within 20 MHz bandwidth with a 10µf electrolytic capacitor in parallel with a 0.1µF ceramic capacitor.
Tumbler Technologies + TRUMPower
3350 Scott Blvd., Building 13 • Santa Clara, California 95054, USA
•
408-988-6616
•
sales@trumpower.com • www.TRUMPower.com
TMA65 Series
40-65 Watts Medical Power Adapters

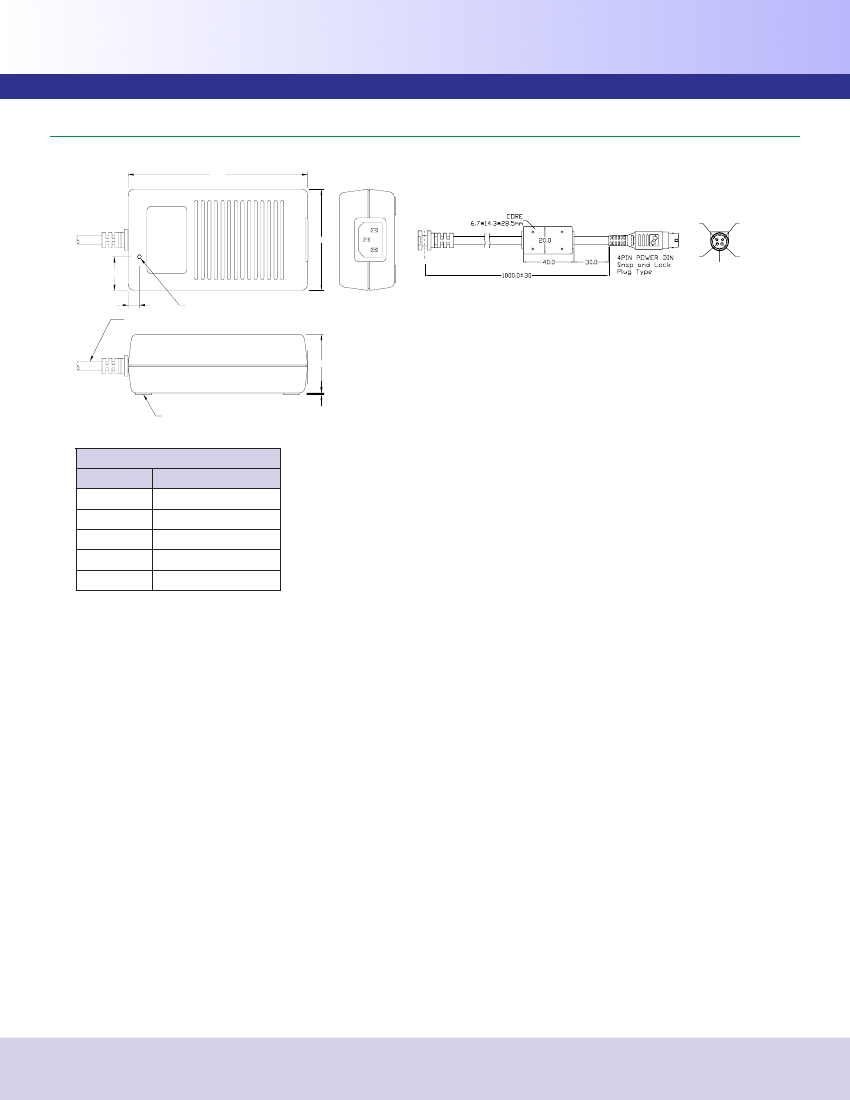

MECHANICAL SPECIFICATIONS (Unit: mm)
Top View
132.0
Front View
Label Area
2
69.00
1
4
Shell
3
23.0
10.0
2.5mm Power LED
Side View
DC Output Cable
40.00
4X Rubber Foot
1.4
Unit: mm
Tolerance: ±0.5mm
D C OU TPU T C ON N EC TOR
PIN
1
2
3
4
S H E LL
FU N C TION
+V
RETURN
+V
RETURN
RETURN & AC GND
Standard output connector: Kycon P/N KPPX-4P 4-pin circular DIN or equivalent
Mating connector: Kycon P/N KPJX-4S-S or equivalent
Contact TRUMPower for output connector options.
