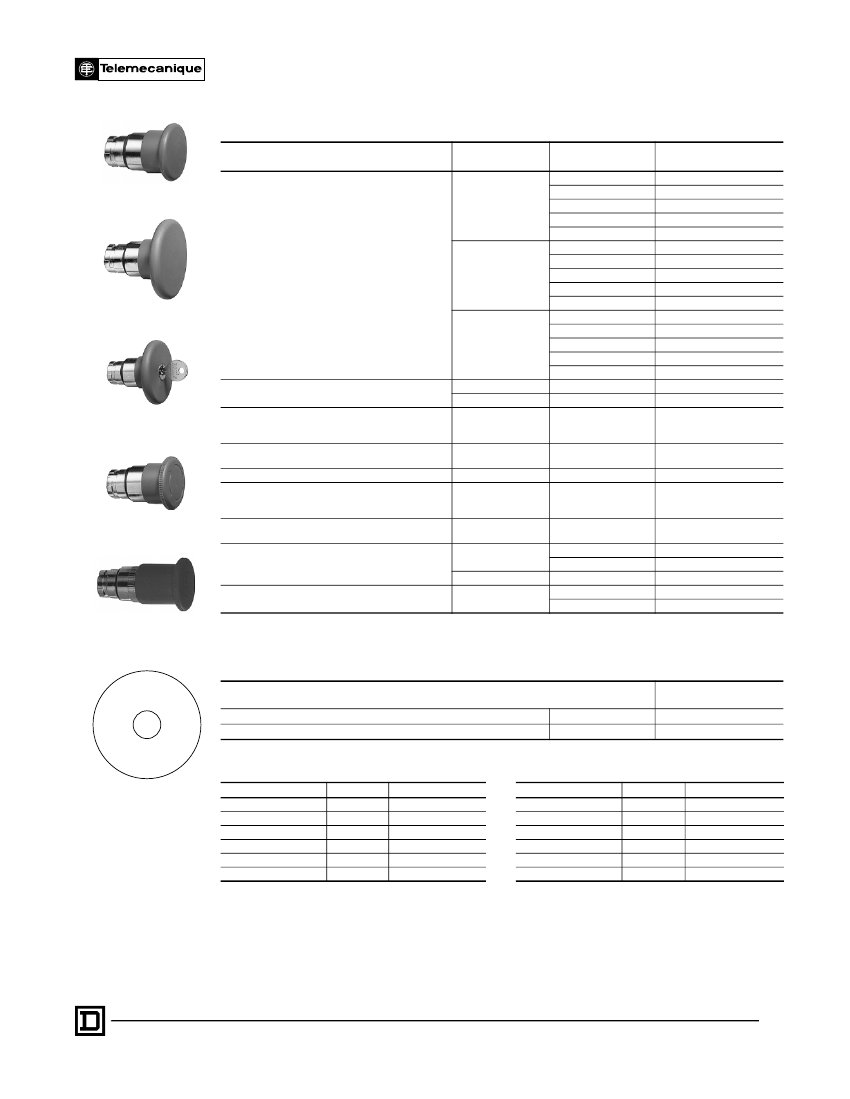

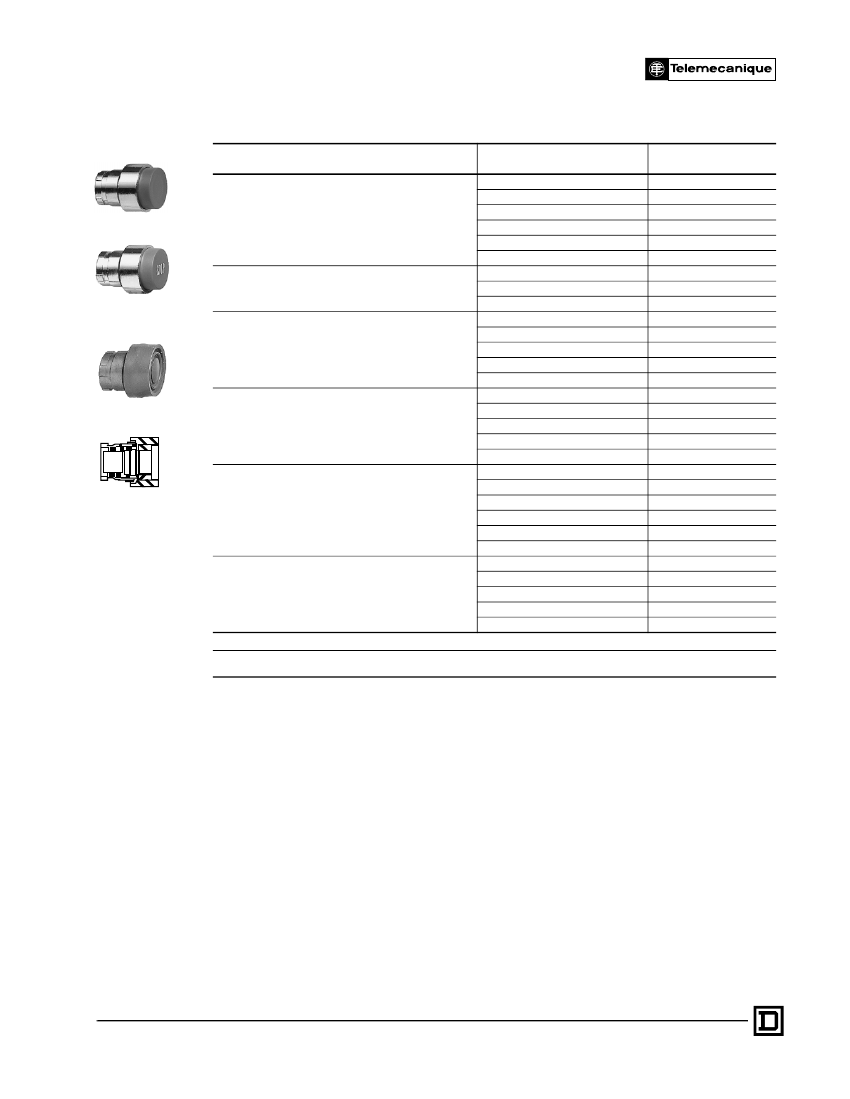

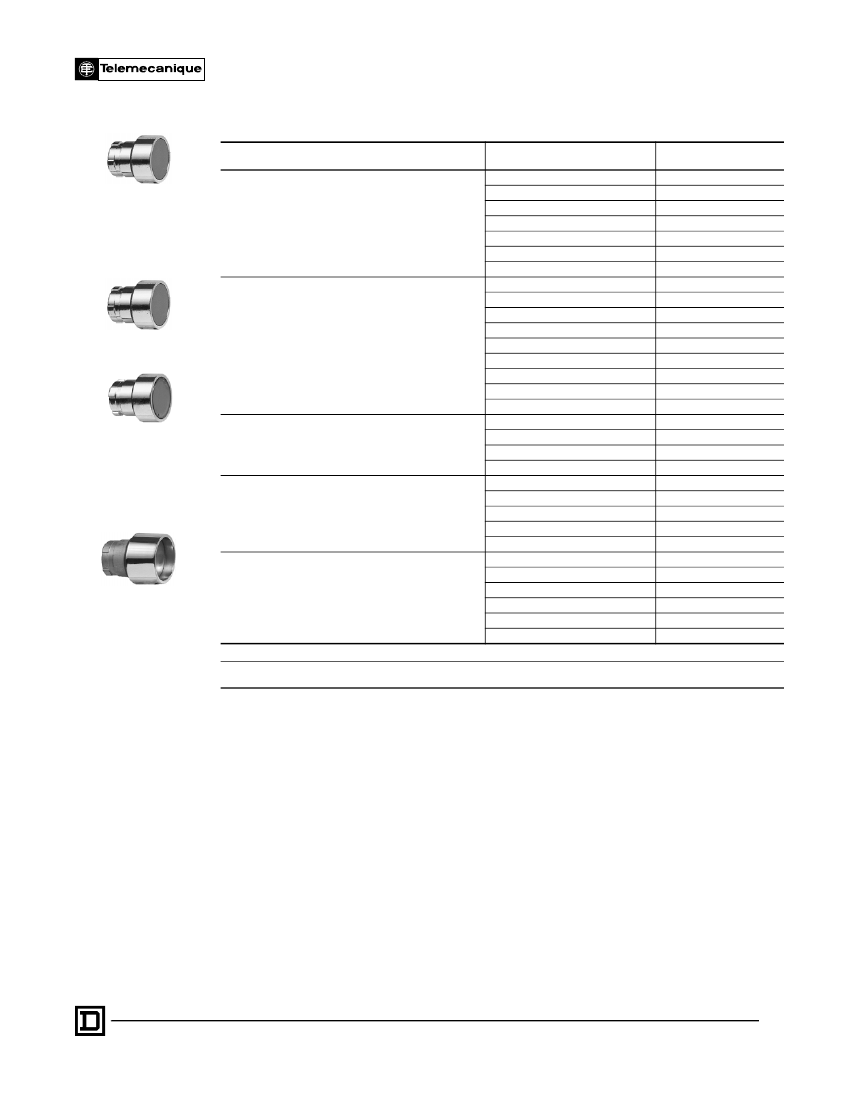

Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
General Characteristics
Environment
Conformity to standards
Approvals
XB2B, XD2P: UL 508, IEC 60947-5-1, EN60947-5-1, IEC 60337-1, IEC 60337-2, NF C 63-140, ASE 0119, ASE1003 ,
BS 4794, VDE 0660-200, CSA C 22-2 No. 14, CSA C 22-2 No. 66
UL:
push buttons and selector switches NEMA / UL Type A600-Q600;
pilot lights and illuminated push buttons direct supply (120 V max.);
pilot lights and illuminated push buttons with transformer (600 V)
CSA:
push buttons and selector switches NEMA / UL Type A600-Q600.
pilot lights and illuminated push buttons direct supply (120 V max.);
pilot lights and illuminated push buttons with transformer (600 V).
ASE, DEMKO, NEMKO, SEMKO, BUREAU VERITAS, SAHKOTARKASTUSKESKUS, GL, DNV, LROS
XD2P,
standard version: CSA A600-Q600, LROS.
Standard version: TC “All climates”
Operating: -25 °C to +70 °C (-13 °F to +158 °F) Storage: -40 °C to +70 °C (-40 °F to +158 °F)
60 mm diameter mushroom head: 8 g. Other push buttons: 15 g. Small joystick controllers: 5 g (from 40 to 50 Hz)
Conforming to IEC 60068-2-6.
Push buttons: 70 g. Mushroom head push-buttons: 15 g. Selector switches: 200 g. Conforming to IEC 60068-2-27.
XB2B, XD2P:
Class 1, conforming to IEC 60536 and NF C 20-030.
NEMA / UL ratings XB2B: 1, 2, 3, 4, 4X, 12K, 13, XB2B, XD2P: IP 65: flush and protecting, illuminated and non-
illuminated push buttons (mounted). IP 66: booted and mushroom head push buttons, selector switches, pilot lights and
small joystick controllers (mounted). IP 40: double- headed push buttons (IP 65 on request).
Push buttons—3 million operations (Latching mushroom head push buttons: 300,000 operations. Illuminated selector
switches: 100,000 operations). The product life expressed is based on average usage and normal operating conditions.
Actual operating life will vary with conditions. The above statements are not intended to nor shall they create any express
or implied warranties as to product operation or life. For information on the limited warranty offered on this product,
please refer to Square D terms and conditions of sale found in the Square D Digest.
Protective treatment
Ambient temperature
Resistance to vibration
Resistance to shock
Protection against electric shock
Degree of protection
conforming to IEC 60529
and NF C 20-010
Mechanical life
Contact block characteristics
Nominal thermal current
Nominal insulation voltage
Insulation category
Contact operation
Contact resistance
Operating force
Terminal referencing
Short circuit protection
Rated power
conforming to IEC 60947-5-1 Appendix C
duty categories AC11-DC11
Operating frequency: 3,600 ops/hour
Load factor: 0.5
AC supply (50-60 Hz)
ted Availability
L i mi
cement use only.
For repla
applications, use
For n e w
B4 (page 37 - 72)
X
Group C conforming to NF C 20-040 and VDE 0110.
Slow- make N.O. or slow-break N.C. with direct opening operation conforming to EN60947-5-1
section 3.
ð25
m¾ conforming to: NF C 93-050 method A or IEC 60225-7 category 3.
Flush or projecting push buttons - with 1 NO contact: 2.25 lb - with 1 NC contact: 1.8 lb
Additional contacts - N.O.: add 1 lb - N.C.: add 0.7 lb.
Conforming to CENELEC EN 50013.
10 A cartridge fuses, Gl or N conforming to IEC 60269-1and VDE 0660-200.
10 A conforming to IEC 60947-5-1, NF C 63-140, UL 508, CSA 22-2 No. 14, VDE 0660 part 2, NEMA / UL Type A600-Q600.
500 V conforming to NF C 20-040, VDE 0110, IEC 60158-1, 600 V conforming to UL 508, 600 V conforming to
CSA 22-2 No. 14.
DC supply
Power broken in watts
for 1 million operations
Voltage
Inductive
load
File E164353
CCN NKCR
24 V 48 V 120 V
65 W 48 W 40 W
®
millions of operations
1
06
04
02
01
.06
.04
.02
.01
1
127 V
220 V 24/48 V
ith = 10 A
AC Ratings, Inductive - NEMA / UL A600
35% Power factor
Volts
120
240
480
600
Make
Amperes
60
30
15
12
VA
Break
Amperes
6
3
1.5
1.2
VA
Resistive 75%
Continuous
Power factor
carrying
Make, Break and
Amperes
continuous
Amperes
10
10
10
10
10
10
10
10
File LR 44087
Class 3211 03
Marking
7200
7200
7200
7200
720
720
720
720
DC Ratings, NEMA / UL Type Q600
Inductive and resistive
2
4 6 10 20 40 60
current in amperes
Volts
125
250
600
Make and break
0.55
0.27
0.10
Continuous
2.5
2.5
2.5
Cabling
XB2B, XD2P:
Screw and captive clamp terminals. Recommended torque 15.62 lb-in. Capacity: minimum 1 x 0.5 mm
2
(20 AWG) solid or stranded, maximum with or without cable end: 2 x 1.5 mm
2
(16 AWG) or 1 x 2.5 mm
2
(14 AWG) or by
quick connector conforming to NF C 20-120 (on request).
314
© 1999 - 2000 Schneider Electric All Rights Reserved
11/00
Courtesy of Steven Engineering,
Inc.
!
230 Ryan Way, South San Francisco, CA 94080-6370
!
Main Office: (650) 588-9200
!
Outside Local Area: (800) 258-9200
!
www.stevenengineering.com
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Non-Illuminated Operators
Operator
Type
Color
White
Flush head
ZB2BA•
Flush head
Black
Green
Red
Yellow
Blue
Grey
White “I”
Black “START”
Black “O”
Metallic flush head
ZB2BA•9
Green “I”
Flush head premarked
Red “O”
Green “START”
Green “ON”
Red “STOP”
Red “OFF”
Black
Red
Green
Catalog
Number
ZB2BA1
ZB2BA2
ZB2BA3
ZB2BA4
ZB2BA5
ZB2BA6
ZB2BA8
ZB2BA131
ZB2BA230
ZB2BA232
ZB2BA331
ZB2BA432
ZB2BA333
ZB2BA341
ZB2BA434
ZB2BA435
ZB2BA29
ZB2BA49
ZB2BA59
ZB2BA39
Transparent flush head
ZB2BA•8
ited Availability
Lim
ment use only.
For replace
l i c a t i o n s, u s e
For new app
(page 37 - 72)
X B4
Metallic flush head
(metal pusher)
Yellow
Green
Red
Transparent flush head
Use with mylar circular legend (ZB2BY1kkk)
See page 333
Amber
Blue
Clear
White
Black
Red
Yellow
Blue
Guarded head
Green
ZB2BA38
ZB2BA48
ZB2BA58
ZB2BA68
ZB2BA16
ZB2BA78
ZB2BA26
ZB2BA46
ZB2BA56
ZB2BA66
Guarded head
ZB2BA•6
ZB2BA36
Operating heads with black metal bezel
To order, add suffix 7 to the above references (except
ZB2BP2 TO ZB2BP6).
Example:
ZB2BA2
becomes
ZB2BA27.
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
315
11/00
© 1999 - 2000 Schneider Electric All Rights Reserved
Courtesy of Steven Engineering,
Inc.
!
230 Ryan Way, South San Francisco, CA 94080-6370
!
Main Office: (650) 588-9200
!
Outside Local Area: (800) 258-9200
!
www.stevenengineering.com
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Non-Illuminated Operators
Operator
Type
Color
White
Black
Extended head
ZB2BL•
Extended head
Green
Red
Yellow
Blue
Red “O”
Extended head premarked
Extended head
marked stop
ZB2BL434
Silicon booted head
Red “STOP”
Red “OFF”
Black
Green
Red
Yellow
Blue
Black
Silicon booted head
ZB2BP•
Green
Neoprene booted head
Red
Yellow
Blue
White
Black
Red
Catalog
Number
ZB2BL1
ZB2BL2
ZB2BL3
ZB2BL4
ZB2BL5
ZB2BL6
ZB2BL432
ZB2BL434
ZB2BL435
ZB2BP2
ZB2BP3
ZB2BP4
ZB2BP5
ZB2BP6
ZB2BP02
ZB2BP03
ZB2BP04
ZB2BP05
ZB2BP06
ZB2BA15
ZB2BA25
ZB2BA35
ZB2BA55
Flush with reinforced
protection
ZB2BA•5
mited Availability
Li
ement use only.
For replac
p l i c a t i o n s, u s e
For n e w ap
4 (page 37 - 72)
XB
Flush with reinforced dust, damp,
and cutting oil protection
Green
Yellow
Blue
Red
Green
Transparent silicon booted push button
Use with mylar circular legend (ZB2BY1kkk)
See page 333.
Yellow
Blue
Clear
ZB2BA45
ZB2BA65
ZB2BP38
ZB2BP58
ZB2BP48
ZB2BP68
ZB2BP78
Operating heads with black metal bezel
To order, add suffix
7
to the above references (except
ZB2BP2 TO ZB2BP6
and
ZB2BP02 TO ZB2BP06).
Example:
ZB2BL2
becomes
ZB2BL27.
Contact Block Assemblies . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
316
© 1999 - 2000 Schneider Electric All Rights Reserved
11/00
Courtesy of Steven Engineering,
Inc.
!
230 Ryan Way, South San Francisco, CA 94080-6370
!
Main Office: (650) 588-9200
!
Outside Local Area: (800) 258-9200
!
www.stevenengineering.com
Push Buttons and Operator Interface Specifiers Guide
XB2B 22 mm
Mushroom Operators and Yellow Contrast Plates
Operator
Type
Mushroom head 40mm
ZB2BC•
Size
Color
Black
Green
Red
Yellow
Blue
Black
Green
Red
Yellow
Blue
Black
Green
Red
Yellow
Blue
Red
Red
Red
Red
Catalog
Number
ZB2BC24
ZB2BC34
ZB2BC44
ZB2BC54
ZB2BC64
ZB2BC2
ZB2BC3
ZB2BC4
ZB2BC5
ZB2BC6
ZB2BR2
ZB2BR3
ZB2BR4
ZB2BR5
ZB2BR6
ZB2BS14
ZB2BS24
ZB2BS944
ZB2BS54
30mm
Mushroom head
Momentary
Mushroom head 60mm
ZB2BR•
40mm
60mm
Mushroom head
Key releasea
Mushroom head
key release
ZB2BS•4
Mushroom head push button
with trigger actionf
Key releasea
Mushroom head
turn to release
Premarked “EMO”
Mushroom head push button
with trigger actionf
Turn to release
Mushroom head
turn to release
Mushroom head
push-pull
40mm
60mm
40mm
40mm
Mushroom head
turn to release
ZB2BS54
Mushroom head
with trigger action
turn to release
ZB2BS844
imited Availability
L
ement use only.
F o r r epla c
p l i c a t io n s , u s e
F o r n e w ap
4 (page 37 - 72)
XB
40mm
Red
40mm
60mm
Red
Red
40mm
ZB2BS5430
ZB2BS844
ZB2BS64
Black
ZB2BT2
Red
ZB2BT4
Premarked “EMERGENCY STOP”
40mm
Red
ZB2BT43
Black
ZB2BX2
Mushroom head
60mm
push-pull
Red
ZB2BX4
a
Key release operators come with Ronis #455 keys (quantity 2) as standard. For replacement keys see page 332. For other key
numbers contact local field office.
f
Trigger action mushroom heads are “tamper proof” whereby a change of contact state is not possible by “teasing” or floating the
operator.
E
ERGEN
M
Guards / Locks
Type
Metal
Plastic
Size
40 mm with finger cutout and 7 mm holes for padlocking
60 mm (for 40 mm turn to release)
Color
Red
Yellow
Catalog
Number
ZB2BZ1804
ZB2BZ1905
Y
C
Yellow Contrast Plates
ST
OP
PVC Yellow Legend Plates 60 mm diameter
Text
Blank
Emergency Stop
Arret d’Urgence
Not Aus
Parada de Emergencia
Arresto Emergenza
PVC Yellow Legend Plates 90 mm diameter
Text
Blank
Emergency Stop
Arret d’Urgence
Not Aus
Parada de Emergencia
Arresto Emergenza
ZB2BY8330
Language Catalog Number
N/A
English
French
German
Spanish
Italian
ZB2BY9101
ZB2BY9330
ZB2BY9130
ZB2BY9230
ZB2BY9430
ZB2BY9630
Language
N/A
English
French
German
Spanish
Italian
Catalog Number
ZB2BY8101
ZB2BY8330
ZB2BY8130
ZB2BY8230
ZB2BY8430
ZB2BY8630
Contact Block Assemblies. . . . . . . . . . . . . . . . . . . . . . . . Page 322
Specialty Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 329
Application Information . . . . . . . . . . . . . . . . . . . . . . . . . . Page 314
Legend Plates . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 333
Accessories. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 331
Replacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Page 332
Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pages 334-335
317
11/00
© 1999 - 2000 Schneider Electric All Rights Reserved
Courtesy of Steven Engineering,
Inc.
!
230 Ryan Way, South San Francisco, CA 94080-6370
!
Main Office: (650) 588-9200
!
Outside Local Area: (800) 258-9200
!
www.stevenengineering.com
京公网安备 11010802033920号
EEWORLD
