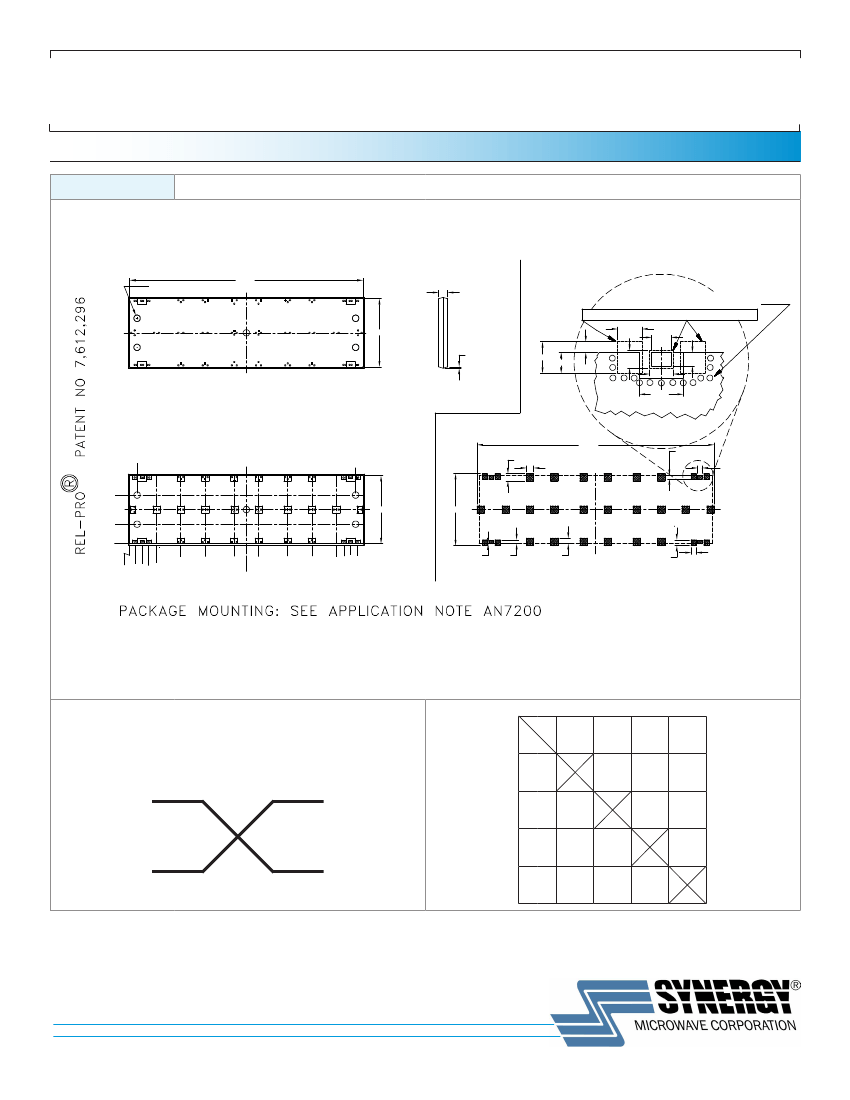

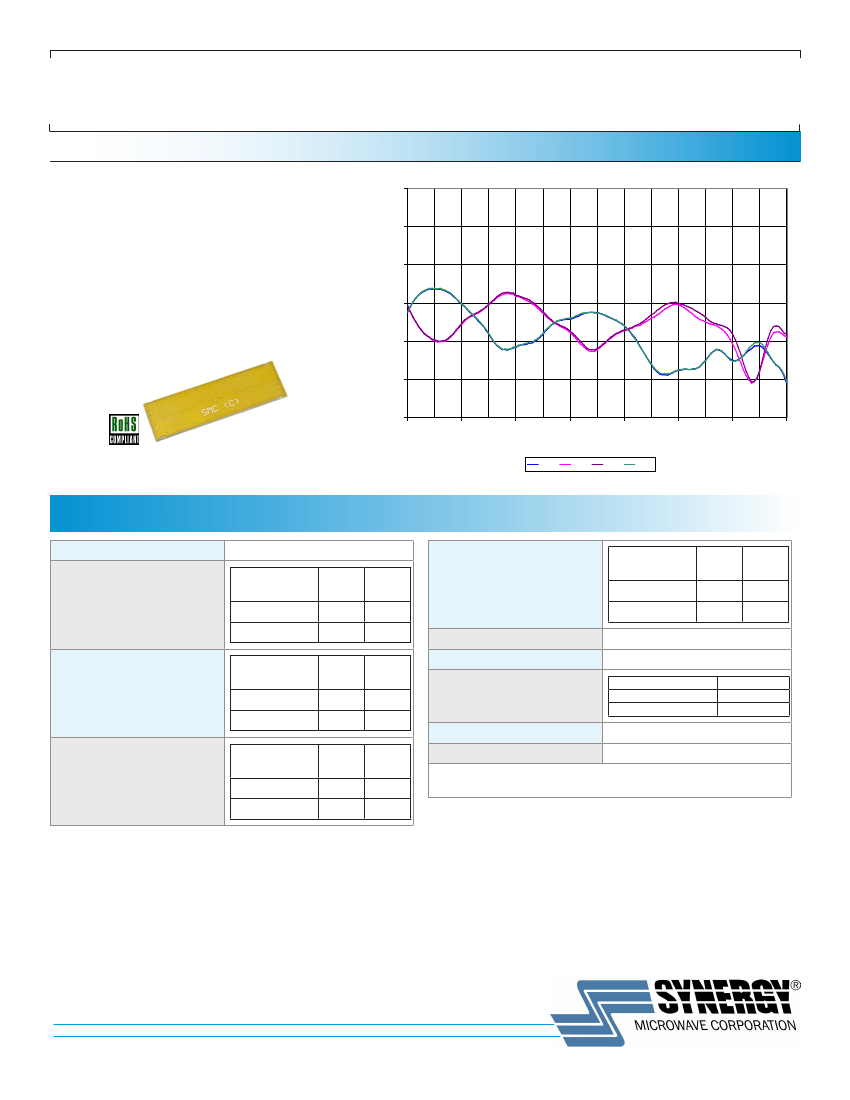

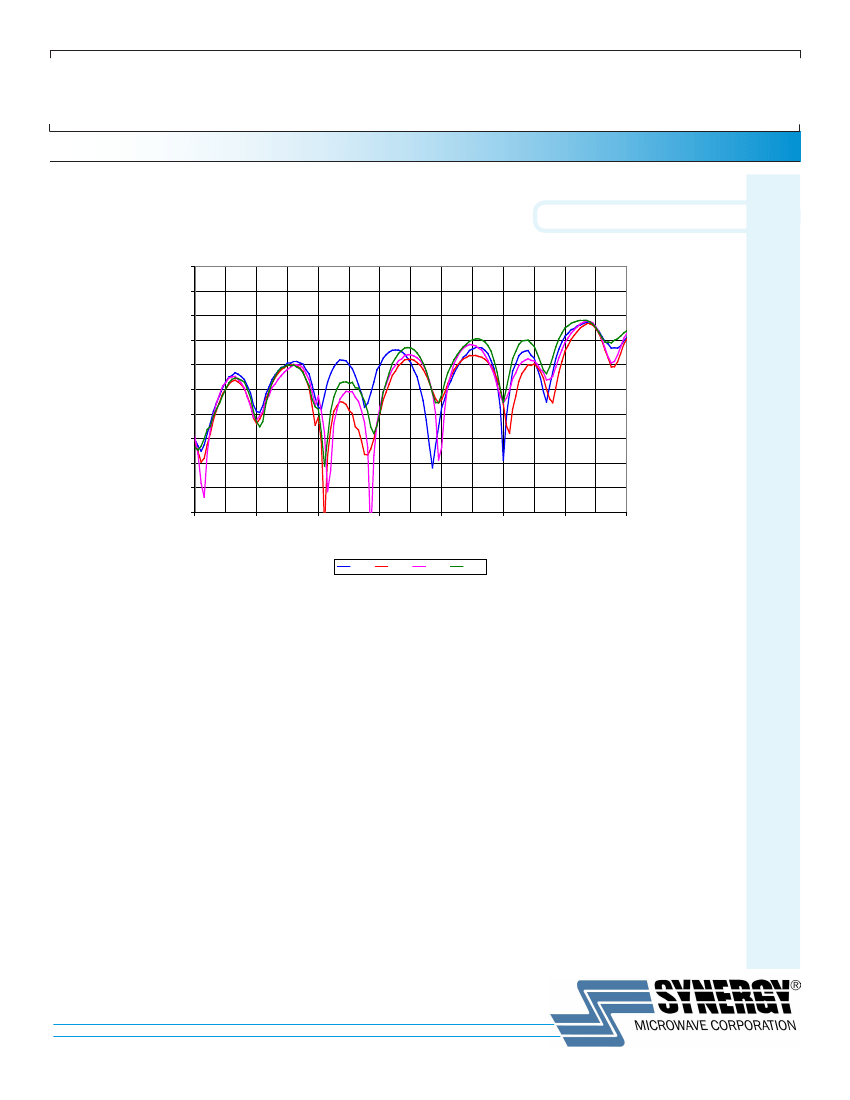

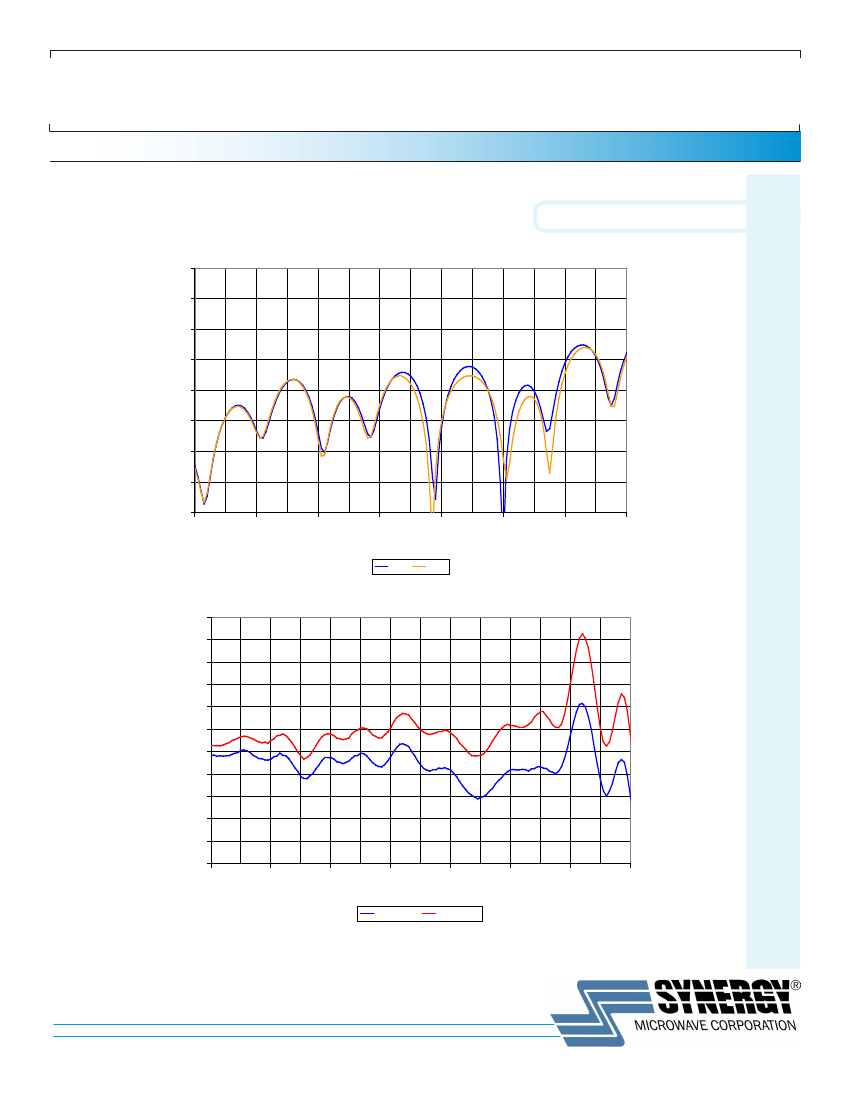

90º HYBRID
SURFACE MOUNT MODEL:
MSQ100800
WIDE BANDWIDTH
Coupling/Insertion Loss/Amp. Unbal. (dB)
1000 - 8000 MHz
0
FEATURES:
►
Wide Bandwidth
►
Small Package Size, Surface Mount
►
Building Block For:
- Power Amplifiers
- Image Rejection Mixers
- I & Q / SSB Modulators
- Phase Shifters & More...
1
2
3
4
5
6
1000
2000
3000
S31
4000
S21
5000
S34
S24
6000
7000
8000
Frequency (MHz)
SPECIFICATIONS (Rev. B 05/29/13)
Frequency
1000 - 8000 MHz
Frequency
(MHz)
1000-4000
4000-8000
Frequency
(MHz)
1000-4000
4000-8000
Frequency
(MHz)
1000-4000
4000-8000
Typ.
0.5
1.5
Typ.
1.5
1.8
Typ.
2
6
Max.
1
2
Min.
2
2.2
Min.
4
12
Power Rating
Impedance
VSWR
Operating Temperature Range
Storage Temperature Range
Isolation (dB)
Frequency
(MHz)
1000-4000
4000-8000
50 Watts Ave. (CW)
50 Ohms (Nom.)
Frequency (MHz)
1000-4000
4000-8000
-55 to +85 °C
-55 to +100 °C
Typ.
1.30:1
1.75:1
Typ.
18
14
Min.
15
10
Insertion Loss (dB) *
Amplitude Unbalance (dB)
Phase Unbalance (Deg.)
* Insertion loss in excess of the theoretical 3 dB coupling and is
measured at the midpoint of the two output levels.
Copyright © 2007 Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 1 of 4 ]
90º HYBRID
SURFACE MOUNT MODEL:
MSQ100800
WIDE BANDWIDTH
Package #
346
1000 - 8000 MHz
T OP
V I EW
( 5 p
l
c s .)
Ø0.06
6
2
.4
00
SI
DE V I EW
3
0.7 00
1
<MAX>
0.09
3
MSQ1008 00
SMC
<C>
ADD PL ATED THROUGH HOL
ES
FOR
BET
TER
GROUNDI
NG.
DASHED L I
NE
=
SOL
DER
ST OP OPENI
GS.
0.05 0
0.02 0
0.06 0
0.05
3
0.03
6
0.04
8
0.09 0
0.02
8
0.04 0
2
4
<MAX>
0.015
T OL
ERANCE: XXX± 0.005
0.07
5
2
.3
2
5
DETAI L "A"
SCAL
E 1X5
2
.4 4
0
0.07
5
<2 2
p
l c
s .)
0.07
5
<2 2
p
l c
s .)
<4
p
l c
s .)
BOT
T OM
V I EW
0.03
6
0.04
8
<4
p
l c
s .)
0.5 00
0.7 00
0.2 00
0.00 0
2
.12 5
2
.2
09
2
.2 7 5
2
.3 4
1
0.7
7 5
0.5 2
5
1.3 2
5
1.8
7 5
1.6 2
5
1.07
5
0.002
0.04 0
0.05
5
0.05
9
0.12
5
0.19 1
0.2
7 5
<8
p
l c
s .)
0.7
4
0
0.06 0
<8
p
l c
s .)
0.05 0
0.000
1.2 00
RECOMMENDED
SOL
DER
ST OP OPENI NGS
PHASING DIAGRAM
PORT DIAGRAM
OUT
IN
1
2
3
4
1
1
3
2
0º
0º
ISO
+90º
+90º
ISO
3
4
2
ISO
+90º
0º
4
+90º
ISO
0º
Copyright © 2007 Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 2 of 4 ]
90º HYBRID
SURFACE MOUNT MODEL:
MSQ100800
WIDE BANDWIDTH
1000 - 8000 MHz
Data @ 25ºC
0
5
10
Isolation (dB)
PERFORMANCE PLOTS
15
20
25
30
35
40
1000
2000
3000
4000
S41
5000
S23
6000
7000
8000
Frequency (MHz)
102
100
98
Phase Unbalance (degrees)
96
94
92
90
88
86
84
82
80
1000
2000
3000
4000
S21-S31
5000
S34-S24
6000
7000
8000
Frequency (MHz)
Copyright © 2007 Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 3 of 4 ]
90º HYBRID
SURFACE MOUNT MODEL:
MSQ100800
WIDE BANDWIDTH
1000 - 8000 MHz
Data @ 25ºC
0
5
10
Return Loss (dB)
PERFORMANCE PLOTS
15
20
25
30
35
40
45
50
1000
2000
3000
4000
S11
S22
5000
S33
S44
6000
7000
8000
Frequency (MHz)
Copyright © 2007 Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 4 of 4 ]
