1 key (alpha=0, plug: male contacts, receptacle: female contacts)
Brass (chrome plated) shell and collet nut, nickel plated brass latch sleeve and mid pieces
: 0 - 0 mm
Performance
Configuration
Insulator
Rated Current
2K.307 : 7 Low Voltage
L: PEEK (UL 94 / V-0/3.2, depends on material thickness)
11 Amps
Specifications
Contact Type: Solder
Max. Matings: 5000
Contact Dia.: 1.3 mm (0.051in)
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
1/3
Bucket Dia.: 1 mm (0.039in)
Max. Solid Conductor: 0.5 mm^2 (AWG 20)
Max. Stranded Conductor: 0.5 mm^2 (AWG 20)
R (max): 3.6 mOhm
Vtest (contact-shell): 1600 V (AC), 2250 V (DC)
Vtest (contact-contact): 1750 V (AC), 2500 V (DC)
Others
Endurance (Shell): 5000 mating cycles
Temp (min / max): -55°C / +200°C
Humidity (max): <=95% [at 60 deg C /140 F]
Vibration: 15 g [10 Hz - 2000 Hz]
Shock Resistance: 100 g [ 6 ms]
Salt Spray Corrosion: >1000 hr
Climatical Category: 50/175/21
Shielding (min): 95 dB (10 MHz)
Shielding (min): 80 dB (1 GHz)
IP Rating: 68

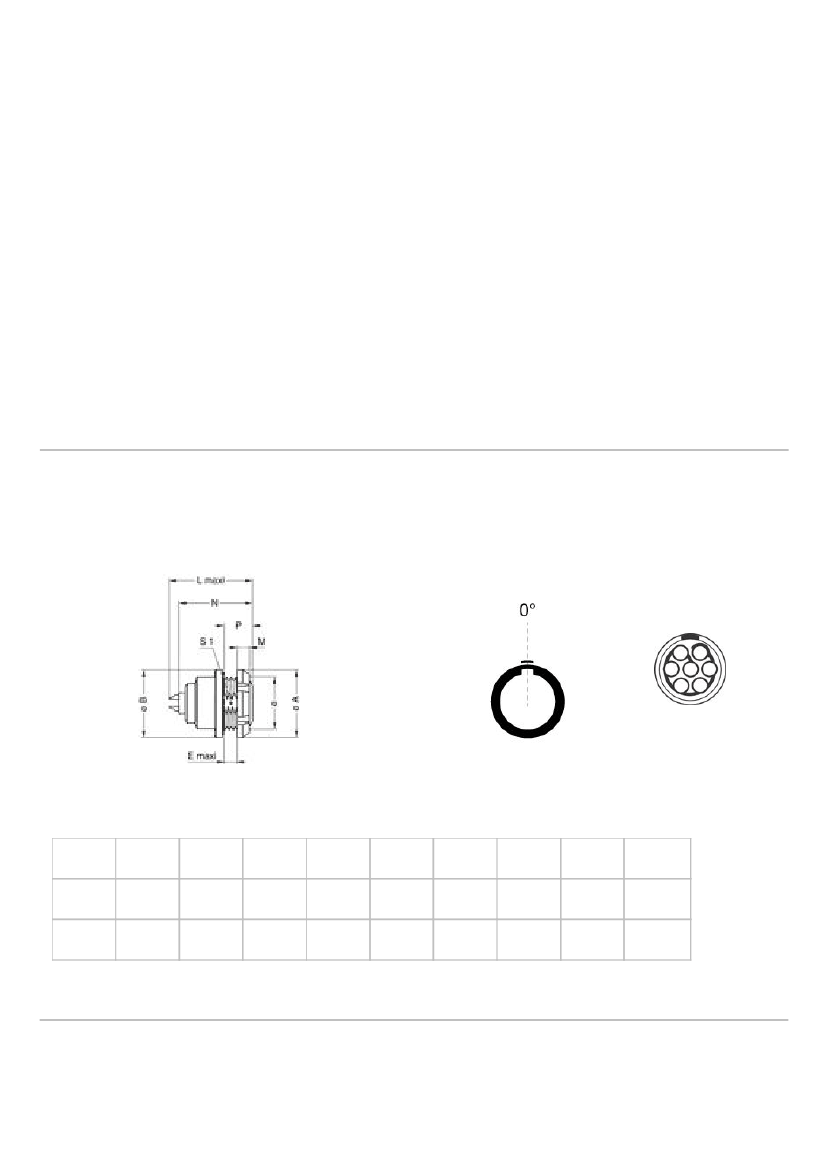

DRAWINGS
Draws
Dimensions
A
mm.
in.
25
0,98
B
25
0,98
E
5
0,20
L
30.7
1,21
M
3.5
0,14
N
28.6
1,13
P
10
0,39
S1
18.5
0,73
e
M20x1.0
LEMO products and services are provided “as is”. LEMO makes no warranties or representations with regard to LEMO product & services or use of
them, express, implied or statutory, including for accuracy, completeness, or security. The user is fully responsible for his products and applications
using LEMO components.
2/3
RECOMMENDED BY LEMO
Tools
None

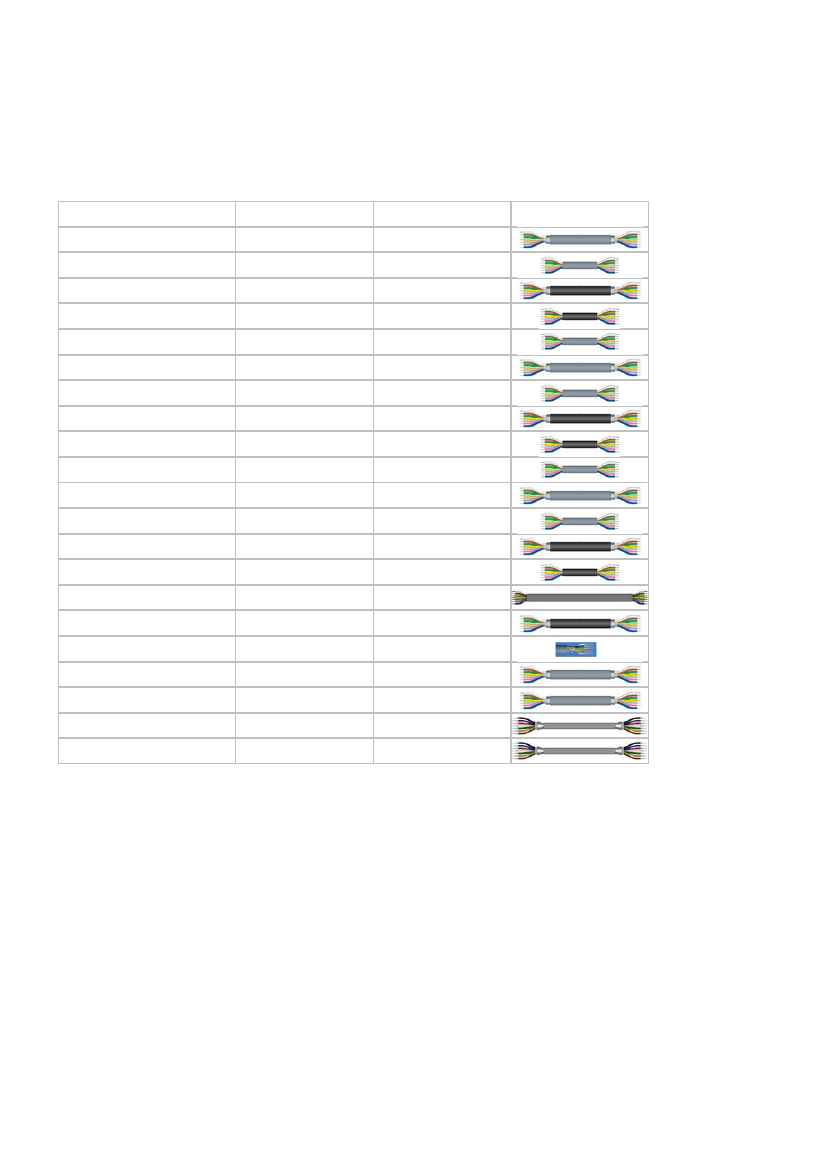

Cables
CMN.07.S34.027JGC
CMN.07.T20.062PGCE
CMN.07.T20.062PGZE
CMN.07.T20.062PNCE
CMN.07.T20.062PNZE
CMN.07.T20.062QGZE
CMN.07.T22.055PGCE
CMN.07.T22.055PGZE
CMN.07.T22.055PNCE
CMN.07.T22.055PNZE
CMN.07.T26.037QGZE
CMN.07.T28.044PGCE
CMN.07.T28.044PGZE
CMN.07.T28.044PNCE
CMN.07.T28.044PNZE
007 041
007 050
070 140
270 250
370 500
717 920
CTR.75.030.121875G
PVC
PVC
PVC
PVC
PVC
PVC
PVC
Grey
Black
Grey
Grey
Grey
Grey
Grey
PVC
TPR (medical)
PVC
Grey
GREY
Grey
Black
PVC
TPR (medical)
PVC
Grey
GREY
Grey
Black
PVC
PVC
GREY
Grey
Black
