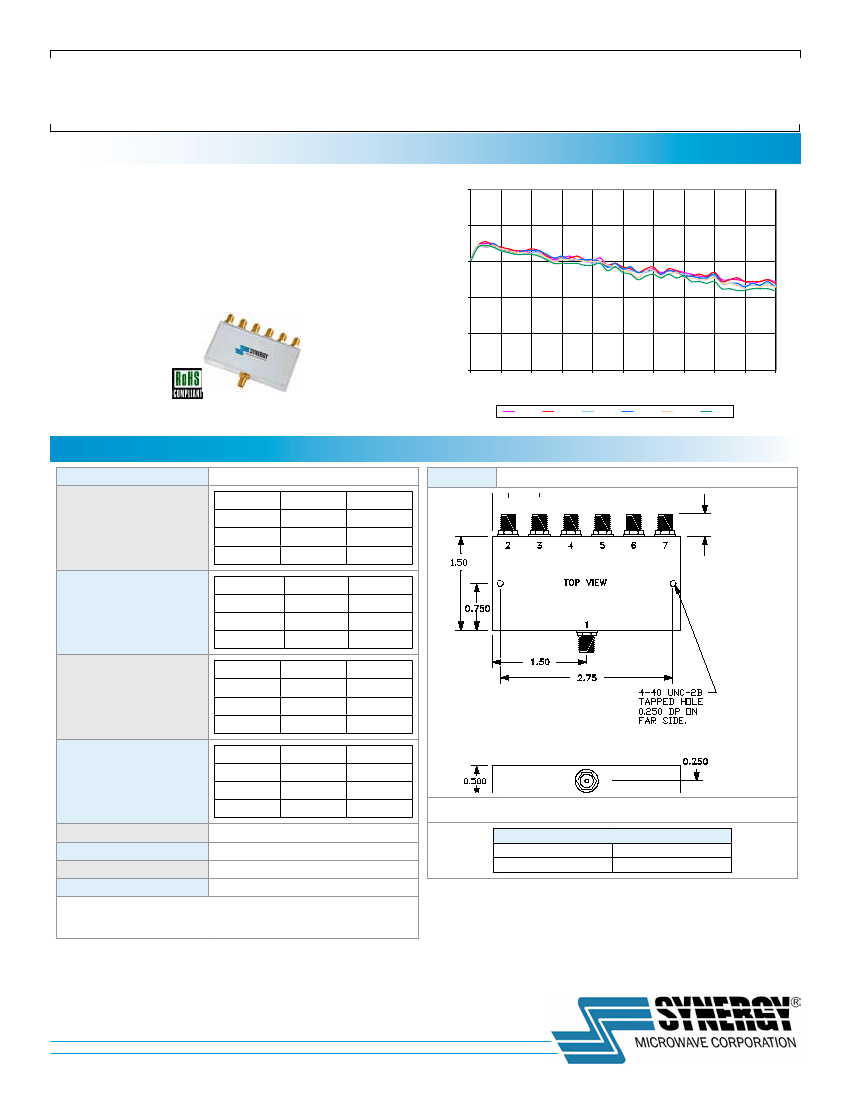

6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-7B1S
WIDE BANDWIDTH
Insertion Loss/Amp. Unbalance (dB)
1 - 100 MHz
0
FEATURES:
►
Excellent Performance
►
Wide Bandwidth
►
Small Size
►
Moderate Power
►
Lead Free RoHS Compliant
APPLICATIONS:
►
Signal Splitting & Low Power Combining
0.2
0.4
0.6
0.8
1
1
11
21
31
41
51
61
71
81
91
101
Frequency (MHz)
In-2
In-3
In-4
In-5
In-6
In-7
SPECIFICATIONS (Rev. G 11/21/11)
Frequency
1 - 100 MHz
Freq. (MHz)
Insertion Loss (dB) *
1 - 10
10 - 50
50 -100
Freq. (MHz)
Isolation (dB)
1 - 10
10 - 50
50 -100
Freq. (MHz)
Phase Unbalance
1 - 10
10 - 50
50 -100
Freq. (MHz)
Amplitude Unbalance (dB)
1 - 10
10 - 50
50 -100
Input Power **
VSWR
Impedance
Operating Temperature Range
1 Watt (Max.)
1.2:1 (Typ.)
50 Ohms (Nom.)
-40 to +85 °C
Input
1
Package #
Typ.
0.3
0.4
0.5
Typ.
30
30
32
Typ.
0.2
0.5
0.8
Typ.
0.05
0.05
0.05
Max.
0.6
0.7
0.9
Min.
25
25
25
Max.
1º
2º
3º
Max.
0.2
0.3
0.4
142
Connector Type: SMA Female
PORT CONFIgURATION
Output
2,3,4,5,6,7
* Above 7.78 dB theoretical split loss.
** Handling power applies to splitter mode and assumes ideal 50 Ohms
impedance matching on all ports.
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 1 of 3 ]
6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-7B1S
WIDE BANDWIDTH
1 - 100 MHz
DATA @ 25ºC
2.0
1.5

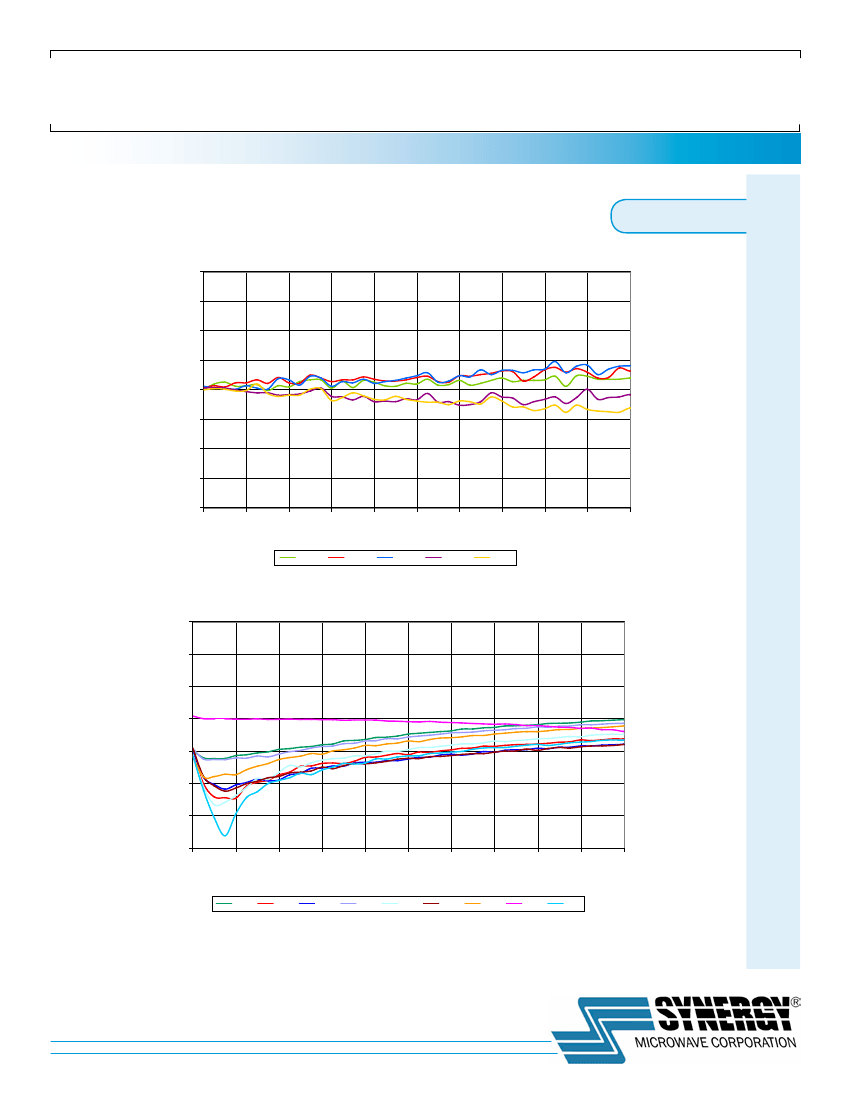

PERFORMANCE PLOTS
Phase Unbalance (degrees)
1.0
0.5
0.0
-0.5
-1.0
-1.5
-2.0
1
11
21
In-2
31
In-3
41
51
In-4
61
In-5
71
In-6
81
91
101
Frequency (MHz)
0
10
20
Isolation (dB)
30
40
50
60
70
1
11
21
31
41
51
61
71
81
91
101
Frequency (MHz)
2-3
3-4
4-5
5-6
6-7
2-7
3-6
2-4
6-2
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 2 of 3 ]
6-WAY POWER DIVIDER
CONNECTORIZED MODEL:
DFK-7B1S
WIDE BANDWIDTH
1 - 100 MHz
DATA @ 25ºC
0

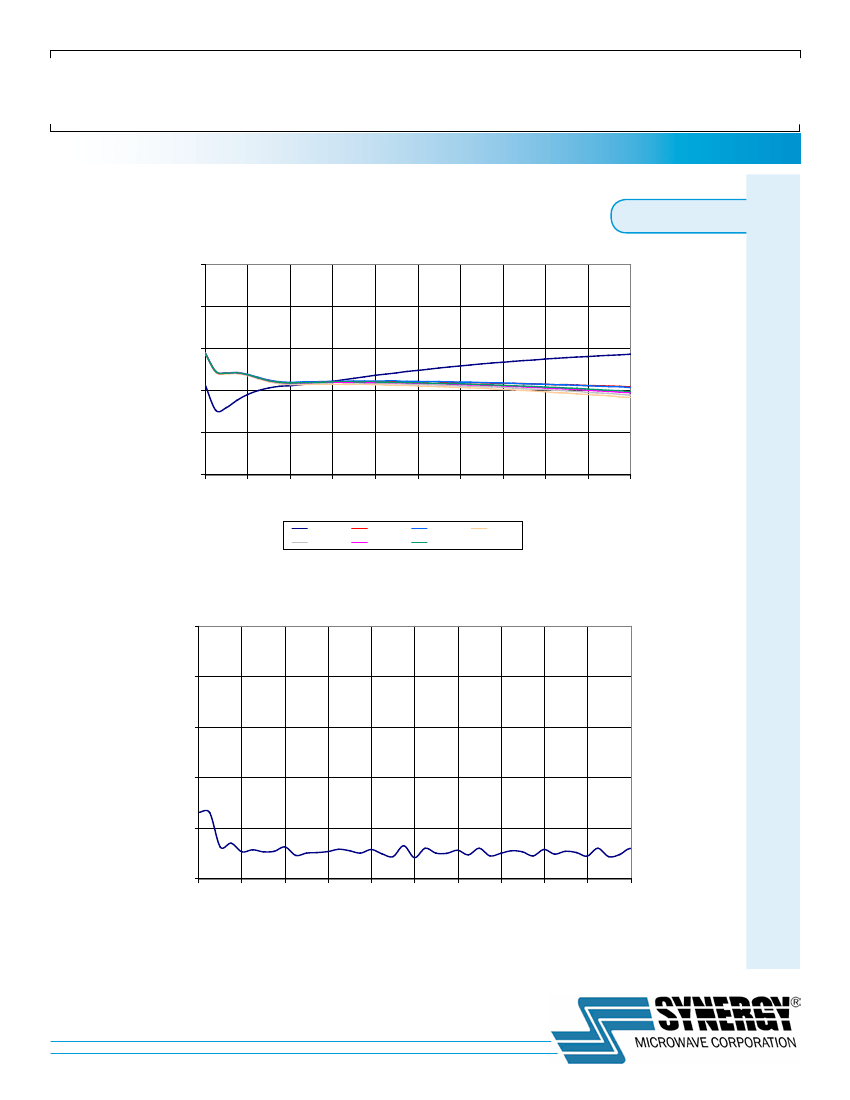

PERFORMANCE PLOTS
10
Return Loss (dB)
20
30
40
50
1
11
21
31
41
51
61
71
81
91
101
Frequency (MHz)
Input
Out 5
Out 2
Out 6
Out 3
Out 7
Out 4
10
8
Group Delay (nSec)
6
4
2
0
1
11
21
31
41
51
61
71
81
91
101
Frequency (MHz)
Copyright © Synergy Microwave Corporation
201 McLean Boulevard • Paterson, New Jersey 07504 • Tel: (973) 881-8800 • Fax: (973) 881-8361
E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com
[ 3 of 3 ]
