QBHP684U-IRU
1.0W High Power IR LED
---------------------------------------------------------------------------------------------------------------------------------------
QT-Brightek High Power Series
1.0 W High Power LED
Part No.: QBHP684U-IRU
U = 350mA
Product: QBHP684U-IRU
Date: June 26, 2014
Version# 1.3
Page 1 of 9
QBHP684U-IRU
1.0W High Power IR LED
---------------------------------------------------------------------------------------------------------------------------------------
Table of Contents:
Introduction ........................................................................................................................................... 3
Electrical / Optical Characteristic (Ta=25
o
C) ........................................................................................ 4
Absolute Maximum Rating .................................................................................................................... 4

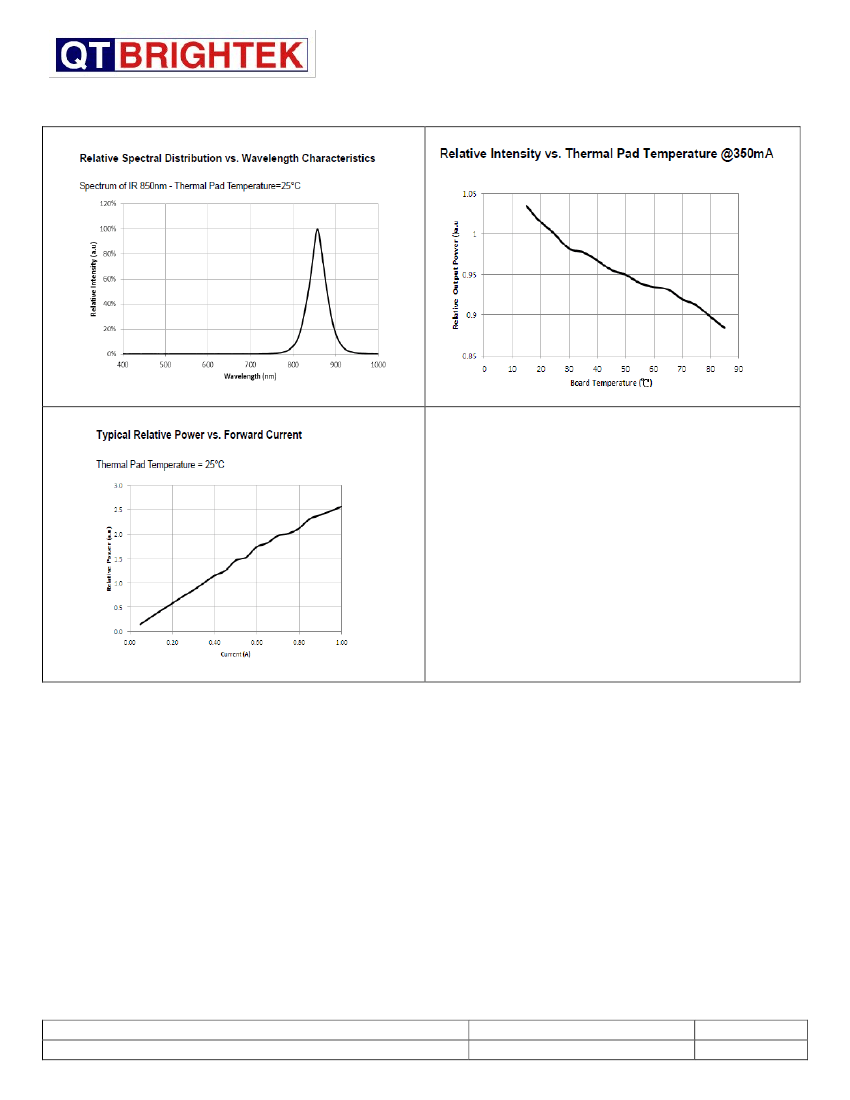

Characteristic Curves ............................................................................................................................ 5
IR Reflow Soldering Profile ................................................................................................................... 6
Packing ................................................................................................................................................. 7
Labeling ................................................................................................................................................ 8
Ordering Information ............................................................................................................................. 8
Revision History .................................................................................................................................... 9
Disclaimer ............................................................................................................................................. 9
Product: QBHP684U-IRU
Date: June 26, 2014
Version# 1.3
Page 2 of 9
QBHP684U-IRU
1.0W High Power IR LED
---------------------------------------------------------------------------------------------------------------------------------------
Introduction
Feature:
1W High Bright LED
Packed in tape and reel
Low thermal resistance <4°C/W
High radiant power output
Viewing Angle 130°
Isolated Heat Slug
Description:
This 1W high bright high power IR LED has compact
size of 3.6 x 3.6mm. It is ideal for both infrared
sensing applications.
Application:
Data transmission
Sensing
Remote control
Certification & Compliance:
TS16949
ISO9001
RoHS Compliant

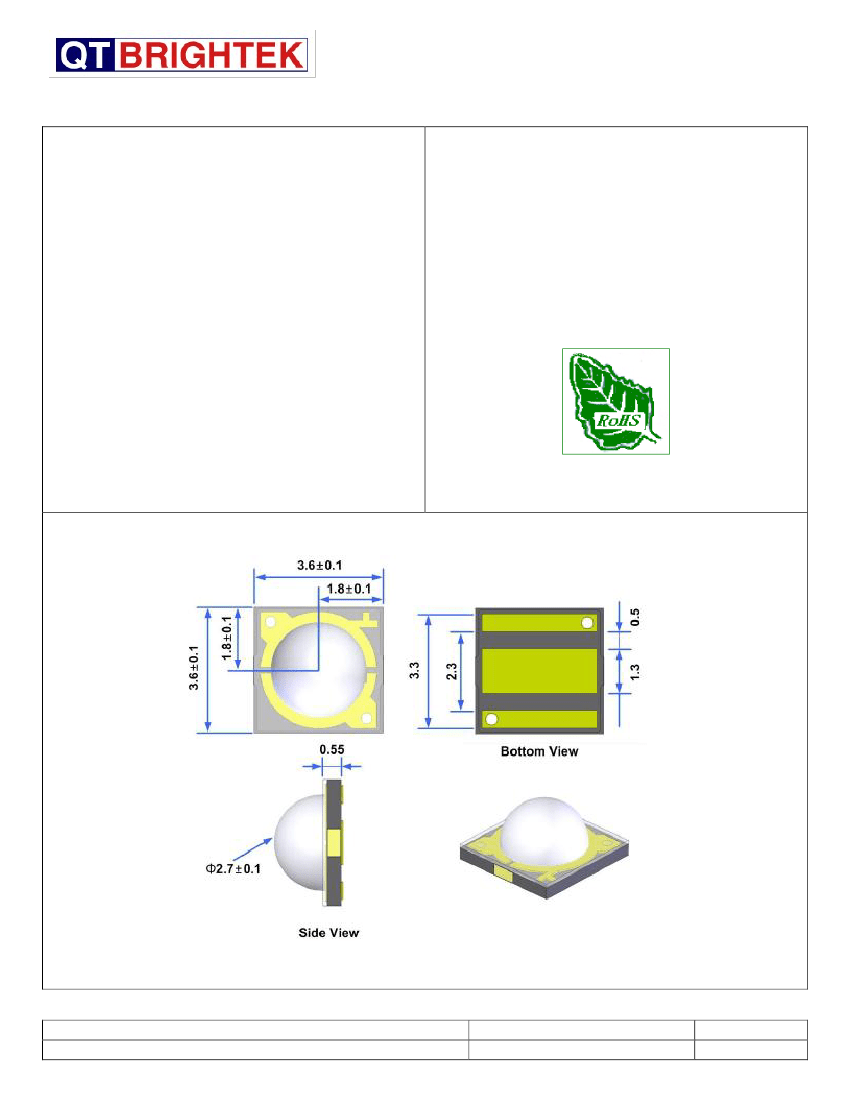

tline Dimensions:
Units: mm / tolerance = +/-0.1mm
Product: QBHP684U-IRU
Date: June 26, 2014
Version# 1.3
Page 3 of 9
QBHP684U-IRU
1.0W High Power IR LED
---------------------------------------------------------------------------------------------------------------------------------------

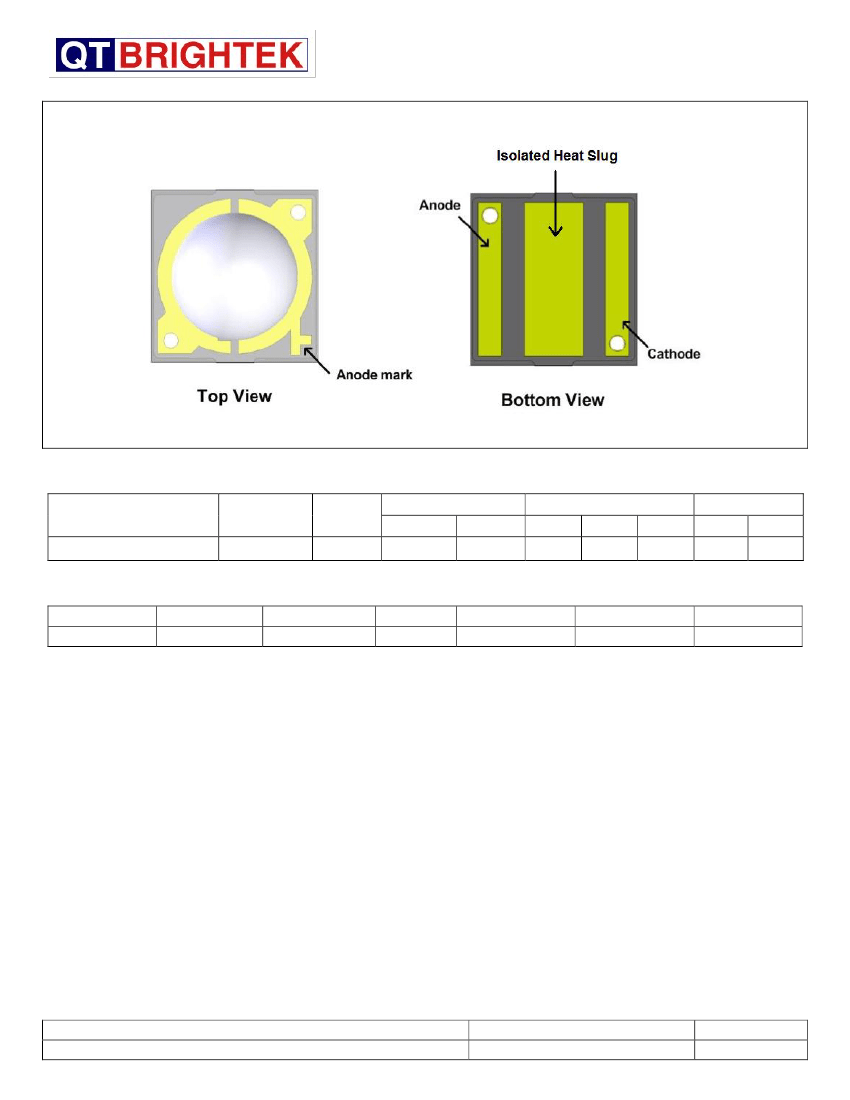

Pad Configurations:
Electrical / Optical Characteristic (Ta=25
o
C)
Product Number
QBHP684U-IRU
Color
Infrared
I
F
(mA)
350
V
F
(V)
Typ.
Min.
1.4
1.6
λ
p
(nm)
Min. Typ. Max.
840
850
860
P
o
(mW)
Min. Typ.
200
250
Absolute Maximum Rating
P
d
(W)
I
F
(mA)
I
FP
(mA)
1.4
700
1000
*Duty 1/10 @ 0.1ms Pulse Width
V
R
(V)
5
T
OP
(
o
C)
-40 to +85
T
ST
(
o
C)
-40 to +100
T
SOL
(
o
C)
240
Product: QBHP684U-IRU
Date: June 26, 2014
Version# 1.3
Page 4 of 9
