T311020 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > T311020

Preview

T311020: DescriptionALL DIMENSIONS IN MM [INCH]; File Size162KB，1 Pages; ManufacturerE-Switch; Websitehttp://www.e-switch.com

Download Datasheet View All

T311020 Overview

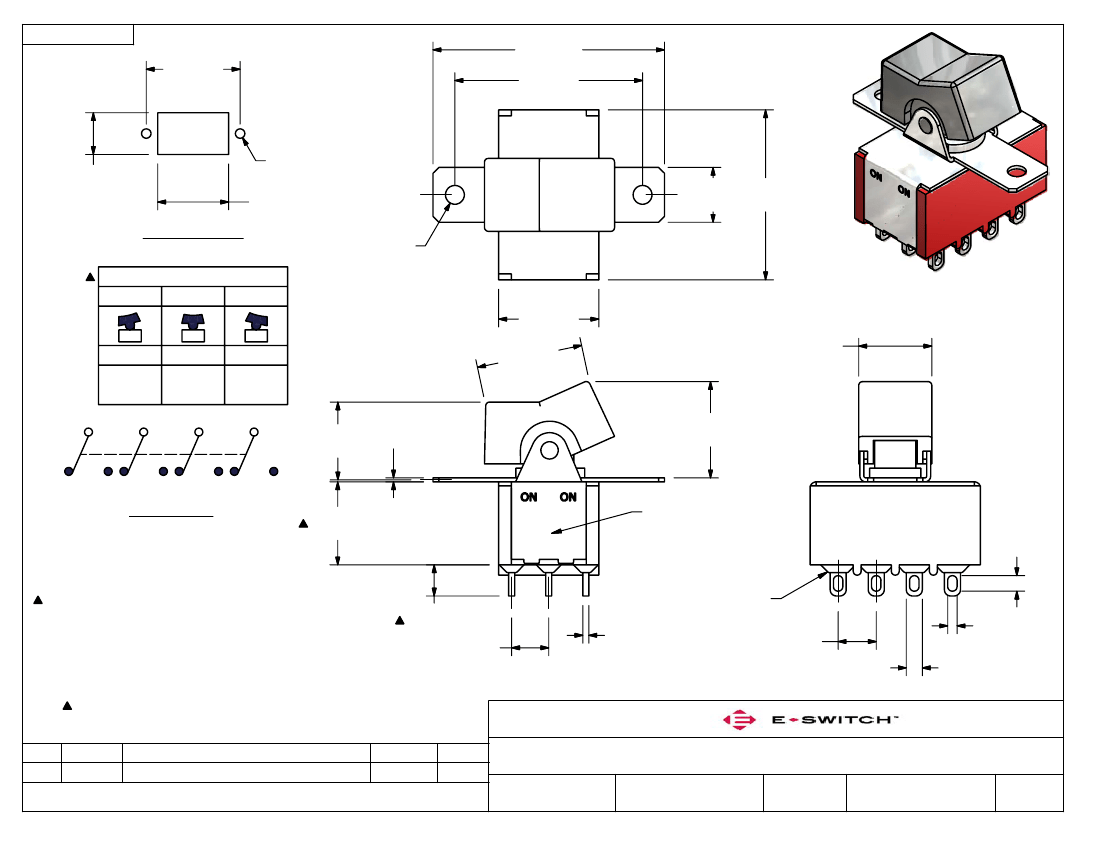

ALL DIMENSIONS IN MM [INCH]

Preview

Download Datasheet

View All

SHEET 1 OF 1

23.80

[.937 in]

29.36

[1.156 in]

23.80

[.937 in]

10.62

[.418 in]

2.39

[.094 in]

17.96

[.707 in]

PANEL MOUNTING

2.39

6.98

21.59

[.275 in] [.850 in]

[.094 in]

SWITCH FUNCTION

POS. 1

POS. 2

POS. 3

12.70

[.500 in]

2-3, 5-6,

8-9, 11-12

ISOMETRIC

13.49

[.531 in]

9.27

[.365 in]

NONE

N/A

2-1, 5-4,

8-7, 11-10

.50

9.77

[.020 in]

[.385 in]

12.37

[.487 in]

9 10

CIRCUIT: 4PDT

NOTE:

1. ALL DIMENSIONS IN MM [INCH]

2. GENERAL TOLERANCE: X.X=±0.4

X.XX=±0.25

3. TERMINAL NUMBERS FOR REF ONLY

4. PLATING MATERIAL: SILVER

5. RATING: 2A @250 VAC

5A @120 VAC OR 28 VDC

6. ELECTRIC LIFE: 40,000 MAKE-AND-BREAK CYCLES

AT FULL LOAD.

7. INSULATION RESISTANCE: 1,000 M

Ω

MIN.

8. DIELECTRIC STRENGTH: 1,000 V RMS @SEA LEVEL.

9. OPERATING TEMP.: -30°C to 85°C

10.

DENOTES CRITICAL PARAMETER.

11. 2002/95/EC (ROHS) COMPLIANT

REV

17466

PCR NO

REVISED AND REDRAWN

DESCRIPTION

11.21

[.441 in]

E-SWITCH

MARKING ON

OPPOSITE SIDE

1.98

[.078 in]

3.96

[.156 in]

4.70

[.185 in]

.76

[.030 in]

EPOXY SEAL

1.19

[.047 in]

4.83

[.190 in]

2.03

[.080 in]

7/13/07

DATE

TITLE

SCALE

3004P1R1BLKM1QE

2:1

DATE

DWG

REV

THE INFORMATION CONTAINED IN THIS DOCUMENT IS PROPRIETARY

TO E-SWITCH AND IS NOT TO BE COPIED OR TRANSFERRED

7/13/2007

T311020
