DCRO211217-5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> DCRO211217-5

DCRO211217-5: DescriptionVOLTAGE CONTROLLED OSCILLATOR; CategoryPassive components oscillator; File Size417KB，3 Pages; ManufacturerSYNERGY; Websitehttp://www.synergymwave.com/

Download Datasheet Parametric View All

DCRO211217-5 Overview

VOLTAGE CONTROLLED OSCILLATOR

DCRO211217-5 Parametric

Parameter Name	Attribute value
Maker	SYNERGY
package instruction	ROHS COMPLAINT PACKAGE-16
Reach Compliance Code	compli
Maximum control voltage	4.5 V
Minimum control voltage	0.5 V
Modulation sensitivity	40 MHz/V
Installation features	SURFACE MOUNT
offset frequency	10 kHz
Maximum operating frequency	2170 MHz
Minimum operating frequency	2110 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	VOLTAGE CONTROLLED OSCILLATOR
Output Power	-1.5 dBm
phase noise	-108 dBc/Hz
physical size	12.7mm x 12.7mm x 4.57mm
Maximum slew rate	25 mA
Nominal supply voltage	5 V
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

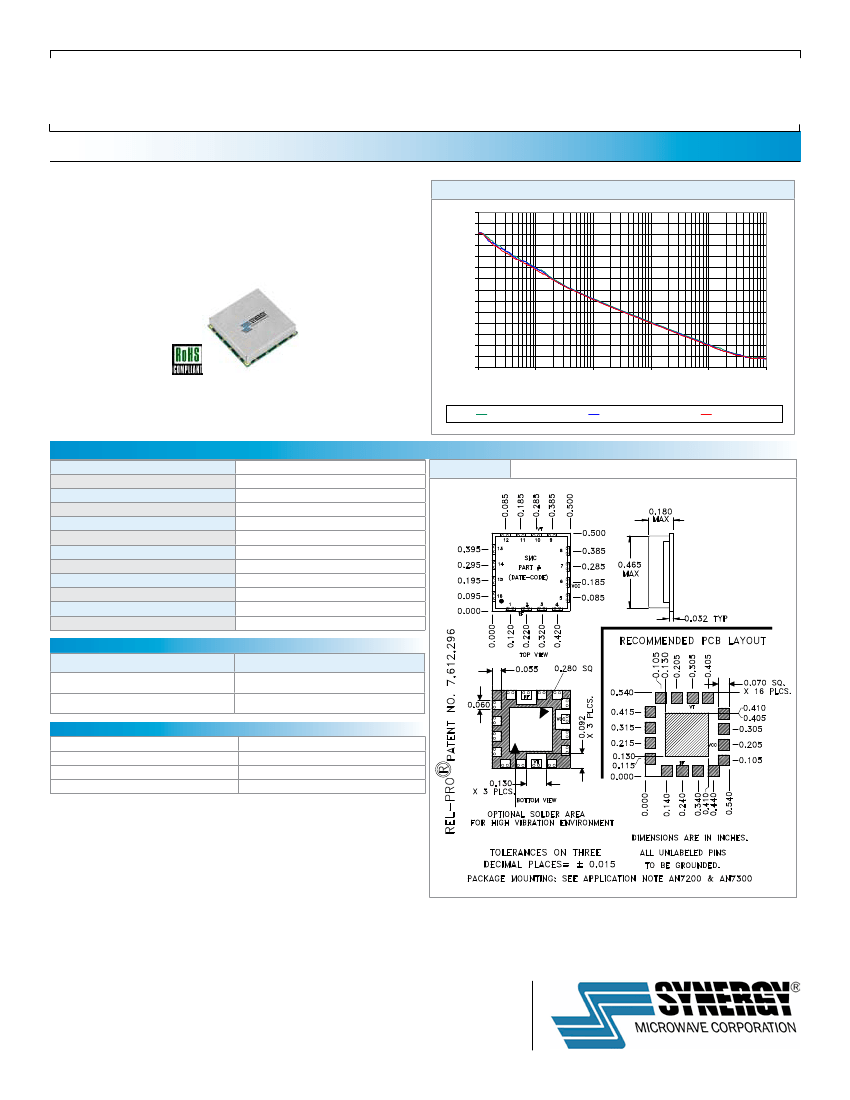

VOLTAGE CONTROLLED OSCILLATOR

SURFACE MOUNT MODEL:

DCRO211217-5

OPTIMIZED BANDWIDTH

FEATURES:

►

Exceptional Phase Noise Performance

►

Small Size, Surface Mount

►

Lead Free Patented REL-PRO

Technology

►

Planar Resonator Construction

Phase Noise

-30

-40

-50

-60

2110 - 2170 MHz

Phase Noise (dBc/Hz)

-70

-80

-90

-100

-110

-120

-130

-140

-150

-160

-170

100

1000

10000

100000

1000000

10000000

Offset Frequency (Hz)

2110.1 MHz

2143.4 MHz

2170.1 MHz

SPECIFICATIONS (Rev. B 08/27/08)

Frequency

Tuning Voltage

Bias Voltage

Output Power

Tuning Sensitivity

Output Impedance

Harmonic Suppression

Frequency Pulling

Frequency Pushing

Tuning Port Capacitance

Phase Noise @ 10 kHz

Operating Temperature Range

Guaranteed Tuning Specifications

Tuning Voltage ( V )

0.5

4.5

Absolute Maximum Ratings

Storage Temp. Range

Bias Voltage

Tuning Voltage

DC Voltage Applied to RF Out

Frequency ( MHz )

2110 (Max.)

2170 (Min.)

2110 - 2170 MHz

See table below.

+5 VDC @ 25 mA (Max.)

-1.5 dBm (Min.)

30 - 40 MHz/V (Typ.)

50 Ohms (Nom.)

30 dB (Typ.)

3 MHz (Typ. @ 1.75:1 VSWR)

0.5 MHz/V (Typ.)

50 pF (Typ.)

-108 dBc/Hz (Typ.)

-40 to +85 °C

Package #

278LF

-55 to +125 ºC

+5.5 V

+7.0 V

±25 V

This product is manufactured under one or more of the following patents. Approved: 5,160,810; 5,122,621; 5,390,349; 5,416,449; 5,650,754; 5,805,431; 6,525,623; 6,850,575;

7,088,189; 7,180,381; 7,196,591; 7,262,670; 7,265,642; 7,292,113; 7,365,612; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 7,580,693; 7,586,381; 7,605,670; 7,636,021; 2,533,623

| Pending: 60/493075; 60/501371 & 60/501790; 60/527957 & 60/528670; 60/563481; 60/564173; 60/589090; 60/601823; 60/605791; EV31369834; 11/259766; 60/622485 &

60/710310; 10/937525/60/736901; 60/732787; 7,495,525; 2,548,311; 2,548,317; 7,545,229; 2,563,174; 7,580,693; 7,612,296; 2,524,751

201 McLean Boulevard • Paterson, New Jersey 07504 USA • Tel: (973) 881-8800 • Fax: (973) 881-8361

E-Mail: sales@synergymwave.com • World Wide Web: http://www.synergymwave.com

[ 1 of 3 ]
